DESCRIPTION
-P1 Transistor Tester Diode Triode Capacitance Resistance JFET, Meter3356
1. Intelligent anti-burn design: Uncharged capacitors automatically discharge after being inserted, with a humanized protection mechanism to prevent damage.
2. Data export: Supports connecting to a computer to export data, and easily transfers the collected measurement data for further in-depth analysis on the computer.

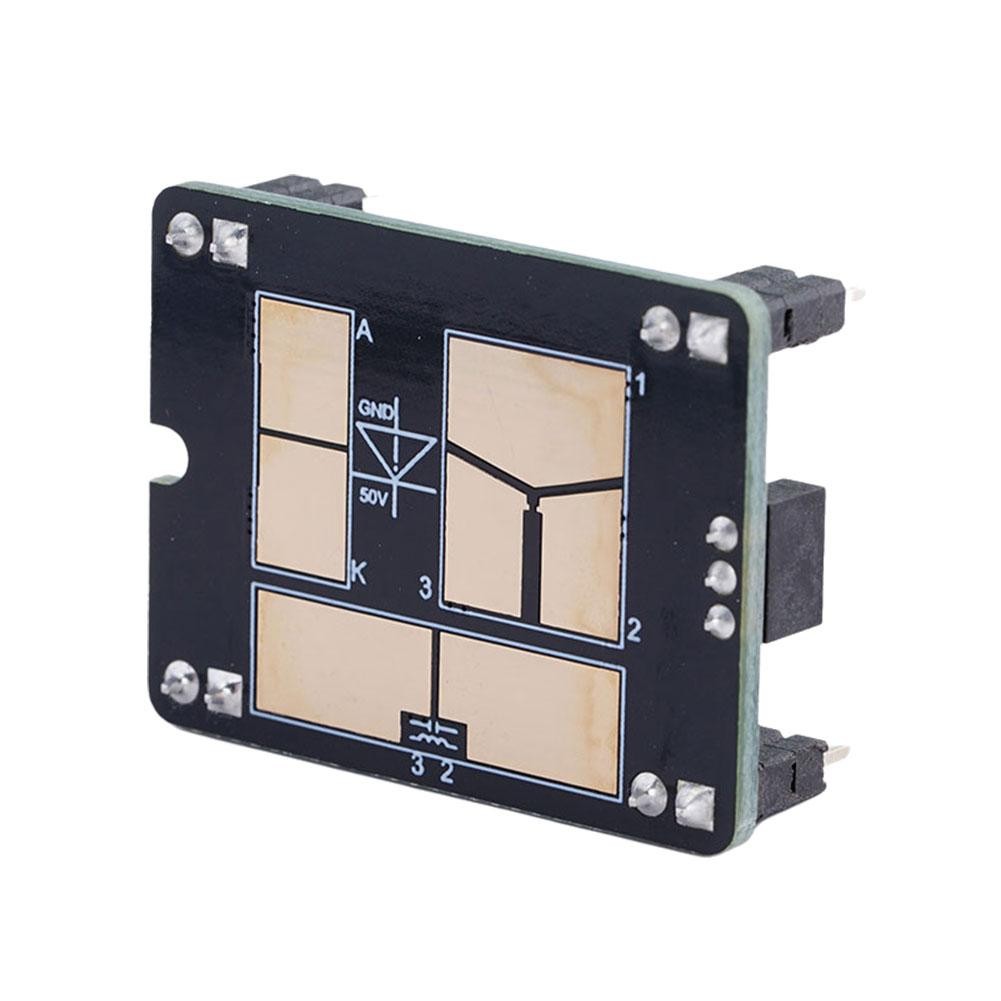

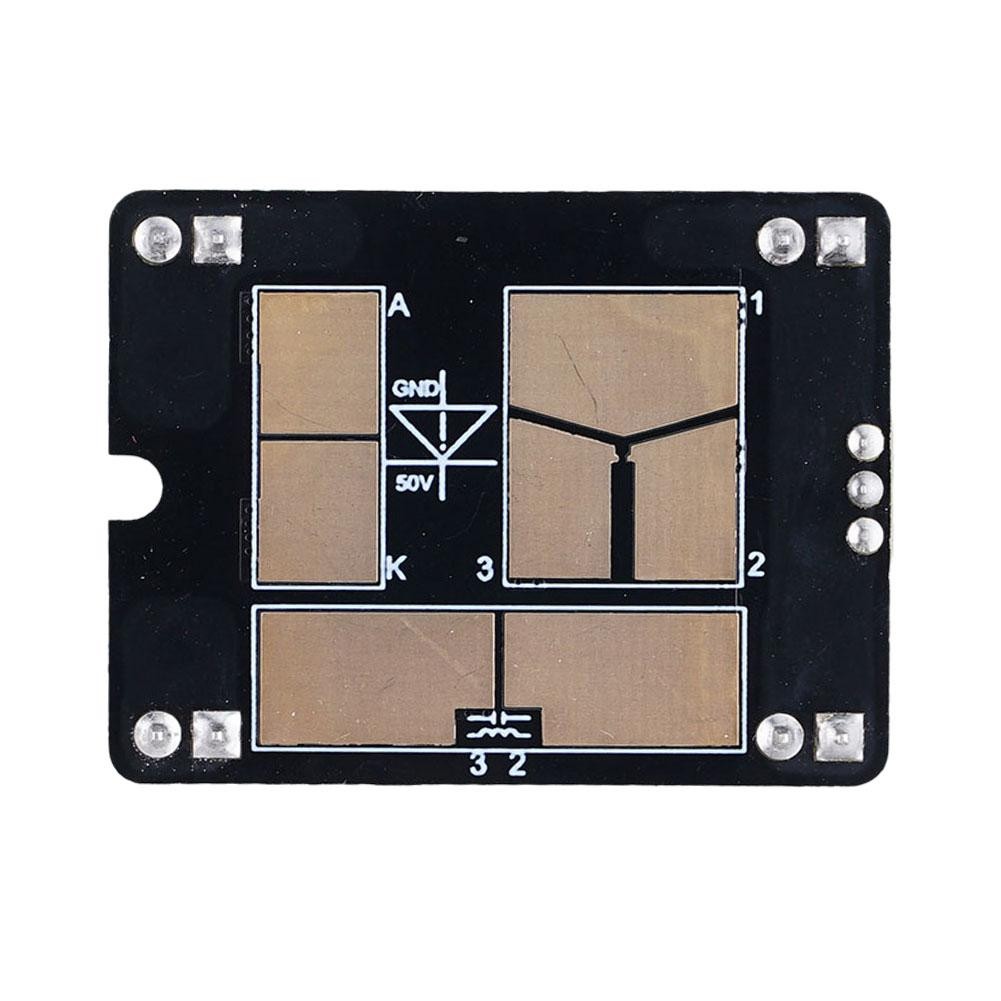

3. Multiple measurement modes: The innovative use of replaceable test boards can easily cope with diverse testing needs, bringing unprecedented convenience and efficiency.
4. Intelligent component identification: simple plug-in and pull-out, quickly identify component parameters with one click, saving time and effort.
5. measurement of the zener diode: The measurement diode has an measurement channel, and the predicted power supply is used to measure 0.01-32V, and the result is accurate.

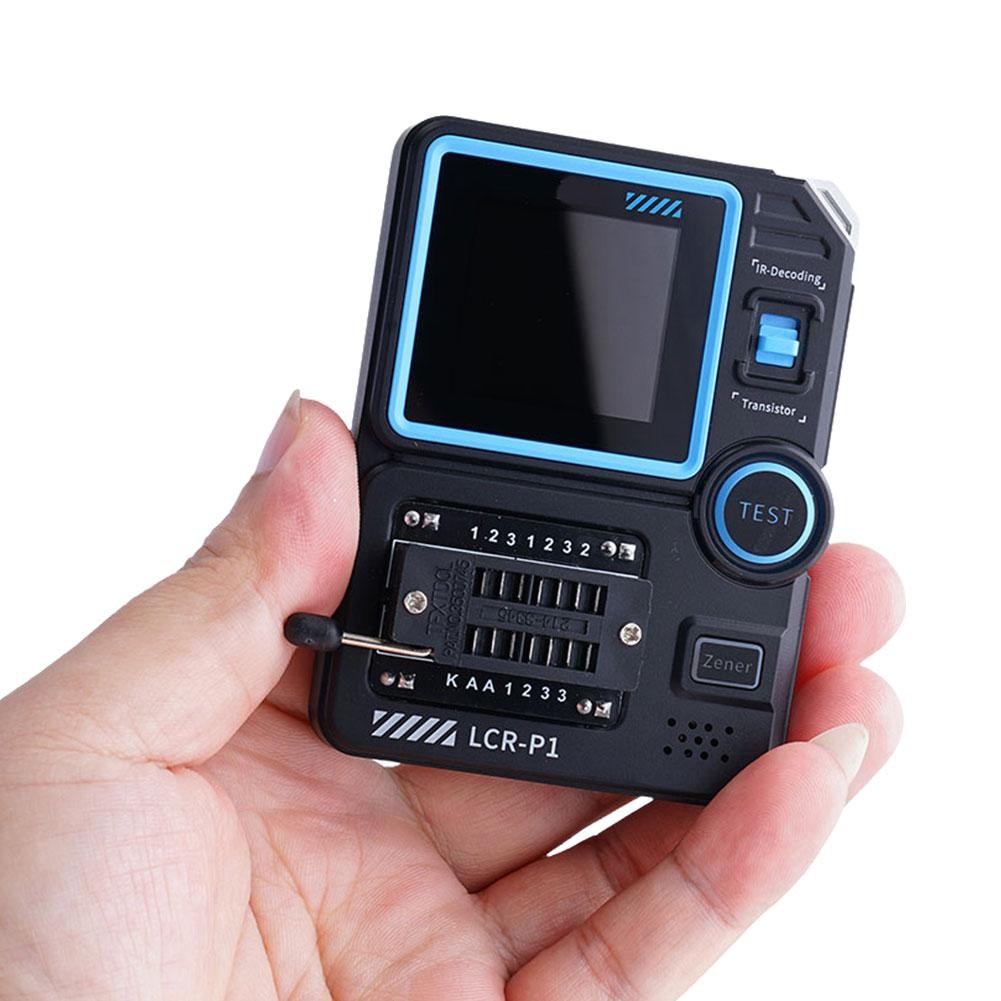

The -P1 transistor tester is a high-, multi-functional electronic testing equipment specially designed for electronic engineers, technicians and enthusiasts. This equipment is used to detect and analyze transistors, diodes, and triodes. It is equipped with a color screen. It can perform multi-parameter measurements on various devices, automatically identify the type and pin arrangement of the device under test, simplify the operation process, and improve test efficiency.
Product model:-P1

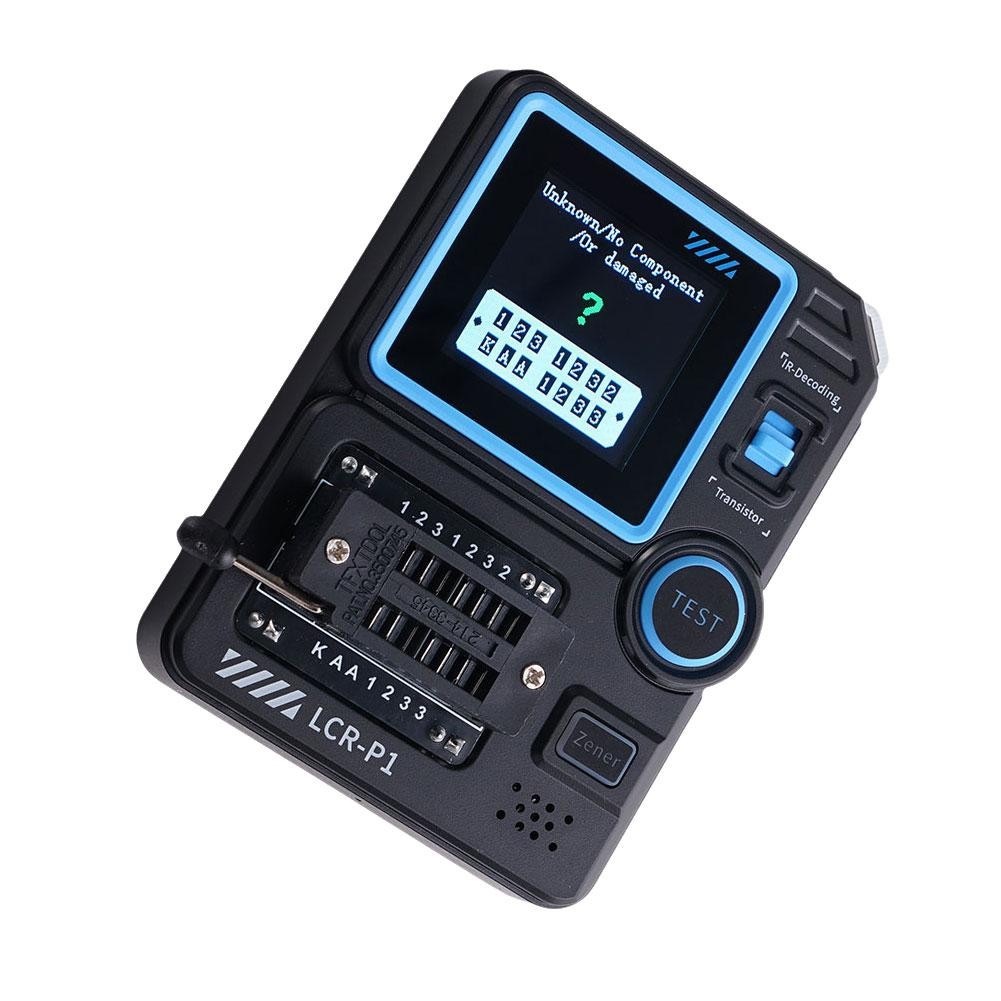

Screen display:1.44-inch color screen
Charging specifications:USB Type-C,5V/1A
Power supply:300mAh lithium battery
Working temperature:0-40℃
Resistance:0.01Ω-50MΩ
Capacitance:25pF100mF
Inductance:10uH-1000uH
Diode: forward voltage drop 4.5V
Zener diode:0.01-4.5V,0.01-32V
Field effect transistors:JFET,IGBT,MOSFET
Unidirectional/bidirectional thyristor:turn-on voltage 5V,gate trigger current 6mA
Battery:0.1-4.5V
IR remote control decoding: protoc
