DESCRIPTION
Voltage Regulator Module Multi-Input -1.2V/1.5V/1.8V/2.5V/3.3V/5.0V T7H3

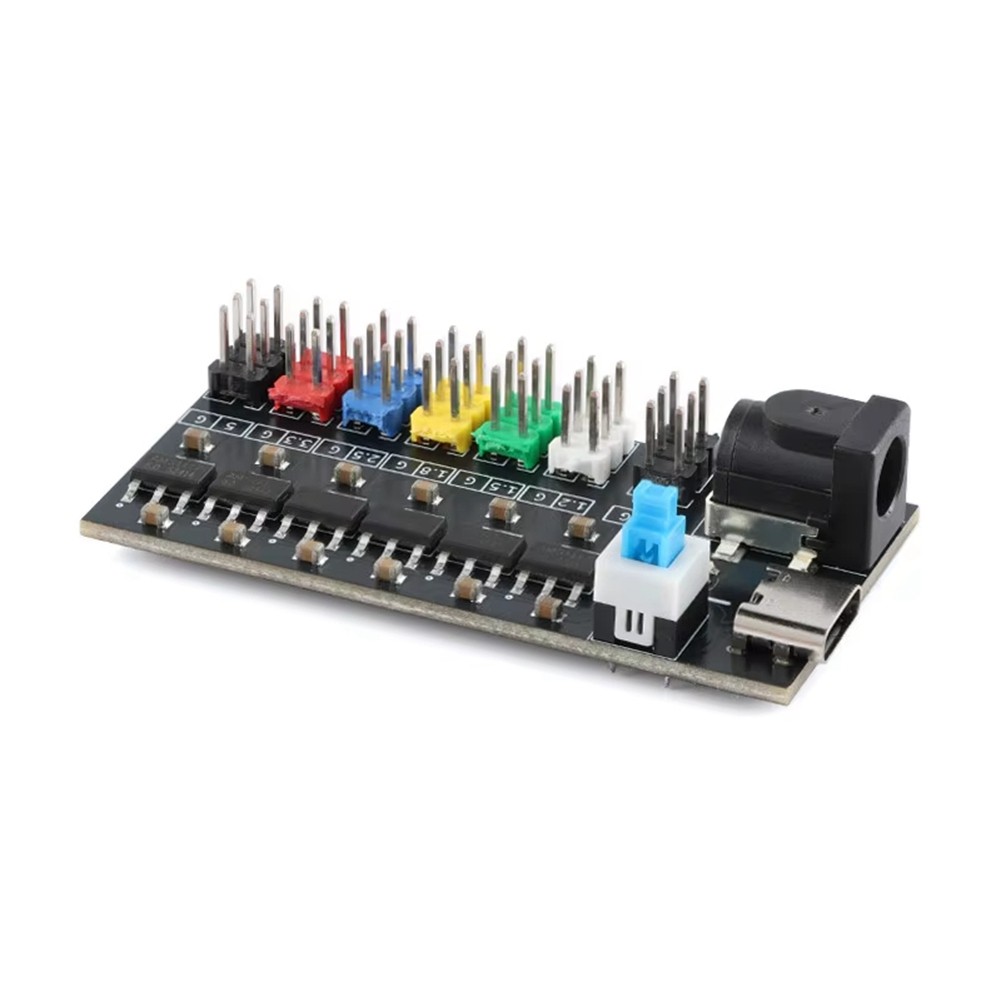

This module is a multi-input, multi-output power supply voltage regulator module. The module can meet the needs of multiple loads with the same power supply, and the onboard power indicator indicates whether the power is turned on.
3-way input interface, 7-way output interface, each output interface has 3 identical outputs, which is convenient for connection during experiments. In order to stable output, it is necessary to maintain a voltage difference of more than 1.5V
Multiple input: Pad/Type-C/DC socket (compatible with DC5.5 * 2.1/2.5 female heads)
Attention: The input voltage must be at least 1.5V higher than the output voltage
Pin description:
VIN input positive pole
Type-C/DC socket input
VIN/1.2/1.5/1.8/2.5/3.3/5 output positive pole
G input/output negative pole
Note: The output VIN can also be used as input
Color: Black
Material: PCB+components
Package Contents:
1 * Power Voltage Regulator Module
