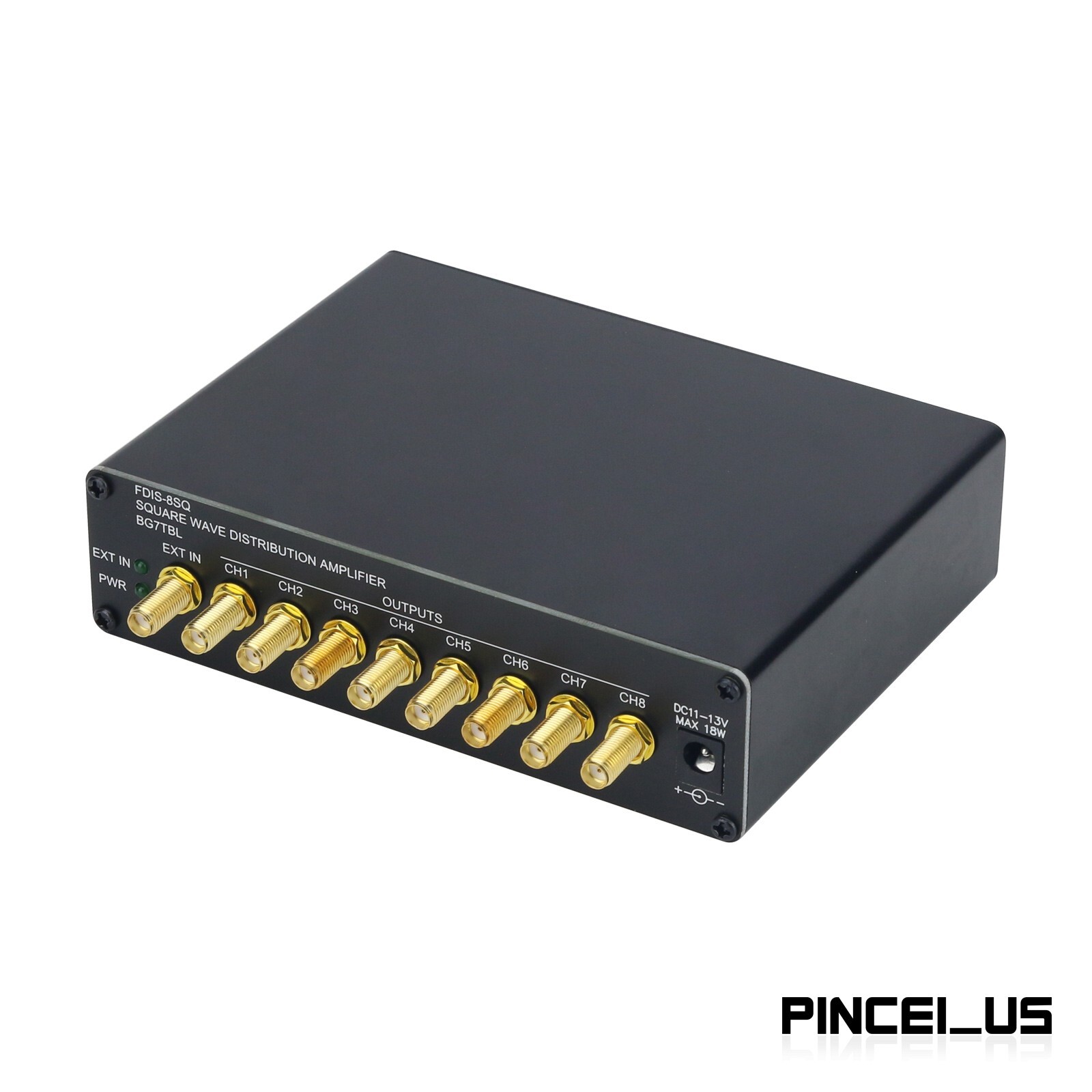

0 - 5Vpp FDIS-8SQ 8-Channel Clock Distributor Square Wave Distribution Amplifier with SMA Connector
Specification:
- Model: FDIS-8SQ
- Power supply: DC11.7 - 12.9V, maximum 18W, 5.5/2.1 socket
- Input: external AC coupling, 0.5Hz-200MHz, 0.1Vpp-5Vpp
DC coupling, DC-200MHz, DC component 2.5V, 3.3Vpp-5Vpp
- Output: 8 channel, square wave, 0-5Vpp
- Input/output port: SMA

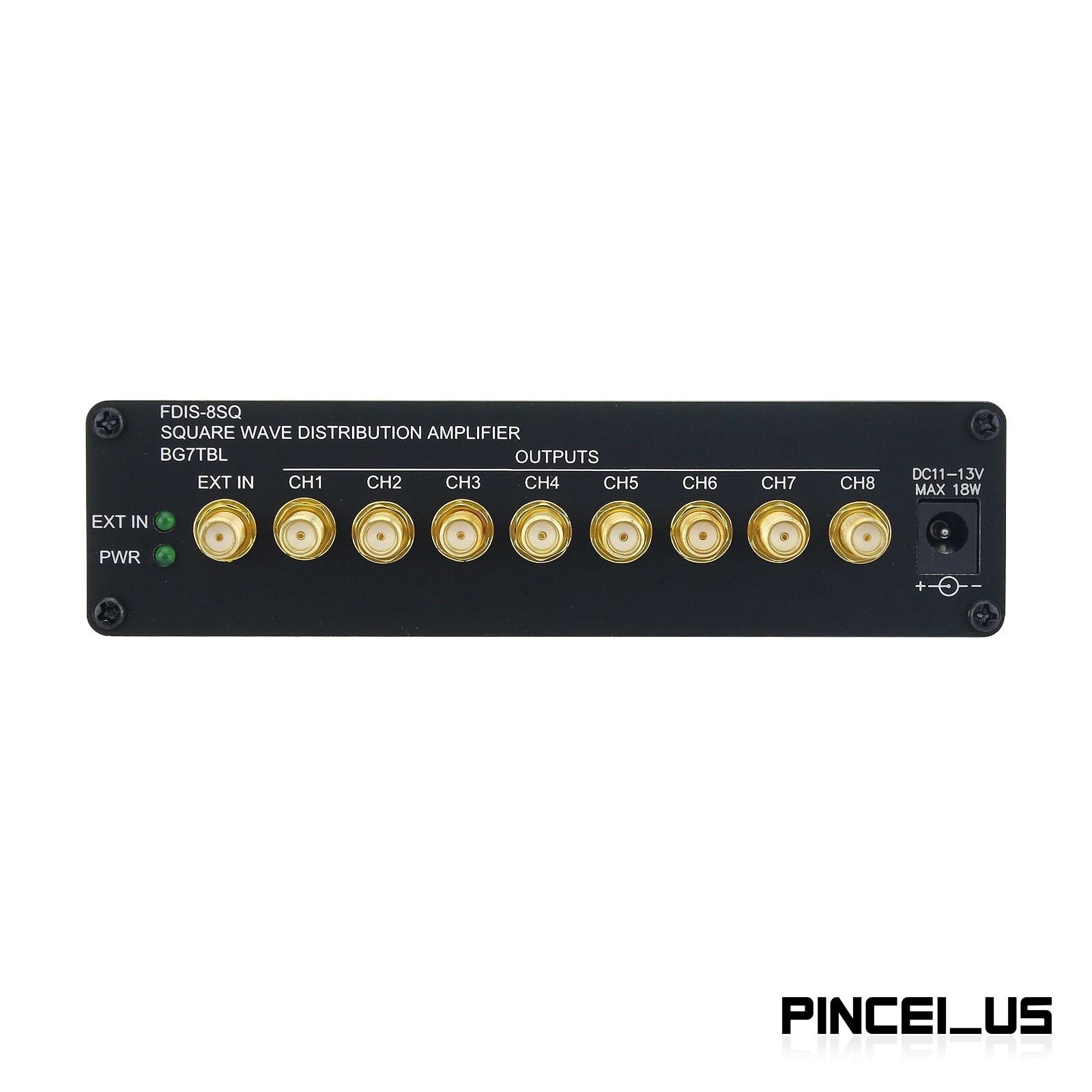

- LED: PWR: Power indicator
EXT IN: external input signal indicator, it is always bright if the output signal >5Hz, otherwise it will flash or turn off.
- Size: 140 x 42 x 125 (includes the SMA connector)
- Net weight: 400g
FAQ:
Q: What is this?
A: This is a frequency distribution amplifier and a OCXO frequency standard. It can input external signals and then output 8-port signals.
Q: What is the main purpose?
A: For example, you have a 100M frequency reference and you have to provide a reference for 5 instruments separately. In this case, you can use this amplifier.
Q: What does the 3 indicators do?
A: PWR: the power indicator. As long as the power is connected, the light will be on, used to check whether the power supply part is good. EXT IN: this light is on, indicating that the output is an external input signal. ALM: When this light is on, it indicates no signal output or equipment failure. 3 seconds of power-on and 3 seconds of power-off are not counted.
Package Included:
- 1 x Host
- 1 x Power Adapter (AC110-220V - DC12V/1A)
Specification:
- Model: FDIS-8SQ
- Power supply: DC11.7 - 12.9V, maximum 18W, 5.5/2.1 socket
- Input: external AC coupling, 0.5Hz-200MHz, 0.1Vpp-5Vpp
DC coupling, DC-200MHz, DC component 2.5V, 3.3Vpp-5Vpp
- Output: 8 channel, square wave, 0-5Vpp
- Input/output port: SMA
- LED: PWR: Power indicator
EXT IN: external input signal indicator, it is always bright if the output signal >5Hz, otherwise it will flash or turn off.
- Size: 140 x 42 x 125 (includes the SMA connector)
- Net weight: 400g
FAQ:
Q: What is this?
A: This is a frequency distribution amplifier and a OCXO frequency standard. It can input external signals and then output 8-port signals.
Q: What is the main purpose?
A: For example, you have a 100M frequency reference and you have to provide a reference for 5 instruments separately. In this case, you can use this amplifier.
Q: What does the 3 indicators do?
A: PWR: the power indicator. As long as the power is connected, the light will be on, used to check whether the power supply part is good. EXT IN: this light is on, indicating that the output is an external input signal. ALM: When this light is on, it indicates no signal output or equipment failure. 3 seconds of power-on and 3 seconds of power-off are not counted.
Package Included:
- 1 x Host
- 1 x Power Adapter (AC110-220V - DC12V/1A)
