Description:
The 53C700-66 is a high-performance Fast SCSI controller IC from Symbios Logic, designed for SCSI-2 compliant systems. It integrates advanced bus mastering and DMA capabilities to enable efficient, high-speed data transfer while minimizing CPU load.
Specifications:
Manufacturer: Symbios Logic
Part Number: 53C700-66
Type: SCSI Controller IC
SCSI Standard: Fast SCSI (SCSI-2)
Maximum Transfer Rate: up to 10 MB/s
Clock Frequency: 66 MHz
Interface: Host Bus with DMA support
Technology: CMOS
Package: PQFP
Pin Count: 160 Pins
Mounting Type: Surface Mount
Features:
-
SCSI-2 (Fast SCSI) compliant
-
Integrated DMA controller (bus mastering)
-
Reduces CPU overhead during data transfer
-
Supports high-speed data communication
-
Reliable performance for legacy and industrial systems
-
Designed for storage and embedded applications
Pin Functions (Overview):
-
SCSI Bus Signals: DB0–DB7, parity, control lines (REQ, ACK, ATN, SEL, BSY, RST, MSG, C/D, I/O)
-
Host Interface: Address/Data bus, Read/Write, Chip Select
-
DMA Interface: Bus request/grant signals
-
Interrupt Output: IRQ for system communication
-
Clock Input: System timing reference
-
Power Pins: VCC and GND
Applications:
-
SCSI hard disk and tape controllers
-
Industrial computers and embedded systems
-
Legacy servers and workstations
-
Storage interface solutions
Package: PQFP-160 (160-pin Quad Flat Package)

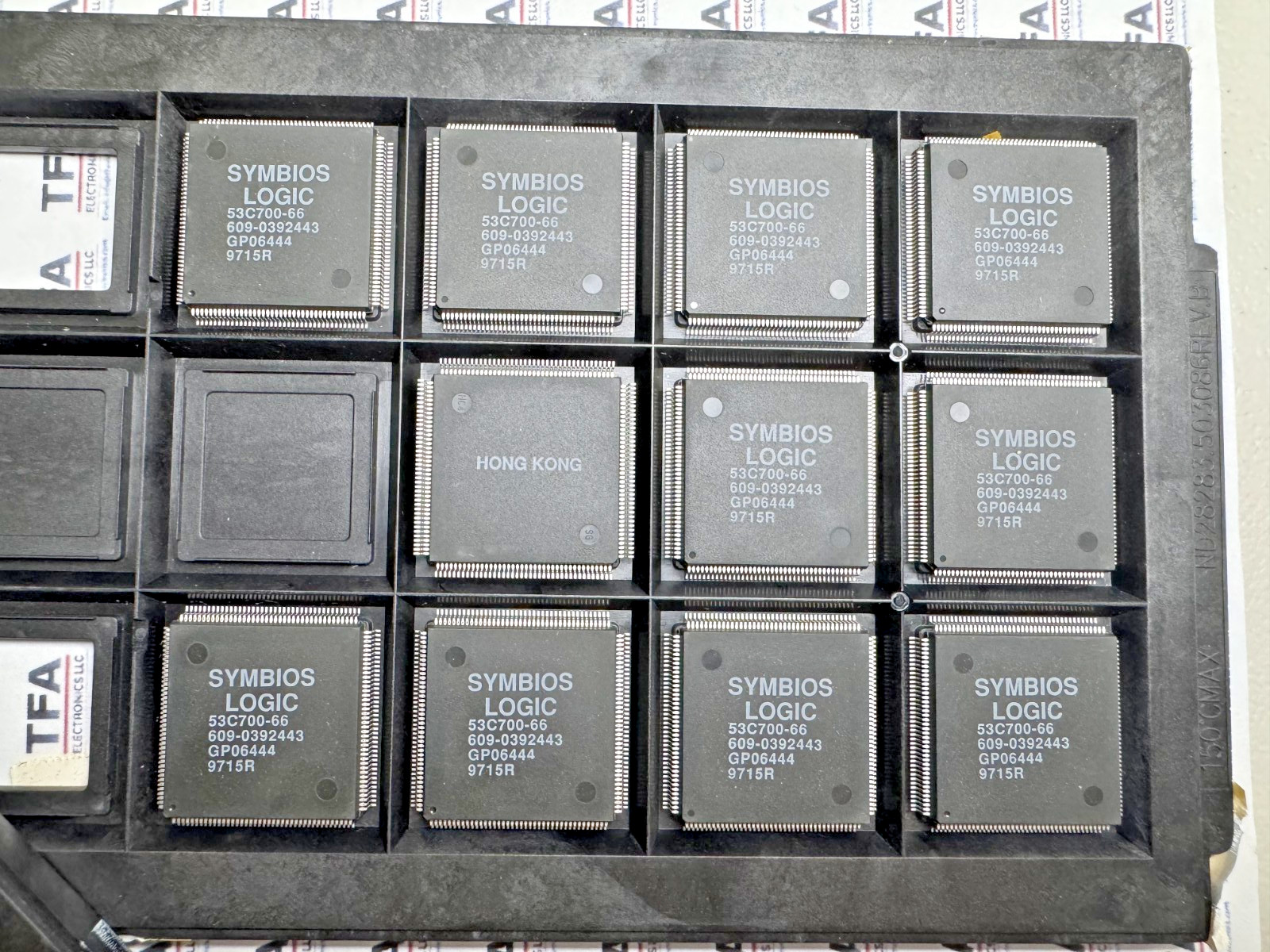

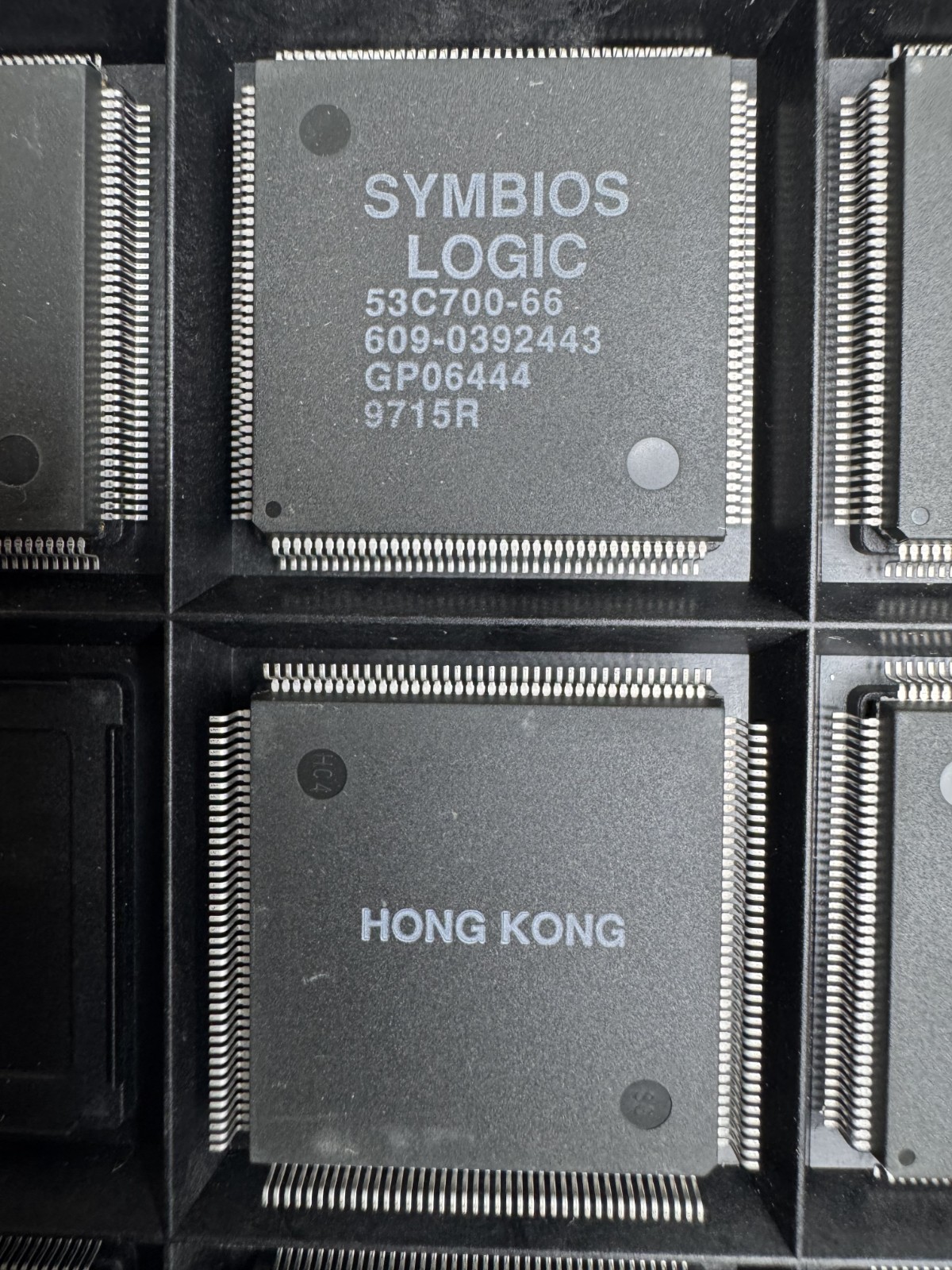

Condition: New / from bulk or original stock (see photos)
