Description:

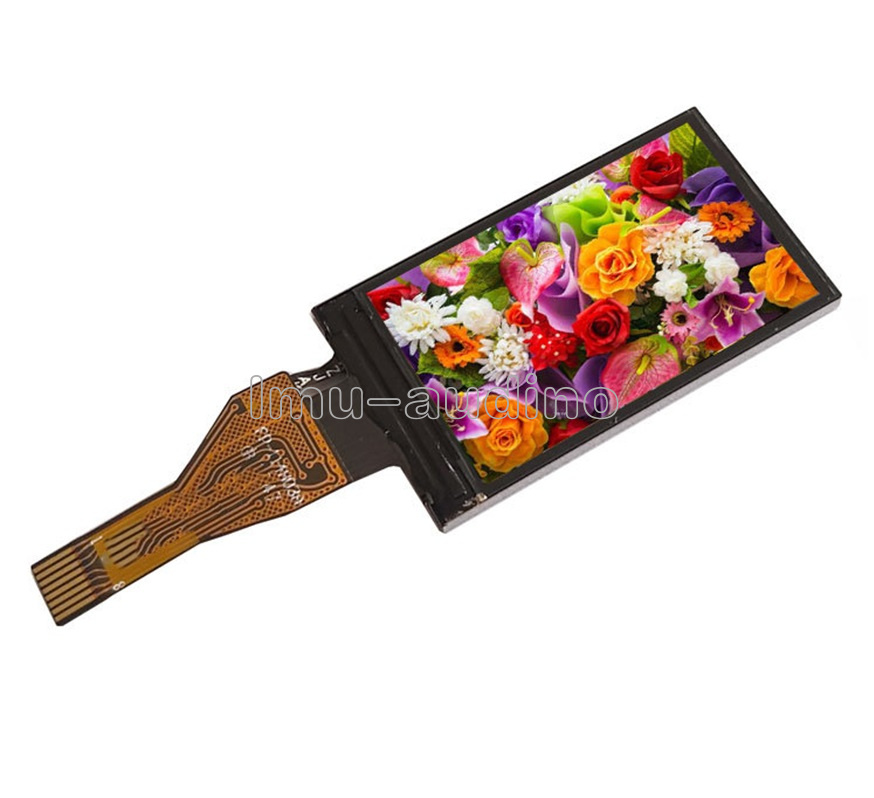

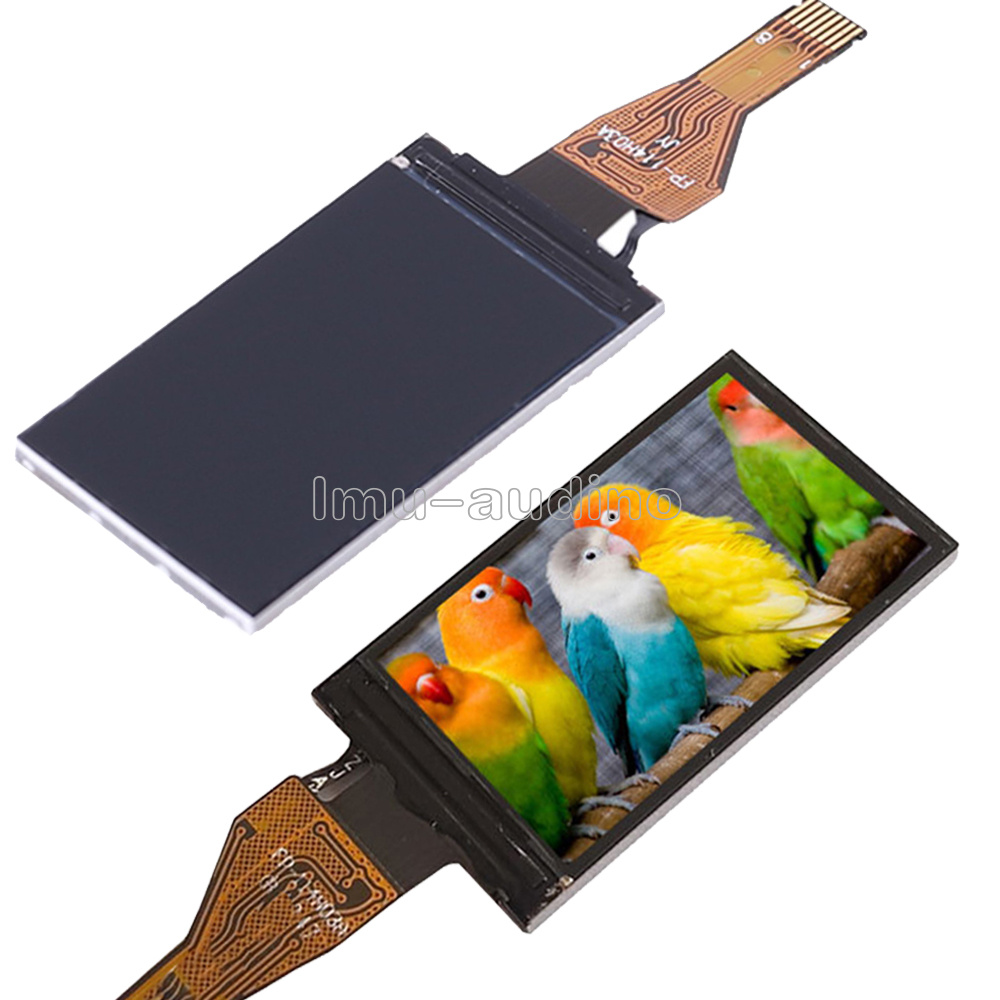

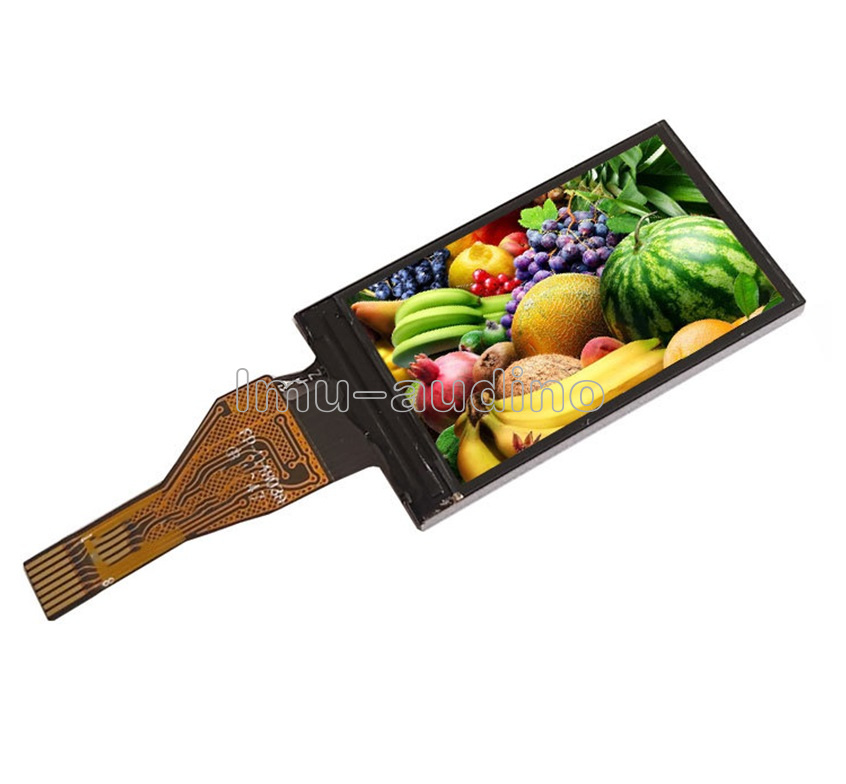

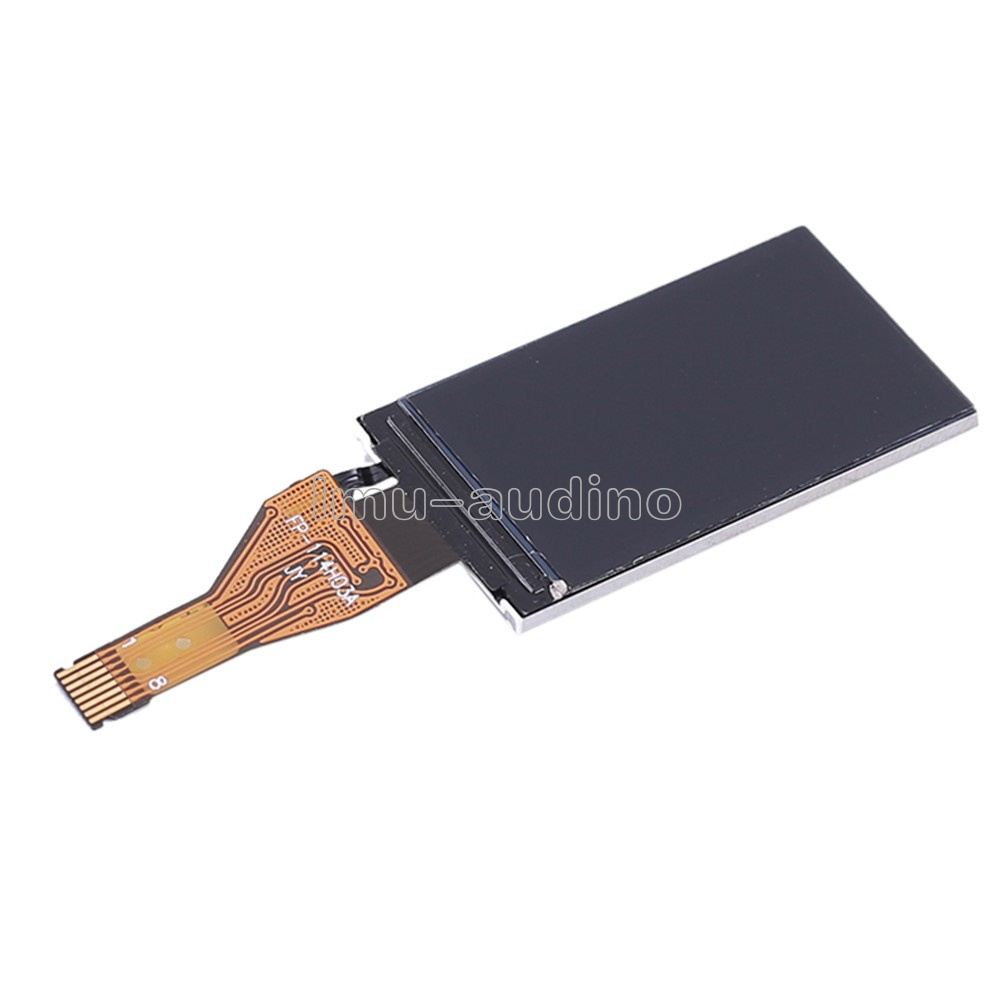

- It is a 1.14inch 135*240 IPS LCD Display Screen.
- It uses IPS color display screen and the display effect is more vivid than ordinary TFT LCD effect.
Features:
1>.IPS color display screen
2>.4Pin SPI communication
3>.Adjustable display direction
4>.Full viewing angle display
Parameters:
1>.Product Name:1.14inch 135*240 IPS LCD Display Screen
2>.Material:IPS color display screen
3>.Resolution:135*240
4>.Driver Chip:ST7789
5>.Display Size:1.14inch
6>.Display area:14.864*24.912mm

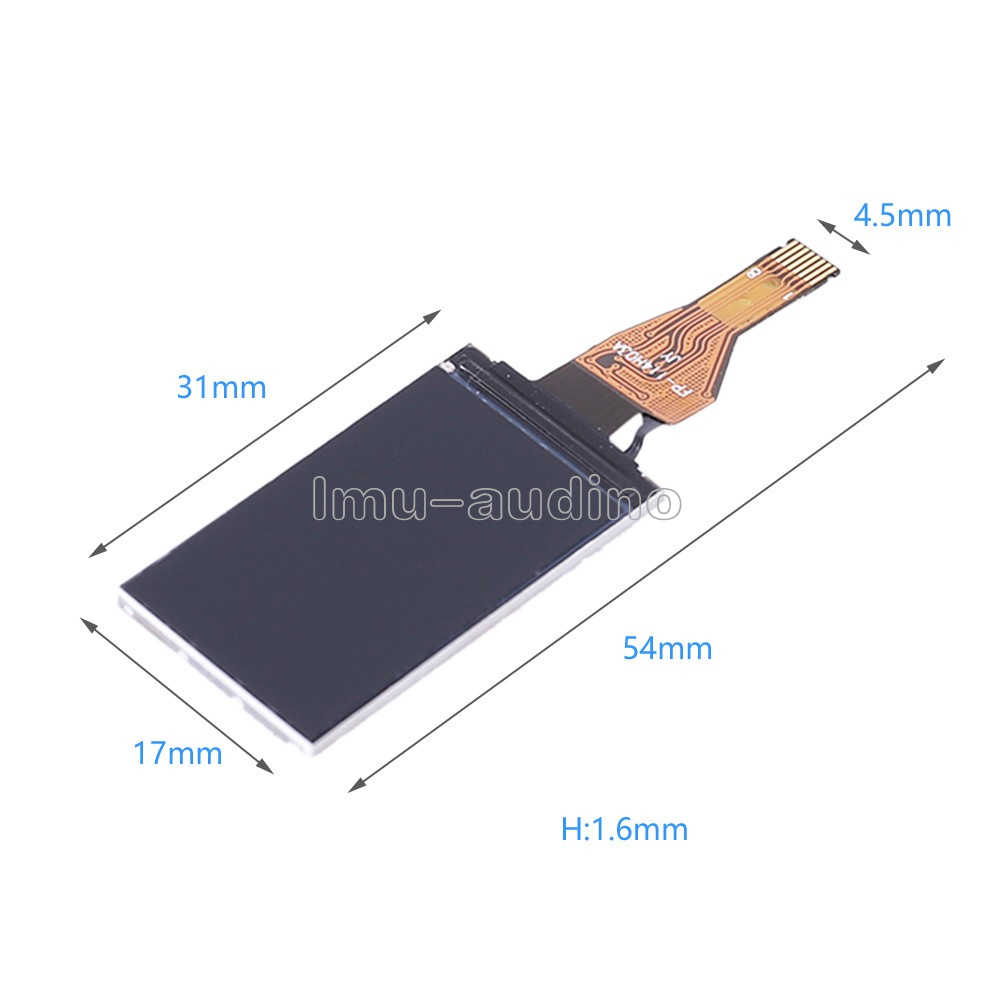

7>.Panel size:17.6*31.0*1.6mm
8>.Interface type:4-Pin SPI
9>.Work voltage:3.3V
10>.Pins:0.5mm 8Pin
11>.View:Full viewing angle display
12>.Working Temperature range:-20℃~70℃
13>.Working Humidity Range:5%-95%RH
Pin Definition:
1>.Pin-1:LEDA
2>.Pin-2:GND
3>.Pin-3:RESET
4>.Pin-4:RS
5>.Pin-5:SDA
6>.Pin-6:SCL
7>.Pin-7:CS
Application:
1>.Instrument display
2>.Mobile devices
3>.Wearable display device
4>.Real-time monitoring and display equipment
Package:
1>. 1pc * 1.14inch 135*240 IPS LCD Display Screen
