10 Way Damper Adjustable Rear Shocks Reservoir 0-1" Lift For Hummer H2 2003-2009
Enhanced Nitrogen Reservoir Design
Dual Compression/Rebound Damping Adjustment
Advanced Surface Engineering

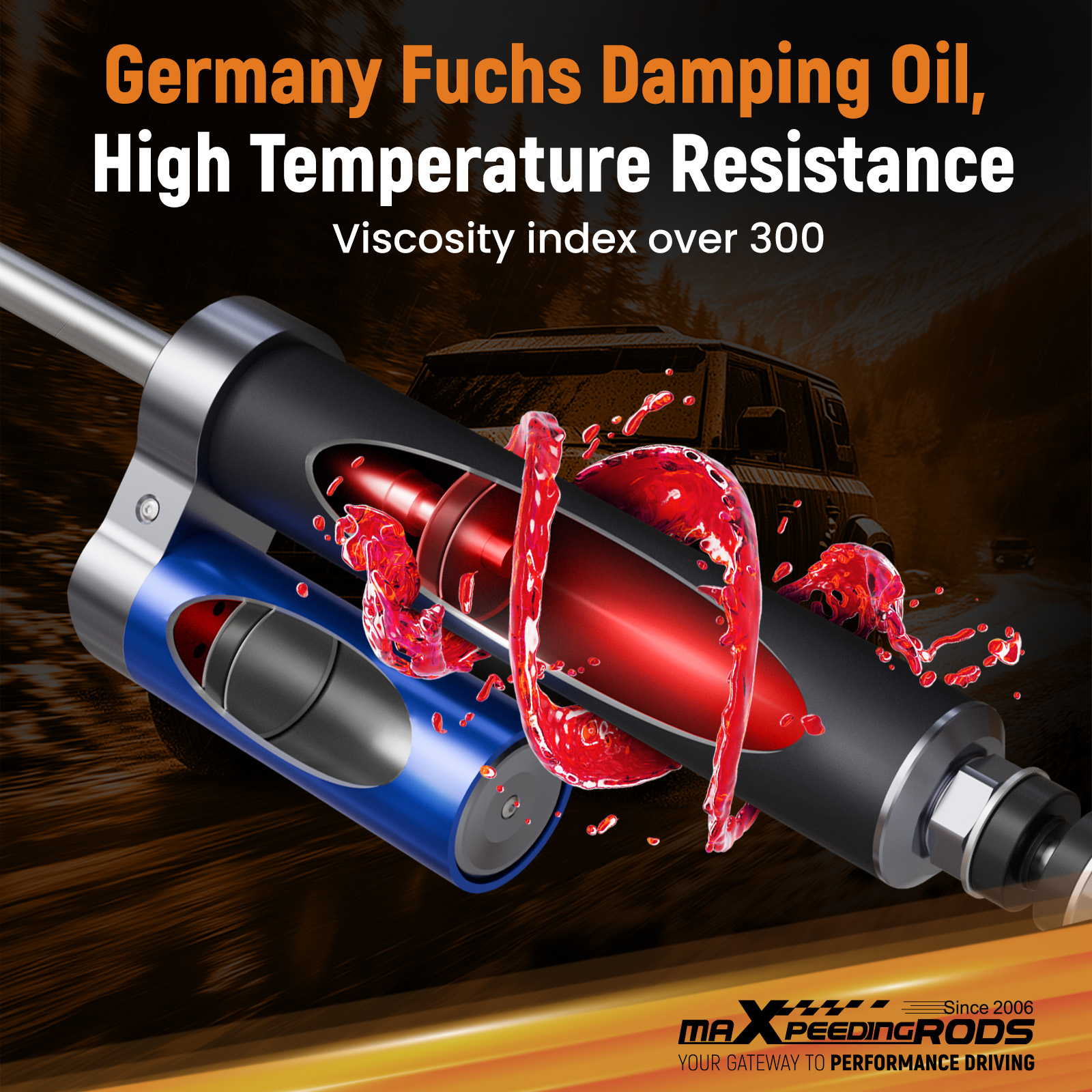

Germany Fuchs Damping oil
Specifications
| Body OD | 65mm |
| ID Bore Size | 57mm |
| Height adjustable | Yes. Lift 0-1 inch |
| Reservoir Dimensions | Φ65×160 mm |
| Compressed Length | 242.5 mm |
| Extended Length | 242.5 mm |
| Body Material | 45# steel |
| Body Outer Diameter | 65*328 mm |
| Reservoir Type | Piggyback |
| Warranty | 2 Years |
MaXpeedingrods X3 Series Remote-Reservoir Shocks
The upgraded system enhances the off-road capabilities of SUVs and pickup trucks through an innovative external nitrogen reservoir with oil-gas separation technology. The optimized design includes an expanded gas compression chamber for improved shock stroke efficiency, as well as an enlarged oil chamber that increases fluid capacity while enhancing heat dissipation and fade resistance. With precisely engineered dual compression/rebound damping adjustability, the system maintains vehicle stability across diverse terrains by dynamically adapting to both high-frequency vibrations and sustained impacts through advanced thermodynamic management.
Features
1. Enhanced Nitrogen Reservoir Design

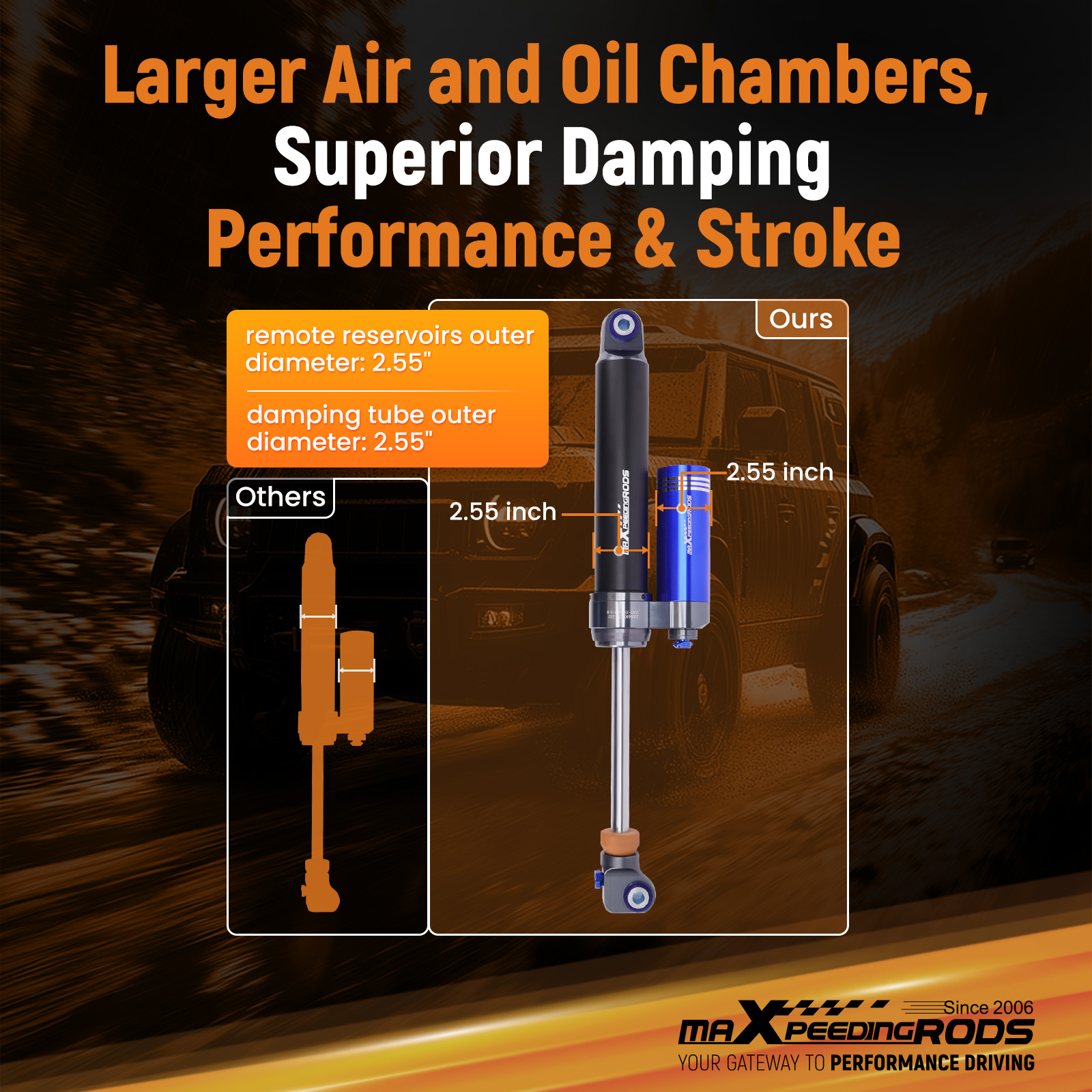

The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.
2. Dual-Mode Adjustability
A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.
3. Oversized Damping Architecture
The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.
4. Advanced Surface Engineering

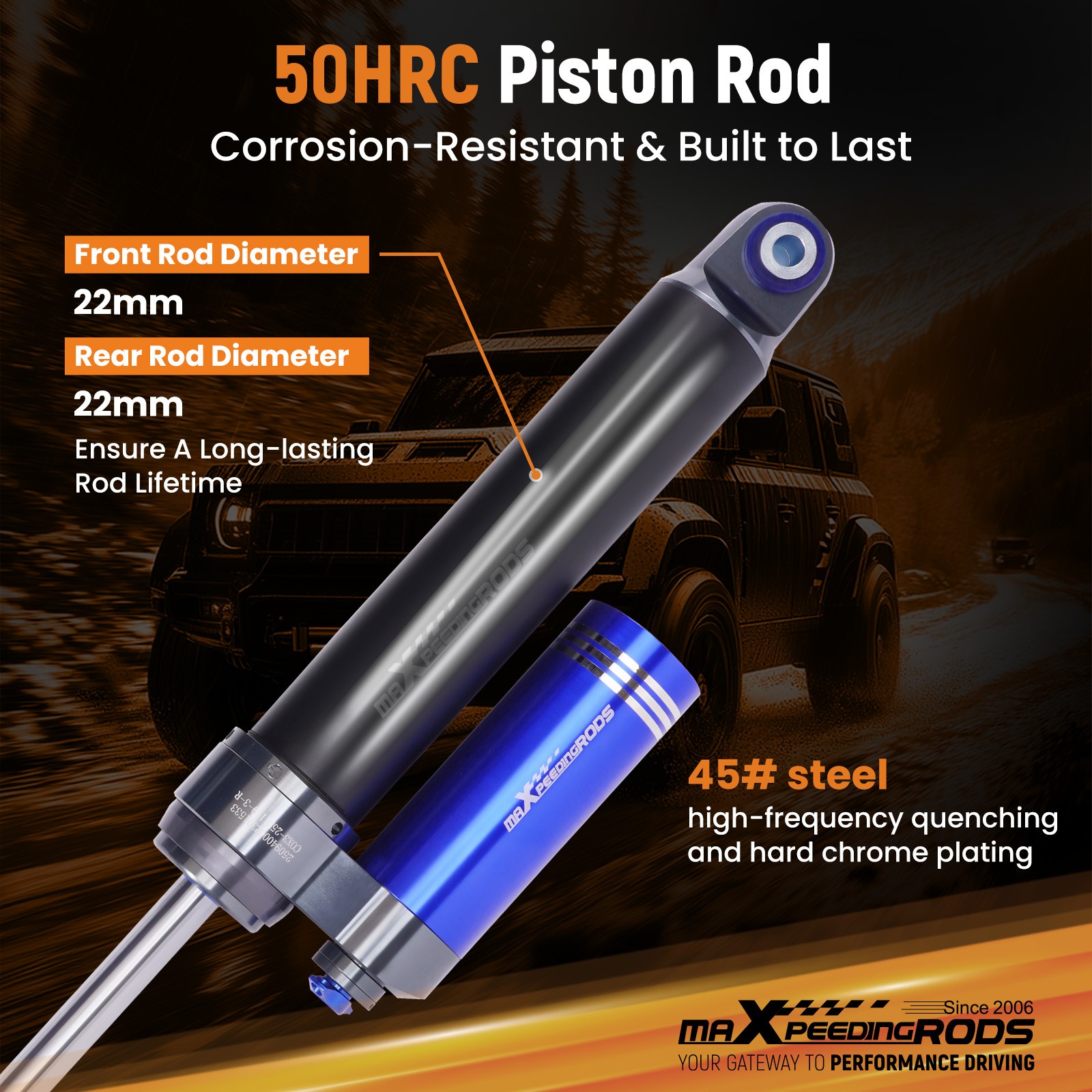

High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminum maintains structural integrity while achieving weight reduction.

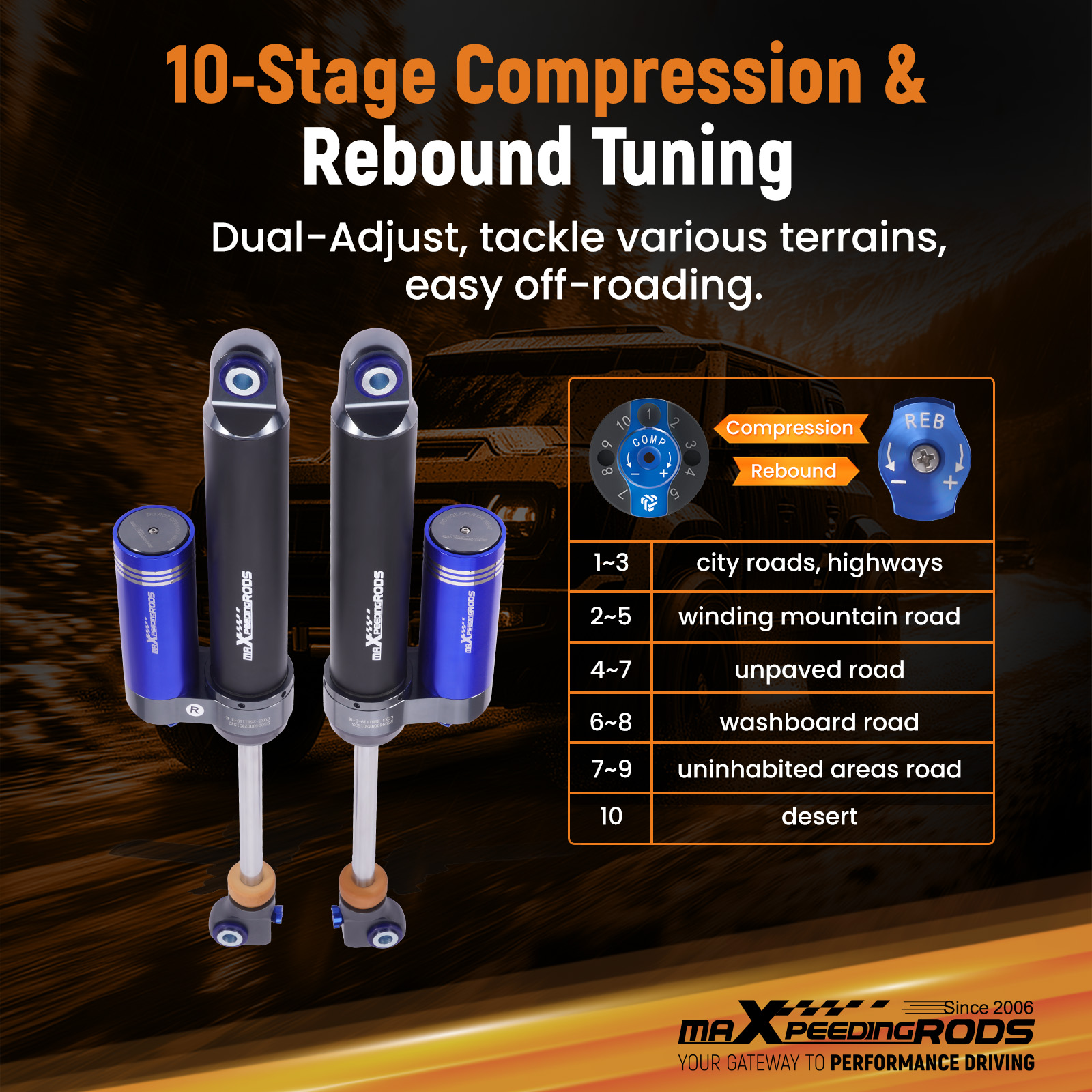

5. Dual Compression/Rebound Damping Adjustment
The X3 Series features synchronized compression and rebound damping tuning capabilities, with terrain-specific recommendations provided for optimal setting combinations across diverse operating conditions (e.g., high-speed gravel, rock crawling, paved-road cruising).
Application
For Chevrolet Avalanche 2500 2002-2006
For Chevrolet Silverado 1500 HD 2001-2003 & 2005-2006
For Chevrolet Silverado 1500 HD Classic 2007
For Chevrolet Silverado 2500 1999-2004
For Chevrolet Silverado 2500 HD 2001-2019
For Chevrolet Silverado 3500 2001-2006
For Chevrolet Silverado 3500 HD 2007-2019
For Chevrolet Suburban 2500 2000-2013
For GMC Sierra 1500 HD 2001-2003 & 2005-2006
For GMC Sierra 1500 HD Classic 2007
For GMC Sierra 2500 1999-2004
For GMC Sierra 2500 HD 2001-2019
For GMC Sierra 2500 HD Classic 2007
For GMC Sierra 3500 2001-2006
For GMC Sierra 3500 HD 2007-2019
For GMC Yukon XL 2500 2000-2013
For Hummer H2 2003-2009
Specification
- Height adjustable: rise 0-1 inches
- Body Outer Diameter (mm):65*328
- Body Inner Diameter (mm):57*328
- Body Material:45# steel
-Top Mount:EYELET BUSHING
- Bottom Mount:EYELET BUSHING
- Compressed Length (mm):242.5
- Extended Length (mm):242.5
- Reservoir Outer Dimensions:Φ65×160
- Reservoir Inner Dimensions:Φ57×160
- Reservoir Type:Piggyback
- Shaft Size (mm):360
- Travel (mm): 242.5
- Type:SHOCK
- Valving:Adjustable Compression and Rebound
Package included
Rear shocks*2
Instructions*1
★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
