DESCRIPTION

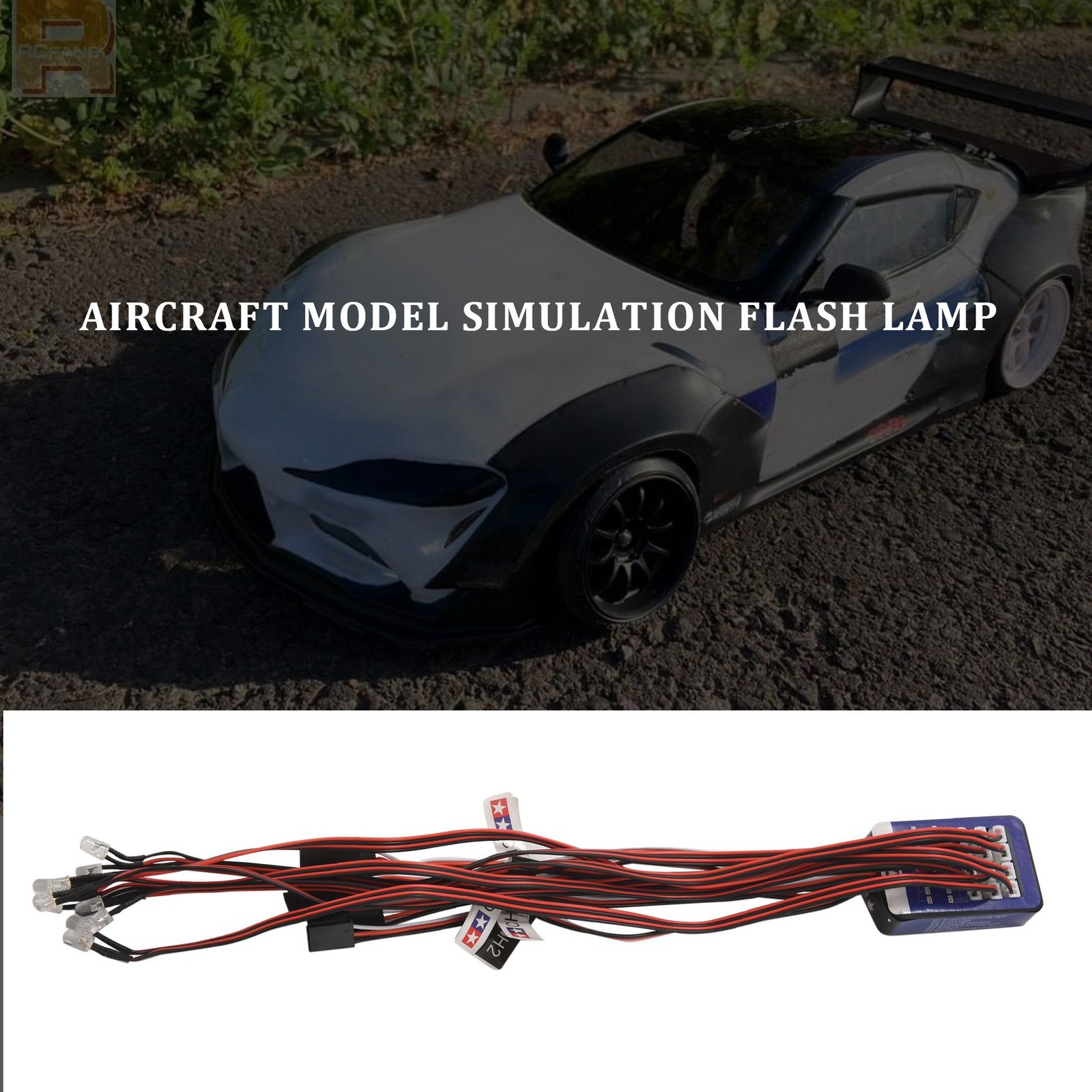

12 LED Lighting Kit Steering Brake Simulation Flash Light for 1/10 Scale1322
Use: Vehicles & Remote Control Toys; Material: Composite Material; color:blue; RC Parts & Accs: Crystals; Four-wheel Drive : Assemblage; Tool Supplies: Assembly Category; For Vehicle Type:Cars
Model Number: for 1/10 ; Technical parameters: Value 2; Upgrade Parts/Accessories: LED Lighting; Remote Control Peripherals/Devices: LED Lighting;

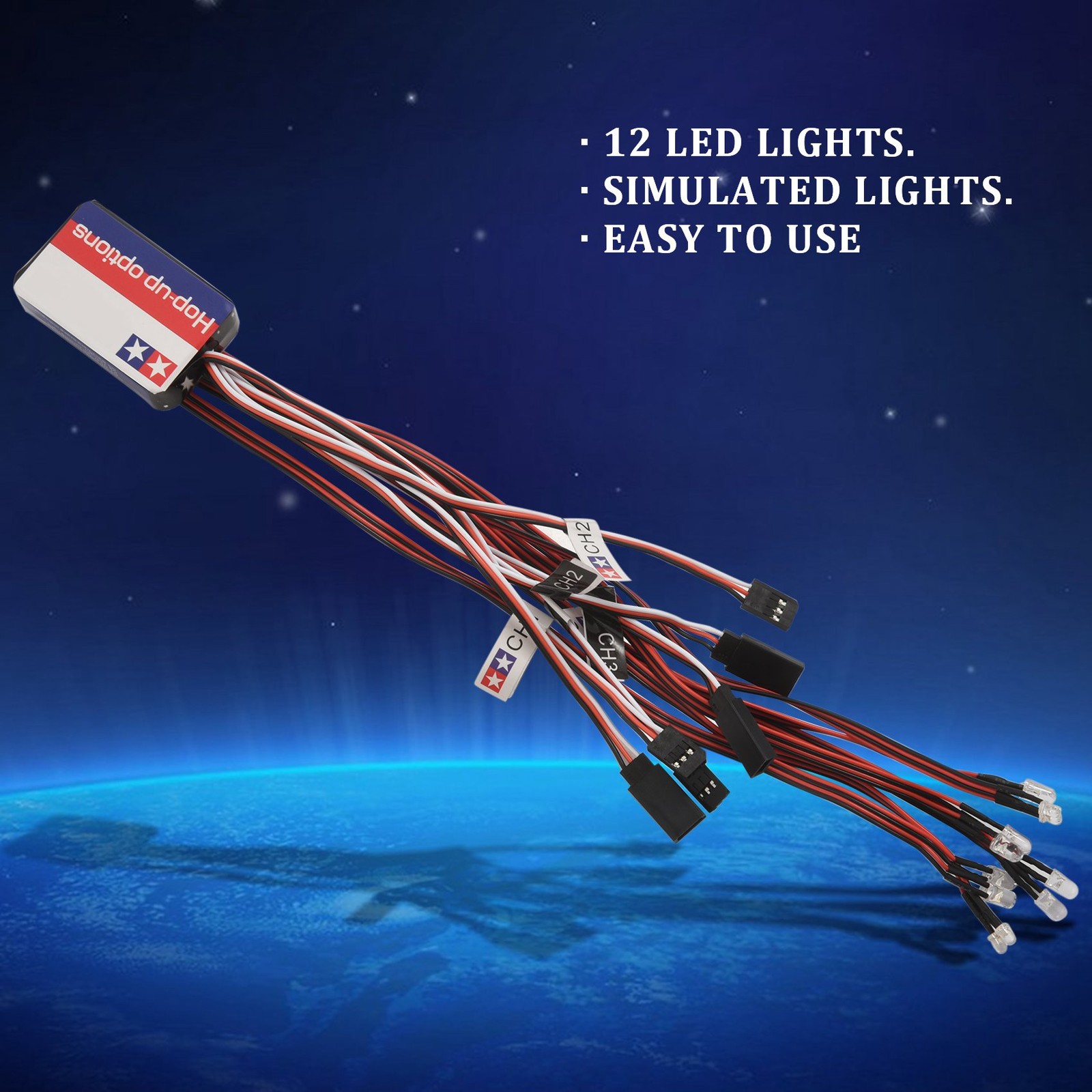

Features:12 LED lights. Simulation car light. Simple and easy to use
Far flashing, super bright. Improved design of circuit board, power saving
Headlight white, blue taillight, brake light red, turn light yellow. Suitable for 1/10 RC cars
Specifications:
Name: 12 LED Lighting System Kit
LED bulb quantity: 12
Working Current: 100mA
Input voltage: 4.8V - 6.0V
Connection method:
CH1 - Servo
CH2 - Speed controller
CH3 - Receiver
Suitable for: 1/10 RC cars
LED cable length: about 300mm
Circuit board size: 53 * 33 * 15mm
Weight: 57.2g
Lights Description:
Headlights: 4 white LED lights
Connect the lighting system to the CH3 on receiver: the transmitter can independently control a group of lights, another group of lights are on when the car ; Not connect to the CH3 on receiver: one group of lights are always on, another group of lights are on when the car .
Turn lights: 4 yellow LED lights
With the remote control change the direction, the lights synchronous flashing.
Taillights: 2 blue LED lights, 2 red LED lights
The blue lights are always on. When the car or brake, blue lights go out. Only when brake, the red lights on.
Installation Method:
CH2 Transmitter:
Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1 and CH2 to receiver.
CH3 Transmitter:
Connect the plug of servo and ESC to the CH1 and CH2 on lighting system, and then connect the CH1, CH2 and CH3 to receiver.
Package Con
