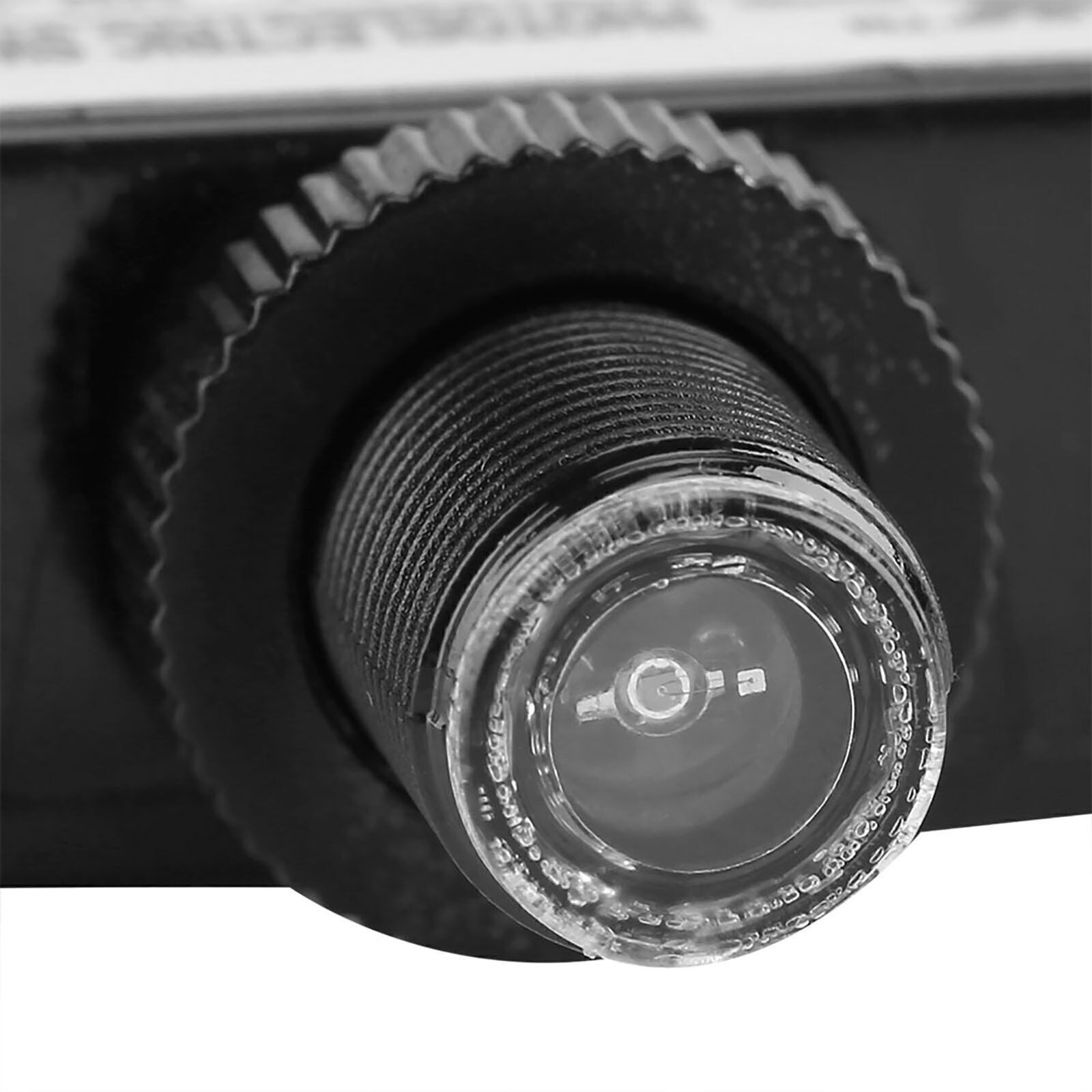

120V-277VAC Light Sensor Control Automatic On/Off Photoelectric Switch

Description:
Our high quality photoelectric switch is a great way to reduce energy consumption by turning your lighting fixtures on automatically when natural light is reduced. It provides much security by discouraging intruders when turning on the light.

Features:

Brand new photoelectric switch with automatic illumination detection circuit, and it will shut down during the day and open during the night automatically.
Makes your lighting is only used when it should be. Helps to increase energy efficiency and bulb life by reducing daily operating life.
Perfect for wiring into a lamp or lighting system requiring photoelectric automation.
Can work with most types of light lamps, such as LED, incandescent, halogen and fluorescent bulb, etc.
Suitable for installing places where needs lighting at night or low light environments. Can be used with garden light, yard light, entry lights, walkway lighting, barn lights, etc.

Specifications:
Specifications:
Condition: Brand New
Material: Plastic
Main Color: Black
Voltage Range: 120VAC-277VAC
Rated Frequency: 50/60Hz
Power Consumption: 0.5W max
Light Sensitivity: 10-20LUX On, 40-70LUX Off
Anti-interference Delay: About 12s
Environmental Temperature: -25℃~+70℃
Relative Humidity: 99RH
Waterproof Grade: IP65
Service Time: ＞5000 cycles
Item Size: Approx. 3.5 * 2.08 * 1.48cm / 1.38'' * 0.82'' * 0.58''

High-energy shock-resistant varistor
Function: over voltage protection, lightning protection, surge current suppression, high voltage arc extinguishing, noise reduction, etc.
Model: 10K471
Varistor voltage: 470V
Varistor voltage range: 423-517V
Maximum continuous working AC voltage: 300V
Maximum continuous working DC voltage: 385V
Maximum limit voltage V(A)(8/20)μs: 775
Maximum energy: (J) (100/1000μs): 102
Maximum peak current (A) (8/20μs): 1 time: 4500 10 times: 3500
This product is a high-end IC miniature light controller product, small in size, built-in anti-lightning components, all environmentally friendly components, CE certification, five-year warranty, and imported PC materials for the shell, which has a high cost combination from the inside to the outside. .
Wiring method:
White wire + black wire connection (input)
White wire and red wire connection (output)
The white line is the public line

Package Included:
1 * Photoelectric Switch

Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
