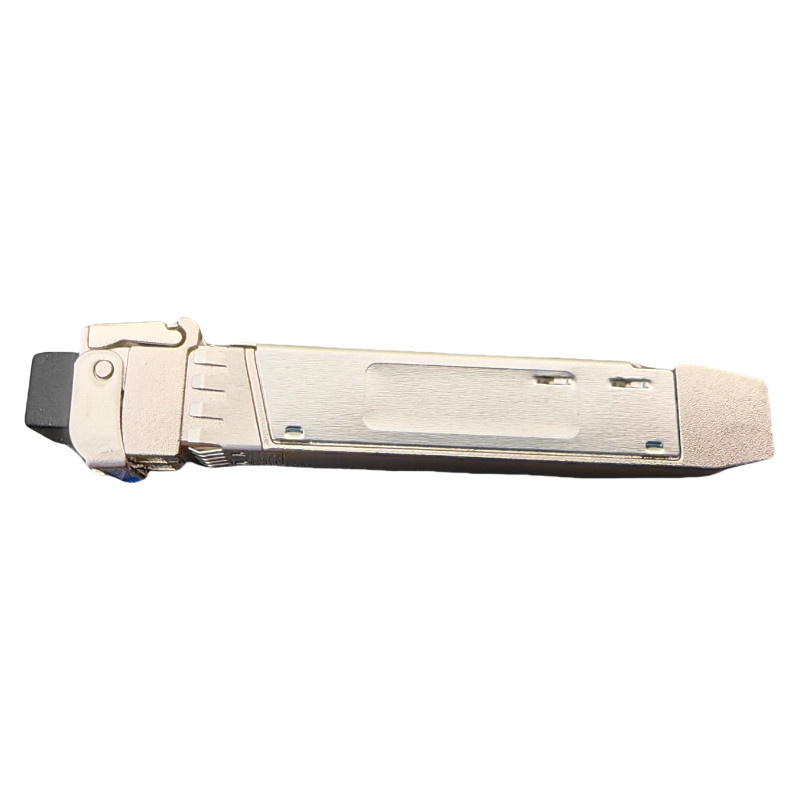

12G fiber optical module video SFP Transceiver For Blackmagic
Initial Statement:
12G 1310NM 20KM SDI SFP LC/UPC Duplex
price is for 1pcs
Perfect for Blackmagic ATEM talkback 4K/12g fiber optical converter/smart view 4k/studio camera BMSC/teranex and so on
Up to 2160P60 support
10Km
12Gbps SDI SFP 1310nm DFB, Singlemode Fiber Duplex LC/UPC 20km, -5°C ~ +70°C
Very stable, no flicker problem even long-time use
Working perfect for blackmaguc optical equipment
Talkback converter 4k
smartview 4k
fiber optocal converter mini 12G
studio camera 4k
teranex AV/teranex express/mini teranex mini optical
duplicator 4k
decklink extreme 4k 12G
Studio Fiber Converter
Features
◎ Supports 12Gb/s serial optical interface
◎ Up to 20km transmission on SMF
◎ 1310nm DFB laser and PIN receiver
◎ Hot-pluggable SFP+ footprint
◎ SFI high speed electrical interface
◎ Built-in digital diagnostic functions
◎ Single +3.3V power supply
◎ Power consumption less than 1.0 W
◎ Operating case temperature: -5~+70°C
◎ SFP+ MSA package with duplex LC connector
Applications
◎ 12GBASE-LR/LW 10G Ethernet
◎ Other optical links
Standard
◎ Compliant with SFF-8472 and SFP+ MSA
◎ Compliant to SFF-8431 and SFF-8432
◎ Compliant with IEEE 802.3ae 10GBASE-LR/LW
◎ Compliant with FCC 47 CFR Part 15, Class B
◎ Compliant with Telcordia GR-468-CORE
◎ RoHS Compliant
Table 1. Regulatory Compliance
