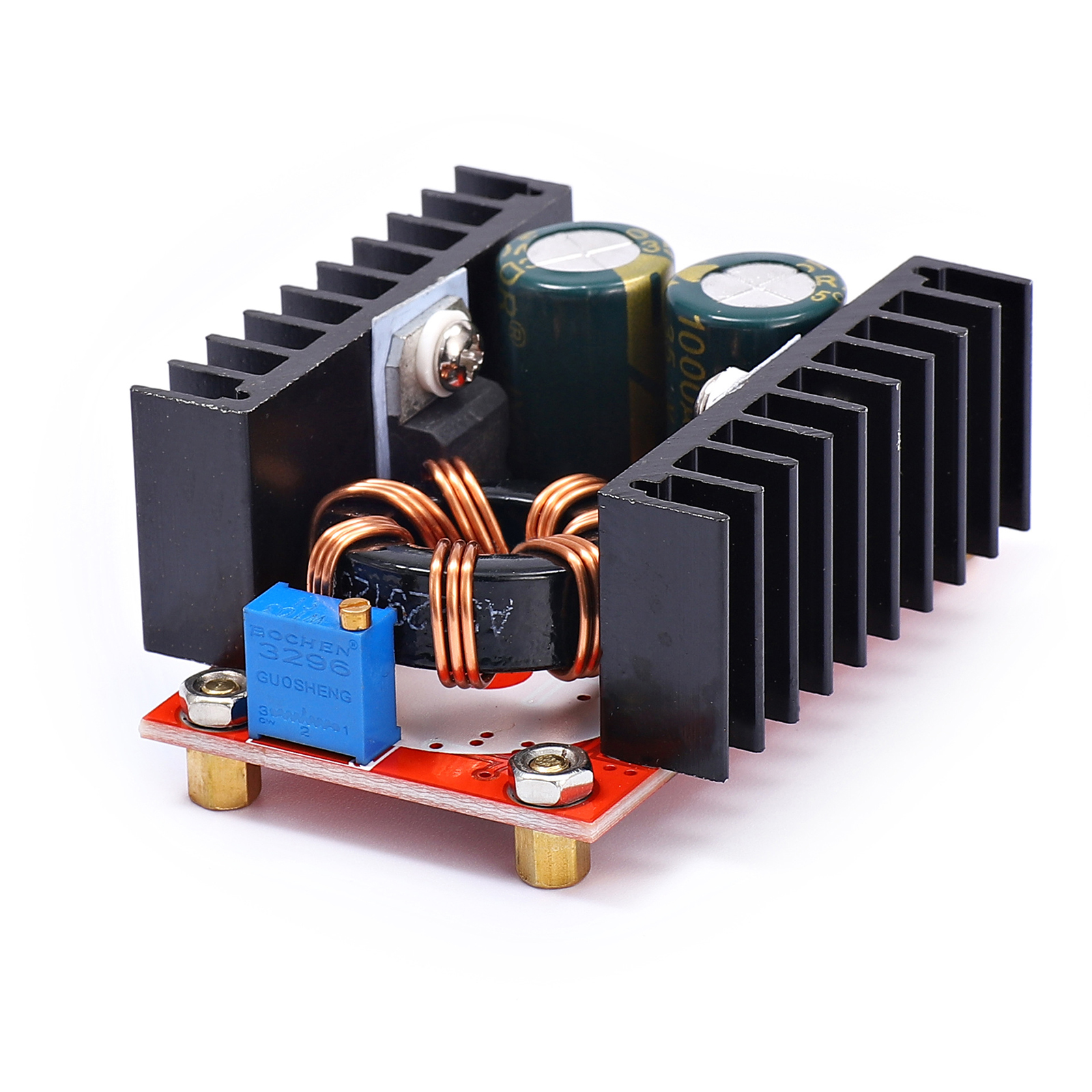

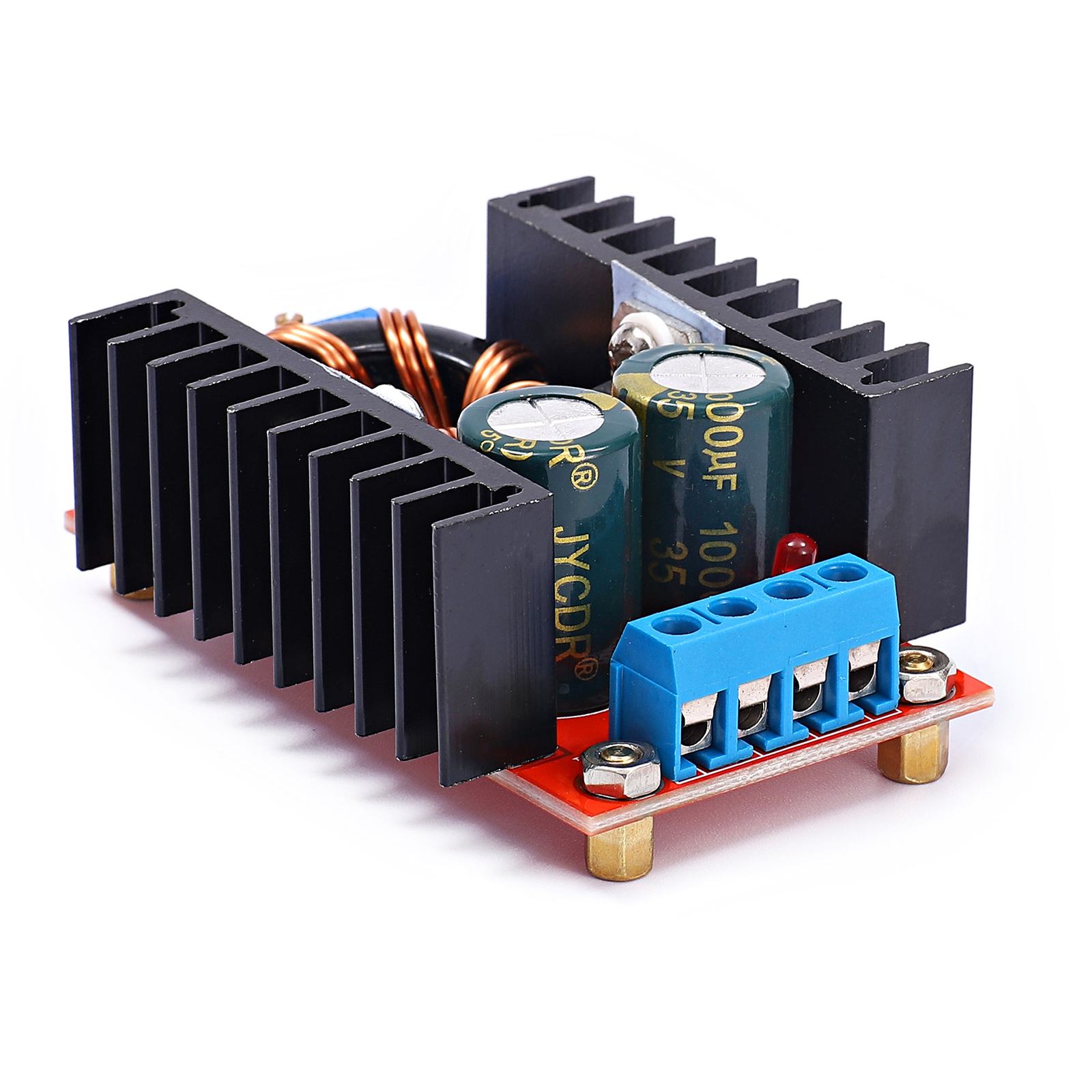

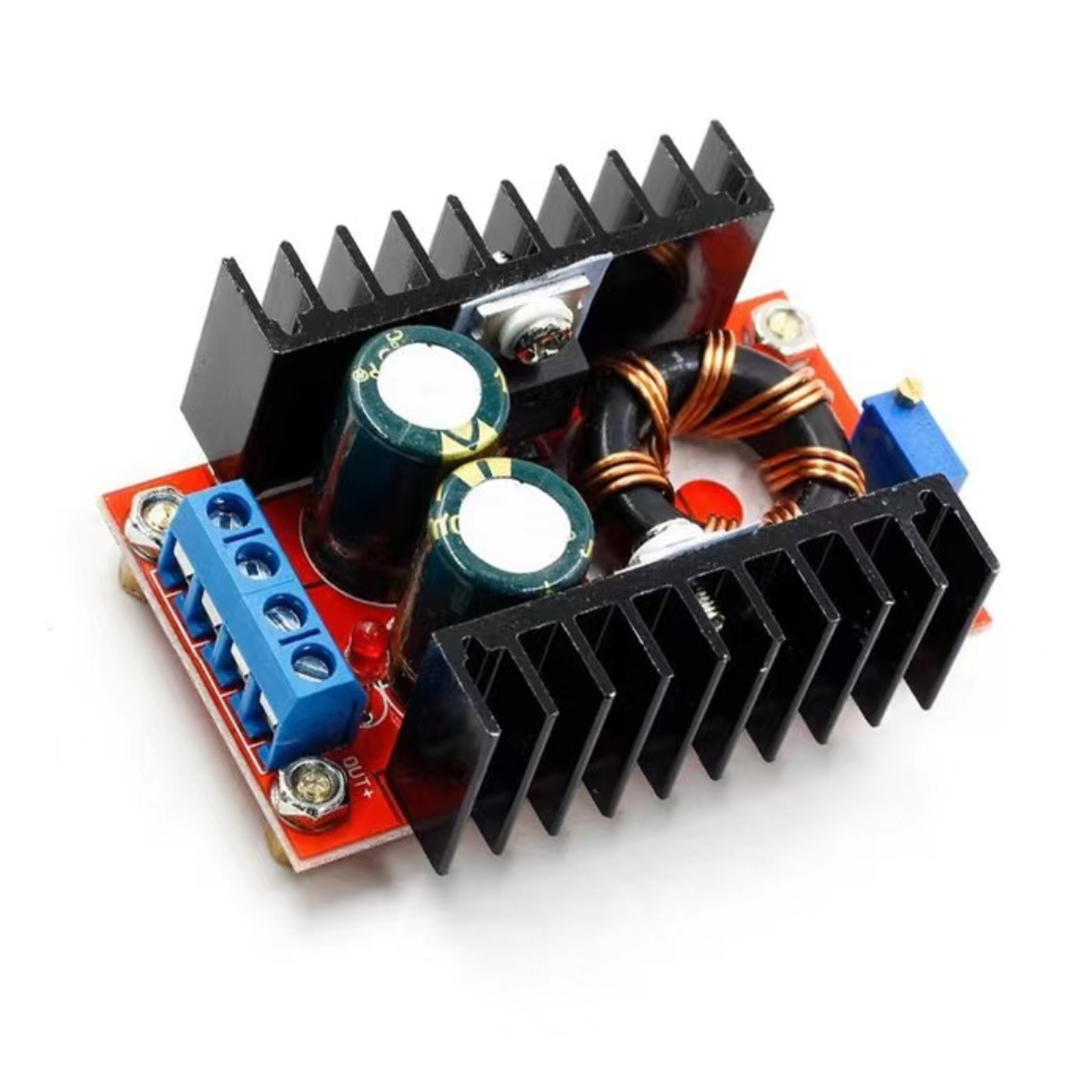

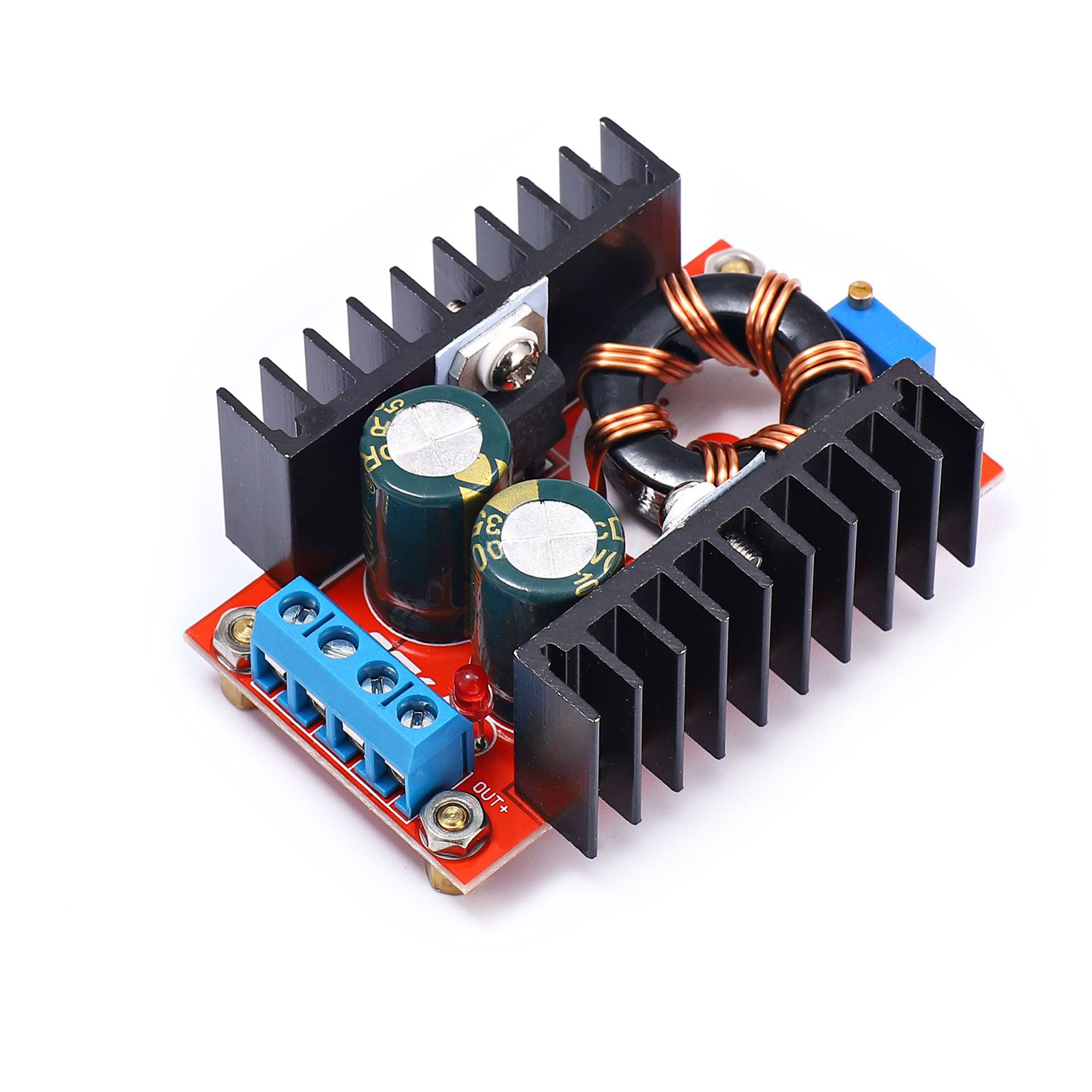

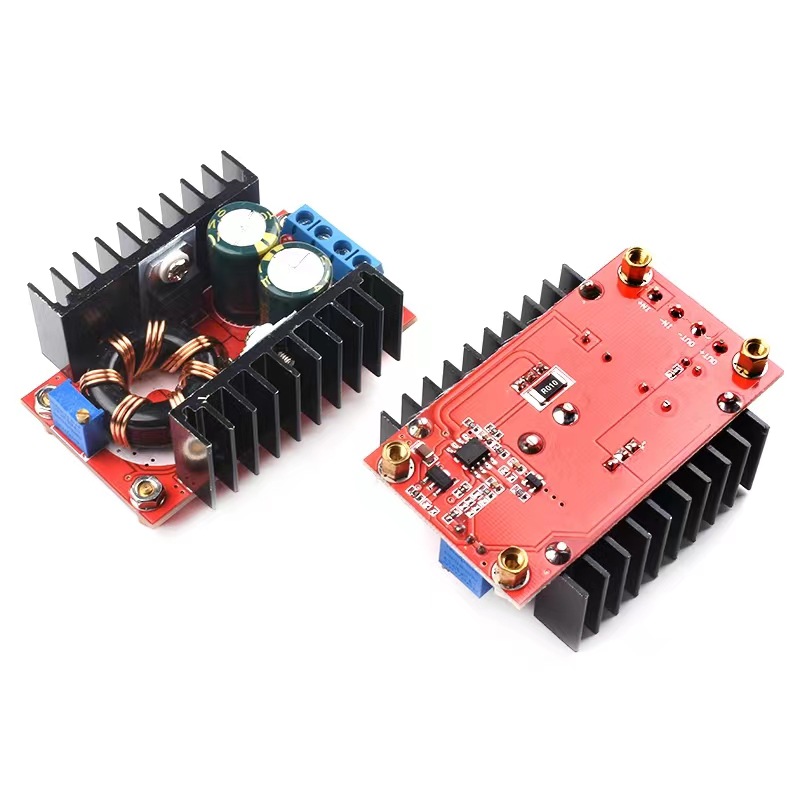

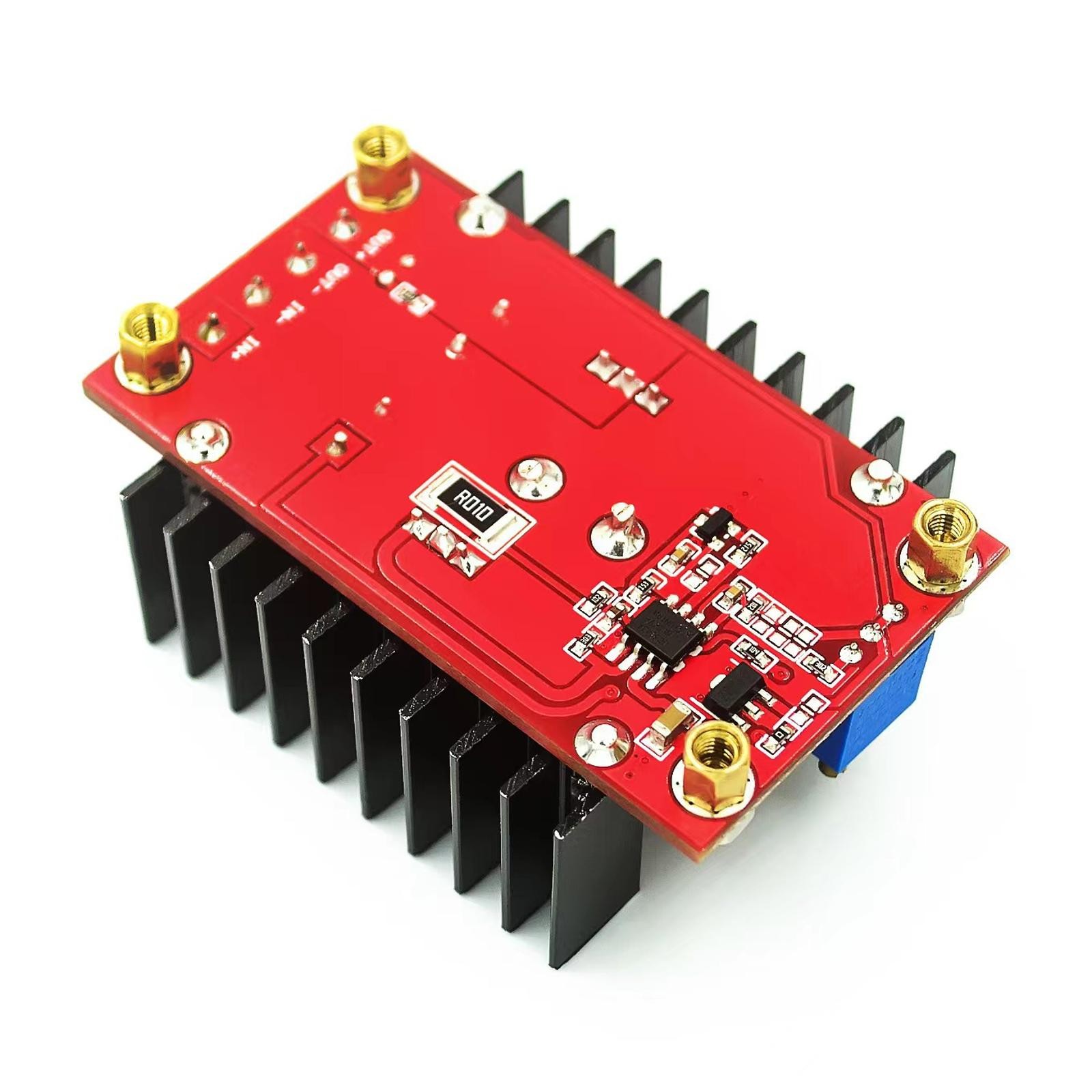

150W Boost Converter Step Down Buck Converter DC-DC 12V-24V 35V Power Module H
PRODUCT DESCRIPTION
Features:
Module Properties: non-isolated step-up module (BOOST)

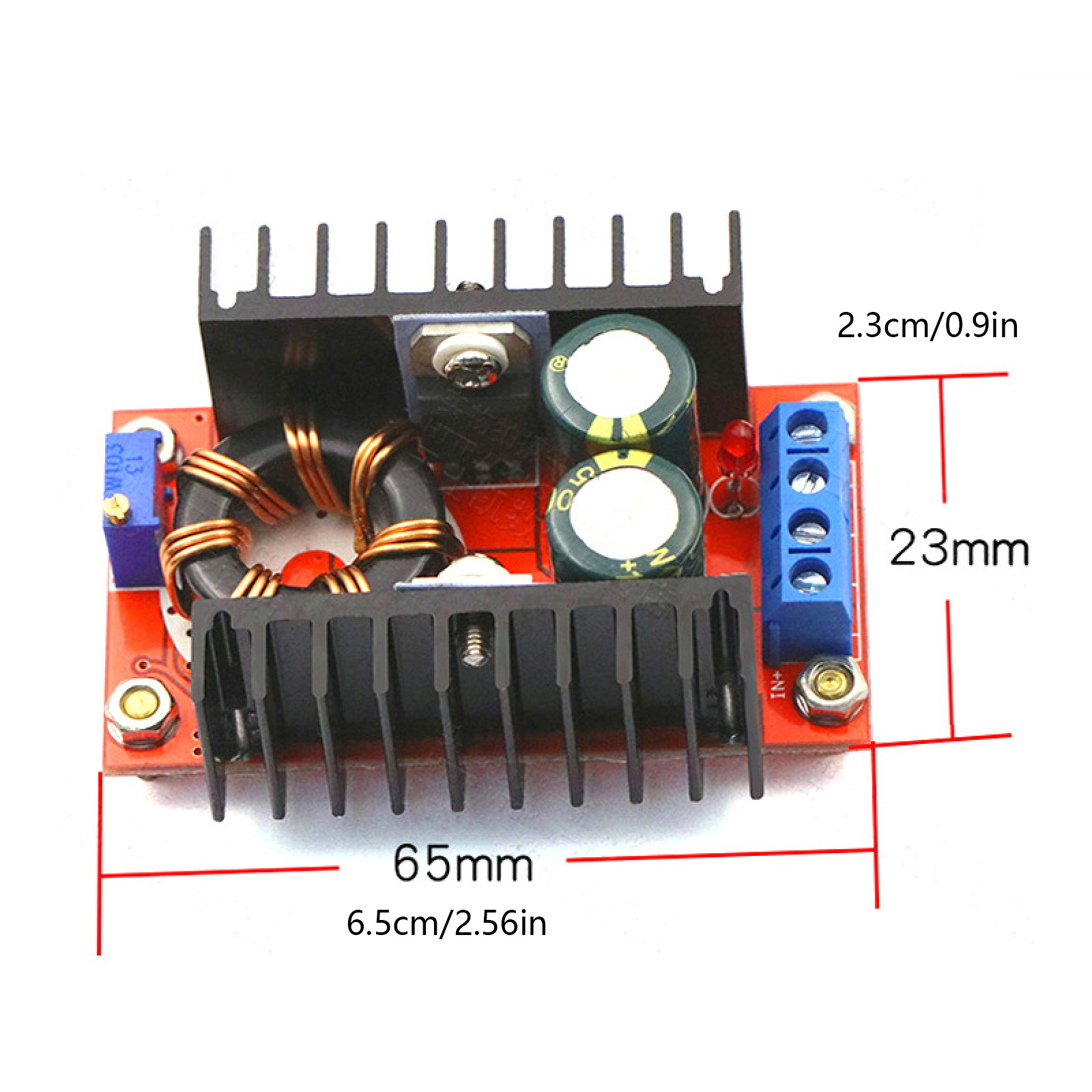

Length: 65 *56.5 *23 mm
(1) continuous adjustable output voltage (12-35 v)
(2) fixed output (select) between 12-35 v, when buying, please tell the shopkeeper.
Output current: 10A (MAX)
Input current: 16A(MAX) (please strengthen heat, more than 10A)
Output power: natural cooling 100 w (MAX), strengthen heat 150 w (MAX) real power use time more actual situation, please Decide whether to add fans, please be sure to ensure heat sink temperature not to exceed 80 degrees.
Easily lead to 65 w, 90 w notebook computers Including dual -
With A 12 v battery with ordinary 19 v 3.42 A laptop module temperature of about 45 degrees
Conversion efficiency: 94% (16 v input measured output is 19 v 2.5 A) (for reference only)
The output ripple: 2% (MAX) 20 m bandwidth
Working temperature: industrial grade (- 40 to + 80) (ambient temperature more than 40 degrees, please reduce power use, or add the fan)
With temperature rise: 45
No-load current: typical 25 ma
Load regulation: plus or minus 0.5%
Voltage regulation: plus or minus 0.5%
Dynamic response speed: 200 us 5%
Short circuit protection: no (please input with fuse or protective circuit)
Input reverse connect protection: no, the buyer can be in the input series diode.
Connection mode: from welding, and terminals* width * high (mm)
Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)
Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS
Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
Applications:
1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage.
2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.
Packing:
1* 150W Boost Converter
