Description

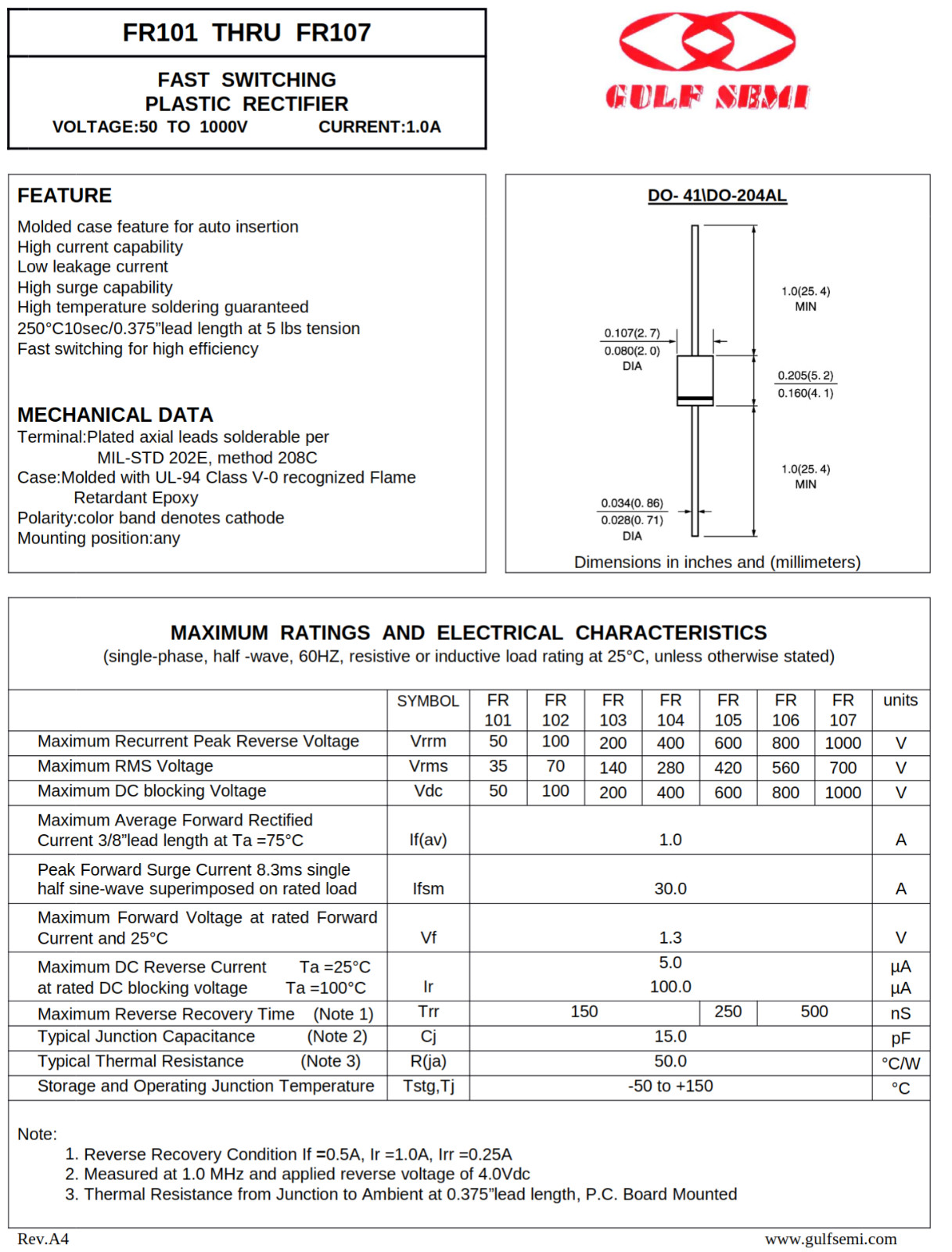

FR107 GULF Semiconductor Fast Recovery Axial Rectifier Diode 1000V 1A DO-41

Packaging:

10Pcs (Cut-tape) (Letter Envelope) (IV-MTR Tracking)

Specification

Output Current-Max	1 A
Forward Voltage-Max (VF)	1.3 V
Diode Type	RECTIFIER DIODE
Rep Pk Reverse Voltage-Max	1 kV
Additional Feature	HIGH RELIABILITY
Non-rep Pk Forward Current-Max	30 A
JEDEC-95 Code	DO-41
Terminal Position	AXIAL
Maximum Recurrent Peak Reverse Voltage	1000 V
Maximum RMS Voltage	700 V
Maximum DC Blocking Voltage	1000 V
Maximum Average Forward Rectified Current (TA = 75°C)	1.0 A
Peak Forward Surge Current (8.3 ms single half-sine wave)	30 A
Maximum Forward Voltage at Rated Forward Current (25°C)	1.3 V
Maximum DC Reverse Current (25°C)	5 µA
Maximum DC Reverse Current (100°C)	100 µA
Maximum Reverse Recovery Time (Trr)	500 ns
Typical Junction Capacitance (Cj)	15 pF
Typical Thermal Resistance (Rθja)	50.0 °C/W
Storage and Operating Junction Temperature Range	-50°C to +150°C

Note: This table may not be entirely accurate and should only be used as a general reference.
