DESCRIPTION

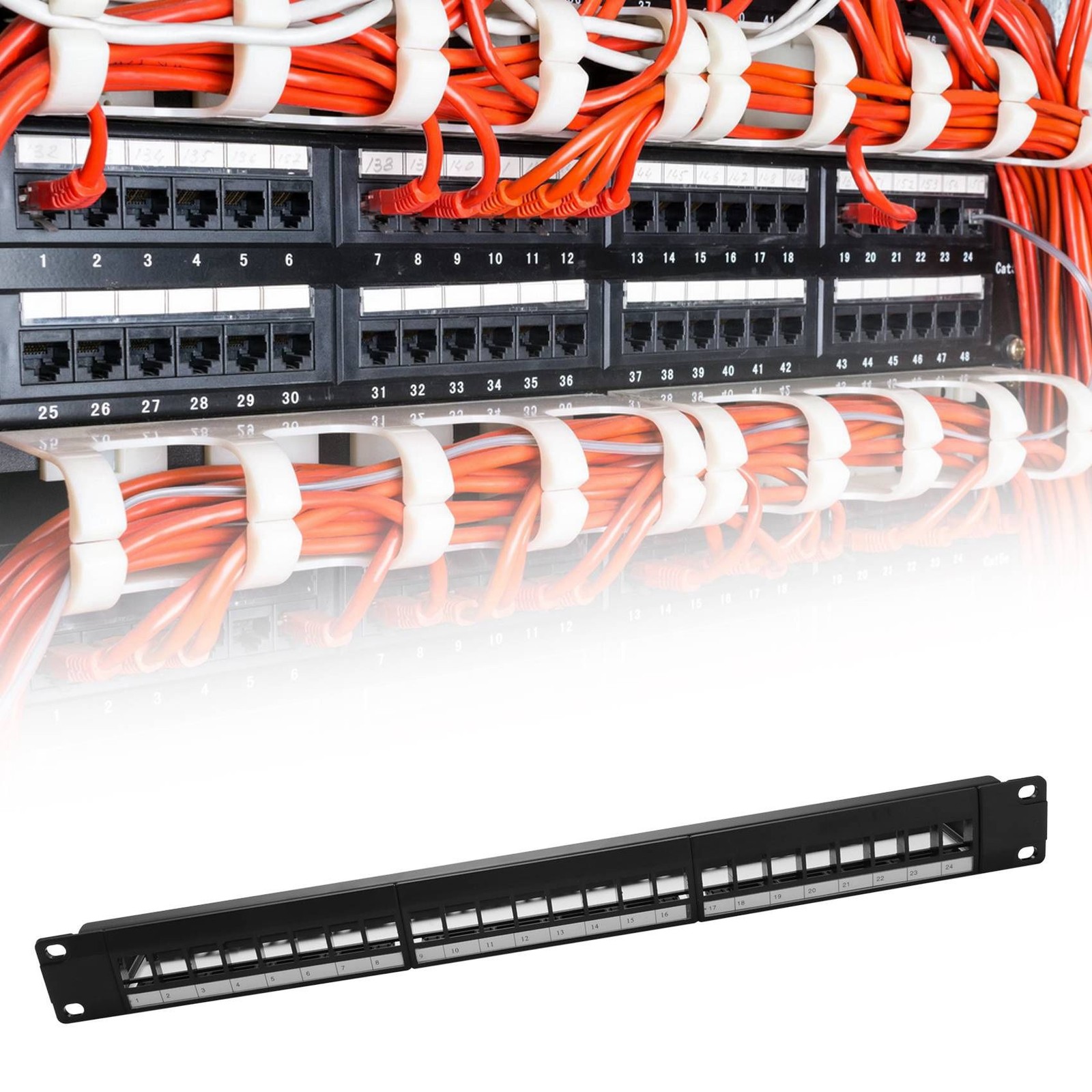

19Inch 1U Cabinet Rack Pass-Through 24 Port CAT6 Patch Panel RJ45 contact3523
Product Type: CAT6 24-port patch panel, unshielded
Main technical parameters:IDC: Phosphor bronze, silver plated (20~50uiLZh), suitable for cables of 22, 24 and 26AWG (0.64, 0.5 and 0.4mm), with a life of not less than 250 times.
8-line pin: phosphor bronze, gold-plated (20~50uiLZh), plug and socket can be re-plugged no less than 750 times
Flame retardant: injection molded with PPO+PC to meet international standards
Contact resistance: no more than 2.5m ohm under normal atmospheric pressure (without body resistance)
Insulation resistance: not less than 1000M ohm under normal atmospheric pressure conditions
Electrical strength: DC 1000V (AC, 700V) No breakdown and arcing in 1 minute
Standard: Designed and manufactured according to international standard ISO/IEC11801; /EIA568
This modular patch panel, 24 modules are straight-through modules free of wire, can be directly plugged into cable, easy to install and operate
colour: black
Material: metal + plastic
size: 482mm
Package Contents:

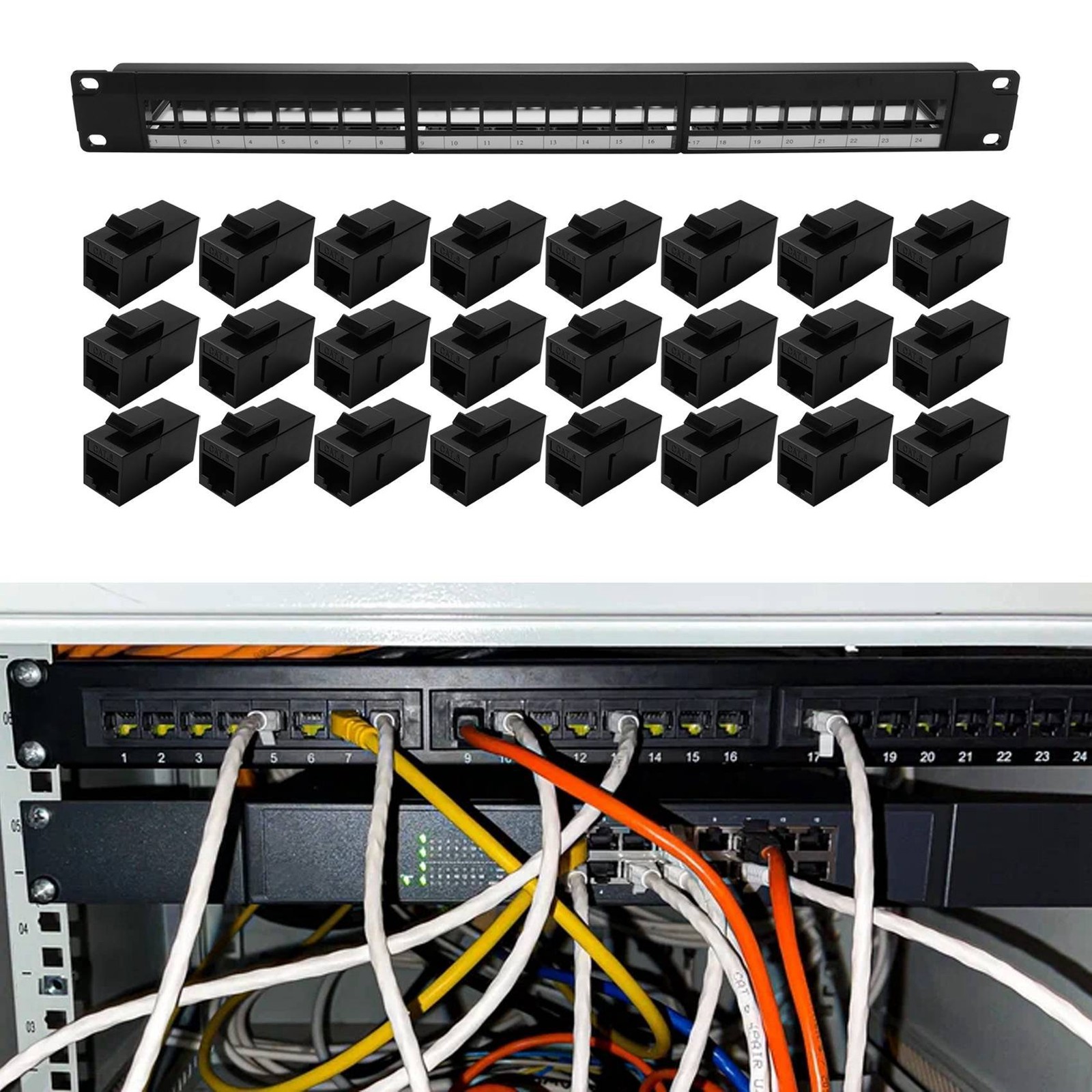

1*24 Port CAT6 Patch Panel
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
