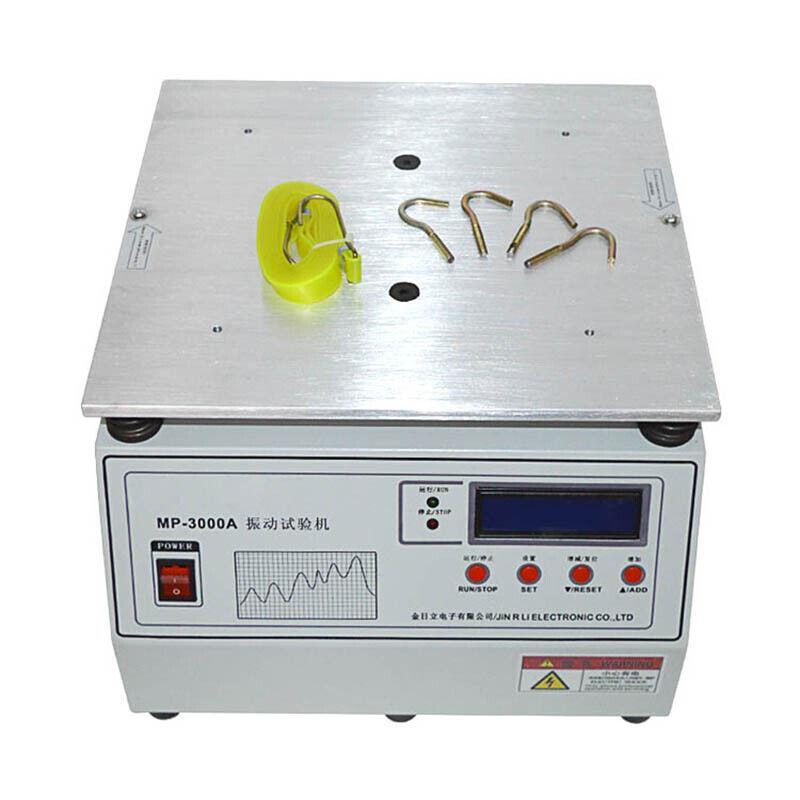

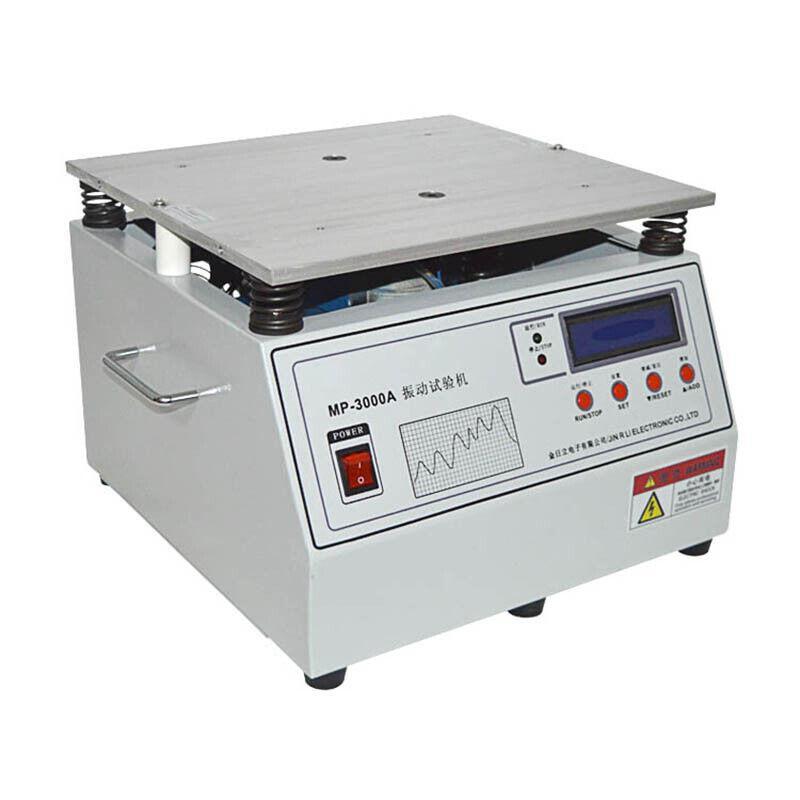

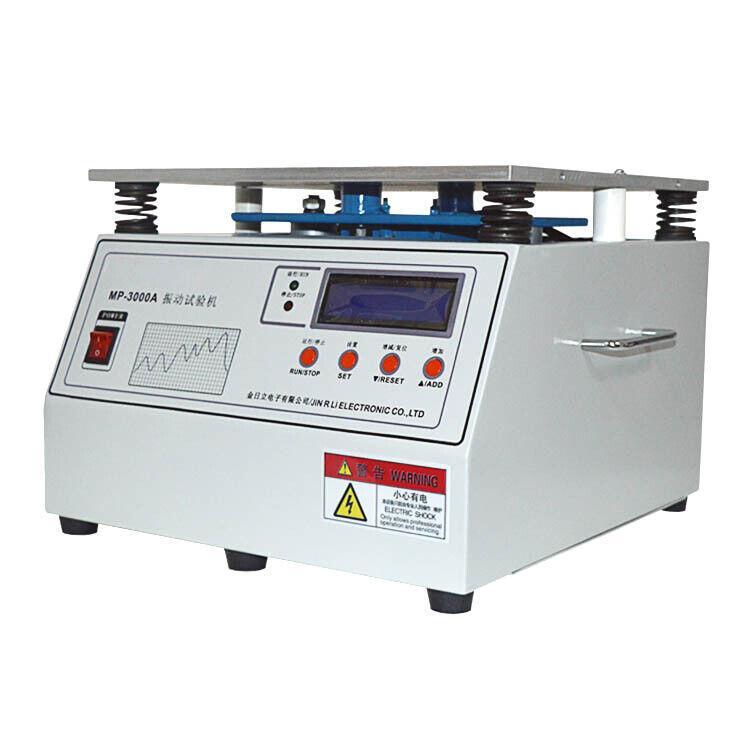

MP3000A Vibration Test Machine220V Bench Stereo Vibration Tester Power Frequency Vertical Vibration Table Machine 1PC

Specifications:

MAX Load: 40kg

Power Input:AC220V/50Hz (+2%)

Monitored values ofVibration:100% (Display:100)

Time Setting:1 Second~100 Hours (Display:99:59:59)

Power: 0.9KW

Vibration direction: vertical

Adjustable amplitude when unload:0- + 2mm

A 0-15kg Load:0- + 2mm

B 30kg-40kg Load:0- + 1.8mm

Size of Workbench:400mm * 350mm * 16mm (L * W * H)

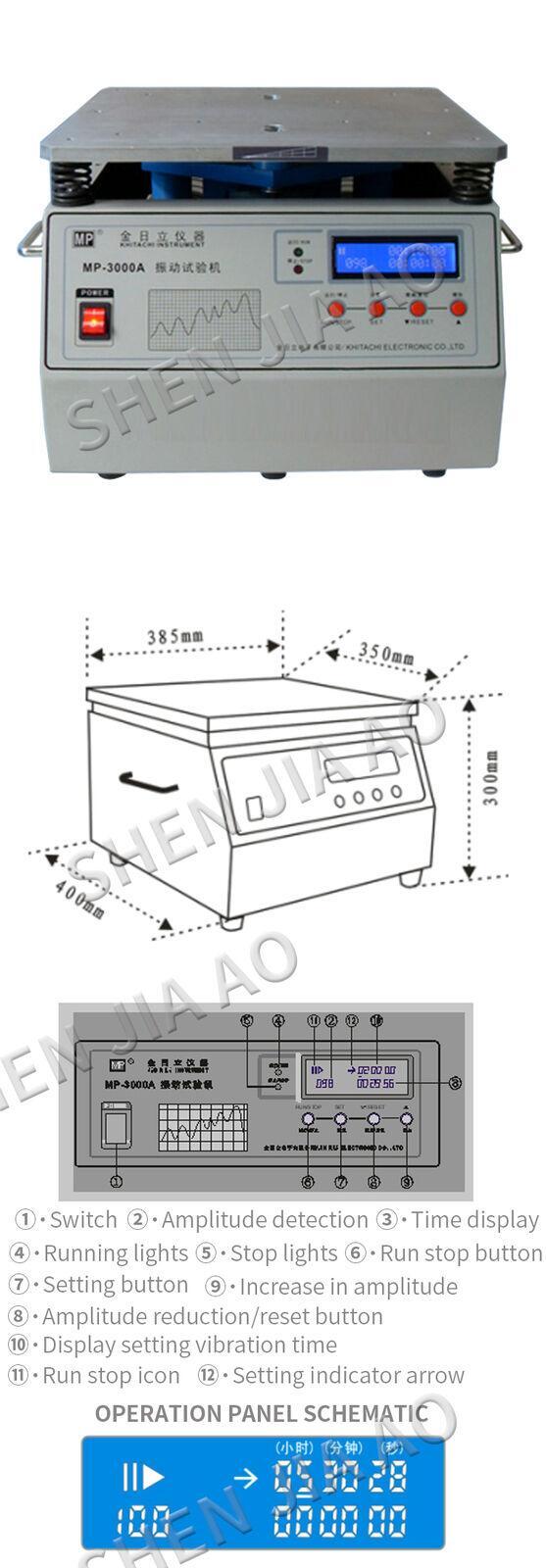

Dimensions:400mm * 350mm * 280mm (L * W * H)

Features:

1 Digital LED Display: The level of vibration you can set and storage by yourself from 0~100.

2 It can be displayed simultaneously: the vibration amplitude level, the time has been set and the time has run past.

3 It was used with advanced Soft-start circuit for a more stable operation

4 Automatic setting, simple operation.

5 Data Hold for the test time and the level of vibration, even it is power cut suddenly.

6 System circuit will save the data and automatic reset, when it is turn off or power cut.

7 In order to avoid the damage of the circuit when turn on the machine, it is used with advanced microcomputer technology.

8 It will perform automatically all procedures which you have set in 3 seconds when you open it.
