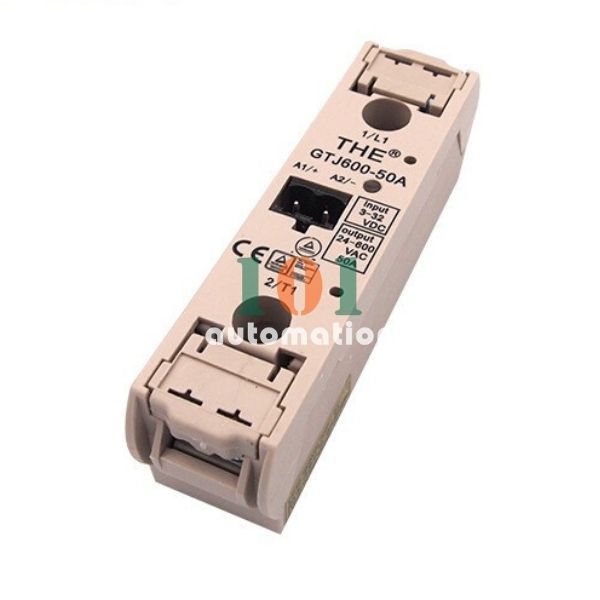

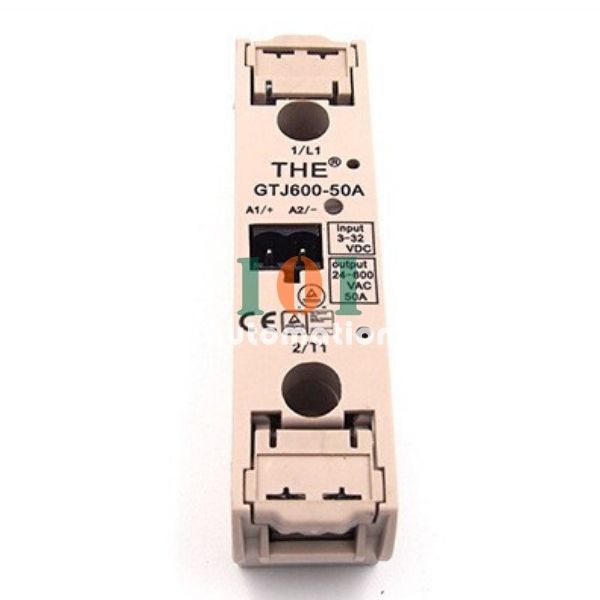

1PCS NEW FOR solid state relay GTJ600-50A without radiator

product description

1. Description of product composition and structural features (structural overview):

This product consists of four parts: wiring system, electronic control system, semiconductor switching device and cooling system, and insulation system.

1) The wiring system consists of DC control voltage input terminals and power frequency AC voltage voltage output terminals.

2) Electronic control system. It is composed of input (constant current) control circuit, photoelectric coupling and electrical isolation circuit.

3) The semiconductor switching device and heat dissipation system are composed of one-way thyristor, DBC board and heat dissipation aluminum plate.

4) Insulation system. Consists of epoxy, silicone, nylon shell and output terminal safety cover.

5) Dimensions: length X width X height 91.5mmx22.5mmx27.5mm (deviation 1mm up and down)

6) Installation size: 49mm (deviation 1mm up and down)

Solid State Relay Parameters

1. Input parameters (Input data)

(1)Input control voltage:_ 3~32VDC

(2) Input off voltage: <1VDC

(3) Input on voltage: ≥ 5mA

(4)Input control current:< :25 mA

2. Output data

(1)Rated operational current: 10~40A

(2) Insulation voltage (Viso): 2500V

(3) Rated operational voltage: 24-600VAC

(4) On-state voltage drop (UoN): ≤1.3VAC

(5) Off-state leakage current (oFF): < 10mA

(6) Frequency (f): 50/60Hz

(7) Operating temperature range (Topr) : -20~+80"C
