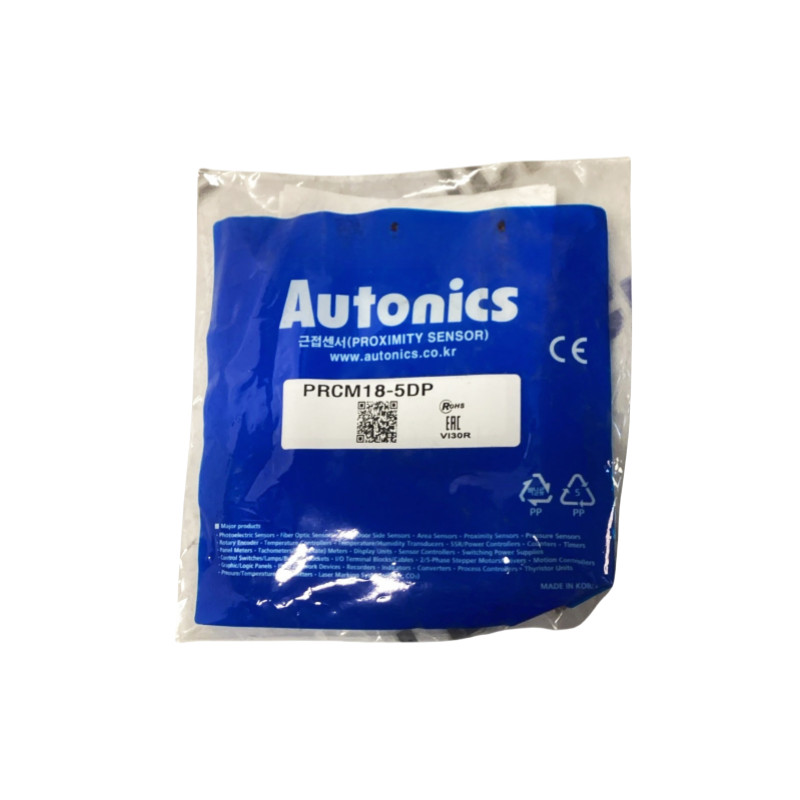

1PCS New AUTONICS PRCM18-5DP Inductive Proximity Switch 12-24V DC Fast Delivery
$22
DESCRIPTION
Key Description:
Brand: AUTONICS/ Otto Nix
Model: PRCM18-5DP
Sensor type: Inductive proximity switch
Rated voltage: 12V to 24V DC
Detection distance: 5mm
Output type: PNP normally on
Response frequency: 500Hz
Protection grade: IP67
Installation method: Shielded type (embedded type)
Diameter of the detection surface: M18
Standard test material: 18×18×1mm (iron)
Residual voltage: Max.1.5V
Weight: approximately 61g
Built-in functions: Reverse power connection protection, overcurrent protection, surge protection
Control output: Supports direct driving of loads below 200mA (resistive load)
Material: Brass (nickel plated)
Indicator light: Red LED light
Cable: Reinforced cable is adopted
Model: PRCM18-5DP
Sensor type: Inductive proximity switch
Rated voltage: 12V to 24V DC
Detection distance: 5mm
Output type: PNP normally on
Response frequency: 500Hz
Protection grade: IP67
Installation method: Shielded type (embedded type)
Diameter of the detection surface: M18
Standard test material: 18×18×1mm (iron)
Residual voltage: Max.1.5V
Weight: approximately 61g
Built-in functions: Reverse power connection protection, overcurrent protection, surge protection
Control output: Supports direct driving of loads below 200mA (resistive load)
Material: Brass (nickel plated)
Indicator light: Red LED light
Cable: Reinforced cable is adopted
