Description:
100% brand new and high quality
Higher reliability and durable quality.
0802 LCD display, low-power consumption.
Standard interface for easy connections with other tests or antennas.
Input is via an SMA jack (female).
Specifications:
Color: Dark Green
Material: PCB + FR4
Power Mode: 9V Battery (Not Included)
Display: 38 * 16mm LCD Display
Item Size: 60 * 33 * 26.5mm / 2.36 * 1.30 * 1.04in
Item Weight: 45g / 1.54oz
Package Size: 11 * 6 * 3cm / 5.91 * 4.72 * 1.18in
Display: Digital 0802 LCD
Temperature: When operating: 0~40°C, when stored: -30~60°C
Working elevation: 0 to 2000 meters
Relative humidity: non-condensing <10 ° C
Type of battery : 6F22 type 9v
Working power: DV=9V
Working current: typical working current 30mA
Test frequency: 1 ~ 500 MHz, the limit is 640M, the accuracy of the over-range part will be lower
Resolution: 100Hz
Note:Accuracy can only be adjusted to the second digit of the decimal point, less than one-tenth of the precision
Instructions:
Connect to the 6F22 9v battery, toggle the switch, and connect to the signal source under test after power on.
This frequency meter interface is SMA.
Package Included:

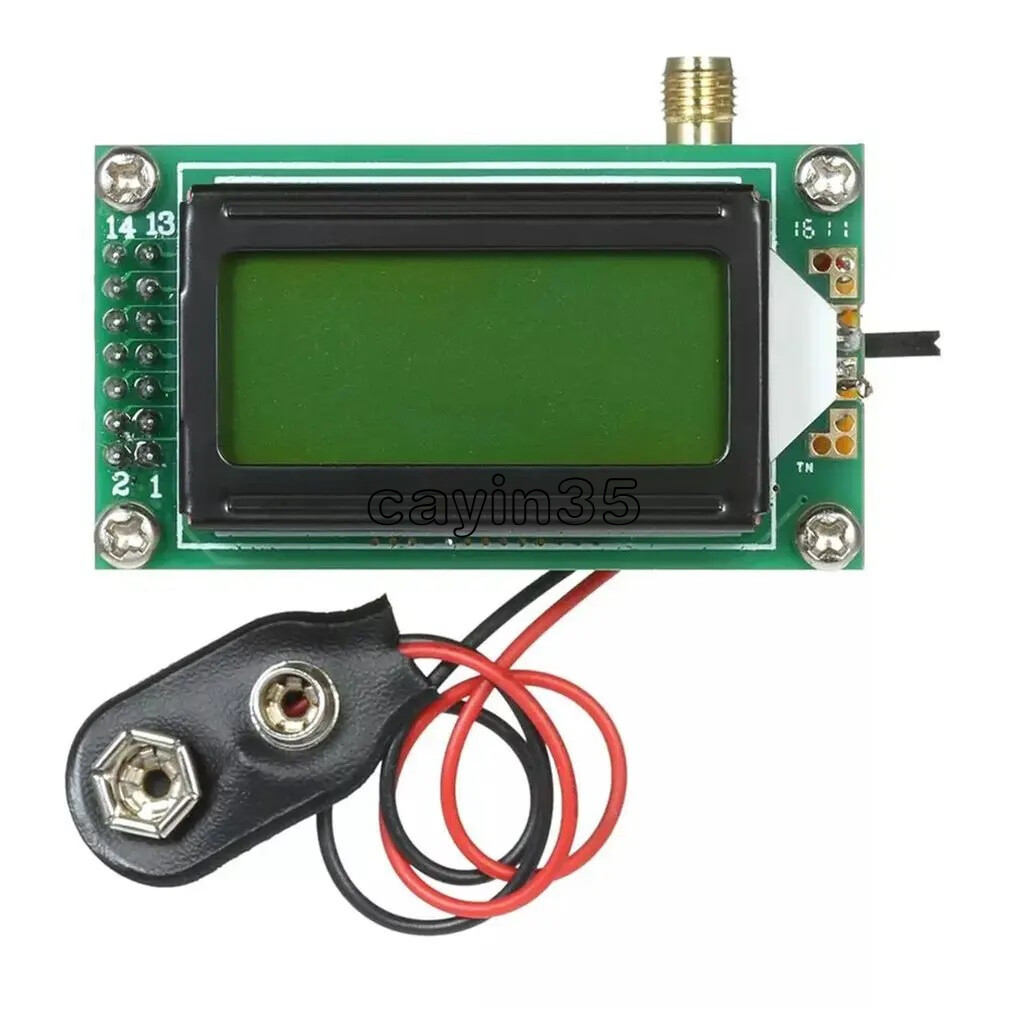

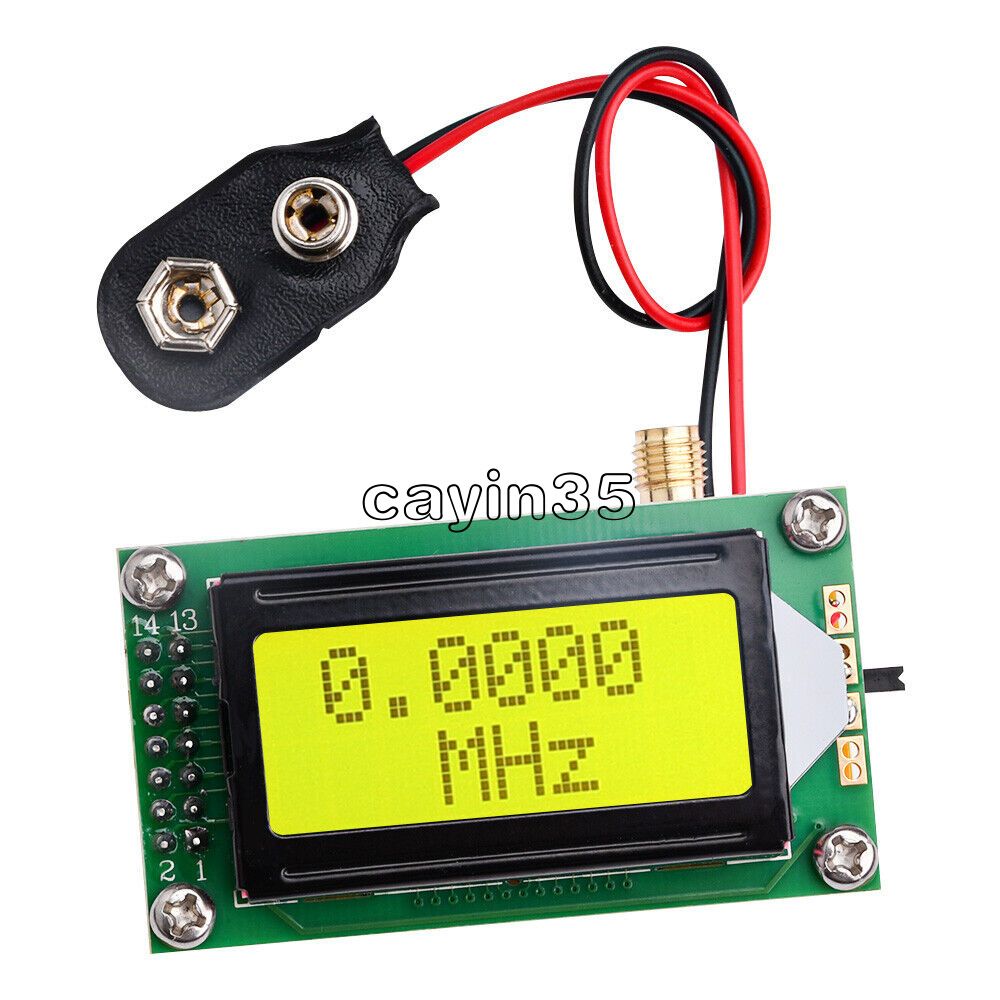

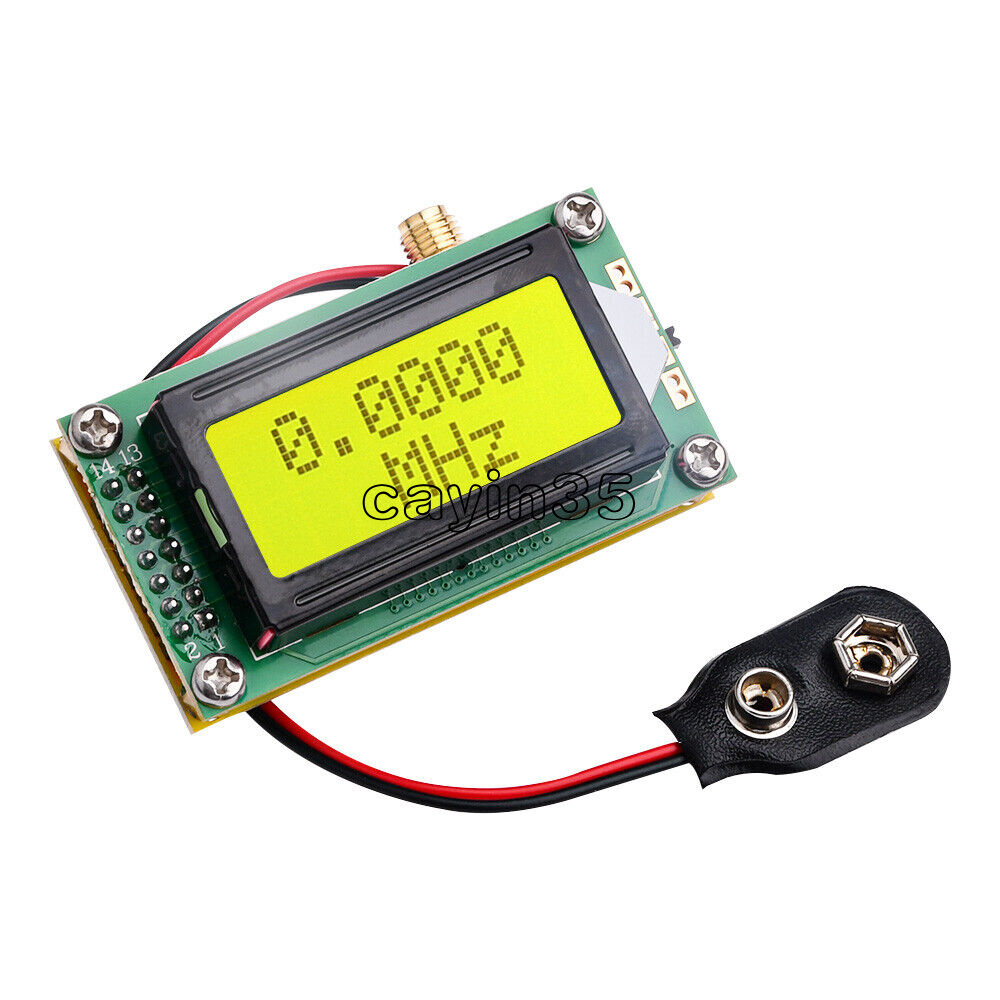

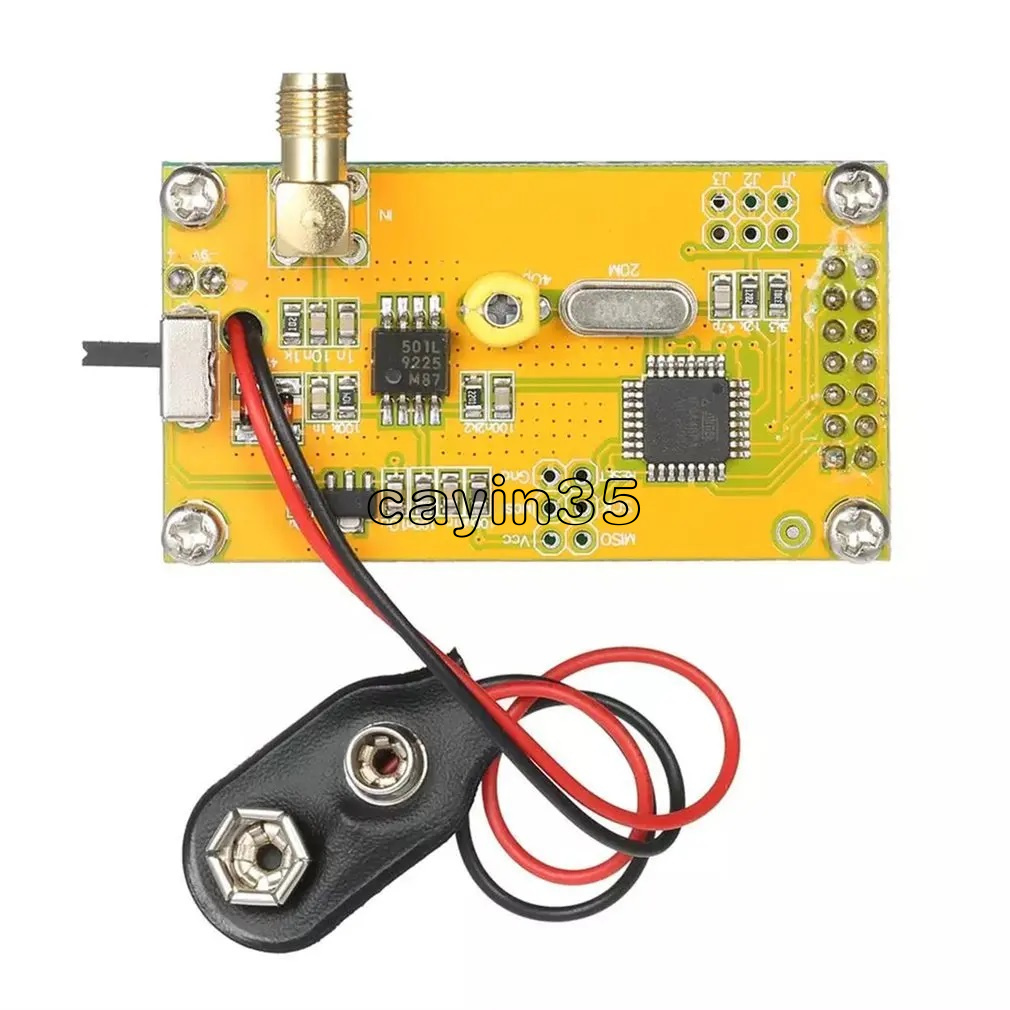

1PC*High Accuracy RF Frequency Counter Meter 1~500 MHz Tester Module For Ham Radio
