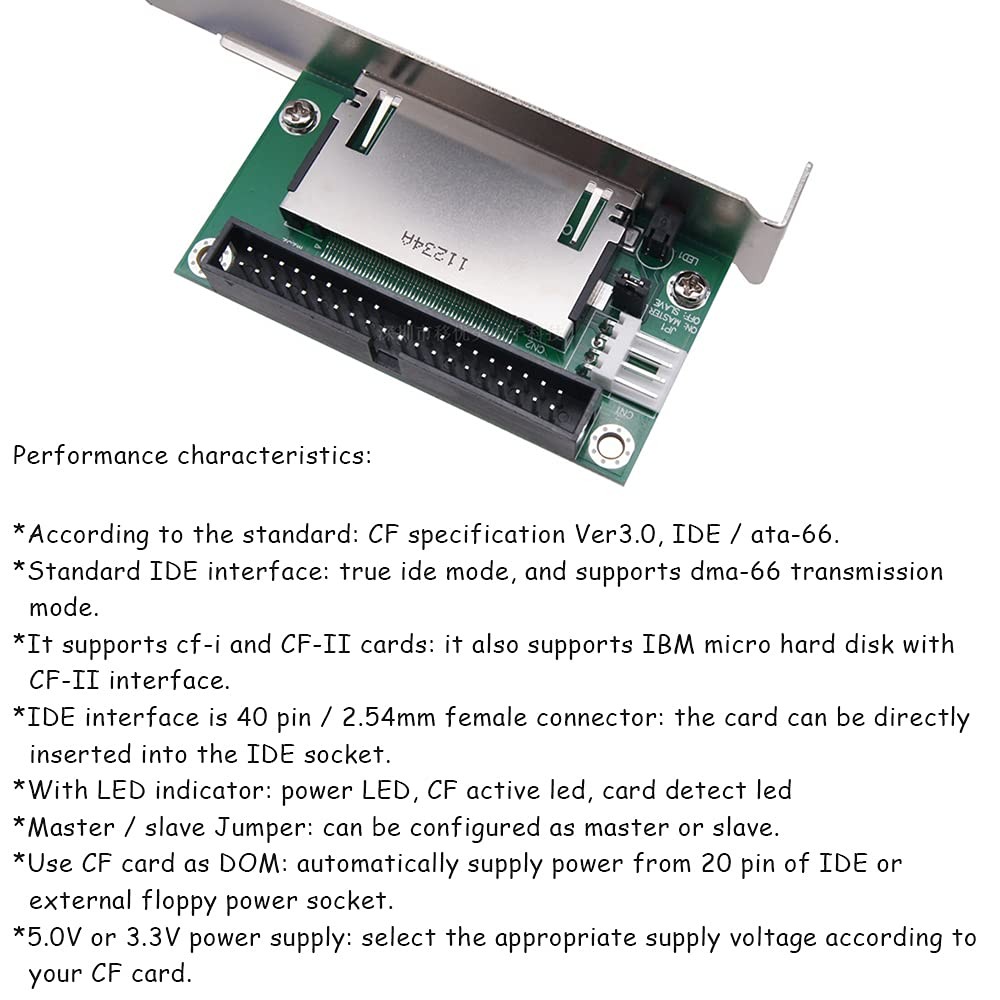

Performance characteristics:
Compliant with standards: CF specification Ver3.0, IDE/ATA-66 specification.
Standard IDE interface interface: true-IDE mode, and supports DMA-66 transfer mode.
The IDE interface is a 40-pin/2.54mm female connector: this card can be directly inserted into the IDE socket.
With LED indicator: power (power LED), CF access (active LED), whether the card is inserted (card detect LED).
Master/slave jumper: can be configured as master or slave.
Use the CF card as a DOM: automatically supply power from the IDE's 20-pin or external floppy drive power socket.
Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package included:1Pcs

Computer peripheral equipment manufacturers use CF-IDE cards in conjunction with CF cards to test motherboards, sound cards, graphics cards and other products. In these occasions, the power supply needs to be turned on/off frequently. Traditional mechanical hard drives are easily damaged. CF is a kind of electronic hard disk, which is completely different from mechanical hard disk in principle, and it is not easy to be damaged in these occasions
Portable instruments that use embedded X86 or RISC cores usually have IDE interfaces. If the CF card cannot be directly connected to these instruments, you can use this adapter to complete the transfer
Personal computers (PCs): These computers are usually x86 kernels, which are the main platforms used by the card. Some digital cameras have a CF card interface. You can access your picture data on a desktop computer through this card
Industrial PCs use this card and CF card together to store embedded operating systems such as embedded LINUX or WIN CE
Support CF-I and CF-II two types of cards: also support IBM micro hard disk with CF-II interface. 5.0V or 3.3V power supply: select the appropriate power supply voltage according to your CF card
