Specification:

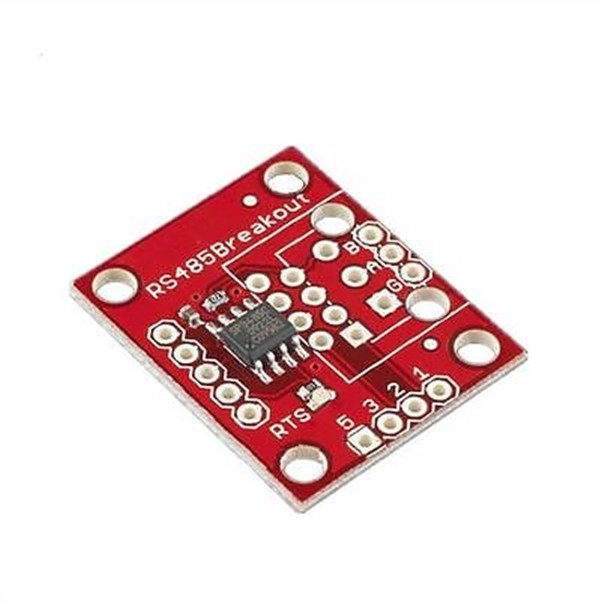

This is a breakout board for the SP3485 RS-485 transceiver IC, which will convert a UART serial stream to RS-485. The SP3485 is a half-duplex transceiver, so it can only communicate one way at a time, but it can reach transmission speeds of up to 10Mbps. This board requires a very low amount of power and can operate from a single +3.3VDC supply.
Fully equipped with SP3485 RS-485 transceiver and supporting components.
Operates from a single +3.3V supply.
Interoperable with +5.0V logic.
RS-485 input/output broken out to RJ-45 connector, 3.5mm screw terminal, and 0.1" pitch header.
Driver/Receiver Enable connected to RTS line.
-7V to +12V Common-Mode Input Voltage Range.
Allows up to 32 transceivers on the serial bus.
Driver Output Short-Circuit Protection.
Dimensions: 0.9x1.0".
|
