Note:due to different production batches, the printing screen printing/appearance is different, which does not affect the use.
Colour:Black

1. Infrared Transmitter module:
Supply voltage: 5V
Working environment: -25℃-+85℃
Storage temperature: -30℃-100℃
Wavelength: 940mm
Signal type: Digital signal
Infrared central wavelength: About 582nm-940nm
Infrared emission distance: About 1. (5V 38khz)
Infrared emission Angle: About 25 degrees
Wiring instructions:
DAT: indicates the digital output interface
VCC: positive terminal of the 5VDC power supply
GND: The negative pole of the 5VDC power supply

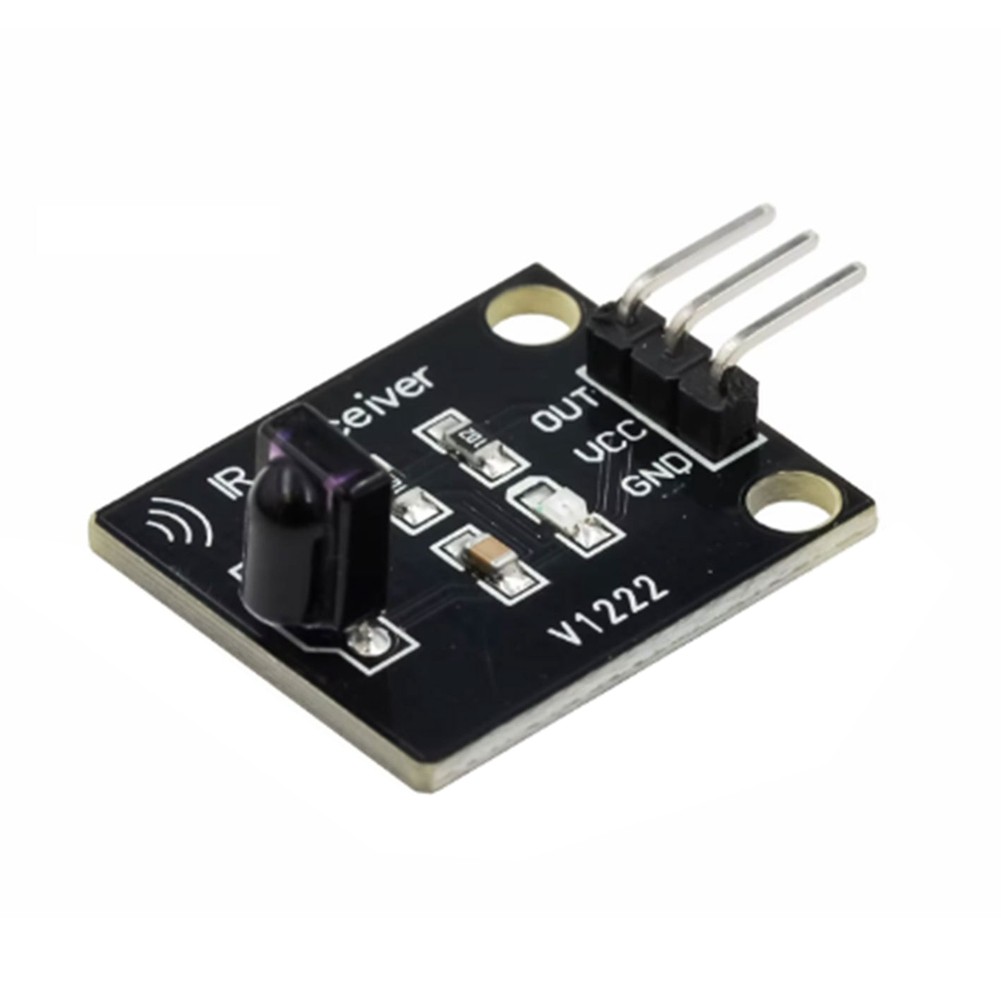

2. Infrared receiving module:
Supply voltage: 5V
Working environment: -25℃-+85℃
Storage temperature: -30℃-100℃
Carrier frequency: 940mm
Signal type: Digital signal
Infrared emission distance: About 10 meters
Infrared emission Angle: About 35 degrees
Wiring instructions:
DAT: digital output interface
VCC: positive terminal of the 5VDC power supply
GND: The negative pole of the 5VDC power supply
Material:PCB+ components

Package Contents:
1 * IR Transmitter Module
1 * IR Receiver Module
