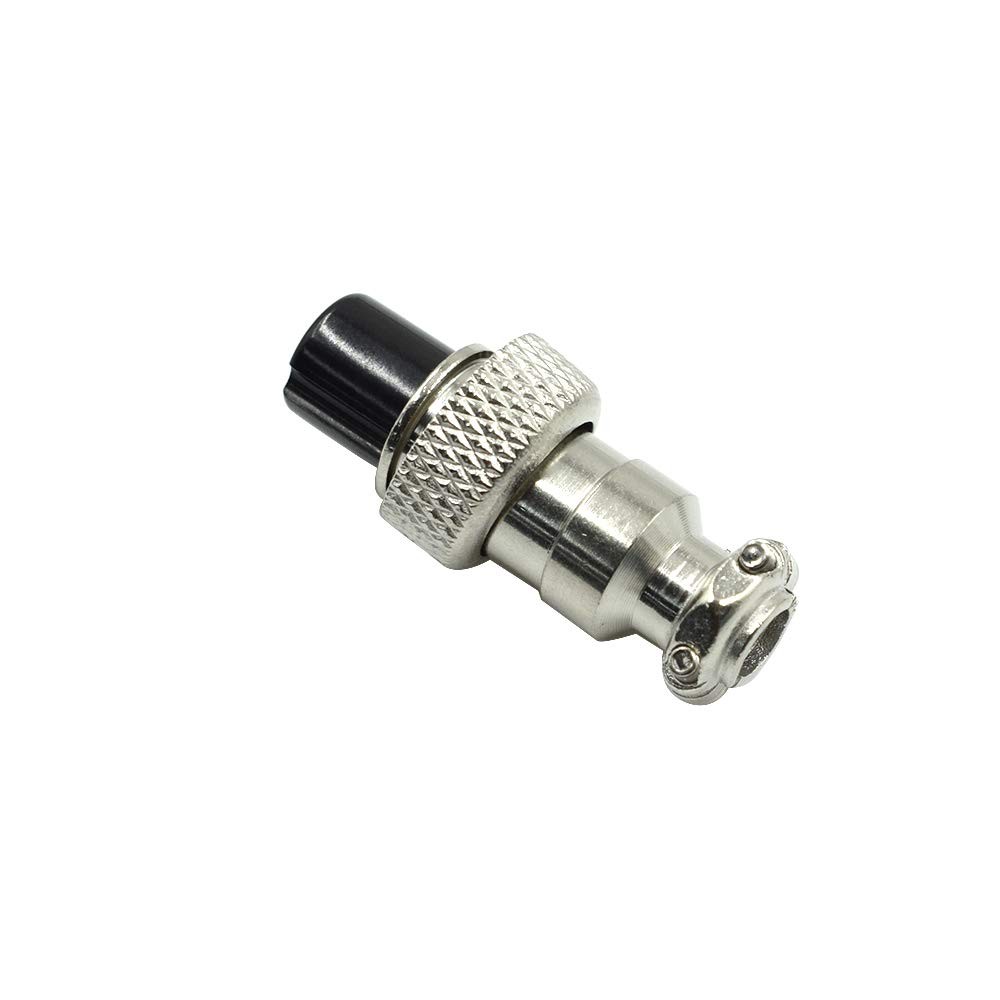

2 Sets GX12-2P Aviation Plug 2 Pin 12mm Metal Male Female Panel Connector
IL
$11
⭐Feature:
1. Male & Female Aviation Connector mainly used for the electronical connection between the cables.
2. 2 pin aviation connector widely used in data acquisition systems, computer automation measurement and control systems, mechnical equipment, audio/video, communications.
⭐Specification:
1. Pin: 2
2. Model: GX12-2P
3. Contact diameter: 1.2mm
4. Contact impedance: 5MΩ
5. Working voltage: AC200V
6. Withstand voltage: AC1500V
7. Insulation resistance: 1500MΩ
8. Rated current voltage: 5A-125V
9. Solder cup mouth aperture: 0.8mm
⭐Package Included: 2 Sets x 2Pin Female and Male Aviation Connector Plugs
⭐【Hassle-Free Warranty】:
guarantee high quality and good service. Here with our 90-day money back risk-free purchase guarantee, order now! If you are not satisfied in any way, Refund or Replacement for any quality problem.
Model: GX12-2P; Type : Male Female Plug; Contacts Pin Number : 2 Pins
Material: Metal and Hard Plastic; Package Included: 2 Sets x Female and Male Aviation Connector Plugs
Product bottom is equipped with a connecting head,using two screws fixed, stable and firm, easy disassembly
Rated Current Voltage: AC 125V; Max Current Voltage: 240V; Rated Current Amp: 5A; Plug Hole Diameter: 12mm
Male & Female Aviation Connector widely used in aviation, nevigation, and some other sealing electronic equipments data acquisition systems, inclinometer, computer automation measurement and control.
