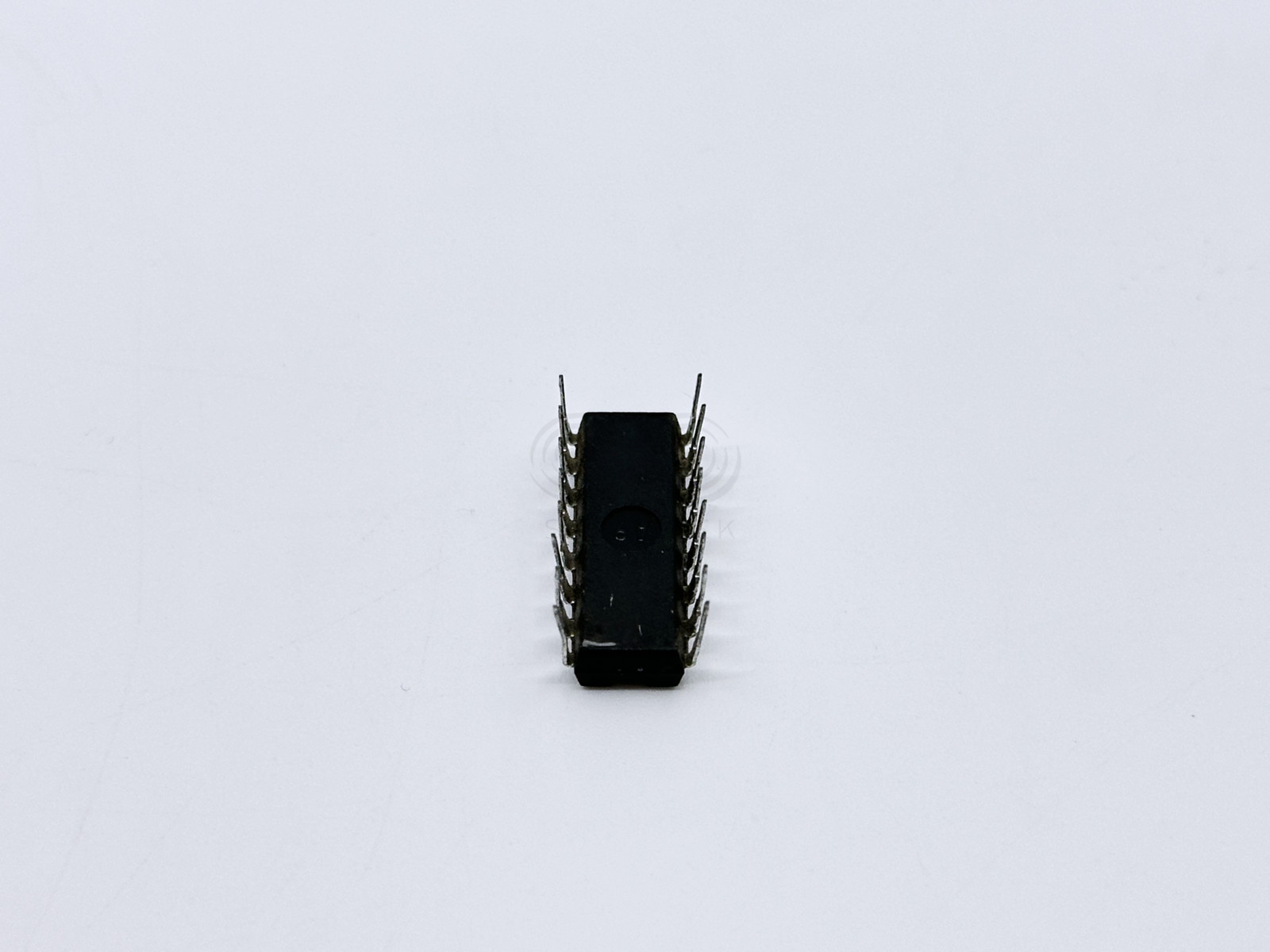

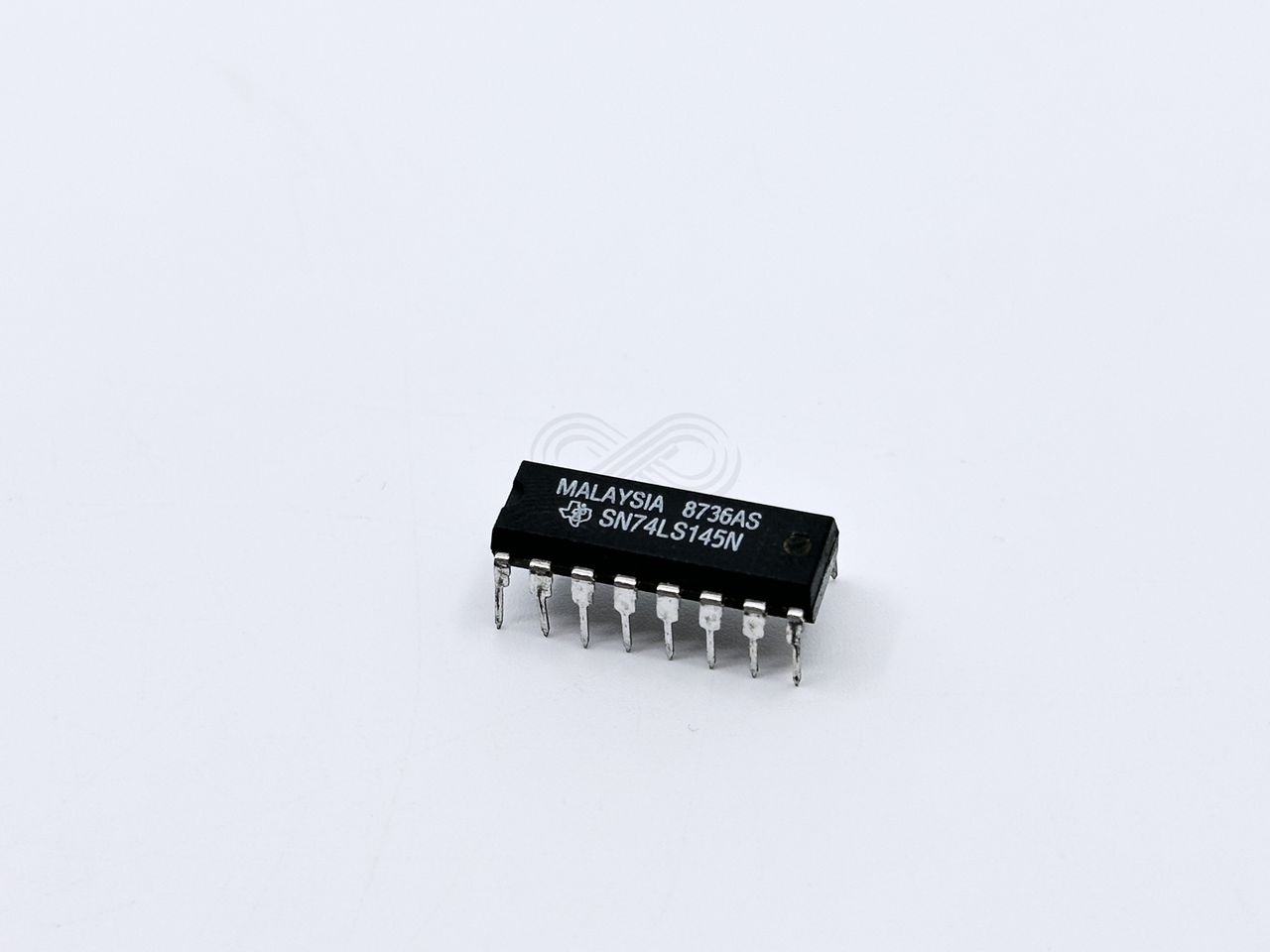

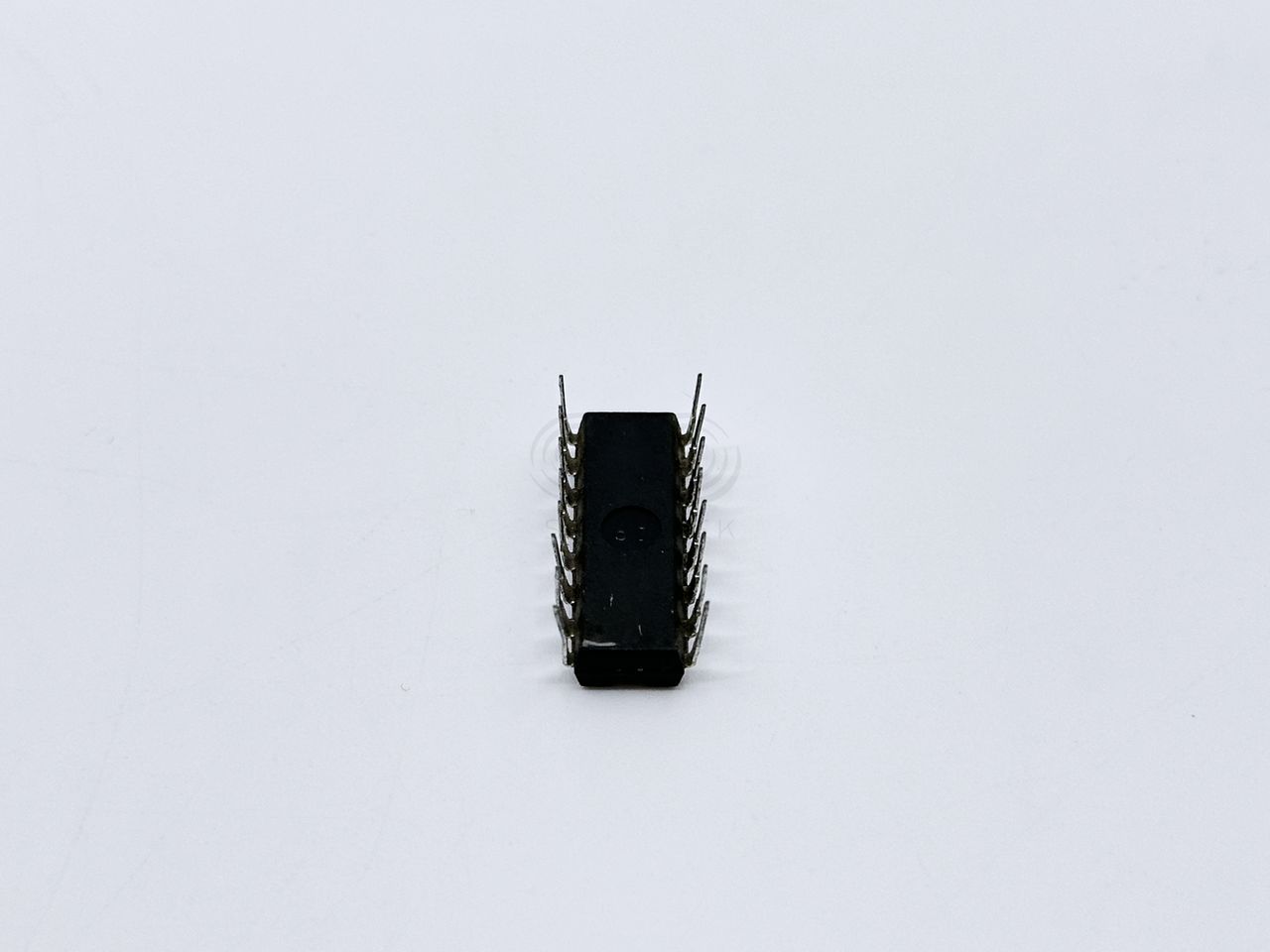

25X SN74LS145N Texas Instruments BCD-to-Decimal Decoder Driver Active Low Open-Collector Outputs LS TTL DIP-16

Ready to Ship

Ask a Question

30-Day Return

25 Pieces - SN74LS145N Texas Instruments BCD-to-Decimal Decoder Driver Active Low Open-Collector Outputs LS TTL DIP-16

Specification
Supply Voltage-Nom (Vsup)	5 V
Propagation Delay (tpd)	50 ns
Prop. Delay@Nom-Sup	50 ns
Number of Functions	1
Number of Bits	10
Surface Mount	NO
Package Code	DIP
Load Capacitance (CL)	45 pF
Output Characteristics	OPEN-COLLECTOR
Family	LS
Logic IC Type	DECIMAL DECODER/DRIVER
Technology	TTL
Additional Feature	ION MAX=80MA @ VOL MAX=3V
Input Conditioning	STANDARD
Max I(ol)	24 mA
Output Polarity	INVERTED
Power Supply Current-Max (ICC)	10 mA
Supply Voltage-Max (Vsup)	5.25 V
Supply Voltage-Min (Vsup)	4.75 V
Temperature Grade	COMMERCIAL
Operating Temperature-Max	70 °C
Number of Terminals	16
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Packing Method	TUBE
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Seated Height-Max	5.08 mm
Width	7.62 mm
Length	19.305 mm
Package Description	DIP, DIP16,.3
Pin Count	16

Note: This table may not be entirely accurate and should only be used as a general reference.
