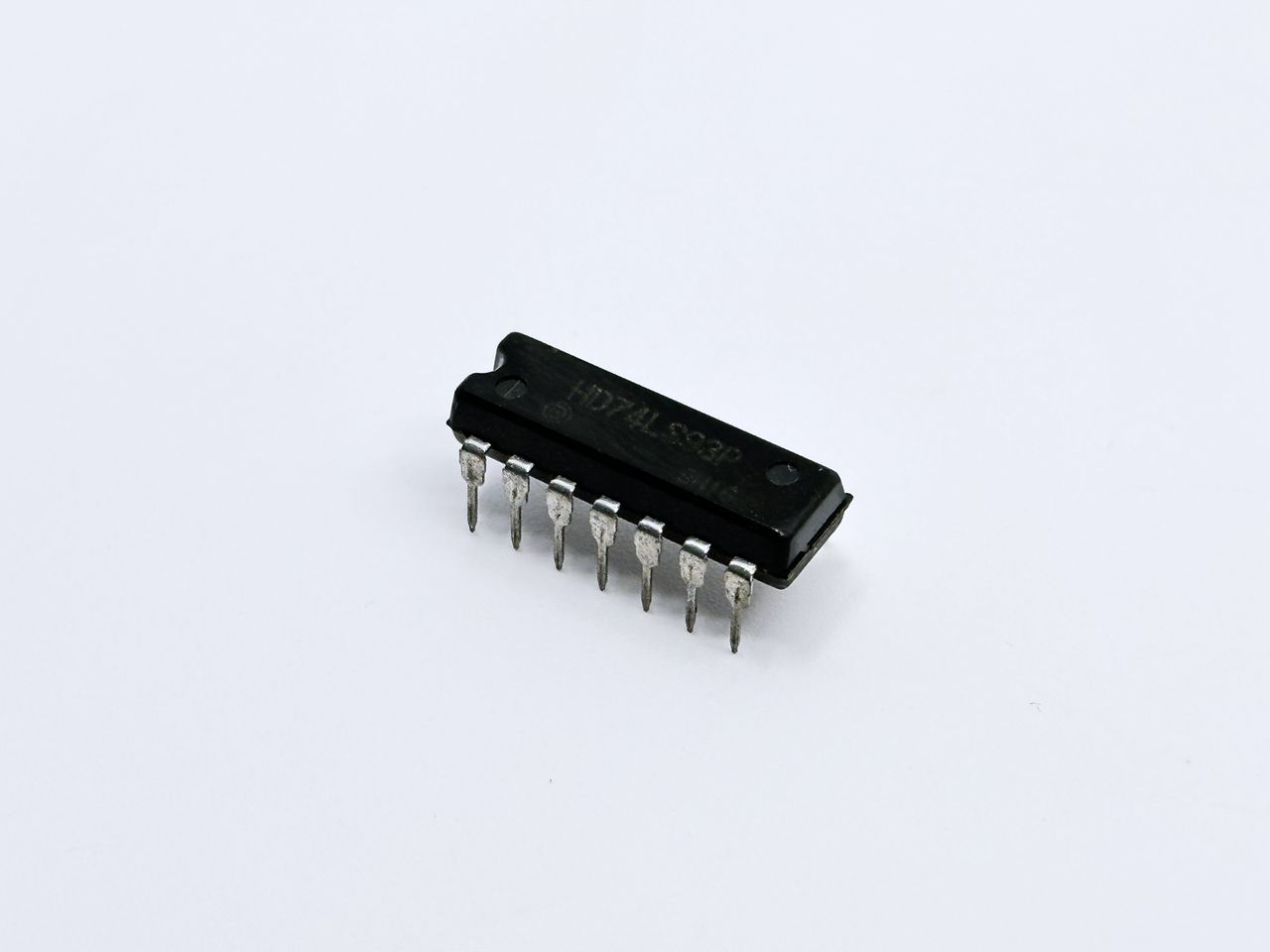

2X HD74LS93P Hitachi 4-Bit Ripple Binary Counter Divide-by-2 and Divide-by-8 Low Power Schottky TTL DIP-14

Ready to Ship

Ask a Question

30-Day Return

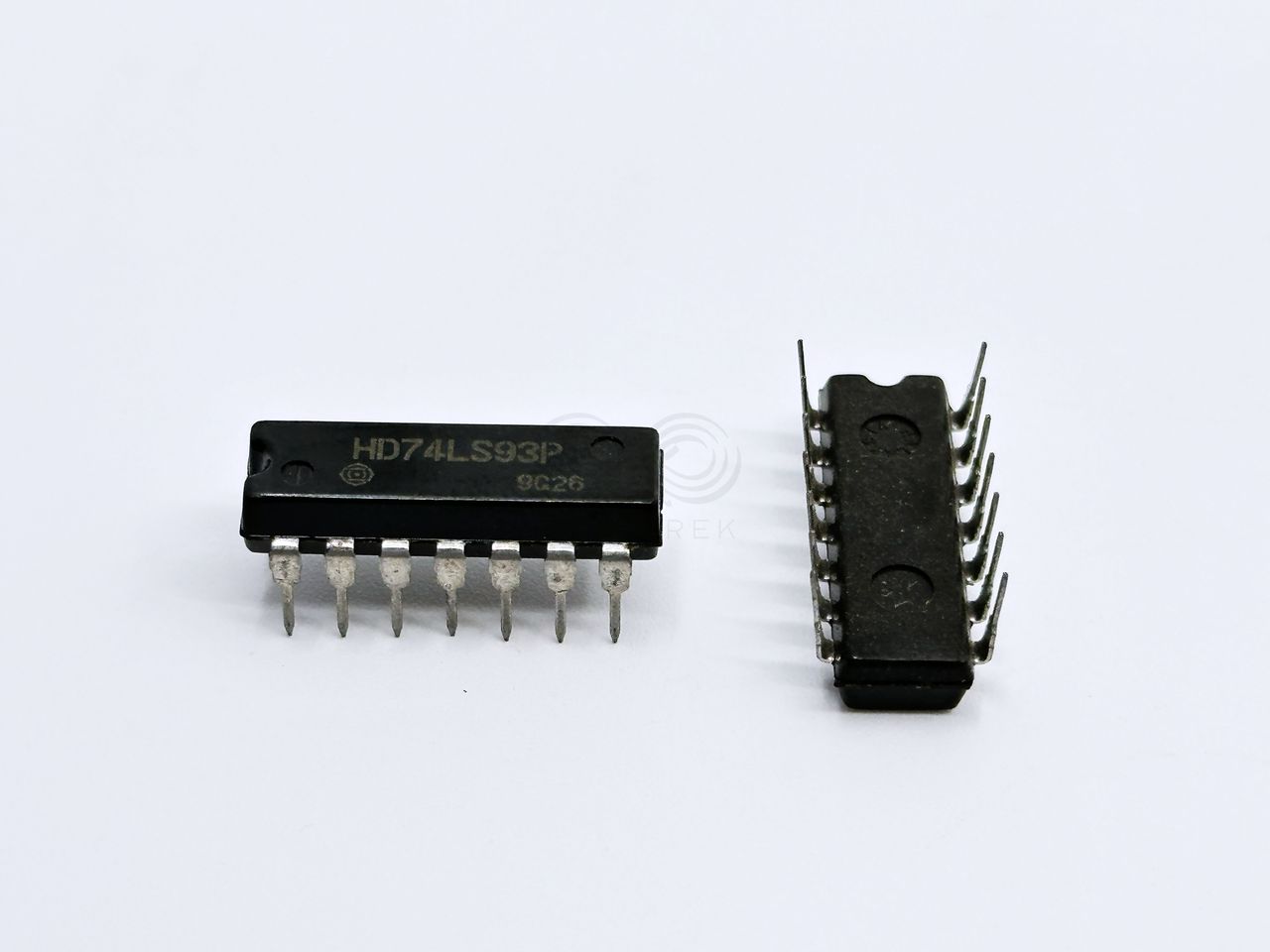

2 Pieces - HD74LS93P Hitachi 4-Bit Ripple Binary Counter Divide-by-2 and Divide-by-8 Low Power Schottky TTL DIP-14

Specification
Supply Voltage-Nom (Vsup)	5 V
Propagation Delay (tpd)	70 ns
Prop. Delay@Nom-Sup	2
Number of Functions	4
Number of Bits	NO
Surface Mount	DIP
Load Capacitance	UP
Count Direction	NEGATIVE EDGE
Trigger Type	LS
Family	BINARY COUNTER
Logic IC Type	TTL
Additional Feature	32 MHz
fmax-Min	NO
Max I(ol)	ASYNCHRONOUS
Mode of Operation	5 V
Supply Voltage-Min (Vsup)	COMMERCIAL EXTENDED
Temperature Grade	R-PDIP-T14
Moisture Sensitivity Level	75 °C
Operating Temperature-Max	-20 °C
Number of Terminals	14
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	DIP14,.3
Package Shape	RECTANGULAR
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	DUAL
Seated Height-Max	5.06 mm
Width	7.62 mm
Length	19.2 mm
Manufacturer	HITACHI LTD
Package Description	DIP, DIP14,.3
Pin Count	14

Note: This table may not be entirely accurate and should only be used as a general reference.
