2X(1. Made of high quality materials, and practical
2. Compact size, solid welding, reasonable distribution of components looks more beautiful.
3. Using low internal resistance MOS, internal resistance as low as 1 milliohm, voltage difference 0.05-0.02V
4. Non- components to build, the use of special chip program, stable performance
5. The product is suitable for replacing ordinary high-current diodes, storage batteries, solar panels, anti-backflooding anti-backflow. Series connection in the input side of the power supply is ideal for anti-reverse connection

Series connection in the positive pole of the circuit, no need to connect the negative pole
No input voltage limitation. (Guaranteed reverse voltage below 40V)
300A high current MOS tube, over 60A current
1 milliohm on-resistance, low loss, low heat generation
Response speed 2us, input and output equivalent to diode. Detected output voltage is the input MOS tube cutoff
Operating ambient temperature: -40-125 degrees
Caution:There is to the input voltage, but there are reverse voltage requirements, reverse voltage is lower than 40V. the output voltage can not be higher than the input voltage of 40V, for example: the input is connected to the 24V power supply, the output is connected to the battery, can be connected to the 12V, 24V36V48V60V batteries, can not be connected to more than 72V batteries, 72V output - 24V input = 48V, the reverse voltage is higher than 40V up.
Color:
Material: PCB

Package Contents:

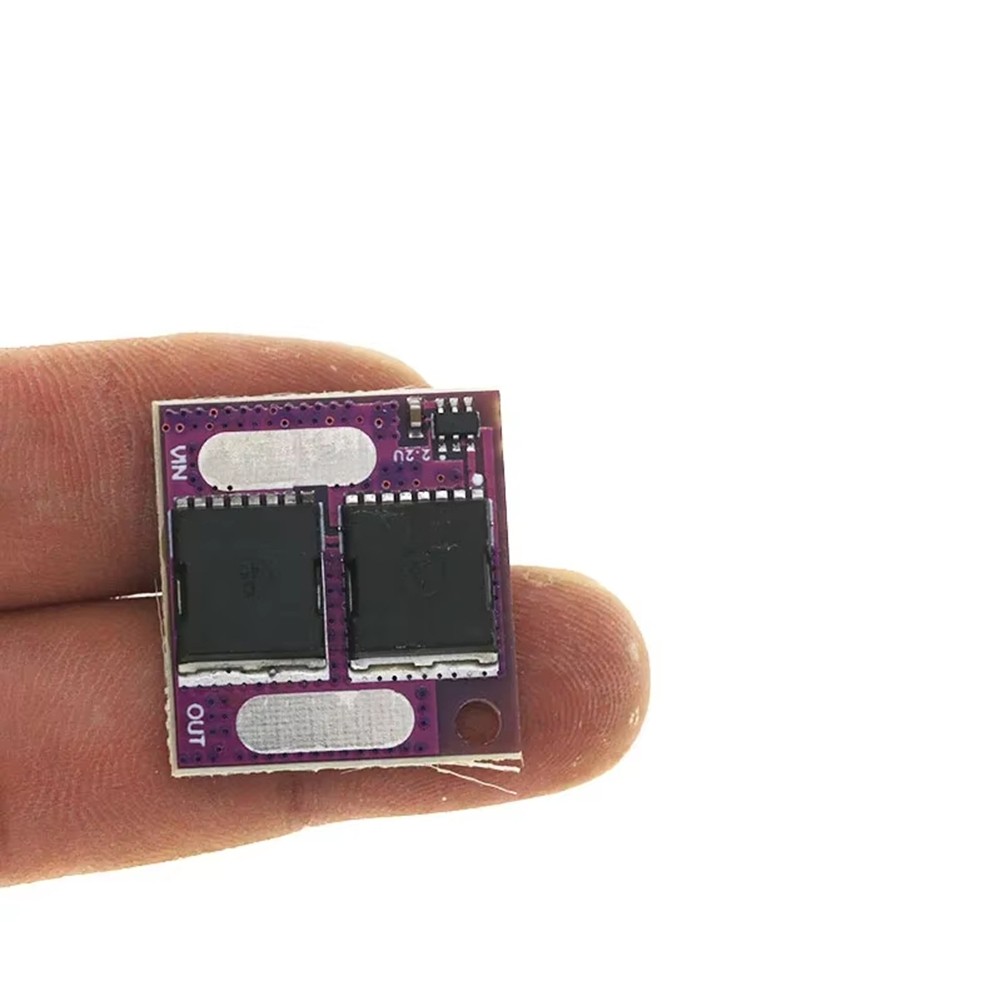

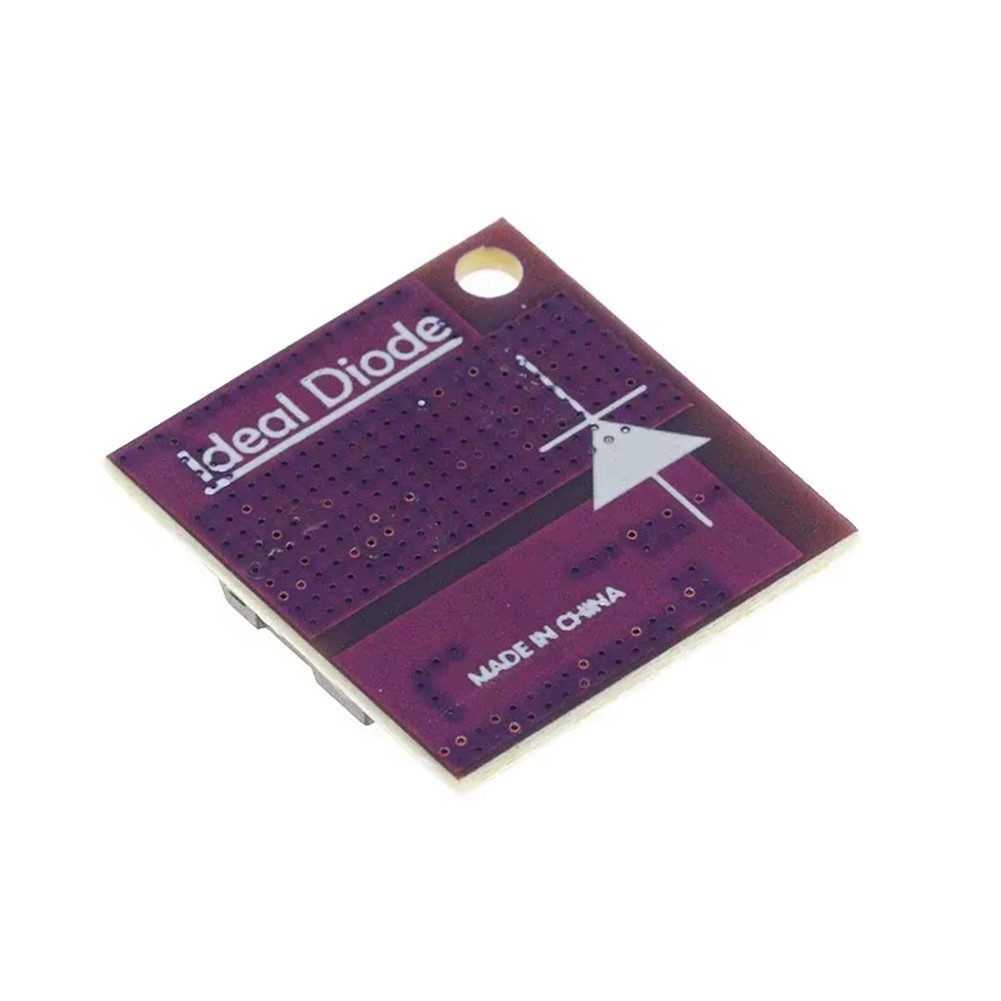

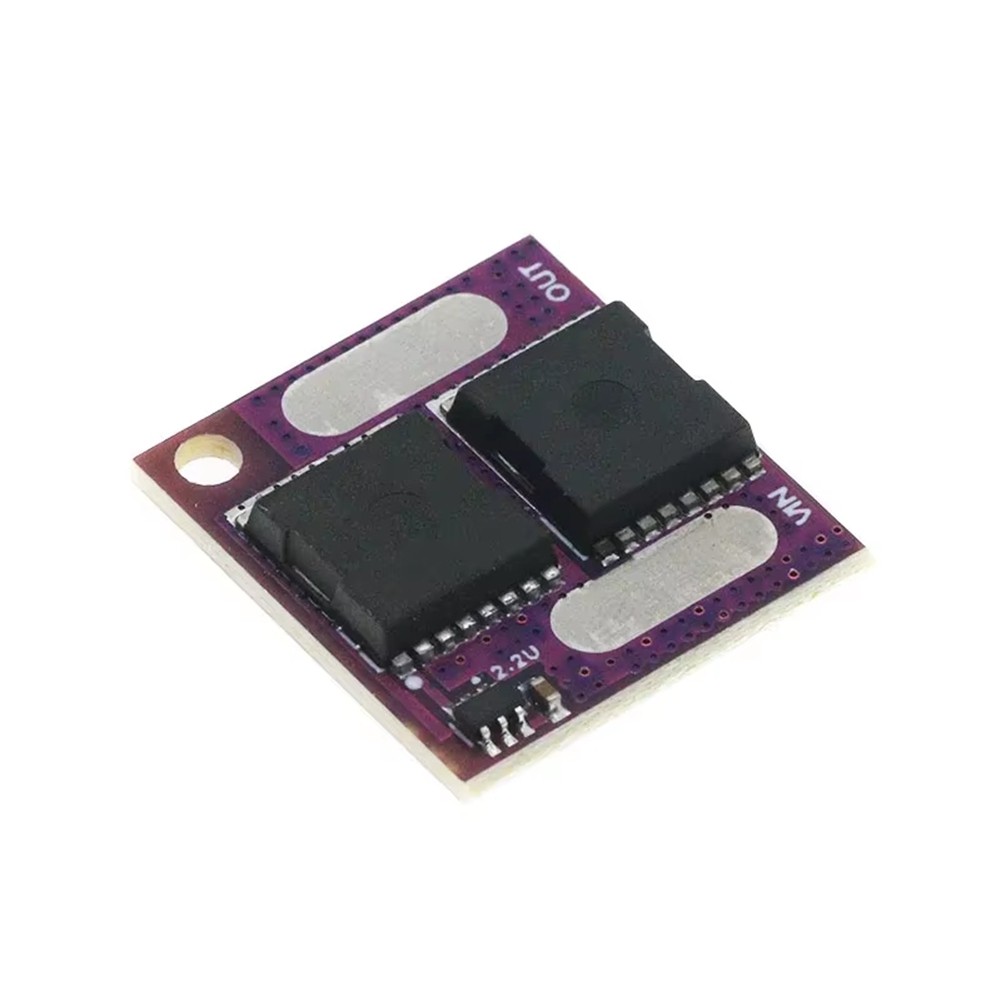

1 x 60A No Voltage Limit Ideal Diode Module)
