Our specialty is gas springs – it is not a side line!
Get Your High Quality Nitro-Prop Gas filled struts here, why wait 10-20 days for a mediocre product?
USA SELLER – USA STOCK – FAST SHIPPING
Need help in getting the correct unit, e-mail us or send your phone # we are always happy to help!
WHY PAY MORE?
Cannot find what you need? We can custom make it!
Unlike Many Sellers we carry an extensive line of end fittings, mounting brackets and ball studs for our struts
MORE Gas springs listed in our Store
This is a direct replacement for SPD-2300-30
TIP: when selecting a replacement unit always compare your old unit in both length and pressure to insure proper fit
ALSO be sure what end fittings you need – some Assemblies may use this part # with different end fittings
You are buying Nitro-Prop brand Struts
Fully extended … 20 inches … Fully retracted … 11.5 inches (center to center of the ball socket)
Diameter rod = 8mm / tube = 18mm

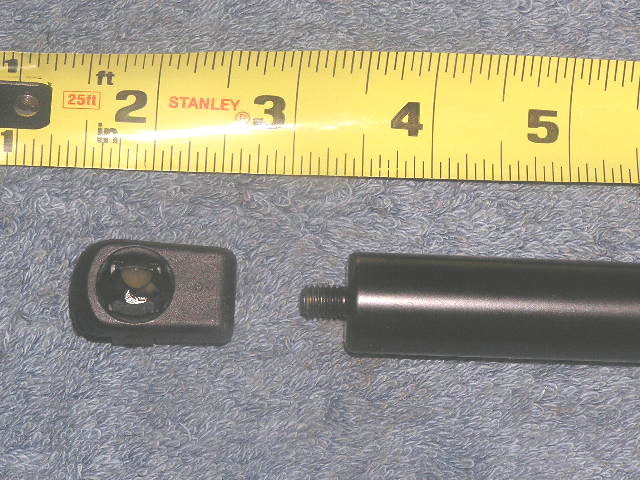

End thread = M6 x 1, Ball size =10mm
30 pound force at rest (full extension)
You are bidding / buying (2ea) gas spring / shock / strut Manufactured for Nitro-Prop Strut and Spring (NP2000-30 -spd) this unit is totally self-contained, hermetically-sealed, a hydro pneumatic linear actuator containing pressurized nitrogen gas, which provides the output force.

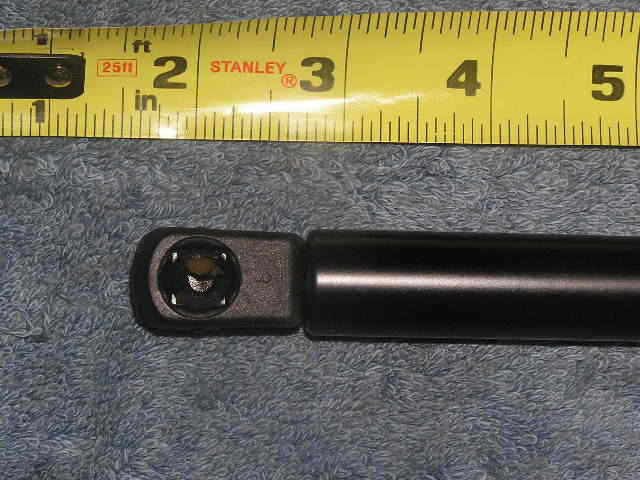

This unit comes complete with 10mm nylon ball sockets both on the rod and tube ends (if you are in need of mounting brackets or ball studs see our selection listed in the store)
If you are looking for a replacement, upgrade or thinking of adding a gas spring to anything you would like assisted power in opening - closing or to be held open hands free this may be for you. Gas springs offer a unique alternative to conventional mechanical, coil spring or counterbalancing devices. The spring rate for a gas cylinder is far less than for any type of mechanical spring. The advantages of these springs involve the combination of a relatively flat force curve, versatility of controlled forces, extension speed, damping at the end of the stroke along with a very compact design. Each gas spring contains a specific amount of oil, which lubricates the seal, piston and piston rod, as well as acting as a damping medium. The oil within the cylinder, when it is compressed or extended, moves from one side of the piston head to the other, providing a damping effect.
Replacement TIP: There are many brands of gas springs / shocks / struts manufactured today with just about as many names Nitrogen gas, gas, struts, springs, shocks, dampers etc. , some have a part number that is as equally confusing to understand without a reference guide! If you are looking to add or replace any gas shocks (they all get weak, worn, bent or broken and need to be replaced at some time) it is easier than you think, here are the basics

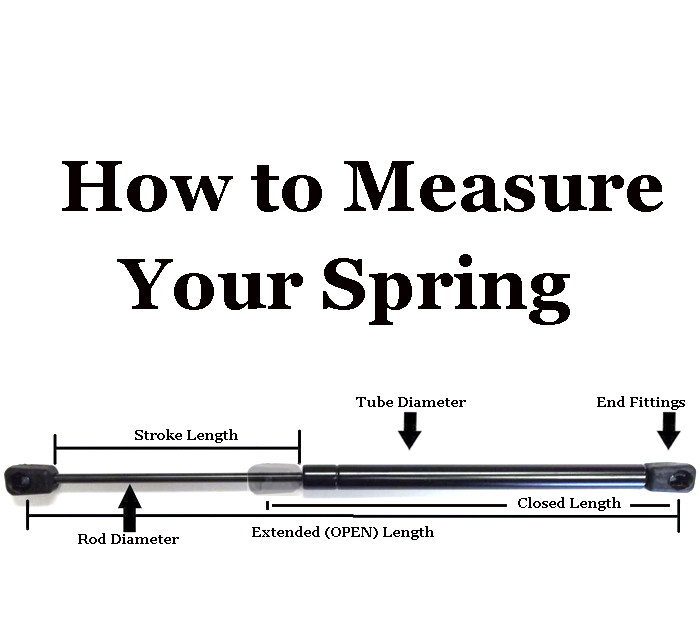

1. Just measure the extended length of your shock (from the center of the socket to the center of the socket) that’s the length (that was easy!)
2. If you do not know the force pressure, and it is not listed on the shock (most times it is encoded in the part number on the shock) you can always do a simple test, IE camper topper lid … use a scale to measure the force needed to hold the door open!
a. Be sure to take the old struts off!
b. PLACE the scale at the point the strut connects to the door / lid (at the bracket)
c. IF 2 struts are used divide the weight in half.
That will get you really close
3. Shocks can come in the same length and force pressure but different in physical size (rod diameter / tube diameter- 6x15 / 8x18 / 10x22 / 14x28 MM etc) I think of the physical size in terms of ratings … standard duty (6x15mm) … heavy duty (8x18) … extra heavy duty (10x22), and when nothing else will do use the maxi 14x22MM
4. Mounting brackets / studs can be permanent or replaceable the most common are the ball and socket style (10mm or 13MM) then the ring / eye style. Many shocks come with threaded ends to allow for interchangeable configurations. If you have the option I like to use the ball and socket whenever adding a shock as it is much more flexible then the ring / eye style.
Removal TIP: it is very easy to replace most gas springs / shocks/ struts, the most common connection used is the nylon “ball joint socket” to remove your old unit simply insert a “flat” blade screwdriver under the spring clip (you do not have to remove the clip) using the slot provided in the back of the socket, push the screwdriver down just a bit this causes the spring clip to open and it will release the ball end. The new unit now just “pushes” on and snaps in place, that’s it you’re done!
We ship to the USA only
The shipping and handling is a set cost of $13.90 (postage + partial packing cost) for the first strut and 5.00 for each additional (multiple items may be shipped USPS or FedEx depending weight and destination)
SHIPPING DISCOUNT … We are happy to discount shipping on multiple lots or when purchasing from multiple auctions to provide you the best shipping rates whenever possible. PLEASE ask for an invoice to get combined shipping. FAILURE TO WAIT FOR INVOICE WITH COMBINED SHIPPING WILL RESULT IN LOSS OF COMBINED SHIPPING DISCOUNT- eBay has no option to allow sellers a refund for S&H fees once paid (Shipping charges will not be adjusted after payment has been received.)
If you do not find the size, length or configuration you are in need of in any of our listings, we will do our best to get it listed right away, please just Contact us as we have most all the gas struts / springs that are / were used by WRV, Alpine Coach, Alpenlite, Marathon, Beaver, Safari, Winnebago, Mini Winne, Keystone, Fleetwood, Southwind, Coachmen, Newmar, Forest River, Dutchmen, Itasca, Trail Wagons , Chinook , Georgie Boy, Thor, Holiday Rambler, Damon, Tiffin, National, CT Coachworks, Alfa, Monaco, Safari, Rexhall, Four winds, Safari, Gulf Stream, Country Coach, R-Vision, Blue Bird, Prevost. And they fit boats, campers, car and truck hood lifts, Rear glass lifts, toppers, toolbox, JO box, JOB box. Tanning beds and more!
Happy Bidding!
Thank-you for your interest
Please click the ICON ME next to Strut-Your-Stuff-Here, this tells a bit about me and the items that will be up for sale. Please be patient for answers to your e-mails, as I do not get to work eBay full time. Please be sure to check out our other auctions, click view sellers other items.
Be sure to check out our store items, and sign up for the STORE news letter (just click on the “sign up” button in the top right hand side of this page) as we do mark down items just to see who is watching … you will be surprised as to what those prices will be, but they only stay on sale for a short time so be sure to watch your e-mail for the notifications!
Mike and the boys say you can always Strut-Your-Stuff-Here!
