LM3915 DIY VU Meter Kit Parts, v4.0:

This is a revised and improved version of the LM3915 Audio Level Indicator (VU Meter). The Circuit and PCB are custom designed and tested to offer a better quality and response in comparison to other kits that maybe for sale anywhere else. The PCB v4.0 is a smaller-size revision as compared to v3.0 and the circuit components on v4.0 have been revised to provide a higher audio signal sensitivity and response. As a DIY Kit, it will require assembly and soldering; however, we have designed the PCB for easy component placement and soldering.

The improved and revised smaller-size PCB v4.0 includes the following features:

Custom Made PCB Design with smaller-size (v4.0).
Improved Audio Response by utilizing a Pre-Amp.
Improved Audio Response/Sensitivity by utilizing Schottky diodes.
Better Dual Mode (Bargraph or Dot) Visualization.
Bargraph or Dot Mode is switch selectable.
Added DMCH (Dot Mode Capacitor Holder) for better response when in Dot Mode.
DMCH is switch selectable (On or Off).
Better Control over total current-sinking by the LM3915.
Power Diode added to avoid reverse-voltage burning/damage.
Mountable PCB by Four-Corner holes.
Easy pluggable Power and Audio Cables (provided as shown in images).
Audio Signal Input Sensitivity can by adjusted by the BLUE Trimpot (VR1).

What will I receive?

2x Complete LM3915 DIY KITs LED VU Meters v4.0 Improved/Smaller Version with BLACK PCB.

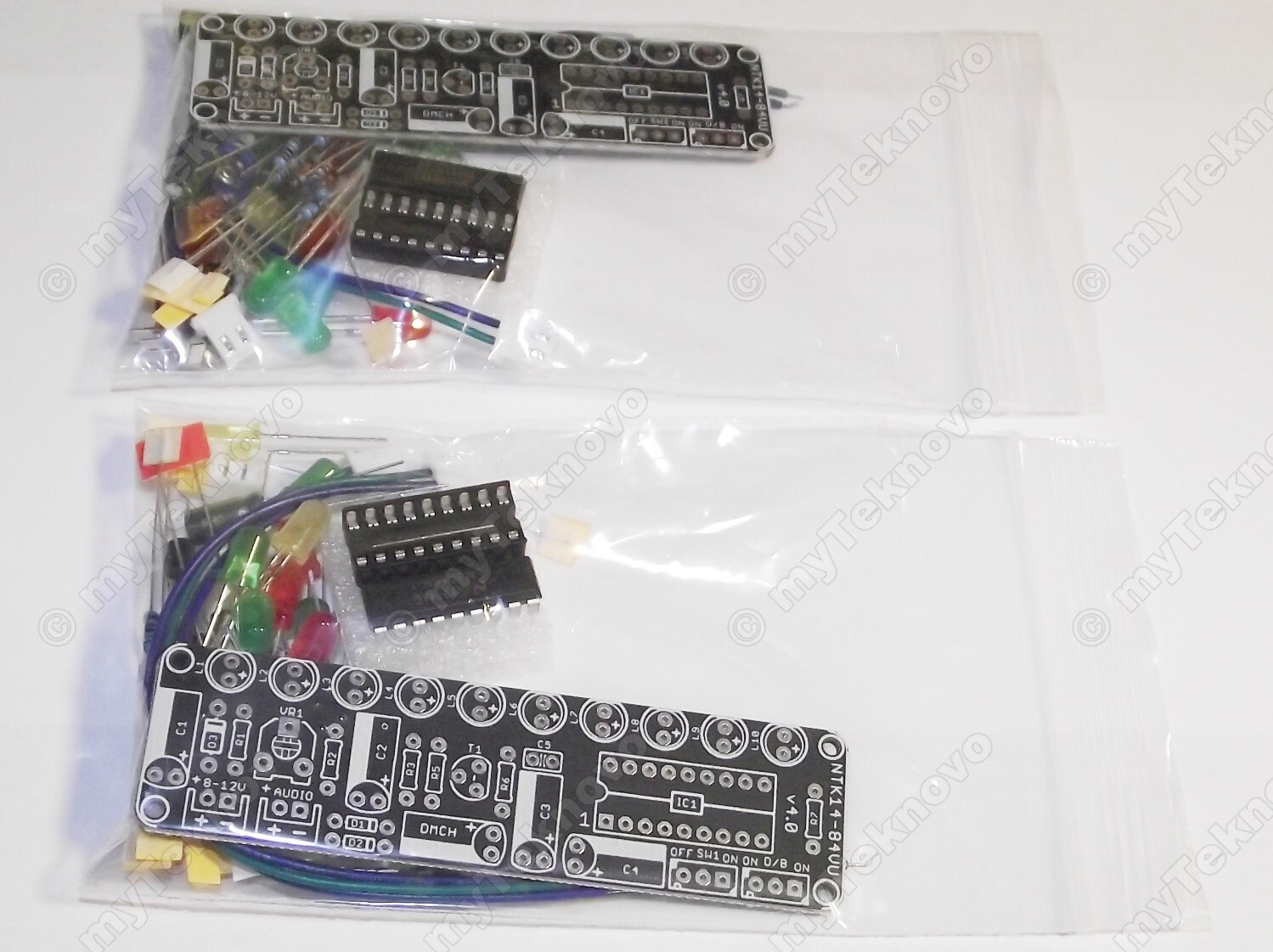

Please refer to images for all electronic-parts included, thanks.
