Description

Our sophisticated engraving machine stands as a pinnacle of craftsmanship, poised to serve as an invaluable aide in your artistic endeavor of carving. With its precision-engineered design, it transforms mere materials into intricate masterpieces, elevating your woodworking craftsmanship to new heights. This elegantly crafted tool doesn't merely shape wood—it breathes life into your vision, harmoniously fusing artistry with technology.

Key Features

Build to Last: It is composed of high-quality aluminum alloy with a sandblasting anodizing process, which makes it rust-resistant, sturdy, and has a long service life.

Powerful Function: It uses a 57-76 stepper motor with a power of 500W and a speed of 10000rpm, which can efficiently and accurately carve according to your carving needs.

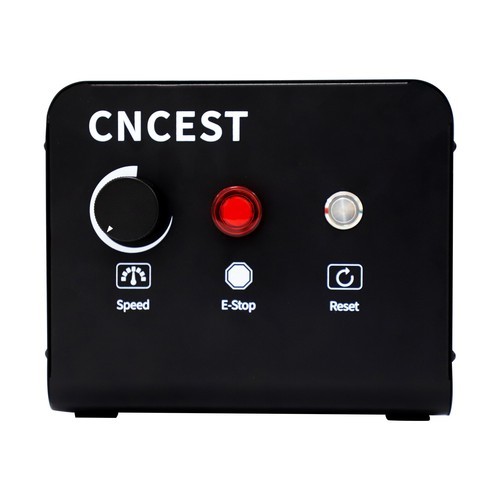

Thoughtful Design: It adopts XYZ three-axis and easy-to-use integrated control box, with speed regulation, E-Stop, and Reset functions, which can better present your carving skills. In addition, it supports the Windows XP/7/8/10 system, making it easy for you to connect to a computer for precise engraving.

Safety Protection: It has an air cooling design and an emergency stop switch, which can ensure timely heat dissipation, as well as the stability and use safety of the product during operation.

Enjoy DIY: With it, you can do your own woodworking or plastic DIY to create your favorite works and enjoy the creative process!

Ideal Gift: Because of its practicality and powerful functionality, you can give it as a Christmas, Thanksgiving, or Halloween gift to your worker friends.

Protective Package: We have used sponge wrapping to minimize damage to the product during transportation.

Buy with Confidence: We stand behind all our guests and look forward to assisting you with your purchase. It is our pleasure to answer your confusion and questions. The end of the story between us is not "we sell and you buy".

Details

Sturdy Collet: You can mount the drill bit(not included) securely for engraving.

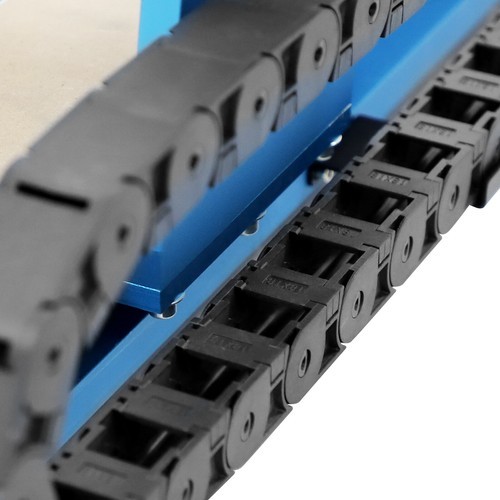

Chain Design: The drag-chain cable design is not easily tangled and more beautiful and simple.

Application

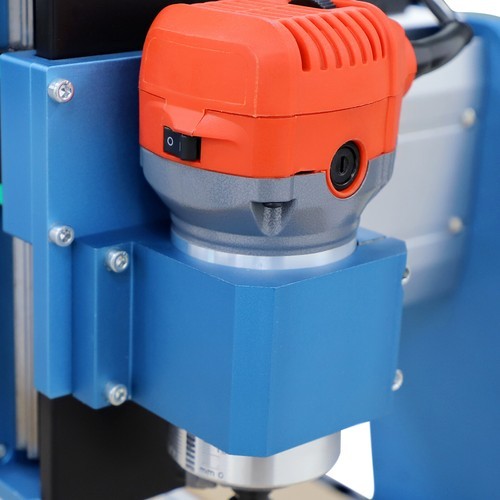

It is compatible with laser heads and trimmers. It applies to Windows XP / 7/8/10. It can be used in factories, woodworking, workshops, advertising shops, etc. It is suitable for carving wood, aluminum, brass, organic glass, PCB, MDF, acrylic, resin, nylon, carbon fiber, PVC, etc.

Specification

Color: Blue and Black

Material: Aluminum Alloy

Process: Sandblasting Anodizing

Mounting Type: Freestanding

Power Source: Corded

Plug Type: US Standard

Voltage: 110V

Maximum Feeding Height: 115mm/4.53in

Y-axis Travel: 600mm/23.62in

X-axis Travel: 500mm/19.69in

Z-axis Travel: 120mm/4.72in

Y-axis Transmission: 1605 Roller Screw/15 Square Rail+Slider

X-axis Transmission: 1605 Roller Screw/15 Square Rail+Slider

Z-axis Transmission: 1204 Roller Screw/15 Square Rail+Slider

X. Y. Z-axis Drive Motor: 57-76 Stepper Motor

X. Y-axis Maximum Operating Speed: 1500mm/59.06in/min

Z-axis Maximum Operating Speed: 1200mm/47.24in/min

Spindle Motor Power: Air-cooled 500W

Spindle Motor Speed: 10000RPM

Spindle Motor Collet Model: ER11

Spindle Motor Collet Camping Size: 1-7mm/0.039-0.276

Control System Data Transmission Method: USB

Control System: GRBL

Machine Size: 88.8*77.3*55.5cm/34.96*30.43*21.85in

Workbench Size: 78.4* 60.6cm/30.87*23.86in

YSB8SU-000300US(Base):

Package Size: 93*73*16cm/36.61*28.74*6.3inch

Gross Weight: 24.3kg/53.57lb

Net Weight: 24kg/52.91 lbs

YSB8SU-000200US(Frame and Machine):

Package Size: 83*49.5*24.5cm/49.5*19.49*9.65inch

Gross Weight: 24.6kg/54.23lb

Net Weight: 24kg/52.91lb

Package Included

1* Engraving Machine

1* Air-Cooled Spindle Motor

1* Control Box

1* Power Cord

Other Accessories for Use

Notes

• We ship this product separately in two packages to protect the product from damage during shipping. Please be patient as all parts arrive.
• Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
