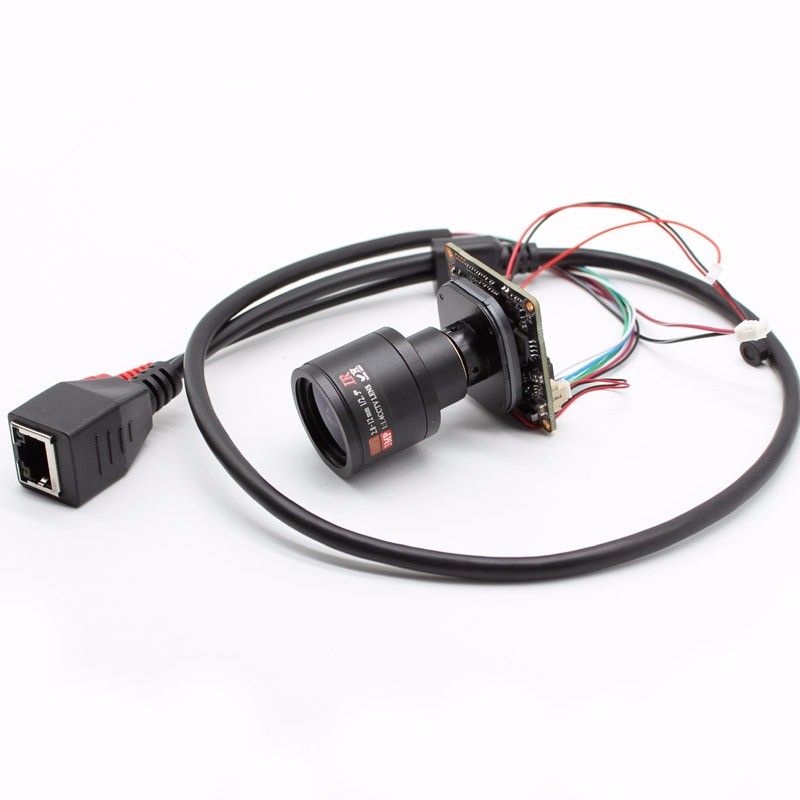

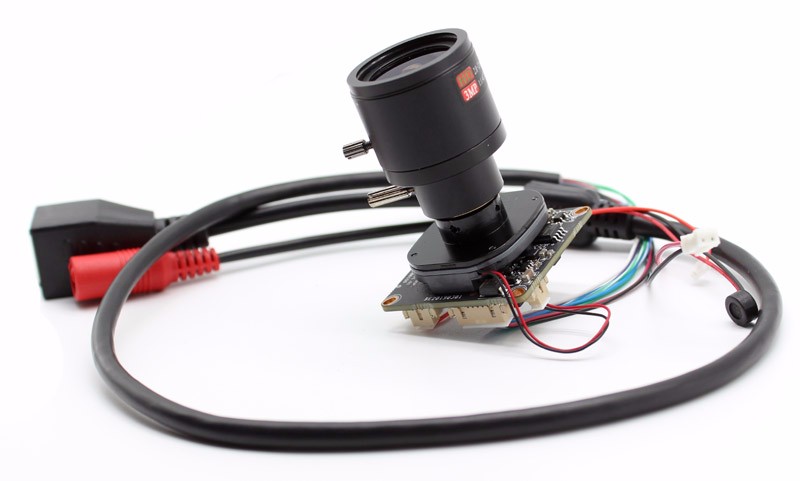

3.0mp 1/3" low illumination CMOS IP Audio Module;Support 2D/3D noise reduction, digital wide dynamic; Advanced H.265++/H.265+/H.265/H.264 video compression,Super low rate, high definition quality of image; Professional anti-lightning, conform to GB/T17626.5 and IEC61000-4-5; Support ONVIF; access third party; Support various mobile monitoring(iPhone,Android); Provide web, CMS, center platform management software MYEYE, provide SDK development Support cloud technology, easy to achieve network penetration, fro in-line and alarm information pushed Module 38*38mm size IP PCB Board. Lens: 2.8-12mm Lens,Optional: 2.1mm/2.8mm/3.6mm/4mm/6mm/8mm/12mm/16mm/25mm |
| Sensor | 3.0MP 1/3" CMOS sensor |
| System structure | Embedded RTOS,dual-core 32bit DSP(Hi3516D), pure hard compression,watch dog |
| Minimum Illumination | color 0.01Lux/F1.2, black/white 0.001Lux/F1.2 |
| Video compression | H.265++/H.265+/H.265/H.264, support dual stream, AVI; 0.1M~8Mpbs variable; 1~25f/s variable |
| Image output | Main stream: 3mp 2048*1536(25fps); sub-stream: 704*576(15fps) |
| Wide dynamic | Support digital |
| Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing |
| Network interface | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc |
| Singal interface | One photo resistance interface,one IR-CUT interface, support photo resistance signal and IR-CUT links to IR |
| Shutter | 1/50(1/60)s to 1/10,000s |
| Audio compression | G.711,support bidrectional talk,audio&video synchronization |
| Audio interface | 1ch input,level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch output,impedance:16Ω,30mw,support microphone |
| Other function | Support IR-CUT, Support WEB,OSD,live video transmission,motion detect and IO alarm,front-end storage/playback/download, and center reminder and image linkage,support JPEG capture; united remote client monitoring sofaware, MYEYE; Support ONVIF; perfect SDK |
| Alarm I/O | 1/0 (support alarm input and video link to background) |
| Mobile monitoring | Support multiple mobile monitoring (iOS, Android) |
| Other | DC12V/2A input, power consumption:≤3W,dimension 38mm*38mm |
| Explain | Support POE power supply (optional), not support any custom |
Warranty Term: One Year Warranty
