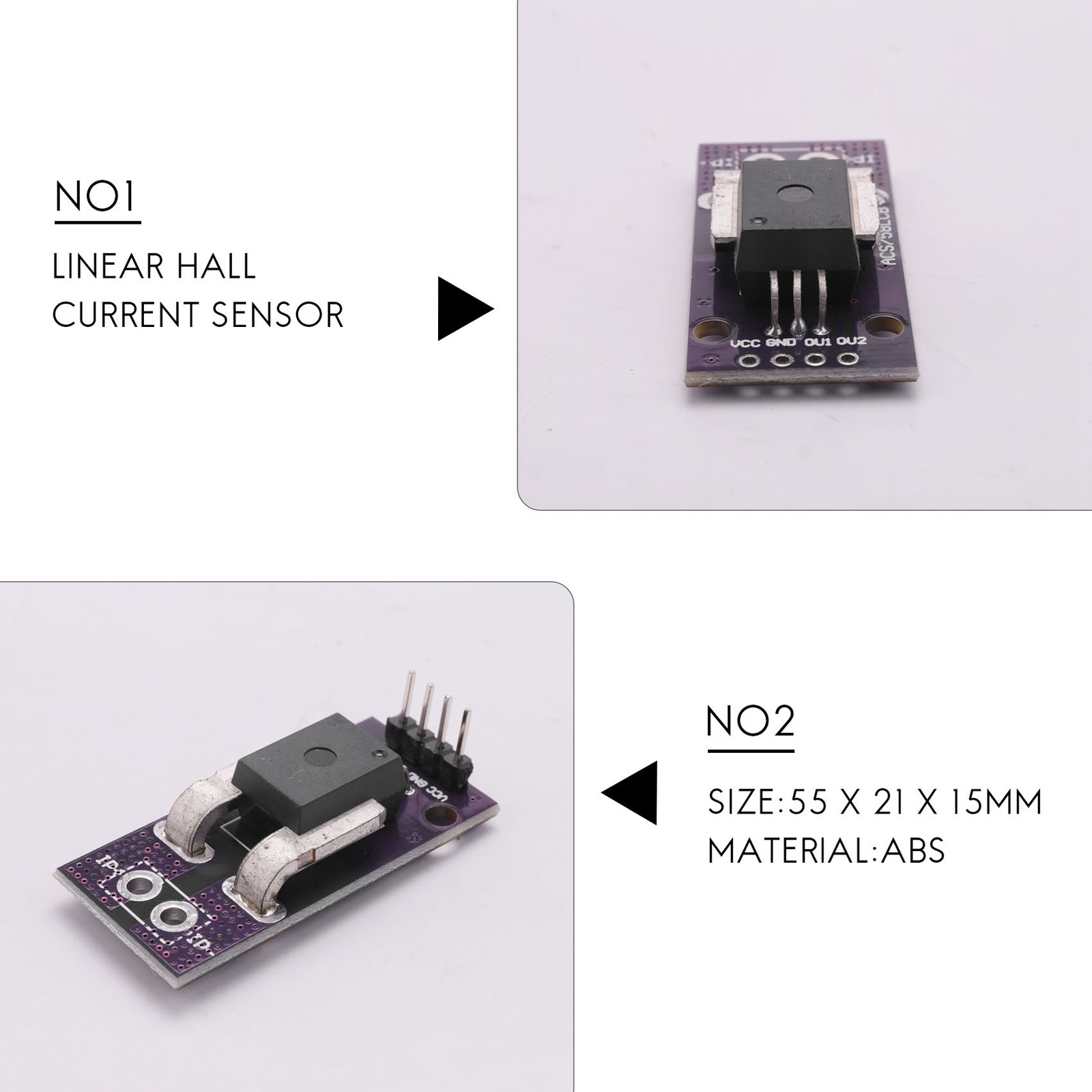

3X(ACS758 ACS758LCB-100B Current Module Linear Hall Current Sensor PFF-T3378
3X(The ACS758 consists of a , low-offset linear Hall sensor circuit with a copper current path close to the product. The current applied through the copper current path is capable of generating a magnetic field that can be induced by the integrated Hall IC and converted to a proportional voltage.
Device accuracy is optimized by placing the magnetic signal close to the Hall sensor. The accurate, high- output voltage is provided by a stable chopper-type, low-bias BICMOS IC that has been programmed for accuracy.
The internal resistance of the read conduction path is typically 100 Q with low power loss. The thickness of the copper wire runs under high overcurrent conditions.
The terminals of the conduction path and the sensor pins (pins 1 to 3) are electrically blasted. In this way, the ACS758 sensor 1C series can be used in applications that require electrical insulation but use -insulators or complex insulation techniques.
The ACS758 device is fully calibrated prior to shipment from the factory. The ACS758 series is a lead-free product. All pins are plated with 100% fog and no lead is present in the package.
working voltage: 3V-5V (MAN SV)
static output voltage: VCCi2
Working current: 135m2A (MAX)
storage temperature range: -65℃- 165℃
the maximum output current (VIOUT-GND): 3mA
internal bandwidth: 120 KHz

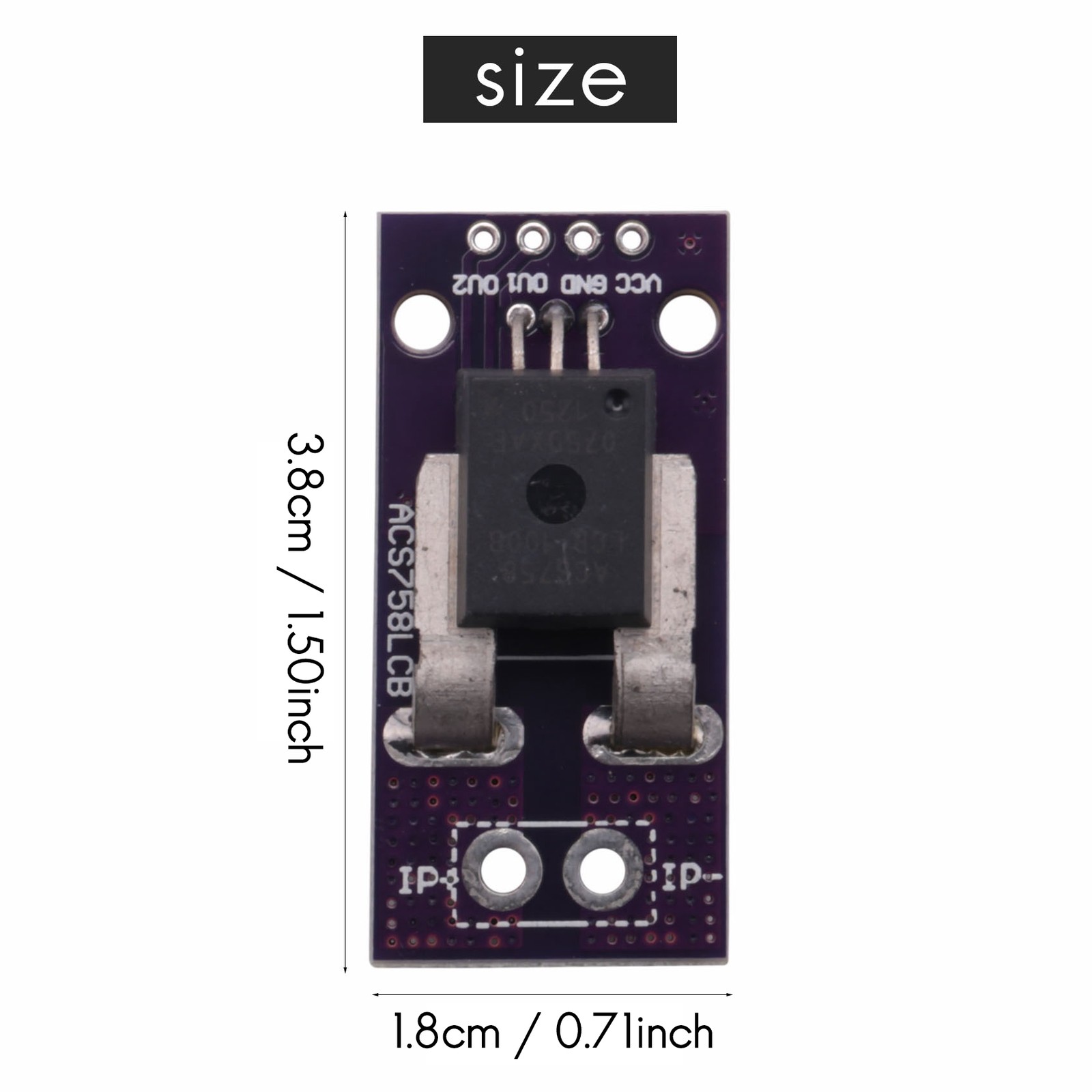

size:55 x 21 x 15mm
Material:ABS
colour:
Package Contents:
1 x ACS758 Current Module
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.)
