Notes: Will Include One 4-door Access Control Board+ 4 RFID Readers
Download the software+Wiring diagram+Software instruction link below:
Double click “setup.exe”.Username:ABC,Password:123
Registration code:2004
Extended functions password:5678
Android APP [link removed by eBay]
iOS APP [link removed by eBay]
Features
Features | |
Memory size | 20K users/20K access records. Each record contains date/clock/card ID/location/access or not/exit button/alarm button |
Privilege management | Who is allowed for the door/which door is allowed for the user. |
Work offline | The PC is not always necessary for the controller so long as the controller has been configured well. |

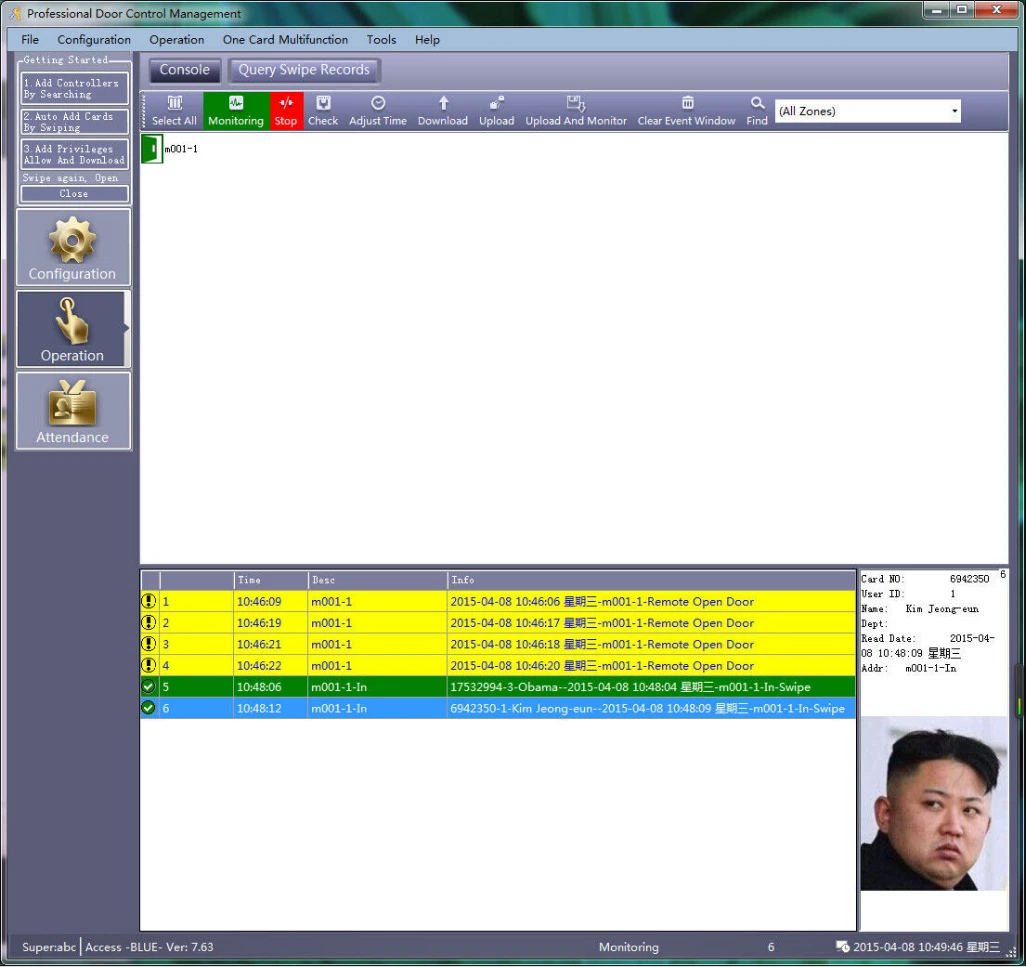

Photo checking and Monitor instantly | The software can display all the access instantly. Also can display users picture instantly.Doors’ condition(open or close),allowed access or unallowed. |
Emergent lock | All the doors can be locked once the “emergency button”pressed.nobody can open any door at the moment. |
Interface lock | The access control software interface freezes if nobody operate the computer until the administrator typing in the password. |
Headcount | Can know how many people indoors. |
Locating | Do you want to search a man from a huge building?You can get where is he by the software. |
Time segment | Max to 255 time segments can be created. |
Normal on/off | You can set any doors to keep open of close for a certain while. |

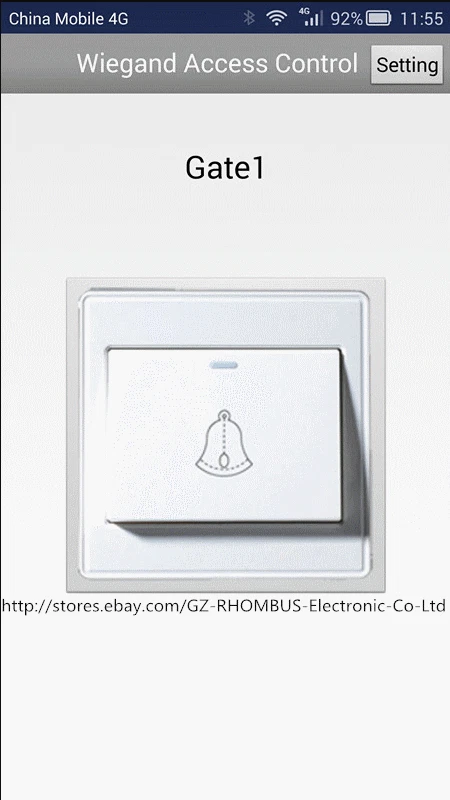

Remote open | Administrator can open a door by the software or mobile APP. |
Card + Pin code | Keypad reader is valid,any user can be set to open the door in “card+pin code”method. |
Manual Card ID+ Pin coed | In fact you can open the door so long as you remember the card ID. You can open the door by typing in card ID and Pin code. |
Super code | The doors can be opened by some super codes. |
Interlock | A door’s condition can be attached with another door. For example, Door A can only be opened when Door B is closed. |
Anti-followed | If an user entered following another user, he didn’t read a valid card. So, he can not exit. |
Multi-card privilege | Sometimes, a door has to be opened while multi users present. |
Timing NO/NC | Can set a door keep open/close at a regular time. |
Verify from both side | When the controller works in this method,the door can only be opened when both a visitor(from outdoor)and an user(from indoor)card presented. |
E-map | Can place doors icons as you wish. So that the doors can be displayed more intuitive. |
Specification
Preferences | 1-Door/2-way Controller | 2-Door/2-way Controller | 4-Door/1-way Controller |
Model | AD8001 | AD8002 | AD8004 |
Software Download | Download the software+Wiring diagram+Software instruction link below: Double click “setup.exe”.Username:ABC,Password:123 Registration code:2004 Extended functions password:5678 Android APP [link removed by eBay] iOS APP [link removed by eBay] | ||
Configure/Control/Monitor by iOS/Android and IE | Yes | ||
Communications |
TCP/IP 10M/100M Self-adaptive | ||
Description | One door,Card enter, Card or button exit | 2 doors,Card enter, Card or button exit | 4 doors,Card enter, Button exit |
PCB Dimensions | 160mm *106mm | ||
Iron Box Dim | 273mm*228mm*65mm | ||
Power Supplier | 12VDC 4-7A | ||
Current | <100mA | ||
Acceptable Card Readers' Format | Wiegand 26bit to 40bit self-adaptive | ||
Extendable Card Readers | 2 | 4 | 4 |
Door(s) for control | 1 | 2 | 4 |
Delay | 1-600 seconds adjustable | ||
Max units online | Unlimited | ||
Working Temperature | -40 ~70 Centigrade | ||
Working Moisture | 10-90%RH | ||
Max Users Quantity | 20,000 | ||
Event records quantity | 100,000 | ||
Power off Protection | High speed flash memory,keep data safe without power | ||
Max Distance from Reader to Controller | Max to 100M | ||
Accessories | PCB*1pcs,CD*1pcs,Manual*1pcs,Certificate*1pcs,Carton * 1pcs | ||
Alarm when door un-closed overtime, unallowed entry or being threatened | yes | ||
Fire protection &Alarm Trigger | If theft or fire occurs,the software can alarm by PC's speaker.If the controller contact to "alarm external module",it can also drive the alarm Siren, | ||
Hold the door open/closed by software | yes | ||
Remote open by software | yes | ||
Programmable Interrelation of doors' condition(open/closed) | Null | yes | yes |
Note:you can setup the interrelation between the doors Arbitrarily,such as "only when door A is open &door B is closed,Door C can be opened" | |||
Anti go back convertly,Anti followed | yes | yes | null |
Note:This function means if a card has already exited,it can not exit again without enter. | |||
Multi-card open | yes | ||
Note:A door can be opened only when 2 or more cards are read(multiple persons are present). This function maybe useful for very important place. | |||
programmable time of hold open | yes | ||
Note:can setup the door hold open at a specified time,maybe useful during the period of going to work every morning | |||
Electrical Map | yes | ||
Note:Can easily know your doors' condition vividly from the software. | |||
Emergent lock both enter&exit | yes | ||
Note:The door(s) can be hold closed,refuses both enter and exit in case of theft or other accident occurs. | |||
Initial Card | yes | ||
Note:If Initial Cards was activated,Only after Initial card is read,Other user cards can be available. | |||
validate from both side | yes | ||
Note:Door can be set to opened only when card reading from both outside and inside of the door. | |||
Extensible pin code RFID reader (card+pin code/super password) | yes | ||
Note:Door can be set to opened only when both card reading and pin code pressed. | |||
Wiring Diagram

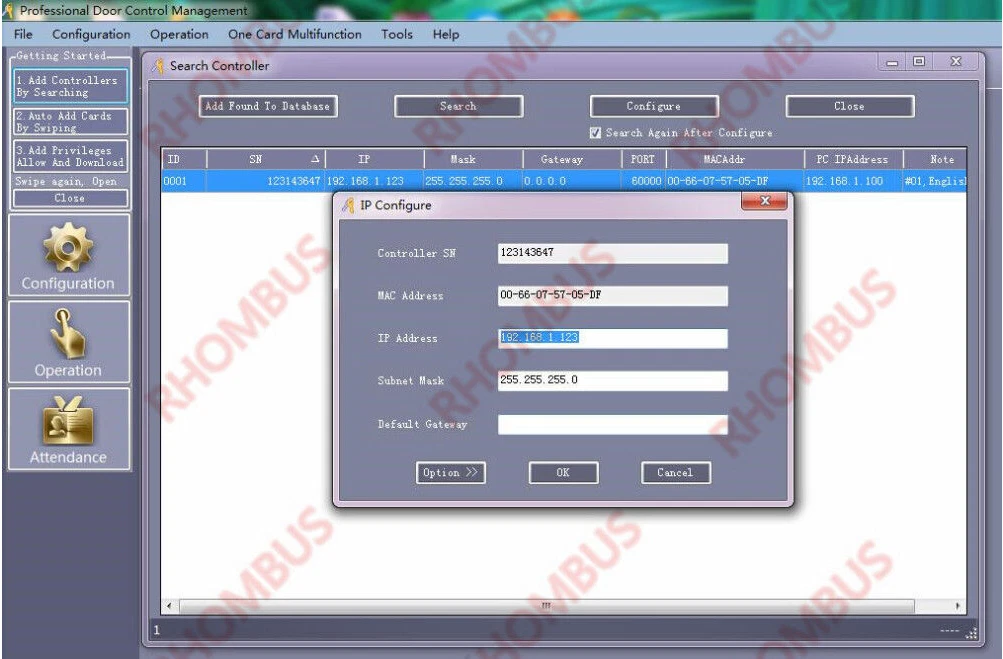

PC Software Internet Browser Mobile App Parameters: 1) Dimension: 74mm*116mm*16mm Other Supplements The whole access control system consists of control panel(listed here), exit button,lock(electronic/magnetic/bolt lock .etc.) and power supply. As the lock and
the power supply is very heavy,We suggest that you buy them at your local store. Also we can provide that whole system to you with
competitive price. If you need, please contact us.
2) Card Type: 125khz EM4100/4102 card
3) Output Format: WG26/34
4) Reading Distance: 5-10cm
5) Working Frequency: 125khz
6) Read Speed: <0.2s
7) Voltage: 9-16v
8) Working temperature: -25 ~ +75 degree
9) Weatherproof/Dust Proof: Yes
10) Circuit protection: Yes
11) Internal antenna: Yes
12) OEM and ODM are welcome
13) Application: car parking, security access contro, person / item tracking
