CD4066BM IC Quantity 10. Brand new 4066.
Will ship 5 items in plastic carrier.
Top quality.
Any questione please ask.
These ics have many uses. Multiplexer, audio switch.
Analogue and digital signals can be switched.
CD4066 consists of four independent bilateral switches. Each switch is a single-pole, single-throw (SPST) device that can conduct current in either direction when closed.
Key Technical Details
- Supply Voltage (V_DD): 3V to 18V
- Control Voltage (V_CTL): V_SS to V_DD
- Peak-to-Peak Analog Signal (V_PP): V_SS to V_DD
- On-State Resistance (R_ON): 100 Ohms typical at V_DD = 10V, V_CTL = 5V
- Off-State Leakage Current (I_OFF): ±100nA at V_DD = 10V
- Switching Time (t_ON / t_OFF): 100ns typical at V_DD = 10V
Pin Configuration and Descriptions
Pin NumberNameDescription1IN/OUT 1Input/Output for Switch 12IN/OUT 1Input/Output for Switch 13Control 1Control Input for Switch 14V_SSGround (0V)5Control 2Control Input for Switch 26IN/OUT 2Input/Output for Switch 27IN/OUT 2Input/Output for Switch 28V_DDPositive Supply Voltage9IN/OUT 3Input/Output for Switch 310IN/OUT 3Input/Output for Switch 311Control 3Control Input for Switch 312NCNo Connection (leave open)13Control 4Control Input for Switch 414IN/OUT 4Input/Output for Switch 415IN/OUT 4Input/Output for Switch 416NCNo Connection (leave open)

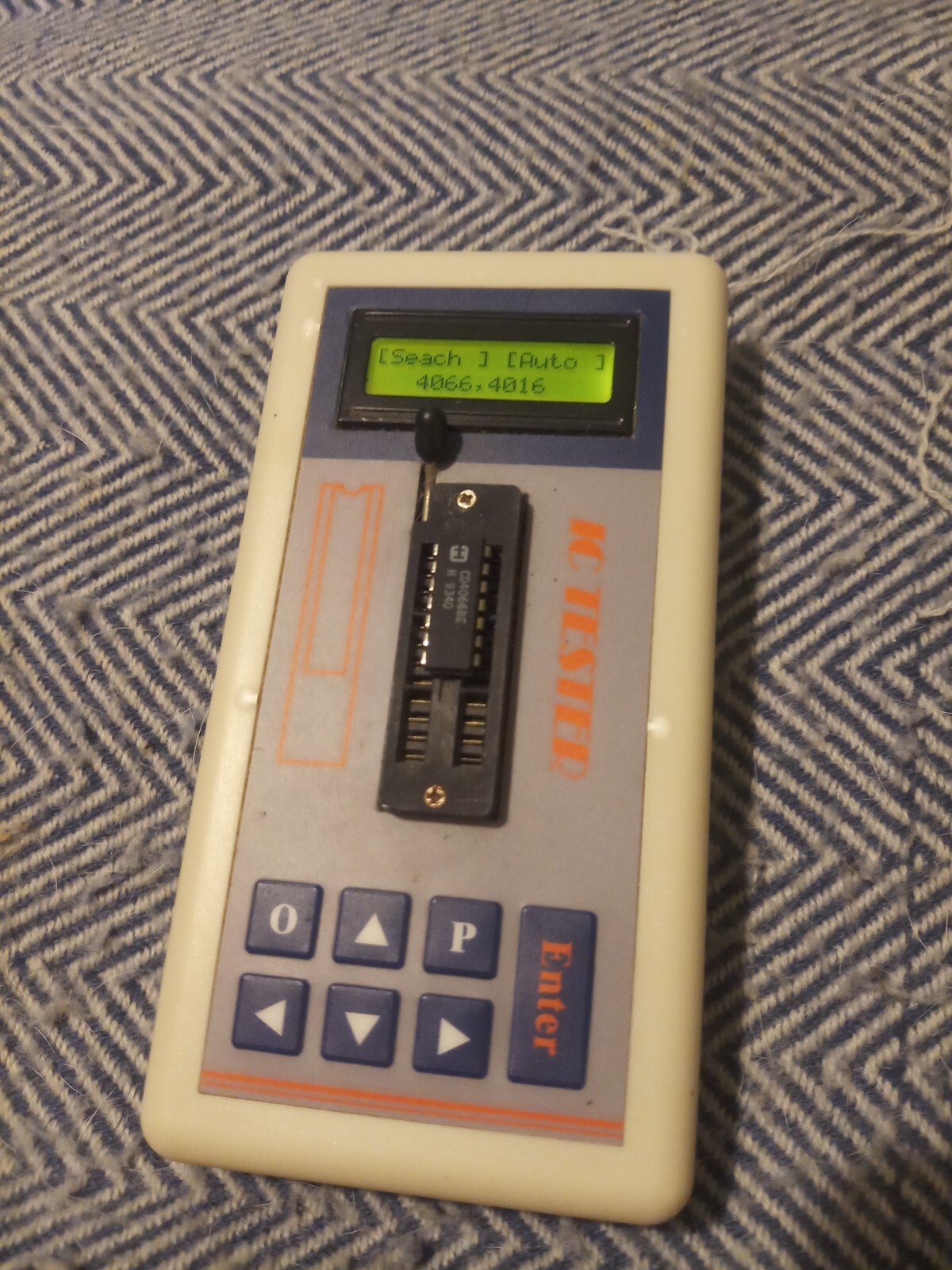

A picture of an Ic being tested and passed is included. The tester is not for sale!
