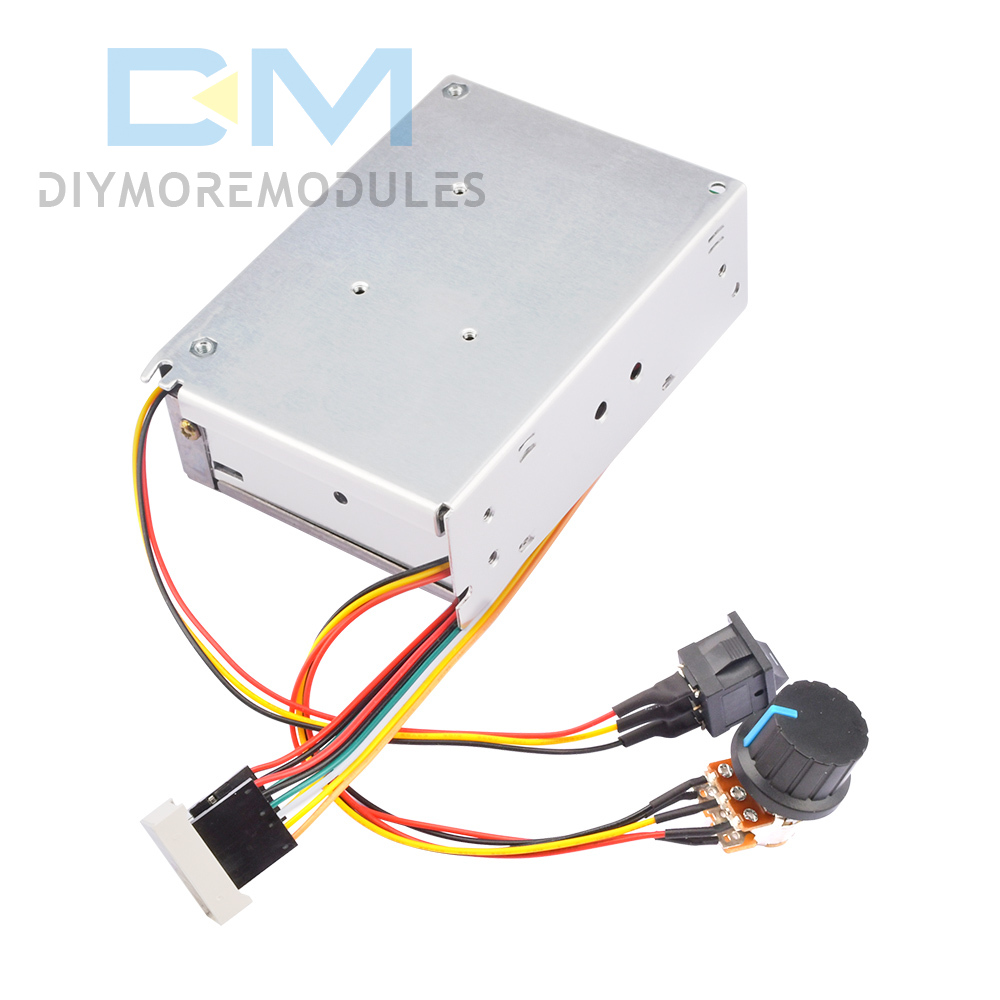

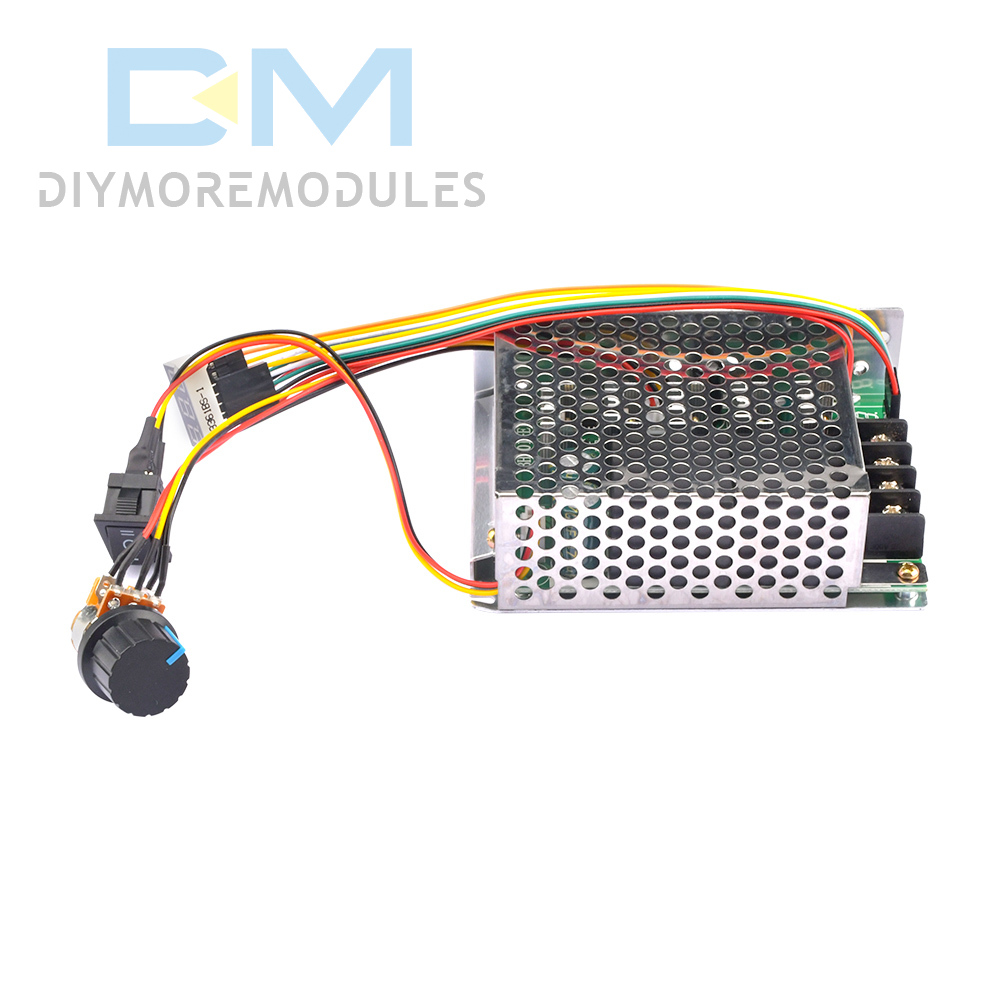

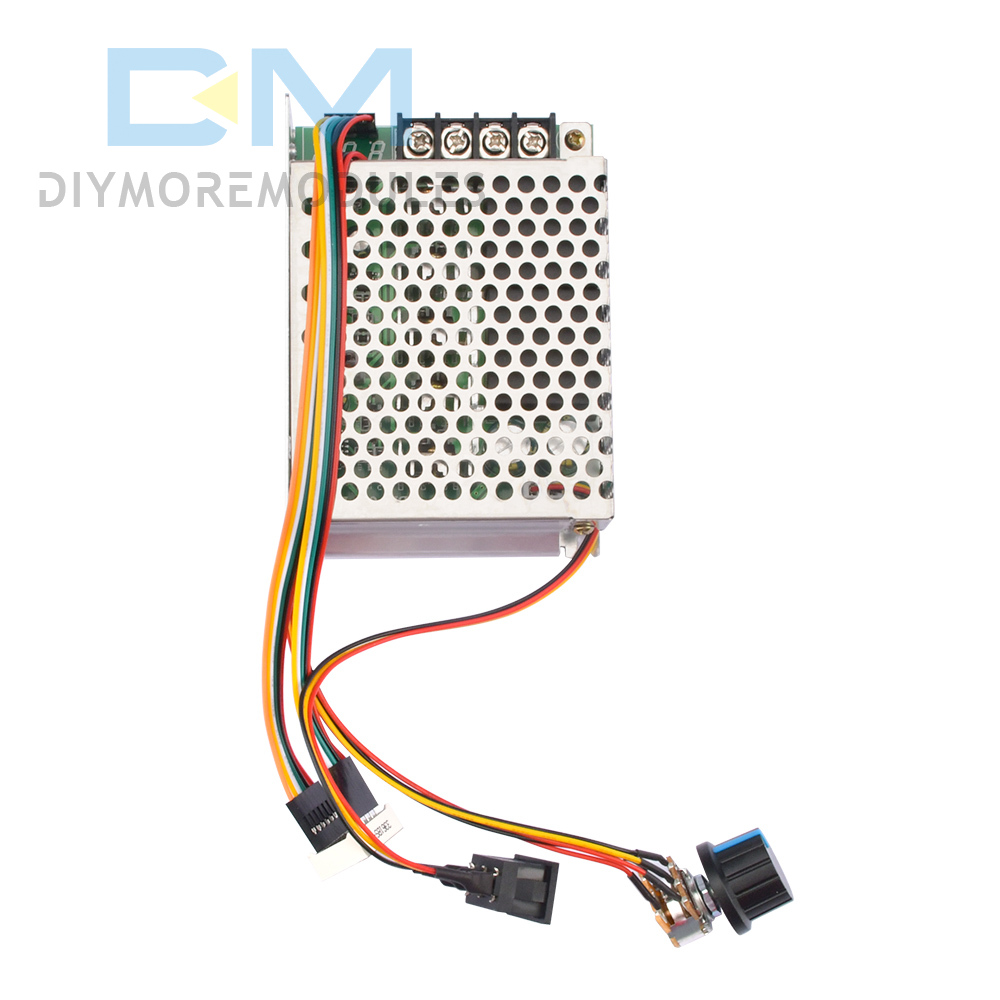

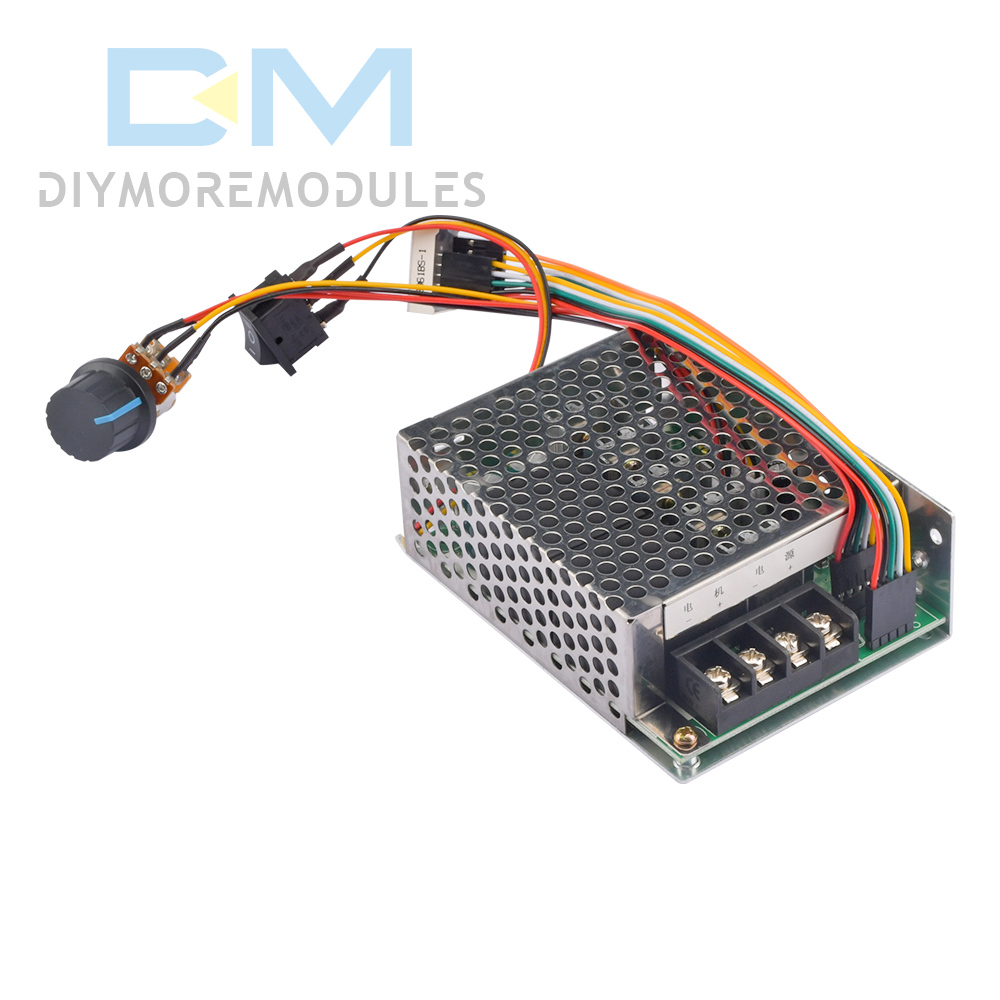

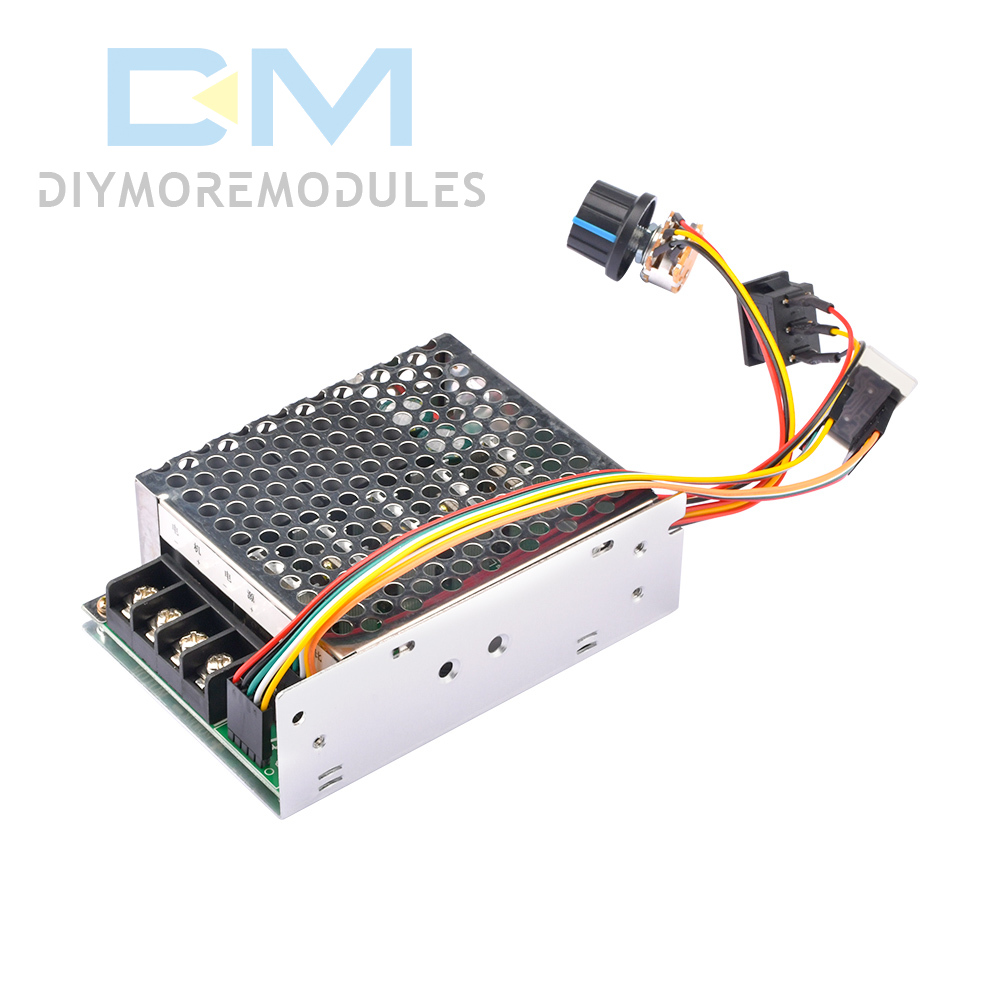

Features:

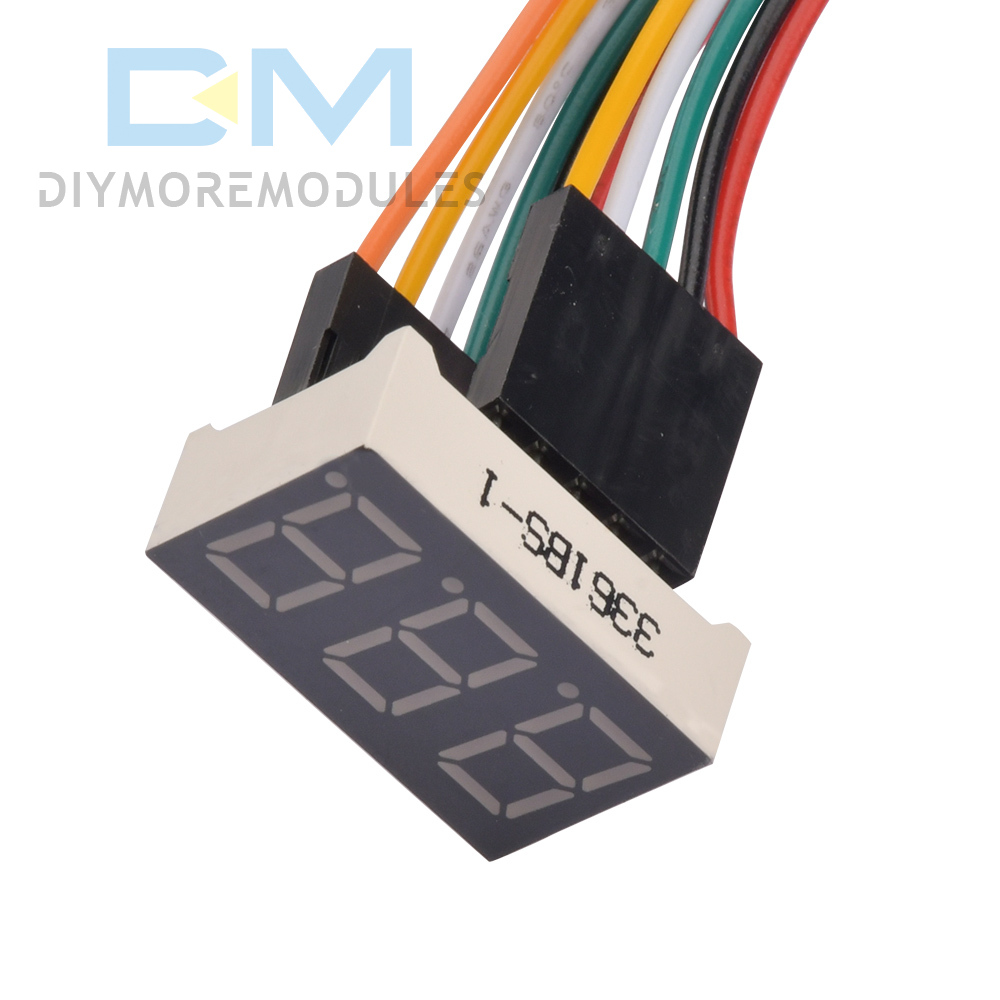

1. Digital display showing 0-100
2. Convenient speed adjustment with switch-equipped potentiometer
3. Supports forward and reverse rotation
4. Screw terminal wiring for easy use
5. Compact size: 110mm x 78mm x 38mm
Specifications:
■ Input Voltage: 10V-55V
■ Output Voltage: Linear under load
■ Maximum Current: 60A
■ Continuous Current: 40A
■ Speed Control Range: 0%–100%
■ Control Frequency: 15kHz

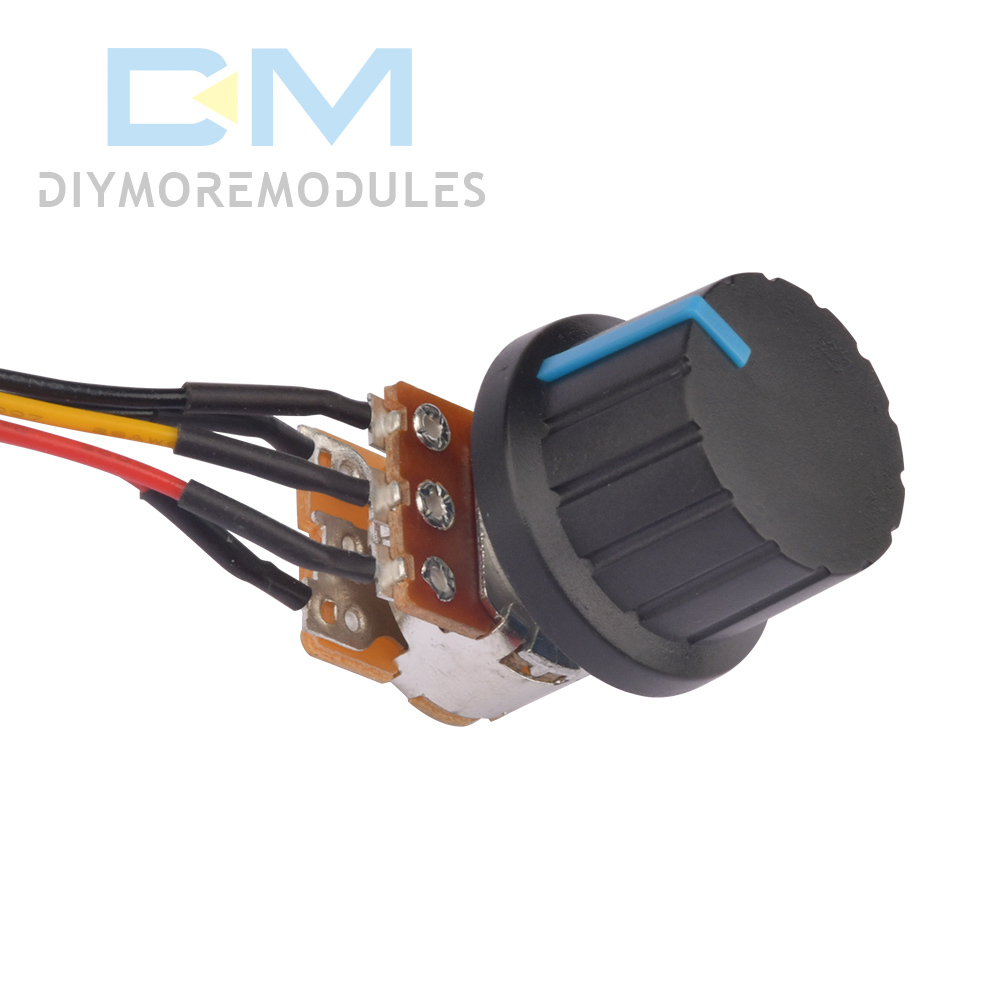

■ Speed Control Method: Potentiometer (with switch)
■ Speed Control Type: Current Regulation

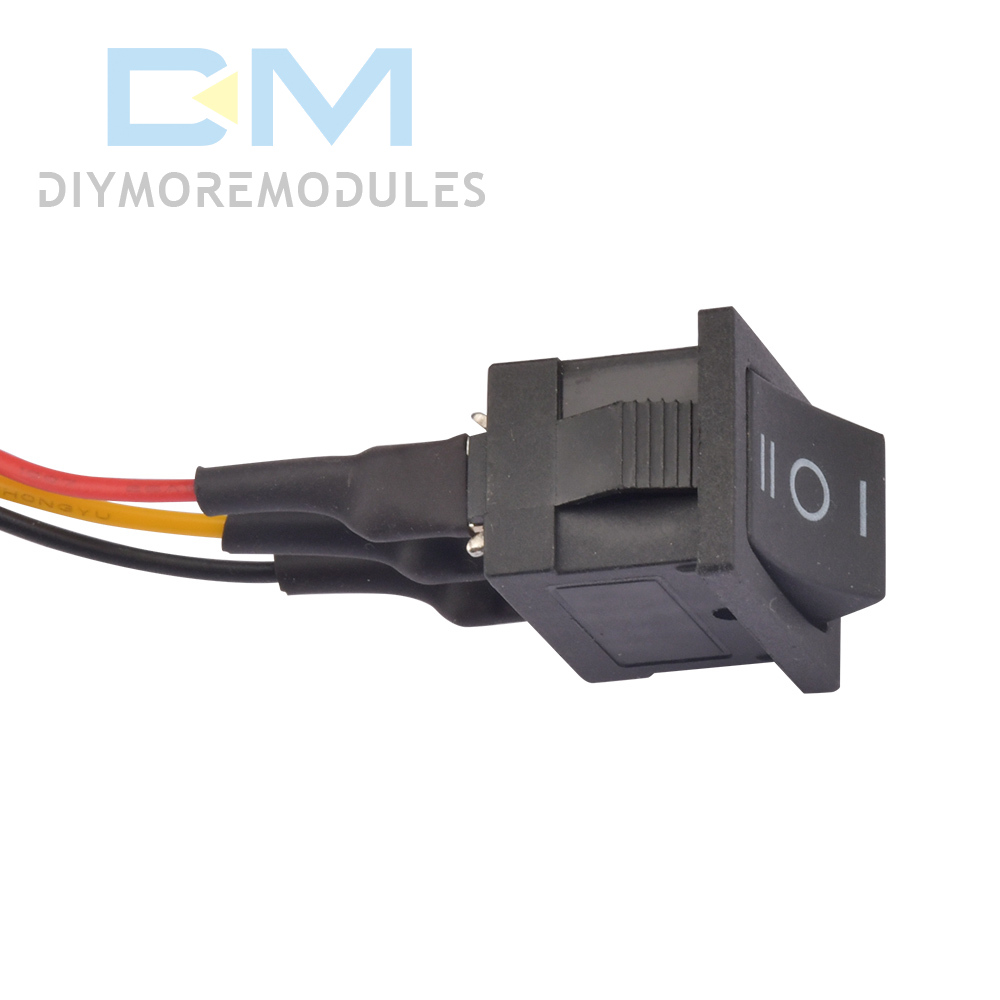

■Forward/Reverse: Supported (non-latching switch)
■Digital Display Positioning: 0-100 (full speed percentage)
■Supported Motors: DC brushed
■Wiring Type: Screw terminals

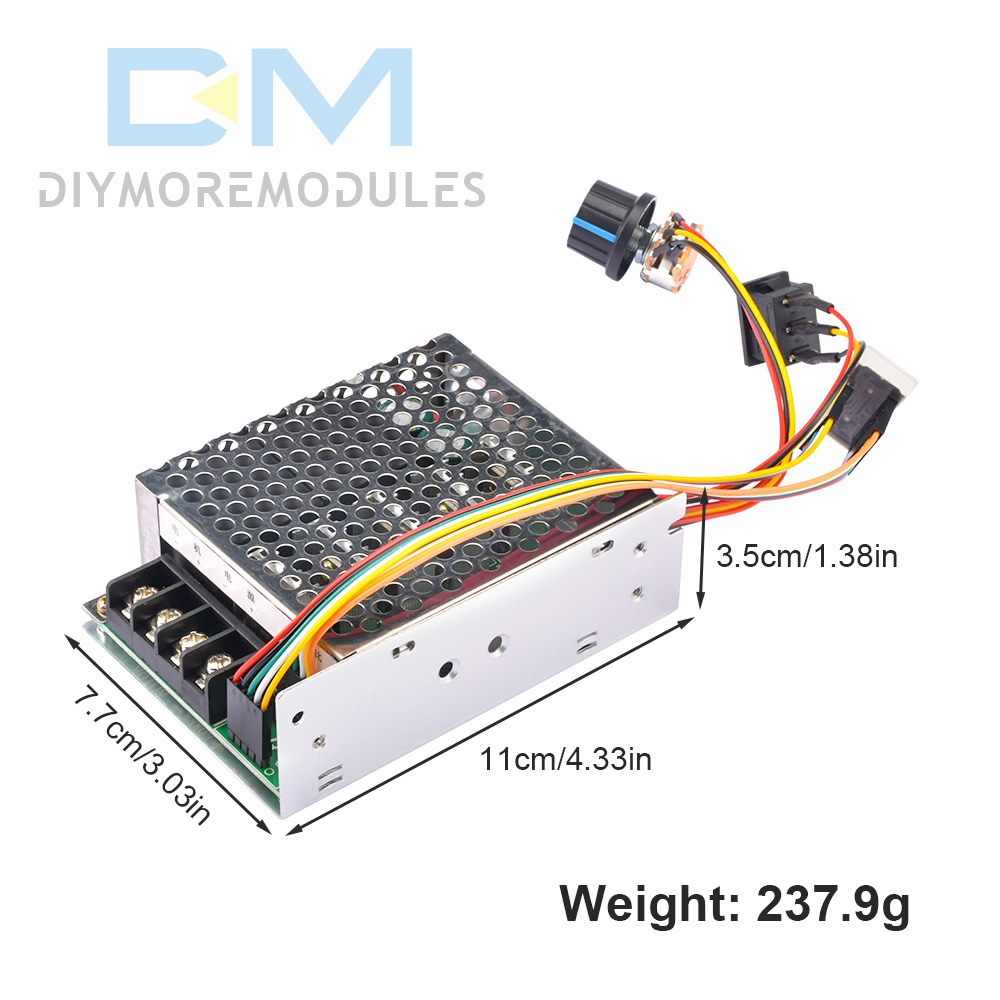

■Housing Dimensions: 110mm L × 78mm W × 38mm H
■Net Weight: 249g
Note:
Digital display shows 0-100 only
Represents motor full speed percentage, not actual motor RPM
Input voltage must be polarized (positive/negative)
Input voltage must match motor rated voltage; do not input 220V AC
Input voltage must be DC 10-55V and equal to motor rated voltage
Product List:

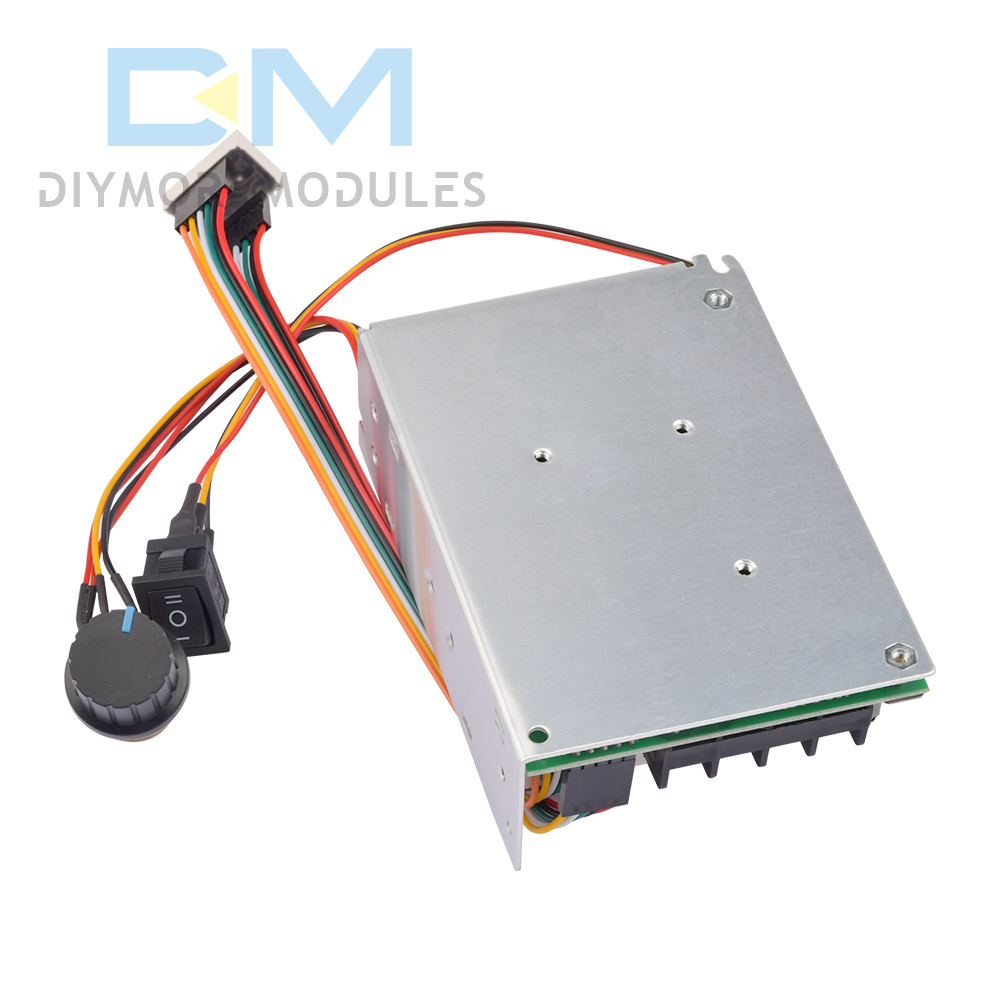

1X Speed Controller
