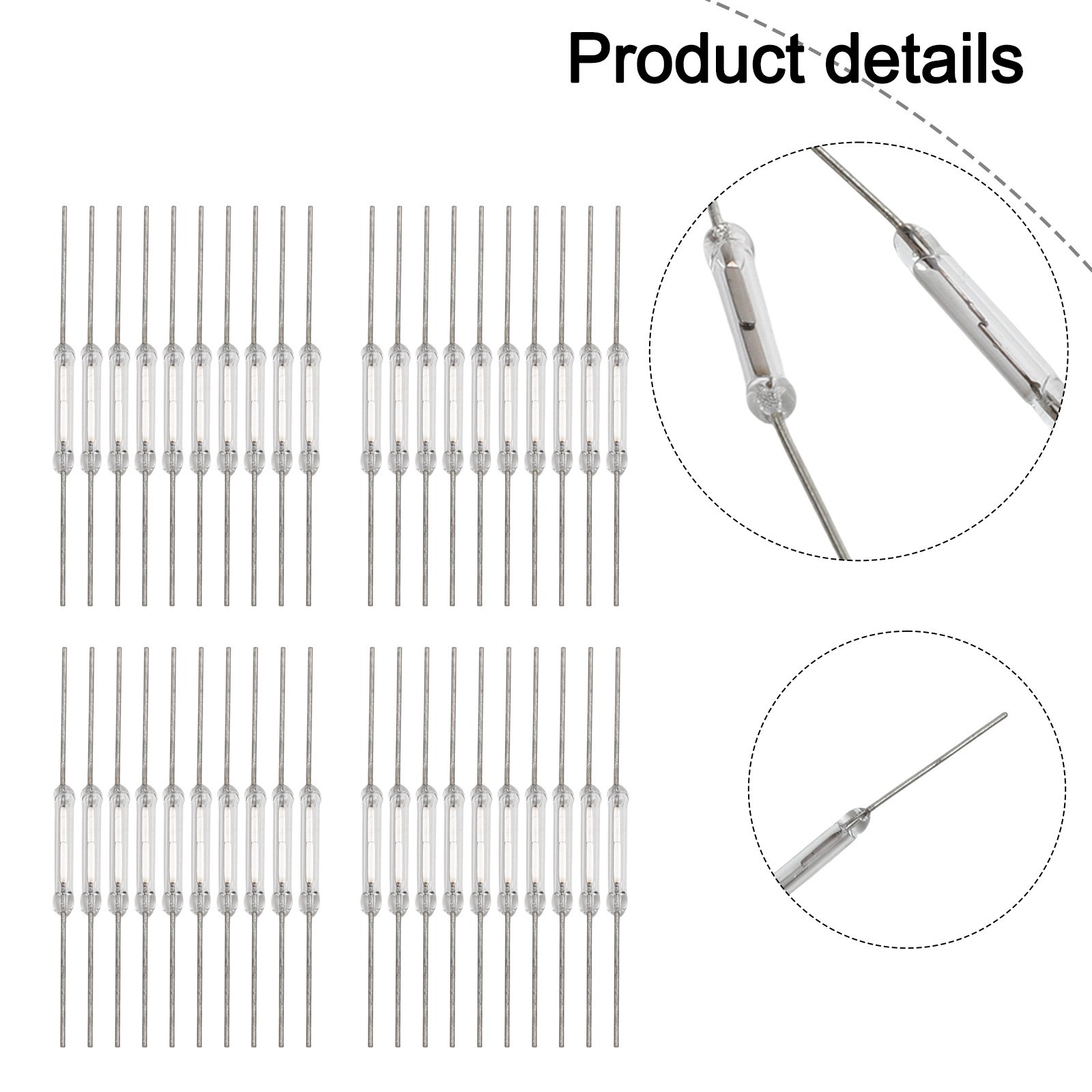

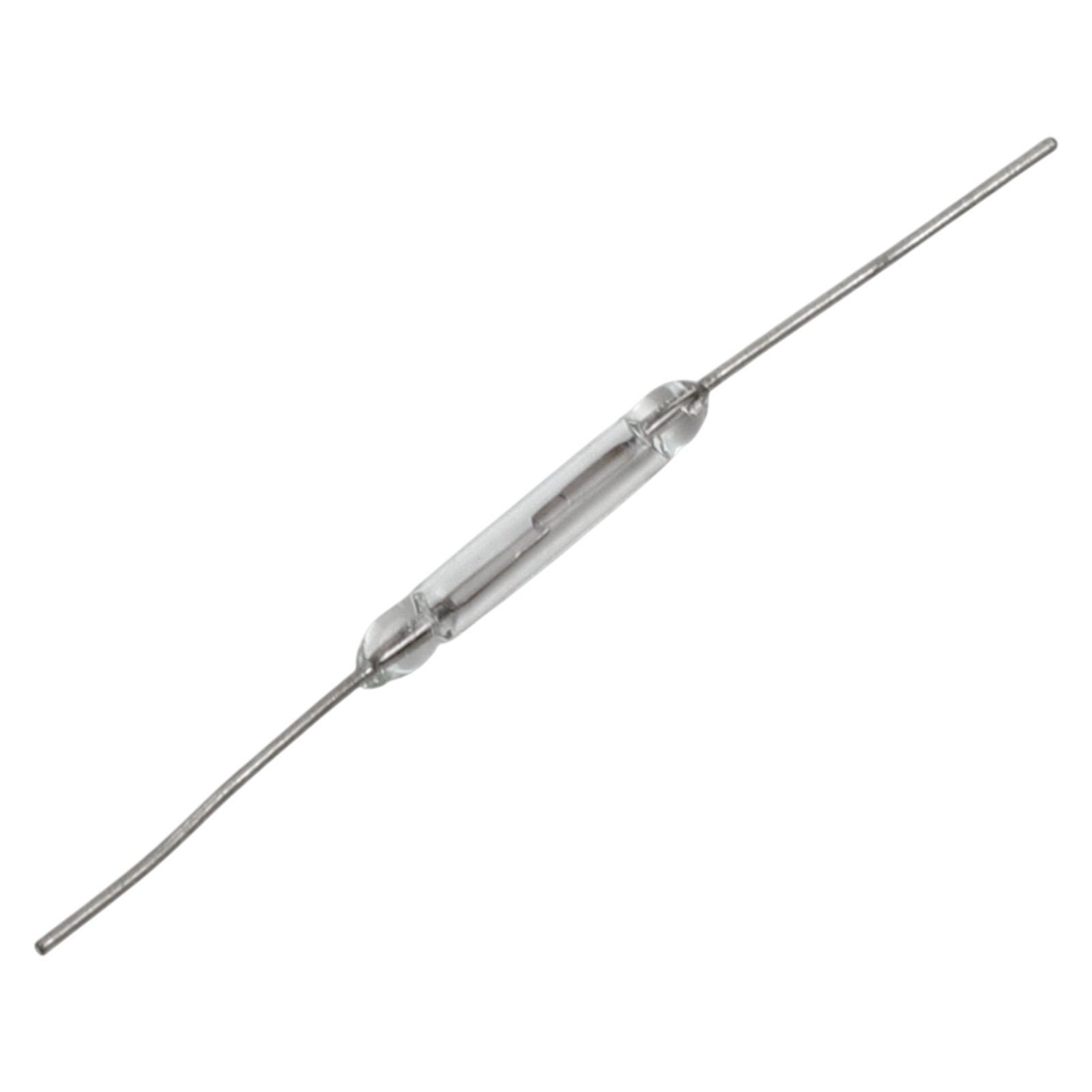

* This glass reed switch is normally open type, the size is 14*2mm.
* Its small size and light weight allow it to be installed in extremely limited spaces.
* Note, be careful when bending or cutting the s and avoid for putting any undue pressure on them as this will break the glass/seal.
* Perfect for your IoT projects.
Specification:
Part Name: Reed Switch
Material: Glass
Size: 14*2mm
Color: As shown in the picture
Type: normally open
Overall length: 44mm
Glass length: 14mm
Glass diameter: 2mm
Maximum power: 10W
Maximum switching voltage: 100VDC
High voltage: 250VDC
Maximum switching current: 0.5A
Maximum load current: 1.0A
time: 1.0ms
Bounce time: 0.6ms
Release time: 0.4ms
Package Content:

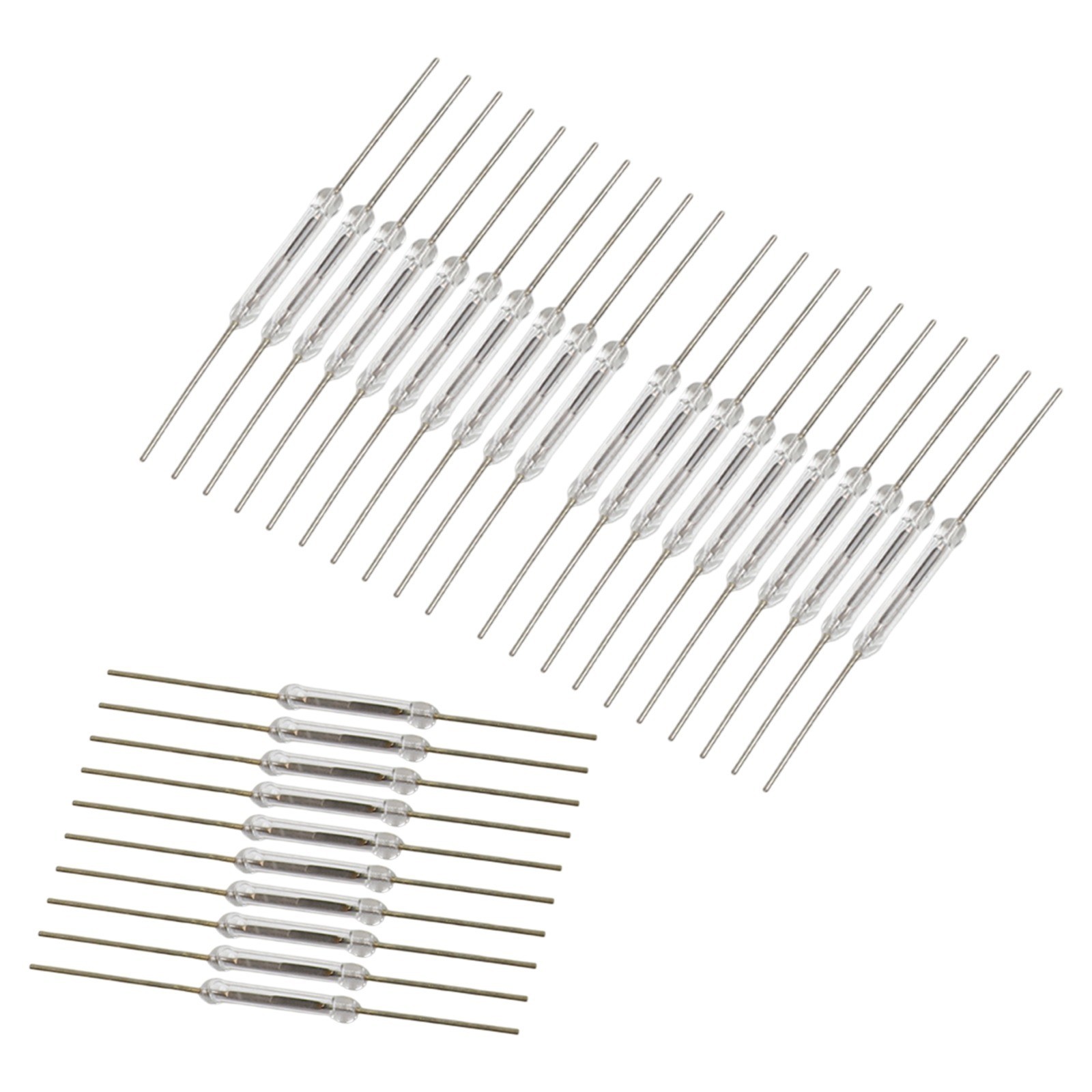

40 * Reed Switches
Notes:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
