Vehicle Fitment: To confirm
that this part fits your vehicle, enter your vehicle's Year, Make,
Model, Trim and Engine in the Compatibility Table. Also review the notes
section in the compatibility chart for additional specifications about
this part. Package Include: 1 X 4-Row AA5052 Aluminum Radiator 1 X AA5052 Aluminum Shroud 2 X 12" Electric Fans (Includes mounting kits) Description: Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series. This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications. Features: 1. Made from Aircraft AA5052 grade aluminum for prolonged life span with raw aluminum finish Radiator Details: AA5052 Aluminum Shroud and Fans: The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine. 1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect! 3. Additional with thermostat,professional matching advice, consider for every detail and needed Thermostat Relay Kit: Universal fit for any automotive vehicle and electric fan. Activates by grounding electric fans at preset temperature. 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe Probe typically threads into radiator, water outlet or manifold. Thermostat Kit Instructions: RED + connect directly to battery. WHITE wire to ignition switch power source. BLACK goes to thermos switch. BLUE wire goes to the Fans. FANS: Volt :12v Maximum Fan CFM: 1730 cfm Fan Diameter (in): 12.050” Thickness (in): 2.500” Number of Blades: 10 S-Type blade Maximum Fan RPM: 2,250 rpm Blade Material: Plastic
Includes the Mounting Tabs for an Easy Zip Tie Installation
Fits Land Rover Range Rover/Discovery I/II 3.9L 4.0L 1987-1998
Please Note:
1 X Thermostat Relay Switch Relay Kits
Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Dimensions:(H x W): 385.5 mm x 690mm
Overall Dimensions:(H x W): 484mm x 914mm
Inlet / Outlet Dimensions: 35/35 mm
Transmission Oil Cooler: φ32*280*G3/8-19(T)
Please Check the Size Before You Buy!
More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Carefully crafted to exceptional OE standards for precise fit.
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
Note: Please contact for quote if international postage NOT display.
Paypal --the easiest and most secure way to pay on line
Bank Deposit
If product is defective or damage upon arrival, or wrong product shipped, please contact us immediately. Returns accepted within 30 workdays of delivery date and item must be in original new condition, not worn or altered in any way with attached tags & wrap. Otherwise deal is final. Return shipping must be paid by buyer.
● Returns are accepted within 30 days.
● All items must be brand new, unused, in original packaging without any signs of use or install for a return/refund to be given.
● Customer is responsible for return shipping cost when you buy wrong product or you just don't need it.
● Seller is responsible for return shipping cost when we ship wrong product or the product could not work.
● Please contact us firstly if you want to return. So we could help you solve the problem well.
Very appreciated for your support. I hope you are happy with your purchase.
We maintain high standards of excellence and strive for 100% customer satisfaction!
Feedback is very important to us.
We request that you contact us immediately BEFORE you give us
or
feedback, so that we can satisfactorily address your concerns.
If you have any problem, please feel free to contact us via ebay message, we will reply your email within 24 hours (except weekends and holidays). We will do our best to solve your problem as soon as possible.
We appreciate your continued patience and willingness to work with us. Thank you for choosing us and have a great day!
Vehicle Fitment:
Fits Land Rover Range Rover/Discovery I/II 3.9L 4.0L 1987-1998
Please Note:
To confirm that this part fits your vehicle, enter your vehicle's Year, Make, Model, Trim and Engine in the Compatibility Table. Also review the notes section in the compatibility chart for additional specifications about this part.
Package Include:

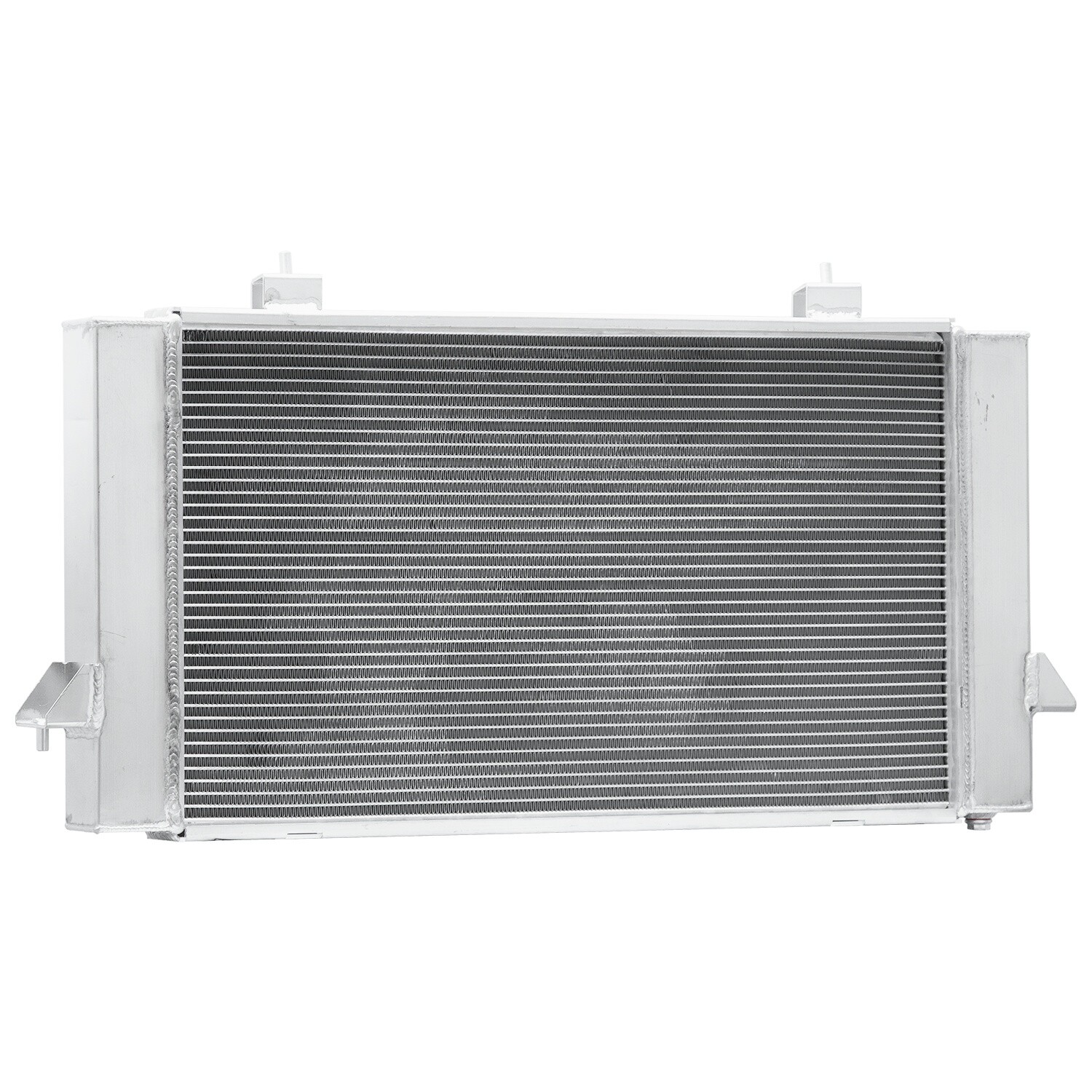

1 X 4-Row AA5052 Aluminum Radiator
1 X AA5052 Aluminum Shroud
2 X 12" Electric Fans (Includes mounting kits)
1 X Thermostat Relay Switch Relay Kits
Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Core Dimensions:(H x W): 385.5 mm x 690mm
Overall Dimensions:(H x W): 484mm x 914mm
Inlet / Outlet Dimensions: 35/35 mm
Transmission Oil Cooler: φ32*280*G3/8-19(T)
Please Check the Size Before You Buy!
Description:
Our Radiator is made of AA5052 aircraft aluminum. Its different from other sellers T-3303 Series. In fact, AA5052 series Aluminum is much better than T-3303 series.
More than 90% of aftermarket manufacturers use the T-3303 series Aluminum, because it is cheaper and easier to get the material. However, T-3303 aluminum has many disadvantages, such as poor polishing effect, softness, easiness to scratch and corrode, poor heat dissipation effect. If the T-3303 aluminum radiator is operated in high pressure and high temperature for a long time, the leaking problem would occur very soon.
AA5052 Aluminum is an Al-Mg alloy with good corrosion resistance, excellent reliability and cold work ability and strength. The main alloying element of AA5052 is magnesium, which has good forming and processing properties. It is widely used in the manufacture of aircraft fuel tanks, oil pipes, and sheet metal parts of transportation vehicles and ships, hardware products, and electrical-appliance casings.
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
Features:
1. Made from Aircraft AA5052 grade aluminum for prolonged life span with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. All AA5052 Aluminum 2mm thick tanks and fittings,Ensure it's hard and durable
4. Carefully crafted to exceptional OE standards for precise fit.
Radiator Details:
AA5052 Aluminum Shroud and Fans:
The New Design fan and the AA5052 fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
1.Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.Make your engine bay perfect!
2. S blade fans, Push or Pull Type design,lightweight Plastic Durable Material.
3. Additional with thermostat,professional matching advice, consider for every detail and needed
Thermostat Relay Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
3/8" NPT thread-in brass probe
Probe typically threads into radiator, water outlet or manifold.
Thermostat Kit Instructions:
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
FANS:
Volt :12v
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 S-Type blade
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Includes the Mounting Tabs for an Easy Zip Tie Installation
