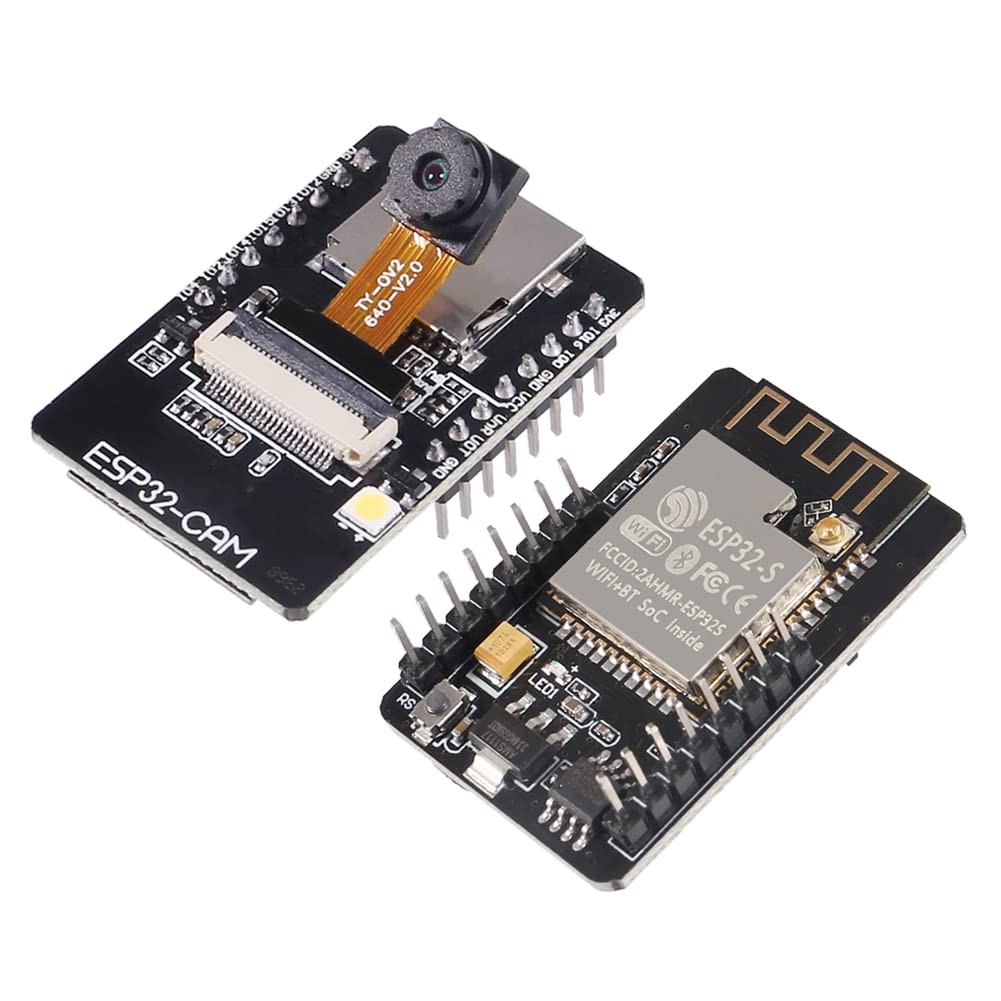

ESP32-CAM + USB-TTL serial conversion module: Ultra-small 802.11b/g/n Wi-Fi BT/BLE SoC module
Low-power dual-core 32-bit CPU for application processors
Up to 240MHz, up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM

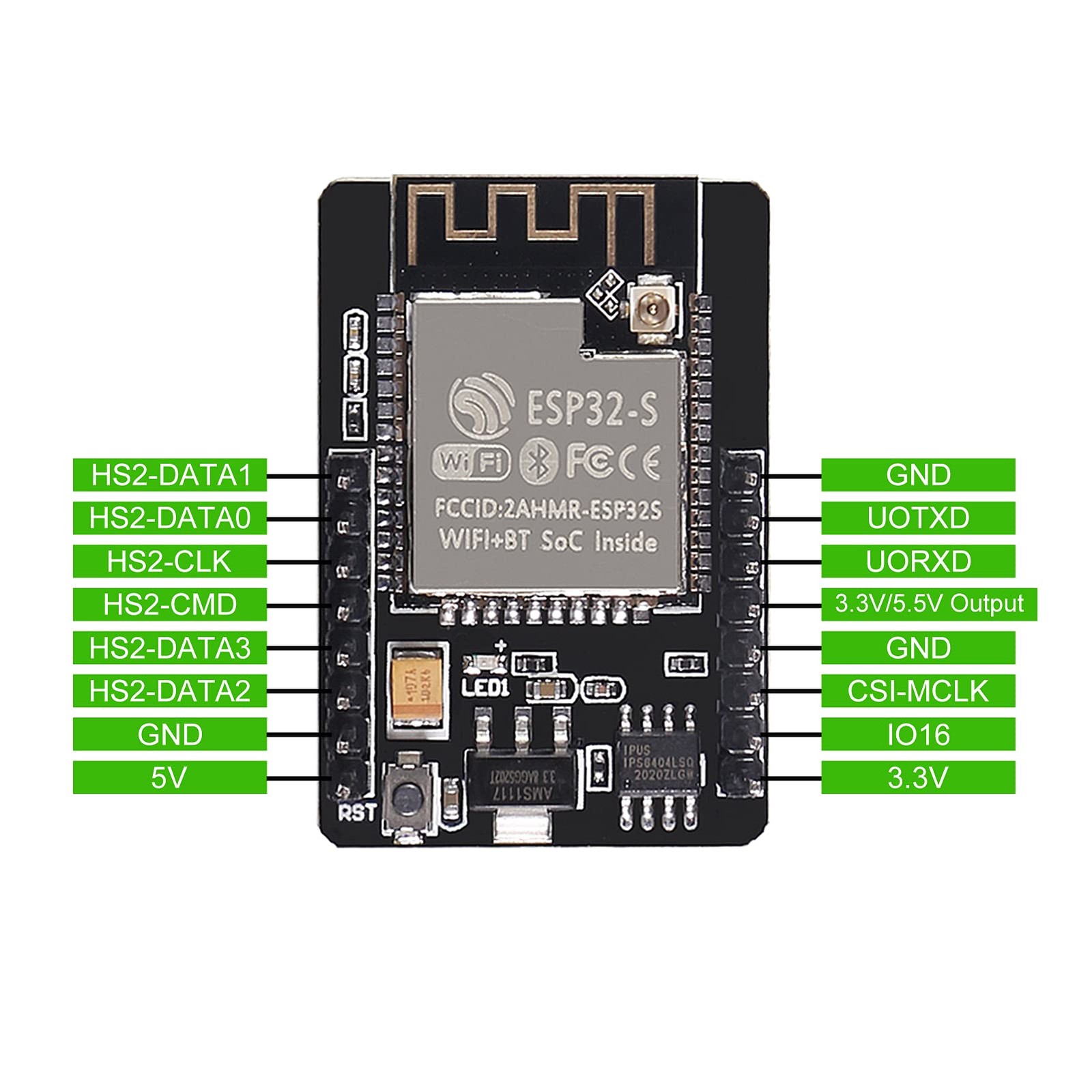

Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
Support OV2640 and OV7670 cameras with built-in flash
Support for images WiFI upload
Support TF card
Support multiple sleep modes
Embedded Lwip and FreeRTOS
Support STA/AP/STA AP working mode
Support Smart Config/AirKiss One-click distribution network
Support for serial local upgrade and remote firmware upgrade (FOTA)
Support secondary development
The ESP32-CAM errors when using and how to fix them :
https://randomnerdtutorials.com/esp32-cam-troubleshooting-guide
Package Included:
5 X ESP32-CAM-MB Camera Module
5 X USB-TTL Serial Adapter Module
The ESP32 CAM equips the ESP32 with everything necessary to program, run and develop on the wonderchip. Additionally, the board reserved the MPU6050,BME280 and an analog MIC.
ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP32 CAM supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC, ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module.

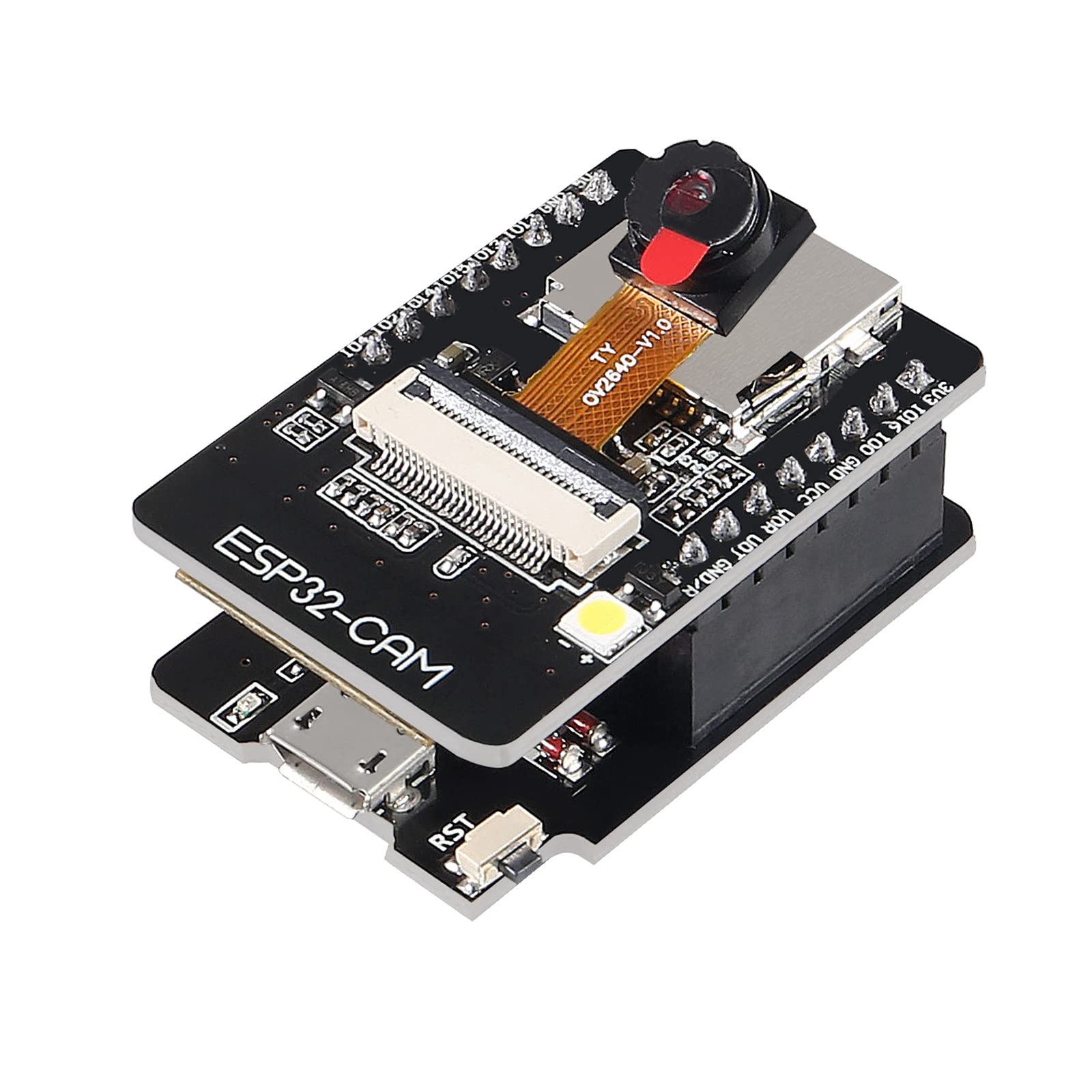

The esp32 kit module can work independently as the smallest system.
Esp32 cam adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
