Description
ERM1202SBS-1 is 12 characters wide,2 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with white color included can be dimmed easily with a resistor or PWM,stn- blue lcd negative,white text on the blue color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.Optional 3.3v or 5v power supply and optional pin header connection. Here is link for 3.3V.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Of course, we wouldn't just leave you with a datasheet and a "good luck!".For 8051 microcontroller user,we prepared the detailed tutorial such as interfacing, demo code and Development Kit at the bottom of this page.
Bulk Order Page for 10pcs or more
ERM1202-1(5V) Series Display ↓
Photo | Part Number | Description |
 | 5V 12x2 Character LCD Display Dark Blue on Yellow Green | |
 | 5V 12x2 Character LCD Display White on Blue | |
 | 5V 12x2 Character LCD Display Black on White | |
 | 5V 12x2 Character LCD Display White on Black |
What's included in the package ↓
Num | Accessory Name | Qty |
1 | 5V 12x2 Character LCD Module | 1 |
Ebay doesn't allow listings to contain external links,so the documents link may be invalid. Please copy the below entire link to your browser for checking our documents(at the bottom of the page) or for bulk order.
https://www.buydisplay.com/default/blue-lcd-character-display-module-12x2-white-backlight-arduino
Datasheet - Character LCD Module,Controller IC,Connector ↓
Format | Documents Name (Downloadable) | Version | Language | Update Date | Size |
 | 1.0 | English | Jul-11-2012 | 411K | |
| 1.0 | English | Jul-09-2002 | 813K |
Tutorial - 8051 Microcontroller Demo Code,Interfacing,Development Board&Kit ↓
Format | Documents Name (Downloadable) | Version | Language | Update Date | Size |
 | 1.0 | English | Jun-18-2009 | 5K | |
| 1.0 | English | Nov-26-2009 | 104K | |
 | N/A | N/A | N/A | N/A |
| Gross Weight (kg) | 0.0290 |
|---|---|
| Manufacturer | EastRising |
| Continuity Supply | We promise the long term continuity supply for this product no less than 10 years since 2015. |

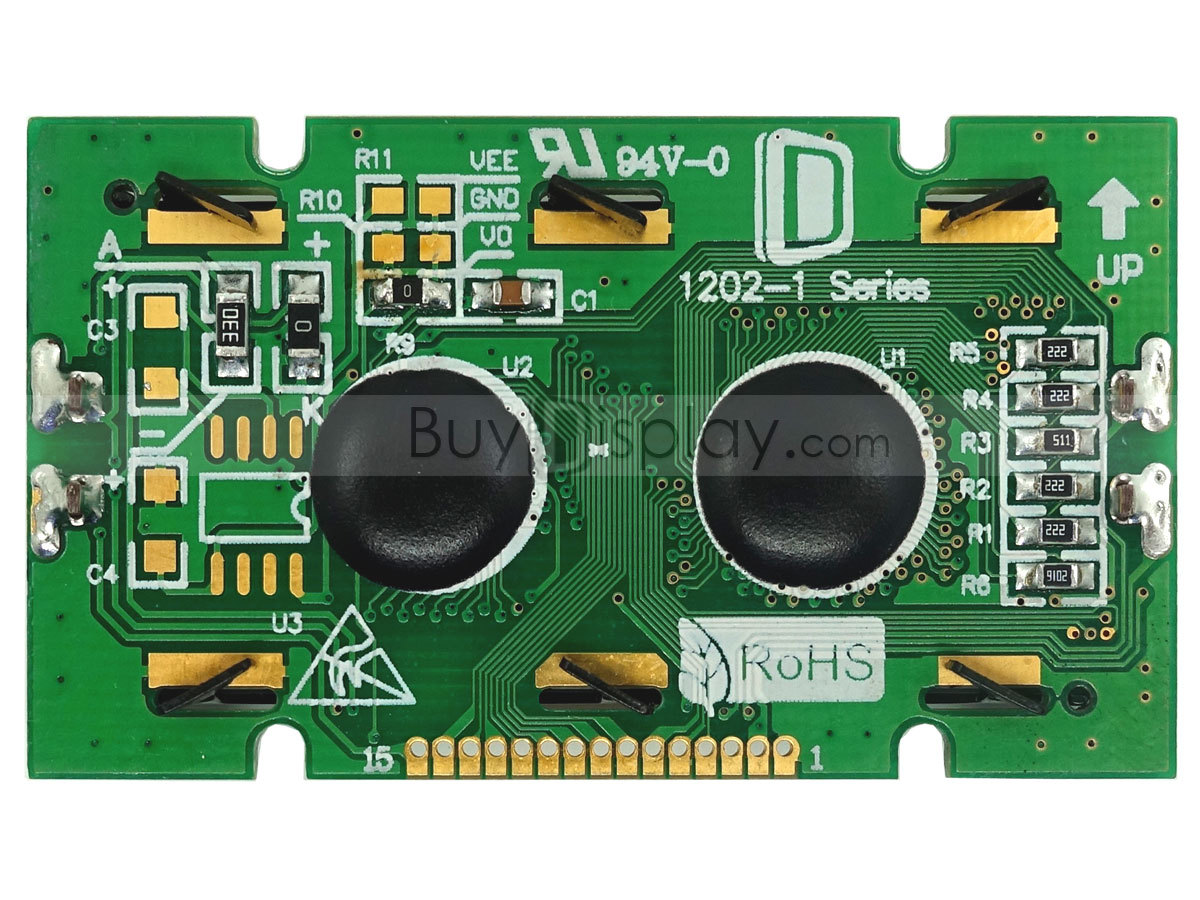

| Part Number | ERM1202SBS-1 |
| Display Format | 12x2 Character |
| Interface | 6800 4-bit Parallel , 6800 8-bit Parallel |
| IC or Equivalent | AIP31066 , HD44780, KS0066 , SPLC780 , ST7066 |
| Appearance | White on Blue |
| Diagonal Size | No |
| Connection | Pin Header |
| Outline Dimension | 55.7(W)x32.0(H)x9.7(T)mm |
| Visual Area | 46.00x14.50mm |
| Active Area | 37.85x11.70mm |
| Character Size | 2.65x5.50mm |
| Dot (Pixel) Size | 0.45x0.60mm |
| Dot (Pixel) Pitch | 0.55x0.70mm |
| IC Package | COB |
| Display Type | STN-LCD Blue |
| Touch Panel Optional | No |
| Sunlight Readable | No |
| Response Time(Typ) | No |
| Contrast Ratio(Typ) | No |
| Colors | No |
| Viewing Direction | 6:00 |
| Viewing Angle Range | No |
| Brightness(Typ) | No |
| Backlight Color | White Color |
| Backlight Current (Typ) | 60mA |
| Power Supply(Typ) | 5V |
| Supply Current for LCM(Max) | 1500uA |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
| Series Number | ERM1202-1 |
