Feature:

1. Intelligent reverse connection protection, power supply reverse polarity will not damage the IC.
2. The IC control circuit shares a power source with the LED point light source.
3. The control circuit and the RGB chip are integrated in a 5050 packaged component to form a complete external control pixel.
4. Built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.
5. Built-in power-on reset and power-down reset circuit.
6. Trichromatic color of each pixel can realize 256 highlighted, complete 16777216 colors of all true color display, the scanning frequency is not less than 400Hz / s.
7. The serial cascade interface can complete the data receiving and decoding through a signal line.
8. Transfer transmission distance between any two points in less than 5m/16.4ft without any additional circuitry.
9. When the refresh rate is 30 frames / second, the number of cascades is not less than 1024 points.
10. The data transmission speed up to 800Kbps.
11. The color of the light highly consistent, cost-effective.

Specification:

Condition: 100% Brand New

Item Type: LED Development Board

Material: Components

Color: As pciture shown

Main Application Areas:

LED full-color luminous character string, LED full-color module, LED full-color soft light bar, hard light bar, LED guardrail tube

LED point light source, LED pixel screen, LED special-shaped screen, various electronic products, electrical equipment marquee.

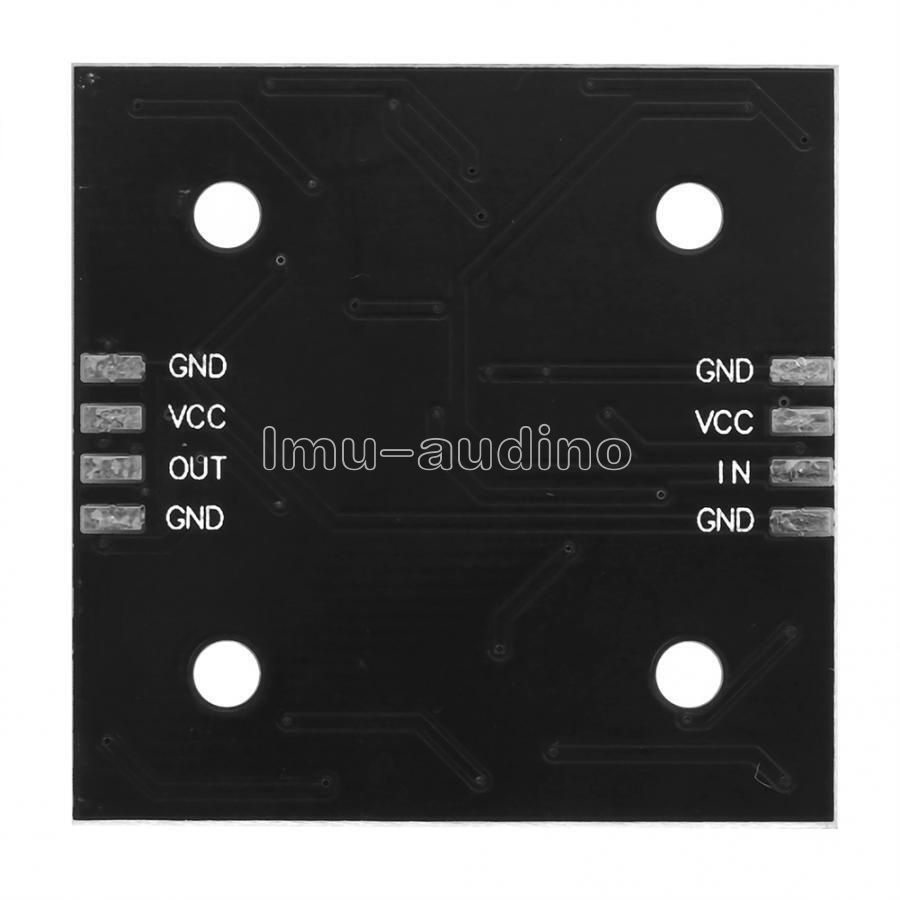

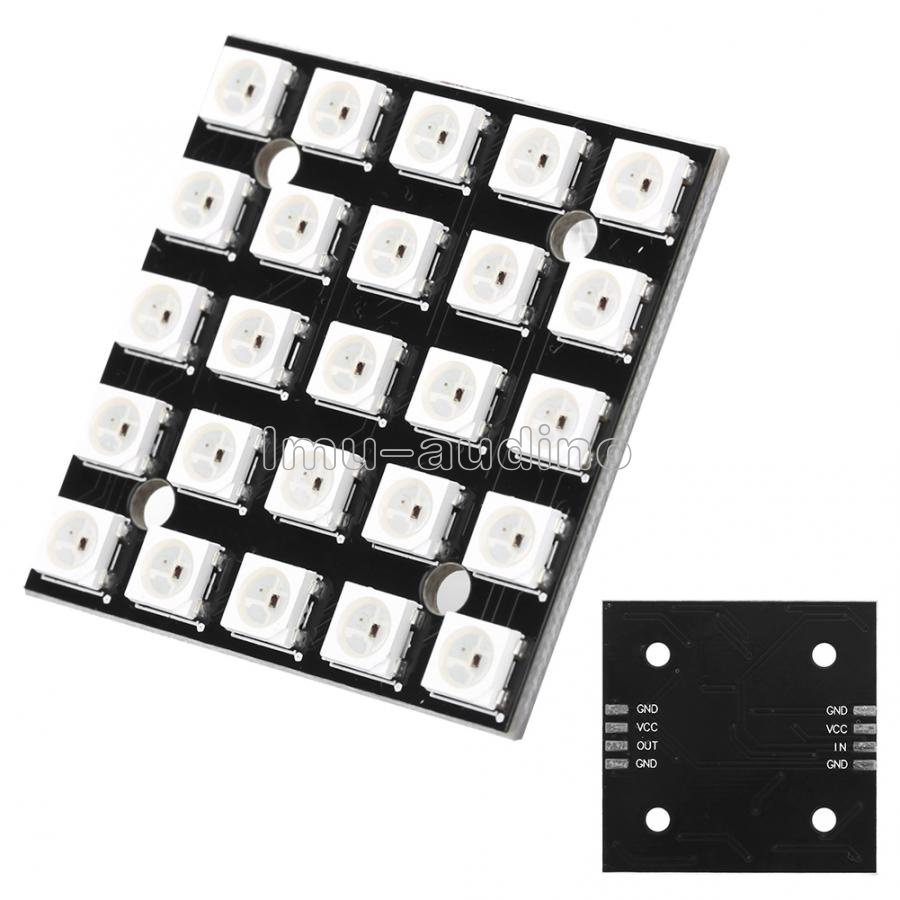

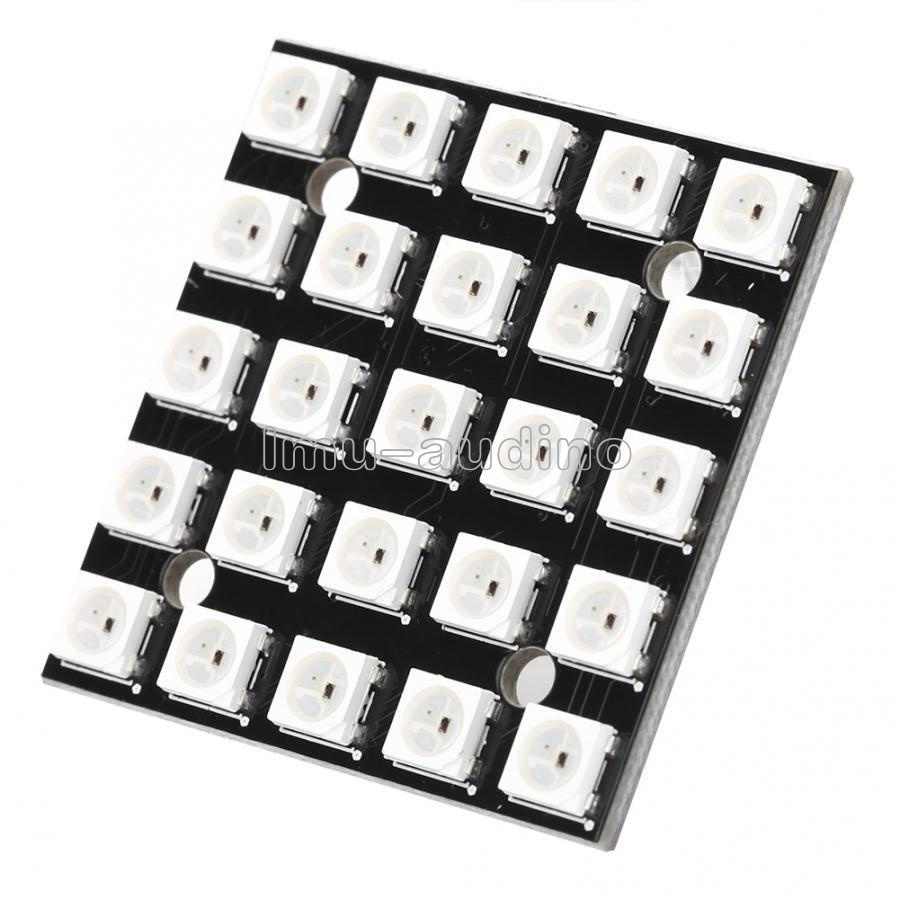

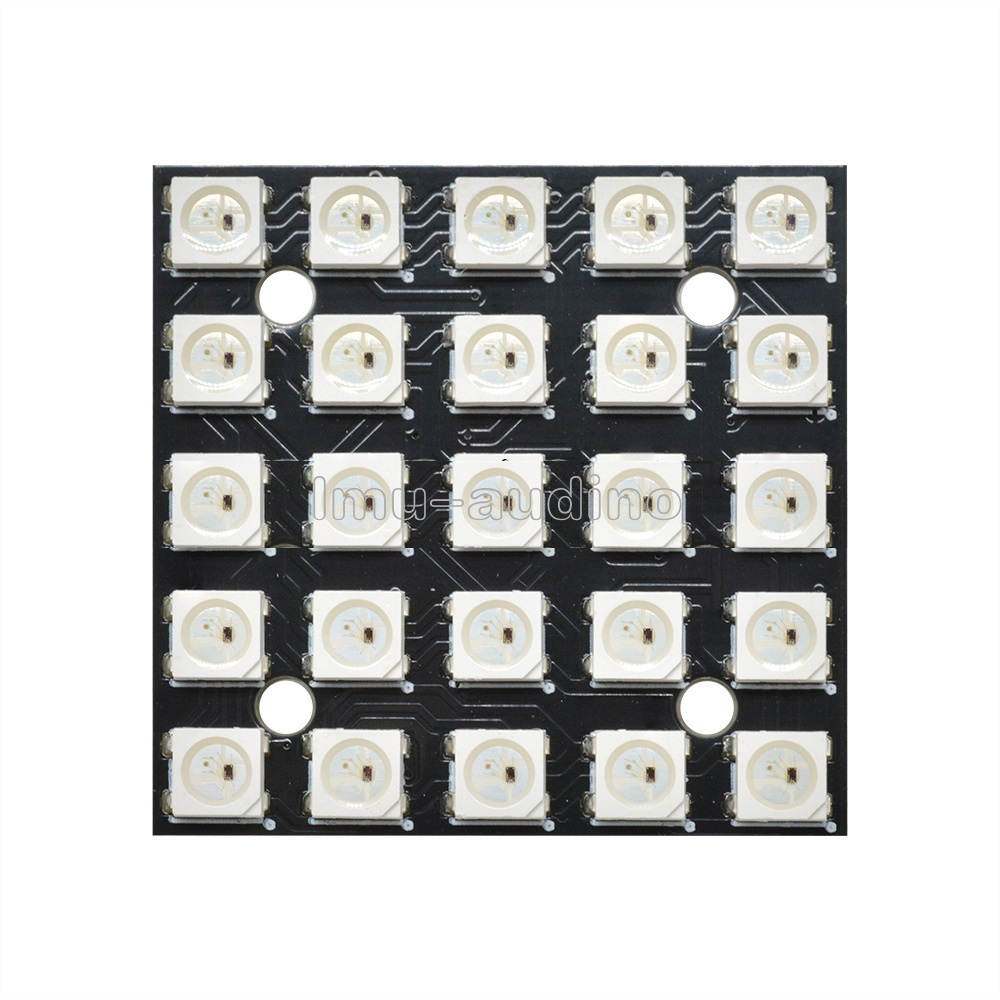

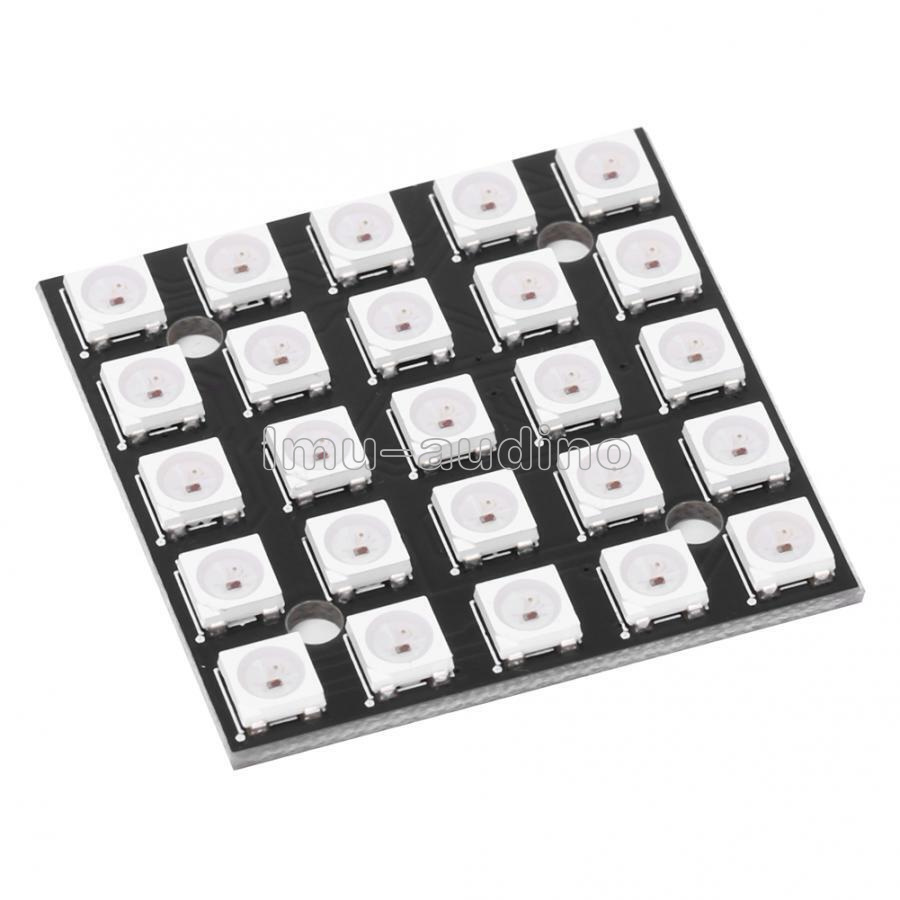

Package List: 1 x LED Development Board Module
