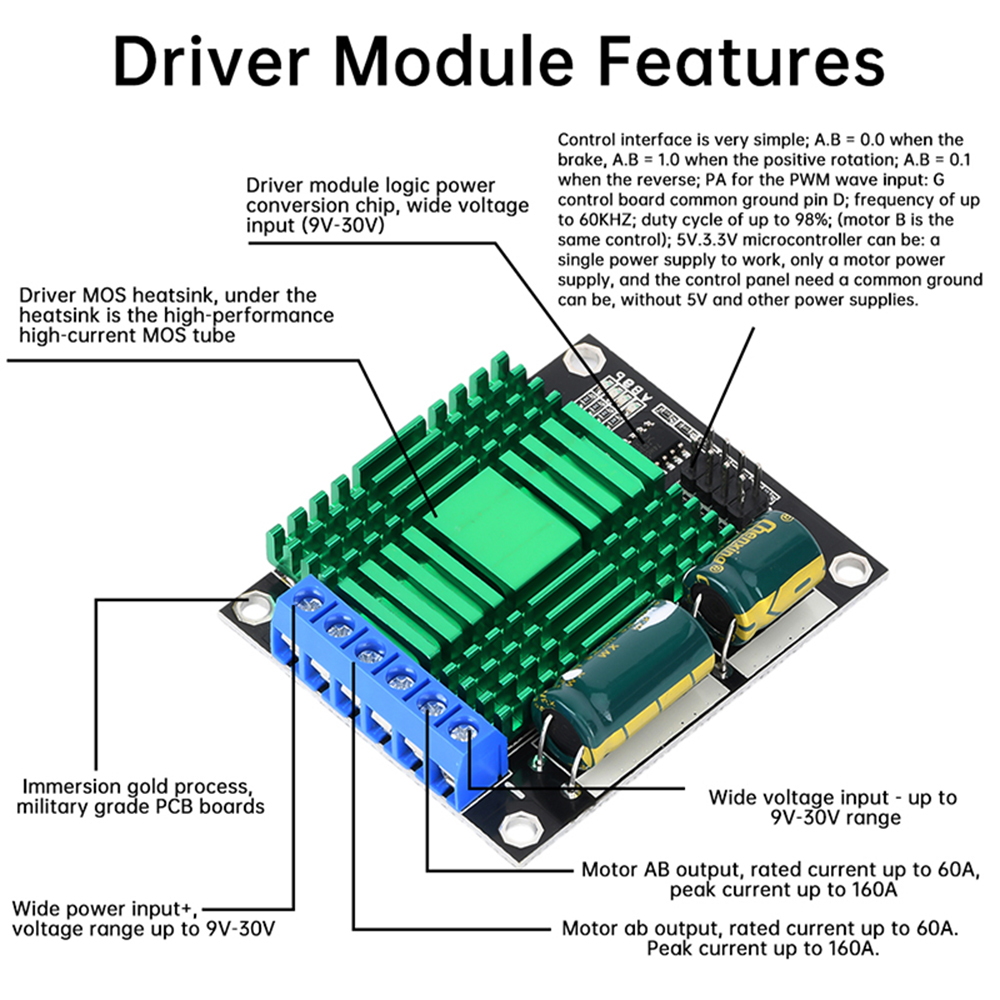

Features:

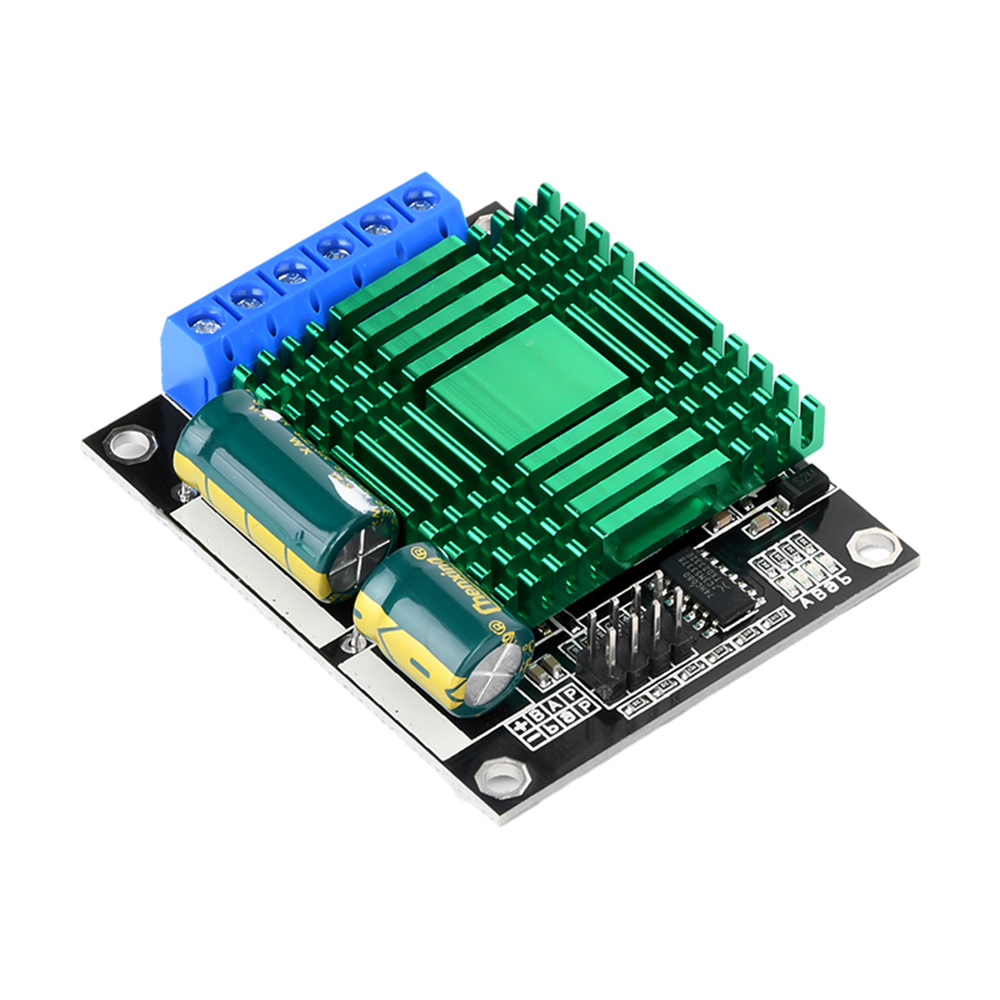

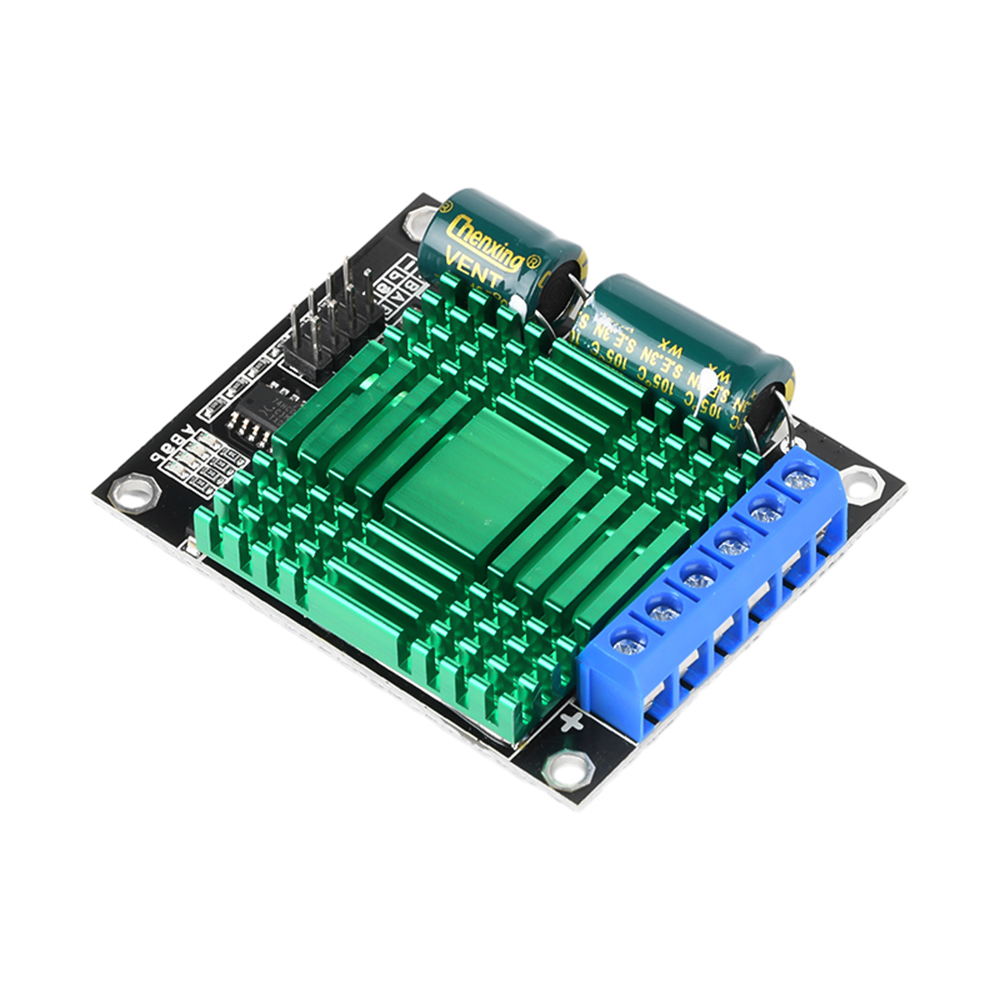

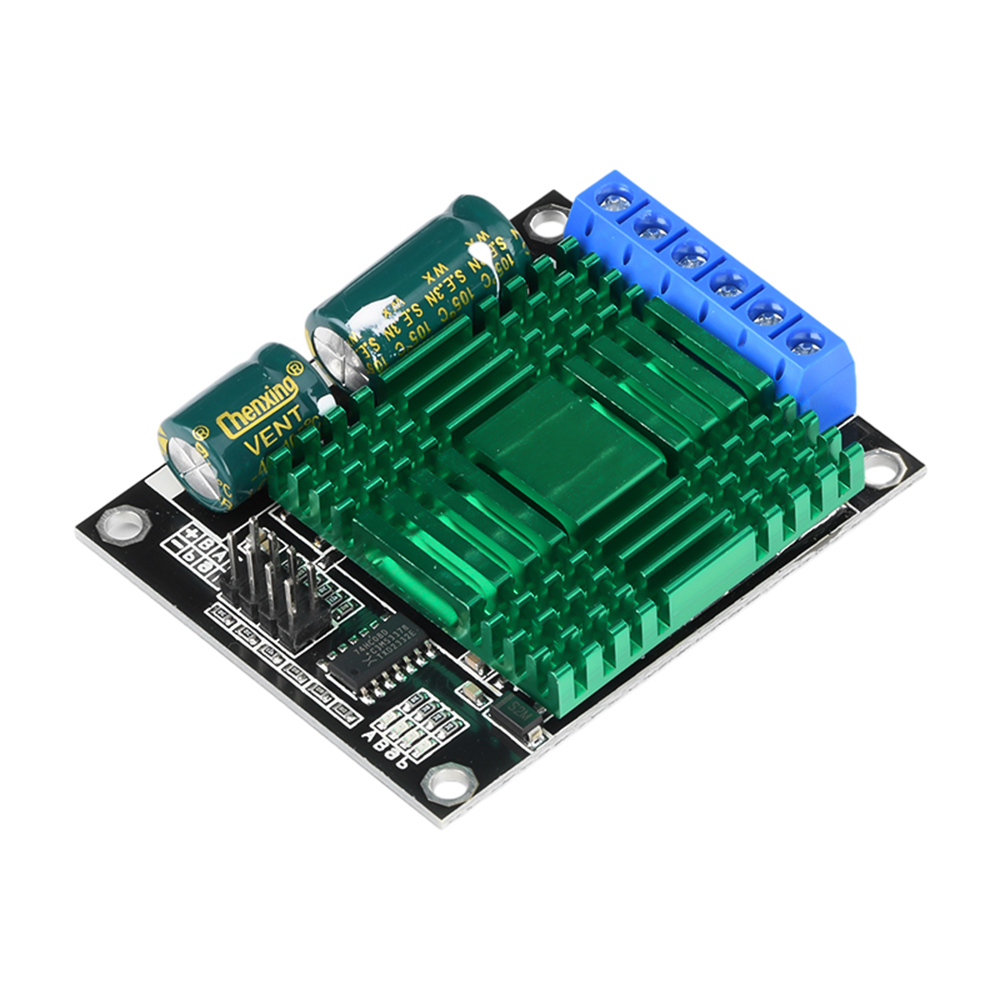

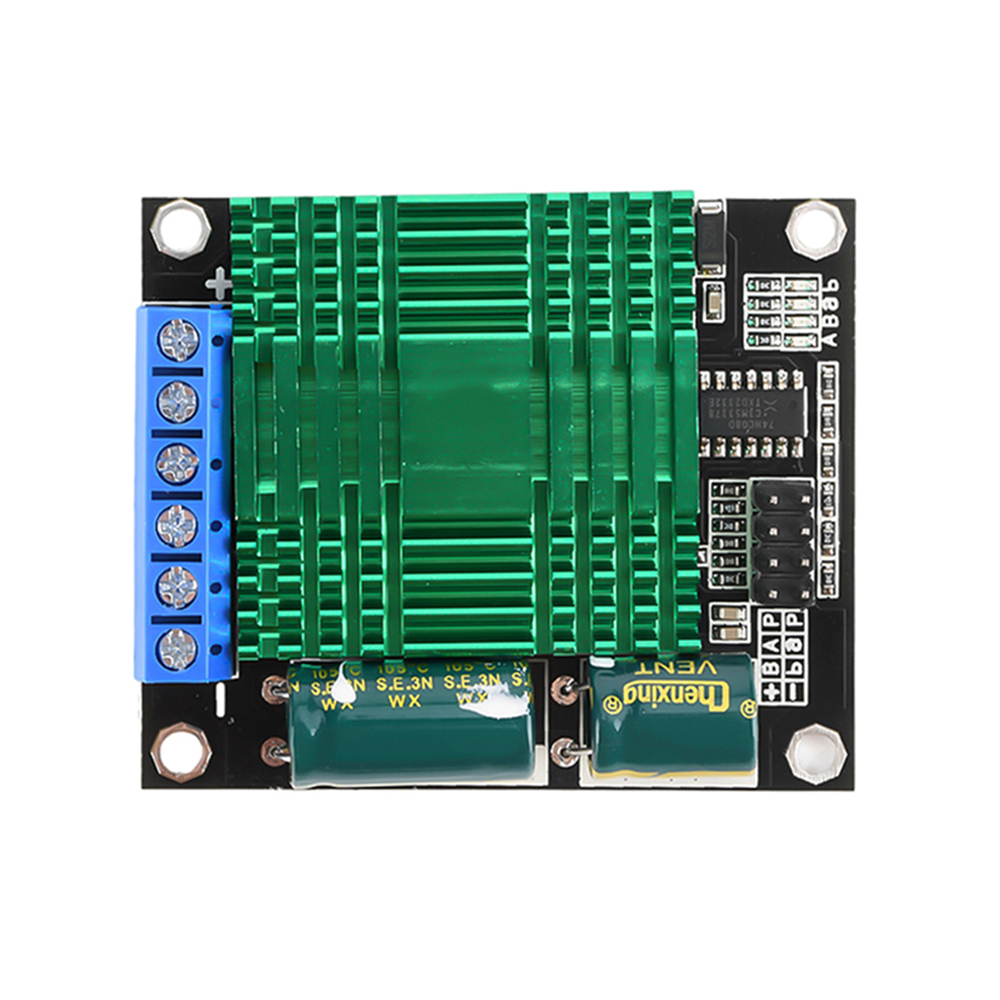

1. The basic components of this product for the SMD high degree of integration, the module design is beautiful, well laid out, very small size, on-board two-way high-power DC motor drive

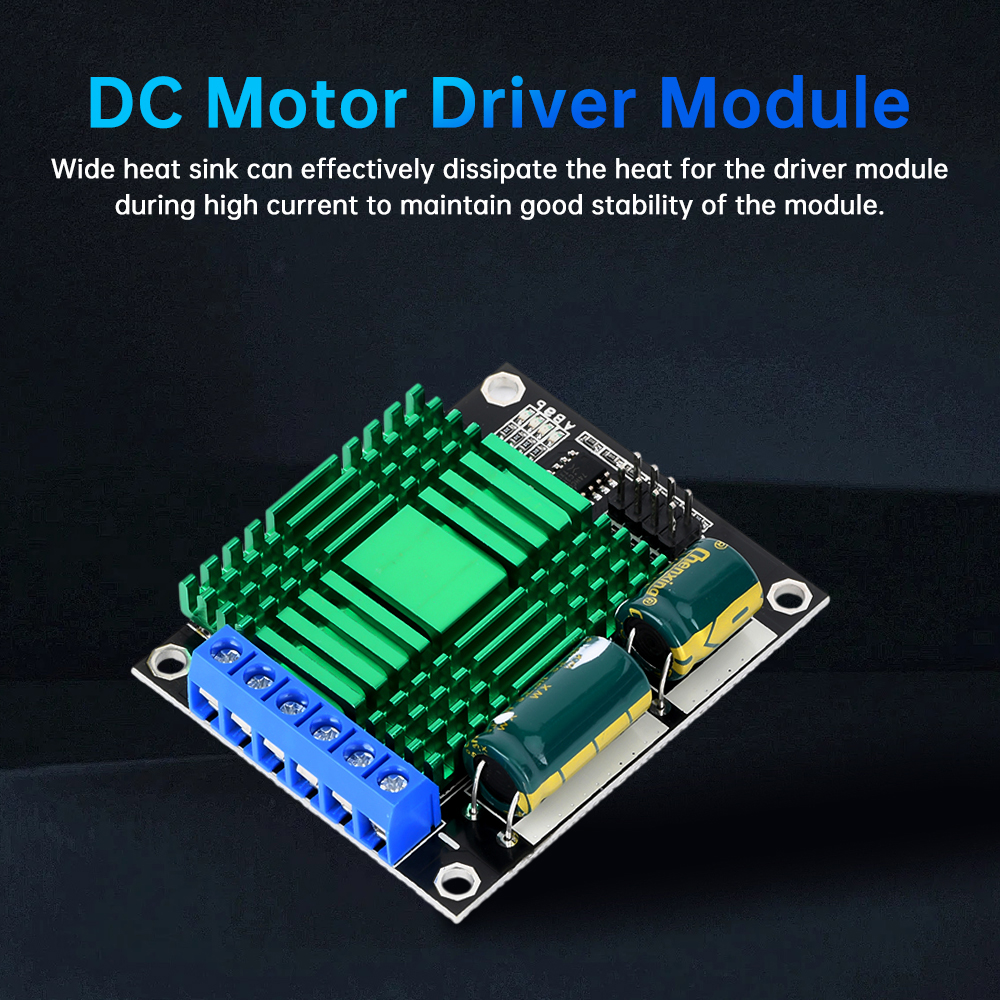

2. Wide heat sink can effectively dissipate heat for the drive module when high current, to maintain the module's good stability performance

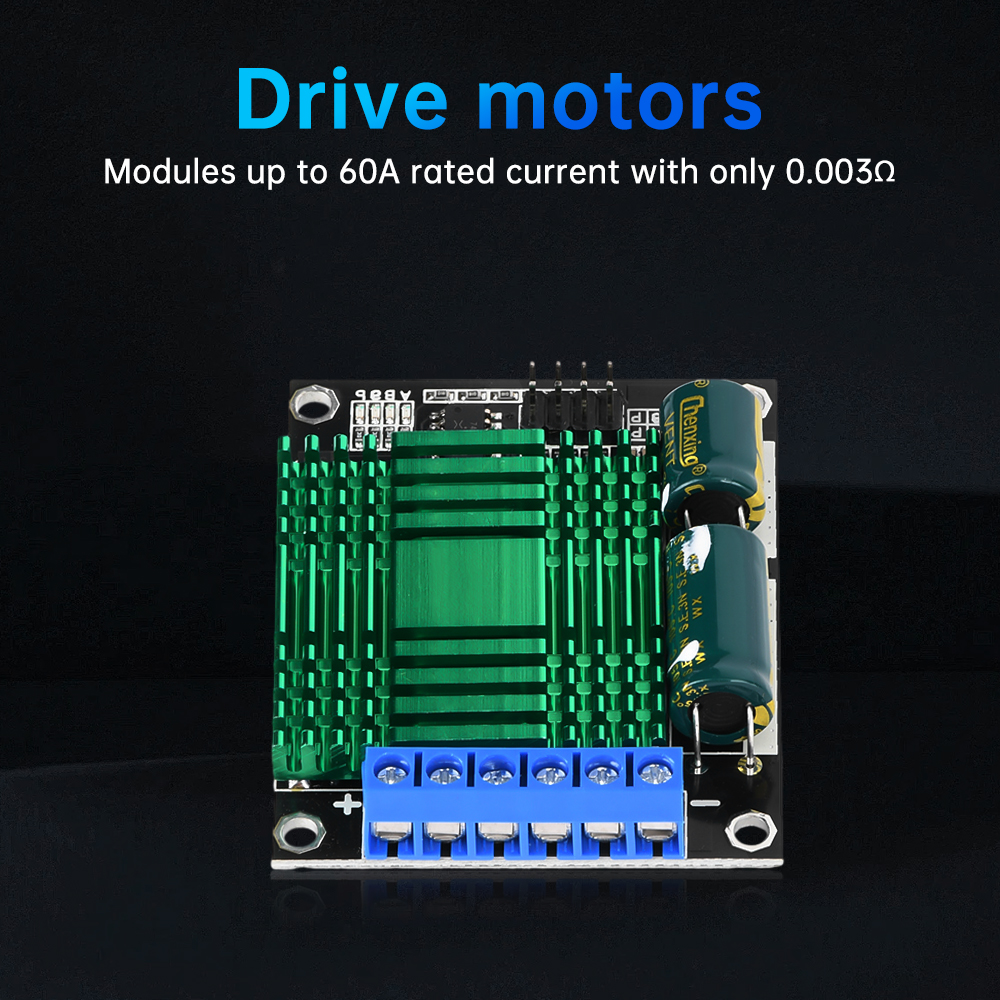

3. When driving the motor, the maximum rated current of the module can be up to 60A, and the on-resistance is only 0.003 ohm.
4. High switching frequency, up to 60KHZ, which effectively avoids the unpleasantness of debugging motor frequency is low.

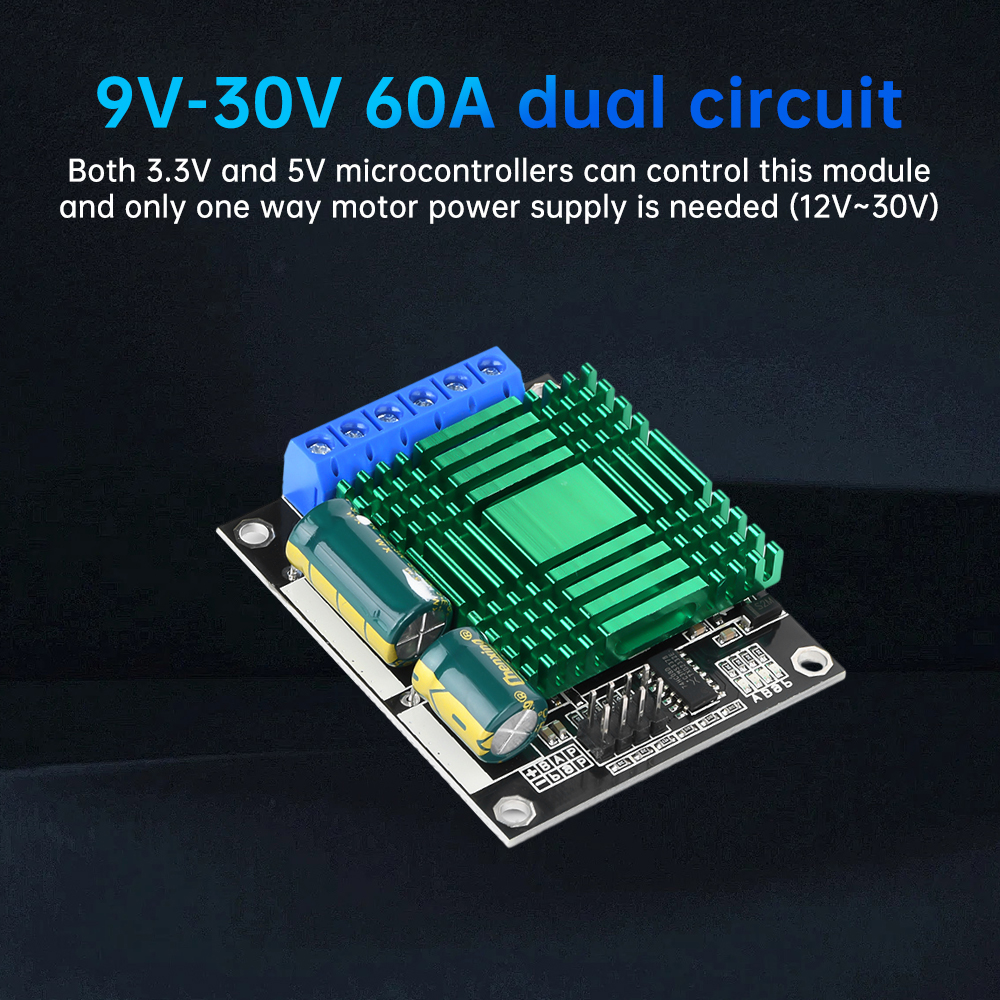

5.3.3V and 5V microcontroller can control this module, and only need a motor power supply (12V ~ 30V)
Parameter:
Input voltage: 9-30V

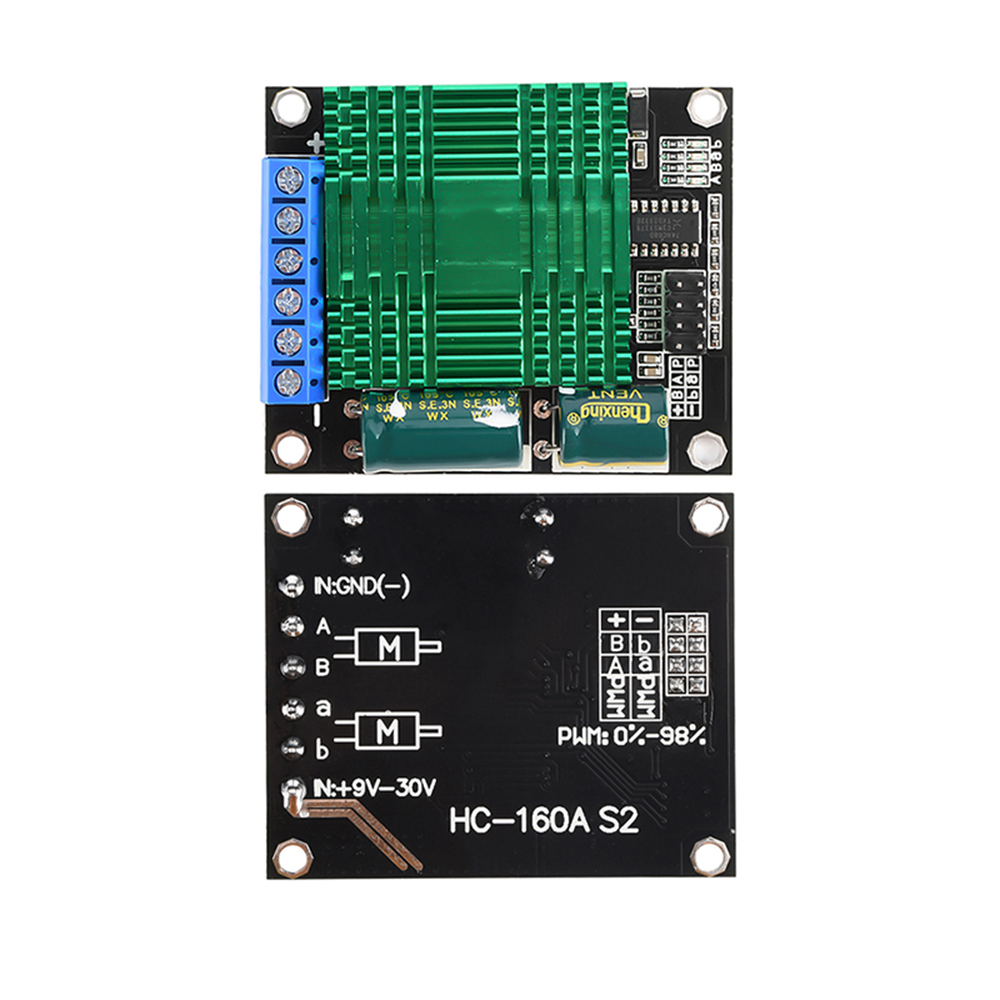

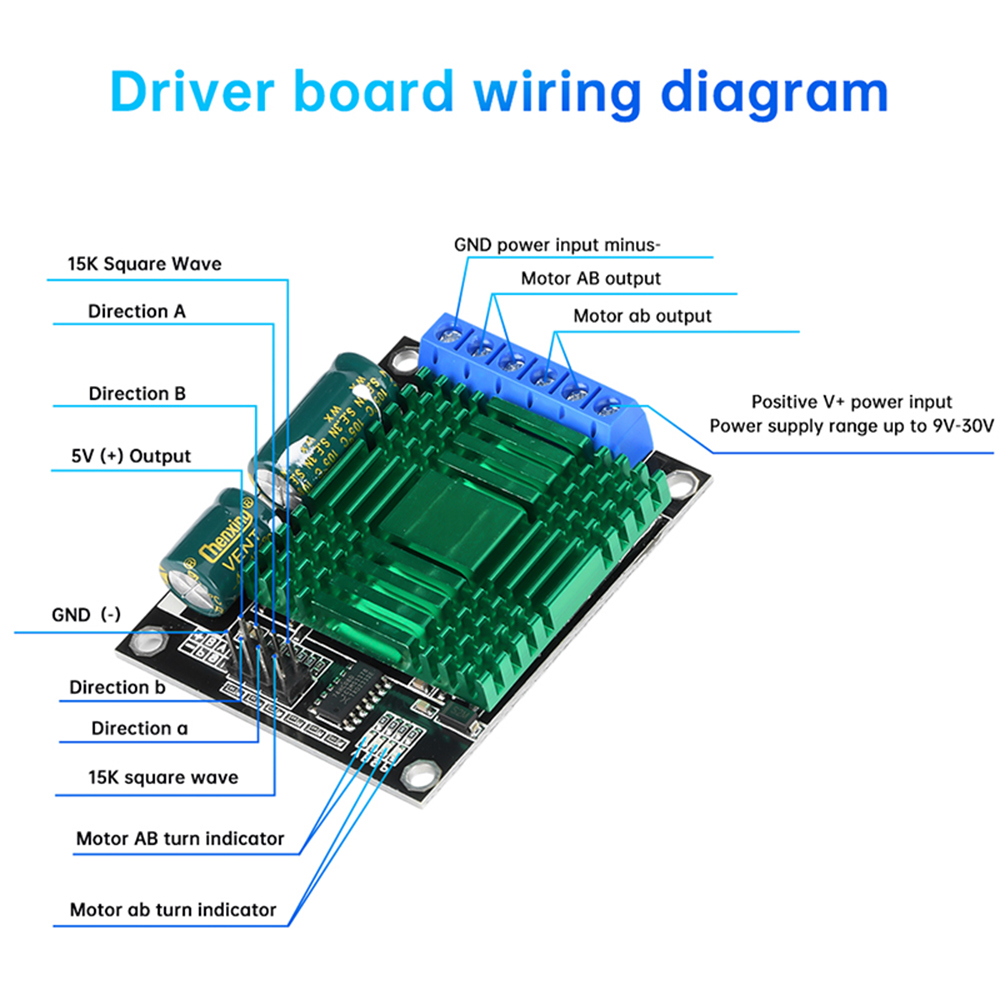

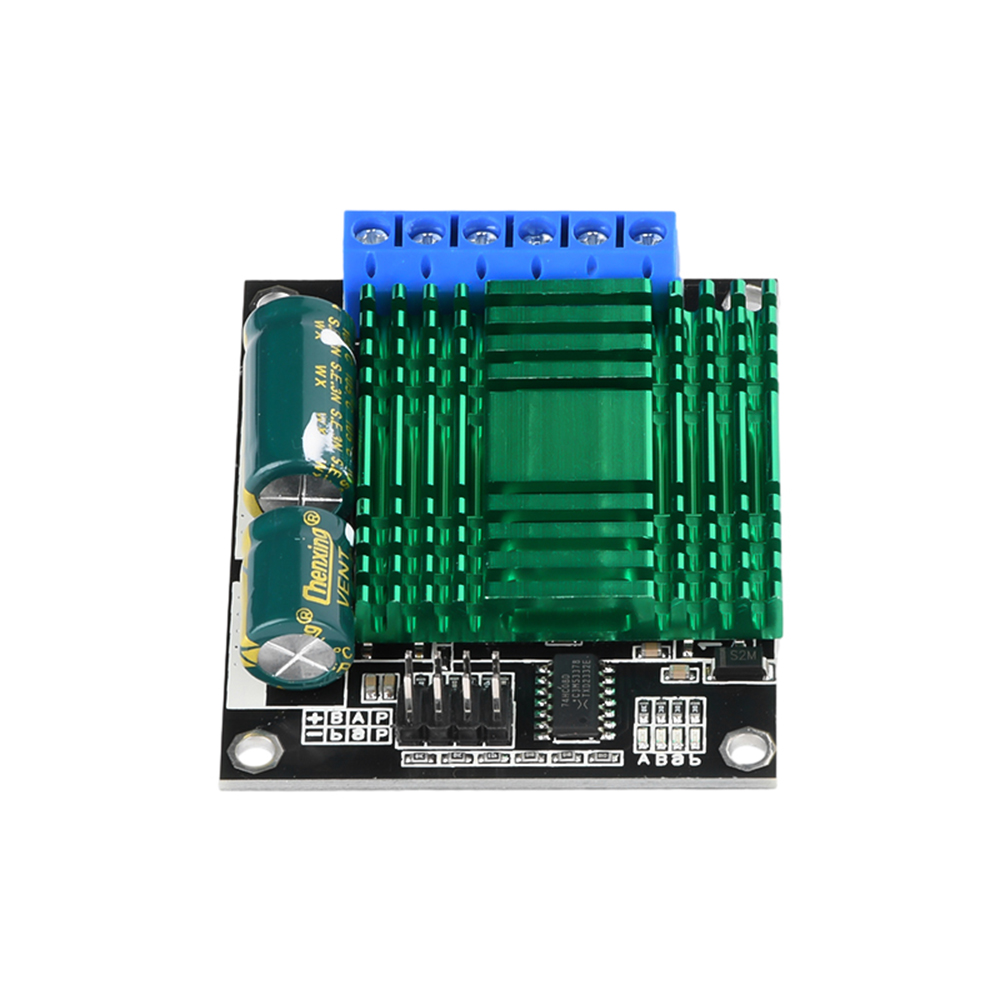

Control interface:
A.B=0.0 for brake
A.B=1.0 for positive rotation
A.B=0.1 for reverse rotation
PA is PWM wave input (motor speed regulation)
G is the common ground pin with the control board (B road for the same control)
Positioning hole: 3mm
Hole pitch: 52*42mm
Package include:
Motor driver module * 1
