Professional Upgraded DDS Signal Generator Counter, Seesii 60MHz LCD Display High Precision 200MSa/s Dual-Channel Arbitray Waveform Function Generator Frequency Meter

Upgraded Signal Stability: Seesii Dual-channel DDS arbitrary waveform generator adopts large scale FPGA integrated circuit and high speed MCU microprocessor. The internal circuit adopts active crystal oscillator as benchmark. So the signal stability is greatly strengthened
Storage And Custom: You can store 99 groups instrument state parameters set by the user, can be called up to Reproduce. Frequency output of Sine wave can be up to 60MHz. 200MSa/s sampling rate. It has 60 positions for saving user-defined waveform. In addition, it has a very good software package that allows you to create your own waves and frequency combinations. After you save them, you can disconnect the unit from the computer and use them for any applications you wish
High Precise: Using Dual-channel DDS signal and TTL electric level output to generate precise, stable, low distortion output signal. includes Sine wave, Square wave, Triangle wave, Sawtooth wave, Pulse wave, white noise, user-defined waveform etc. each channel can be independently set the parameters.Duty cycle of each channel can be adjusted separately. Precision can be 0.1%
Frequency Meter: With linear sweep(Max. up to 999.9s) and logarithmic frequency sweep functions.Has a frequency measurement, period measurement, positive and negative pulse width measurement and counting function.The settings allow you to enter up to 20volts
Lightweght Compact and Portable: With intuitive control panel, you can easy to control.This Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research. This is an important tool for both experts and newcomers

Seesii High Precision DDS Signal Generator Counter

High-frequency precision up to 10-6 orders of magnitude. Full range of 0.01μHz frequency resolution. Minimum amplitude resolution can be up to 1mV. Duty cycle of each channel can be adjusted separately. Precision can be 0.1%.

Seesii Signal Generator is the ideal instrument for electronic engineering, laboratories, production lines, teaching and scientific research.

Characteristic and Function

Waveform: Sine, Square, Triangle, Pulse (duty-cycle correction), Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform.

Frequency accuracy: ±20ppm×10-6

Amplitude resolution: 1mV

Frequency measurement range: 1Hz~100MHz

Coupled mode: 2kinds Coupling modes, DC and AC

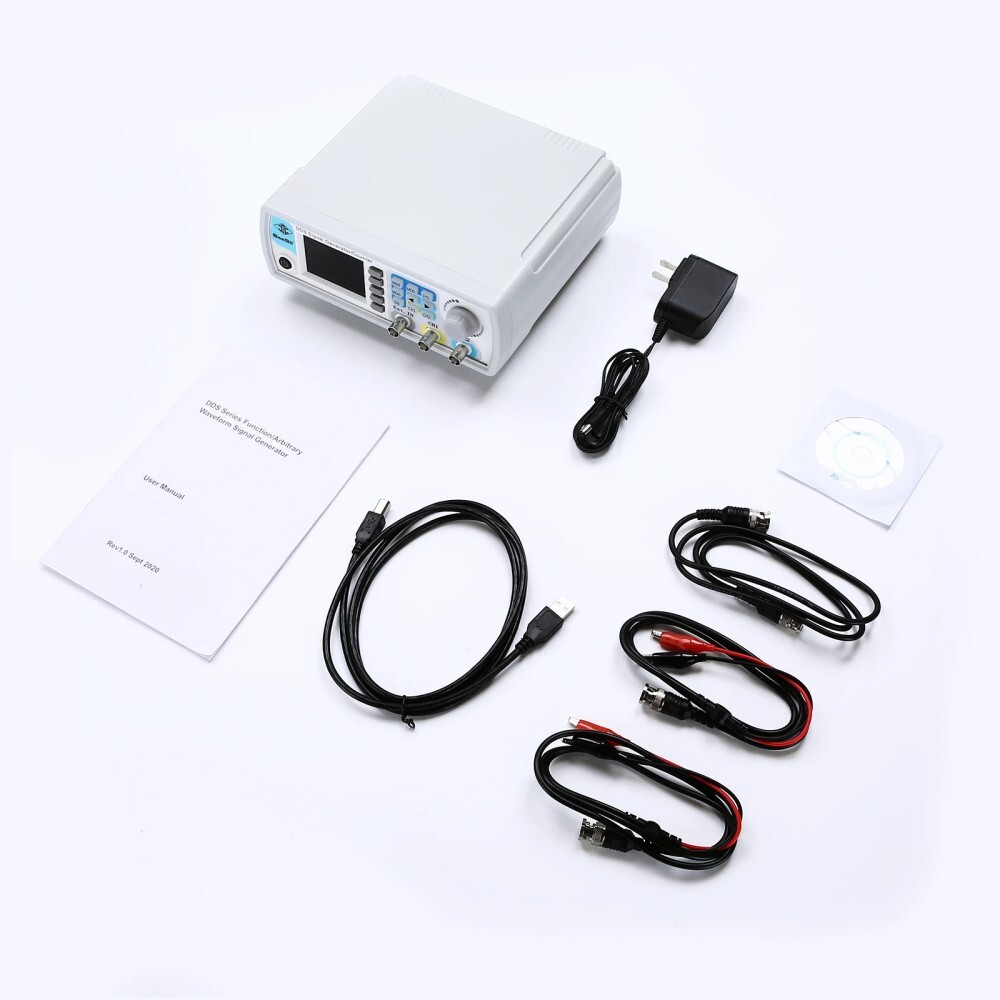

Package List

1 x 60Mhz DDS Signal Generator 1 x USB Cable 1 x Power Adapter 3 x Q9 Cable

1 x CD disk

1 x Manual

Mini Compact Dual-Channal Signal Generator Counter

Frequency Characteristic:

Sine frequency range: 0~60MHz Square & Triangle Wave: 0~25MHz Pulse & Arbitrary & TTL Digital Signal Wave: 0~6MHz Square rise time: ≤15nS Pulse width adjustment range: 30nS~4000S Frequency accuracy: ±20ppm×10-6 Frequency stability: ±1ppm×10-6/3h

Counter Function: Counting region: 0-4294967295 Coupled mode: 2kinds Coupling modes, DC and AC Counting mode: Manual operation

Output Characteristics: Amplitude resolution: 1mV Amplitude stability: ±0.5%/5 h Amplitude flatness: ±5%(<10MHz); ±10%(>10MHz)
Frequency Meter Function: Frequency measurement range: 1Hz~100MHz Measurement accuracy: Gate time continuously adjusted between 0.01S~10s
