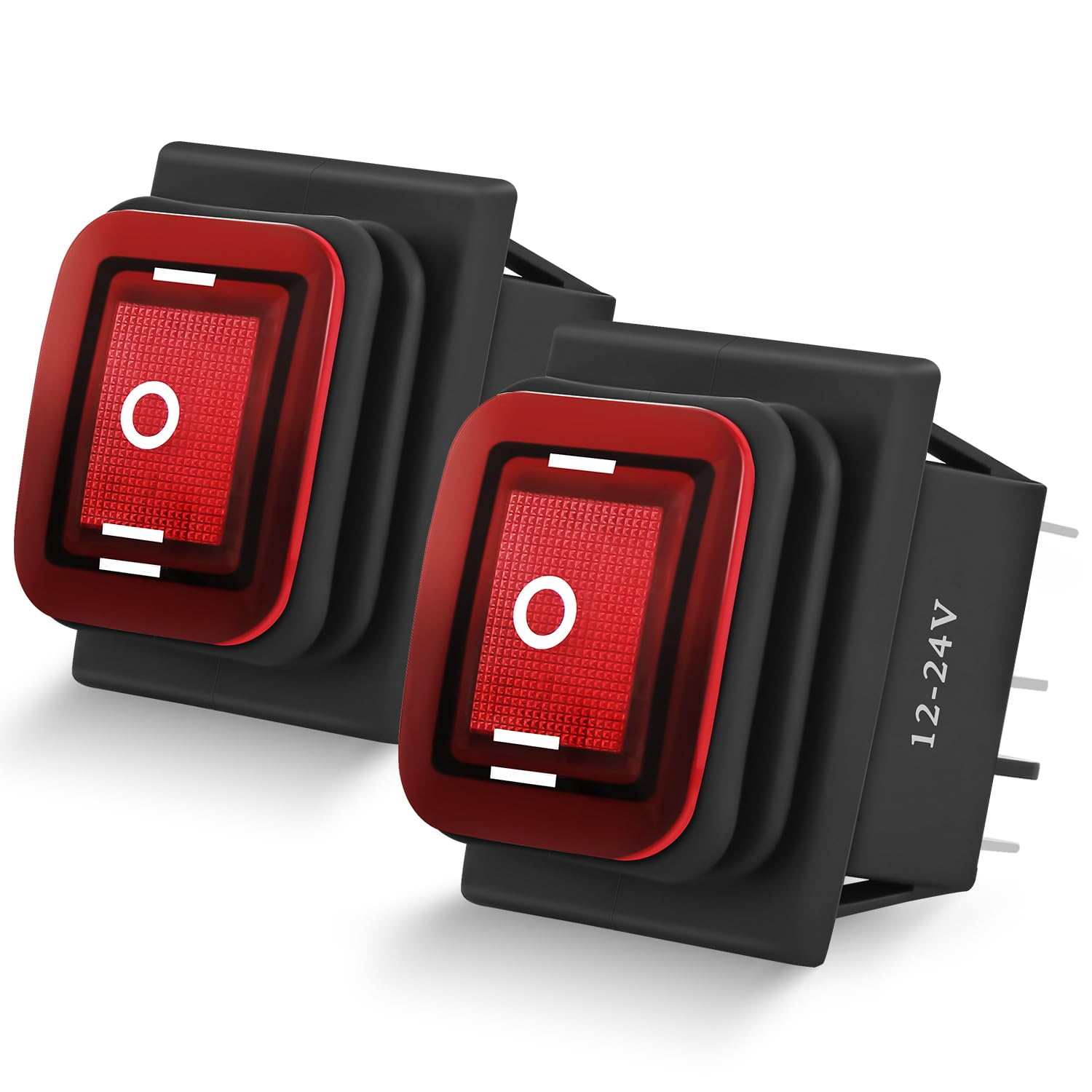

6Pin on off on Rocker Switch 2PCS Red LED Lighted IP67 Waterproof DPDT 3 Position Latching 20A 12VDC 125VAC Motor Toggle for Car Boat Automotive Vehicles
Description
| Item model number | 90340A |
| Item dimensions L x W x H | 15 x 10 x 10 inches |
| Current Rating | 20 Amps |
| Actuator Type | Rocker |
| Color | On Off On 2PCS |
| Product Dimensions | 15 x 10 x 10 inches; 1.13 ounces |
| Connector Type | Plug In |
| Switch Type Toggle | Material Plastic |
| Terminal | Dpdt |
| Mounting Type Panel Mount | Specification Met CE |
| Operation Mode | ON-OFF-ON |
| Operating Voltage | 12 Volts |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
- Specification: 20A@12VDC; 10A@24VDC; 20A@125VAC; 10A@250VAC, this reverse polarity switch can be used under DC and AC circuits
- Switch Type: DPDT on off on latching switch with 2 circuits. Can control up to 2 loads
- IP67 Waterproof Rate: The switch is wrapped with a silicone sleeve, prevents the water gets into the switch contacts. Enhance it’s lifespan
- Mounting Hole Size: 28 x 22mm/1.1" x 0.86" (LxW); Product Size: 39 x 29mm/1.54" x 1" x 1.14" (LxWxH)
- Product Includes: 1PC 6Pin on off on Rocker Switch
Product description
Nilight DPDT ON/OFF/ON Red LED Light Rocker Toggle Switch
Specification
Contact Type: DPDT
Terminal: 6 PIN
Material: Metal, Plastic
Mounting Size: 28mm(1.1")*22mm(0.86")
Rated Voltage and Current: 20A 12VDC 10A 24VDC/20A 125VAC 10A 250VDC
Product Features
LED Indicatior Switch
The Red LED indicator will be illuminated when the switch is turned on. When the switch is turned on, the light is turned on; Switch off, light off.

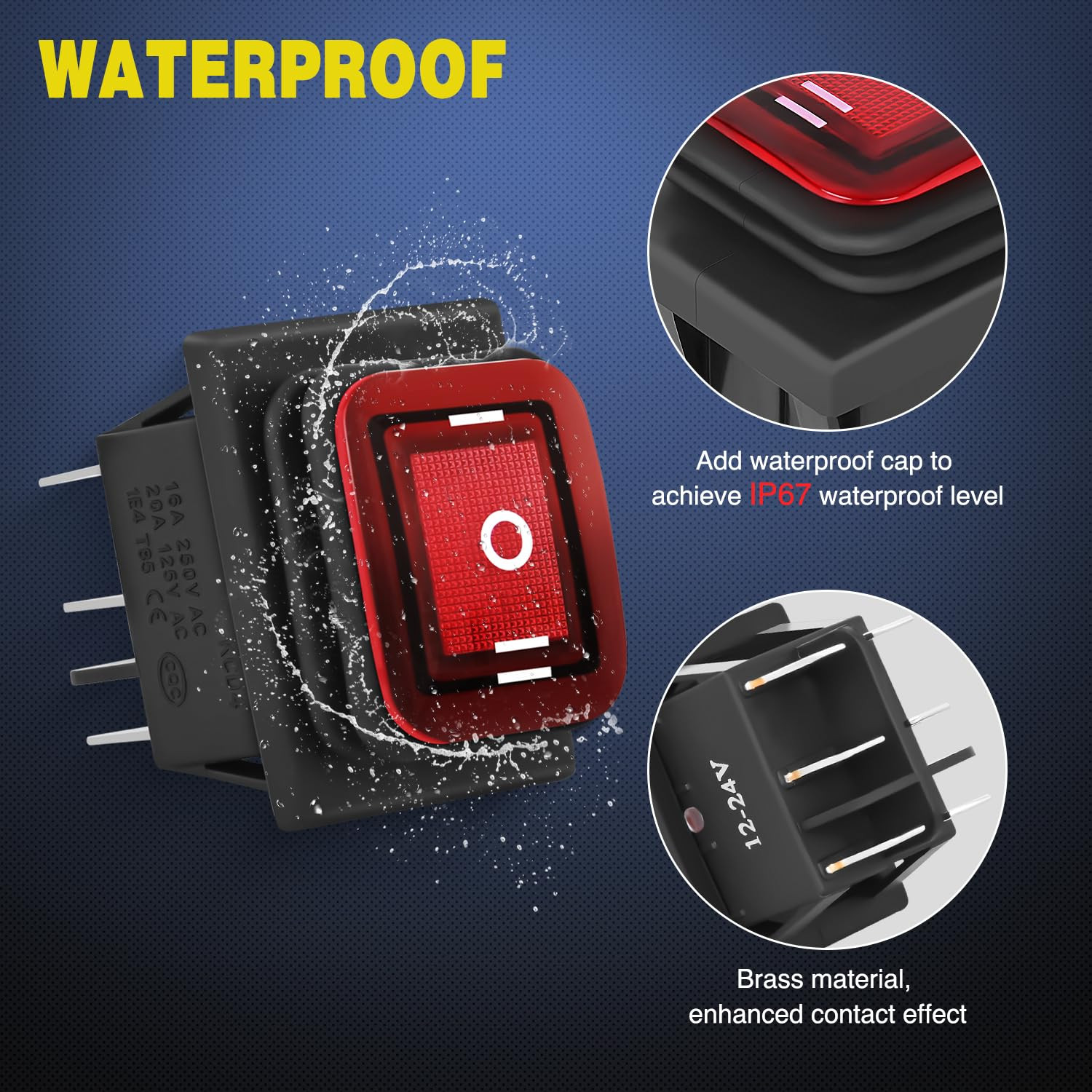

IP67 Waterproof Rating
this switch come with a waterproof cover, can be used in a wet environment, no worry about rain or water anymore.
Silver-plated Terminals
Thickened silver-plated terminals make the switch operate stably under 20A 12VDC 10A 24VDC/20A 125VAC 10A 250VDC.
Snap-in Design
Snap in Design make the switch easy to install. Extruding the plastic part, then Push in to the Panel.
Wiring Diagram
Wide Application
Greatly suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailer, RV, caravan, bus, marine boat, yacht, airplane, etc.
Related Products
| Customer Reviews | 4.6 out of 5 stars 2,301 | 4.6 out of 5 stars 1,203 | 4.5 out of 5 stars 3,682 | 4.6 out of 5 stars 1,203 | 4.5 out of 5 stars 8,741 | 4.5 out of 5 stars 8,741 | 4.5 out of 5 stars 3,682 |
| Price | $9.99$9.99 | $12.59$12.59 | $9.83$9.83 | $8.99$8.99 | $13.63$13.63 | $8.72$8.72 | $6.46$6.46 |
| Switch Type | ON-OFF-ON | (ON)-OFF-(ON) | (ON)-OFF-(ON) | (ON)-OFF-(ON) | ON-OFF | ON-OFF | ON-OFF |
| Rated Current | 20A/10A 12-24VDC/125-250VAC | 30A/15A 12-24VDC/125-250VAC | 15A 12-24V DC 15A 250V AC | 20A/10A 12-24VDC/125-250VAC | 20A 12VDC | 20A 12VDC | 20A 12VDC |
| Mounting Hole Size | 28*22mm | 37.4*21mm | 31*19mm | 29*22mm | 25*16mm | 30*16mm | 29*17mm |
| Jumper Wires | ✘ | ✔ | ✔ | ✔ | ✘ | ✘ | ✘ |
| Rating | 12-24V DC/125-250V AC | 12-24V DC/125-250V AC | 12-24V DC/125-250V AC | 12-24V DC/125-250V AC | 12V DC | 12V DC | 12V DC |
