Description:

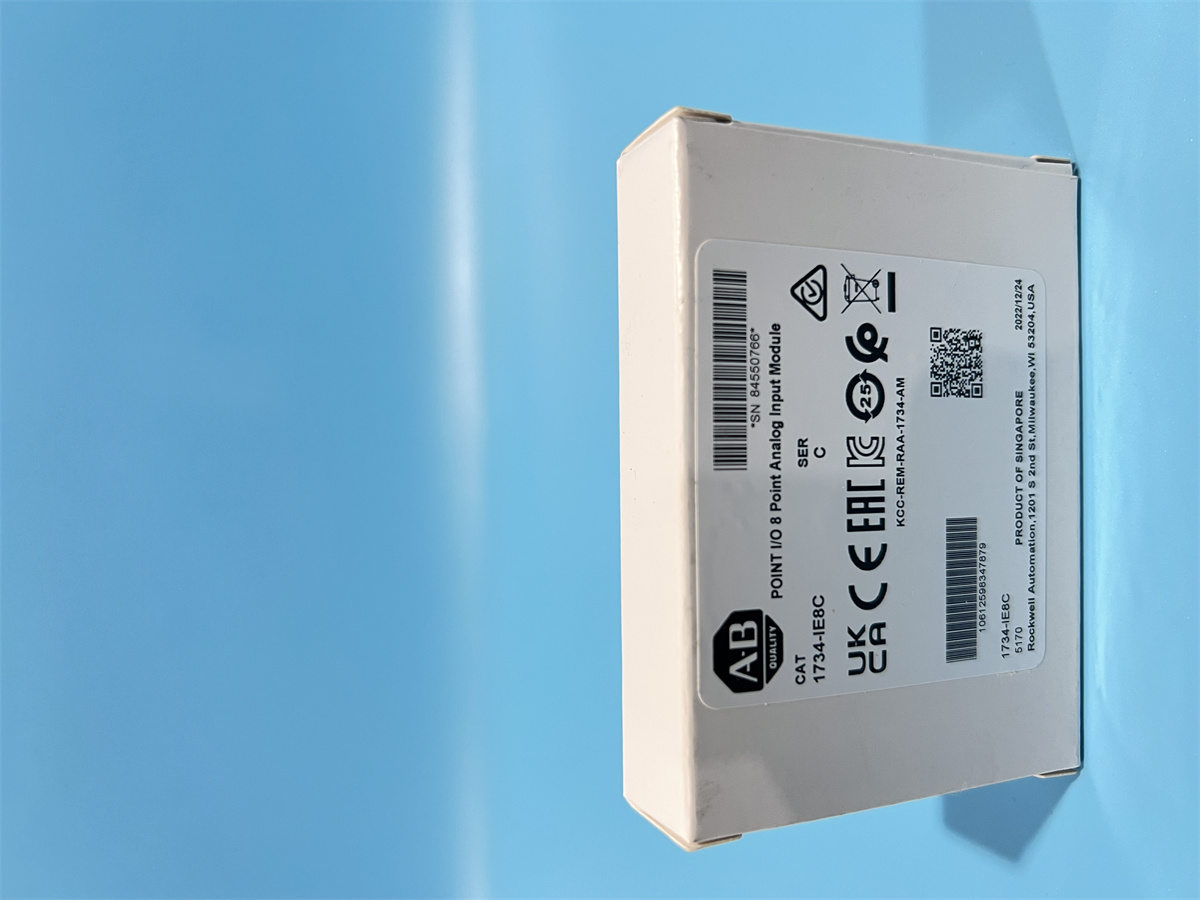

The 1734-IE8C is a POINT I/O 8-Channel High Density Current Input Module that is manufactured by Allen-Bradley and Rockwell Automation. The 1734-IE8C has 8 single-ended, non-isolated, current inputs and a resolution of 16 Bits over 0…21 milliamperes. Input current terminal is 4…20 milliamperes and 0…20 milliamperes. The 1734-IE8C has a current terminal absolute accuracy of 0.1% Full Scale at 25 degrees Celsius. Current terminal accuracy drift with temperature is 30 ppm per degree Celsius. Input impedance is 60 Ω and it has a Delta Sigma conversion type. Common mode rejection ratio for the 1734-IE8C is -120 decibels. Additional input specifications include Signed Integer data format, maximum overload that is fault protected to 28.8 Volts DC, factory calibration, and logic side indicators for network, module, and input status.
Technical Specifications
Brand Allen-Bradley/Rockwell Automation
Part Number: 1734-IE8C
Series: Point I/O 1734
UPC: 10612598347879
Product Type High Density Current Input Module
Inputs 8, Single-Ended, Non-Isolated, Current Inputs
Resolution 16 Bits over 0…21 milliamperes
Absolute Accuracy (Current Terminal) 0.1% Full Scale at 25 degrees Celsius
Input Impedance 60 Ω
Conversion Type Delta Sigma
Common Mode Rejection Ratio -120 decibels
Data Format Signed Integer
Factory Calibration Yes
Enclosure Type Rating Open-Style
Note:
1. We have more model in stock than listed on ebay, all of the Allen-Bradley's product , you can find from us,send us a message if you can't find the model you are looking for.
2. you will be get 2 packages from us which included a after-sales card and the item shipped by DHL from our logistic partner.
3. all of the item will be shipped within 24- 48 hours in business days, and the estimated delivery date will be about one week!
The 1734-IE8C is a POINT I/O 8-Channel High Density Current Input Module that is manufactured by Allen-Bradley and Rockwell Automation. The 1734-IE8C has 8 single-ended, non-isolated, current inputs and a resolution of 16 Bits over 0…21 milliamperes. Input current terminal is 4…20 milliamperes and 0…20 milliamperes. The 1734-IE8C has a current terminal absolute accuracy of 0.1% Full Scale at 25 degrees Celsius. Current terminal accuracy drift with temperature is 30 ppm per degree Celsius. Input impedance is 60 Ω and it has a Delta Sigma conversion type. Common mode rejection ratio for the 1734-IE8C is -120 decibels. Additional input specifications include Signed Integer data format, maximum overload that is fault protected to 28.8 Volts DC, factory calibration, and logic side indicators for network, module, and input status.
Technical Specifications
Brand Allen-Bradley/Rockwell Automation
Part Number: 1734-IE8C
Series: Point I/O 1734
UPC: 10612598347879
Product Type High Density Current Input Module
Inputs 8, Single-Ended, Non-Isolated, Current Inputs
Resolution 16 Bits over 0…21 milliamperes
Absolute Accuracy (Current Terminal) 0.1% Full Scale at 25 degrees Celsius
Input Impedance 60 Ω
Conversion Type Delta Sigma
Common Mode Rejection Ratio -120 decibels
Data Format Signed Integer
Factory Calibration Yes
Enclosure Type Rating Open-Style
Note:
1. We have more model in stock than listed on ebay, all of the Allen-Bradley's product , you can find from us,send us a message if you can't find the model you are looking for.
2. you will be get 2 packages from us which included a after-sales card and the item shipped by DHL from our logistic partner.
3. all of the item will be shipped within 24- 48 hours in business days, and the estimated delivery date will be about one week!
