Features:
1.The product is made of high quality material, quality is guaranteed
2.The product appearance design is compact, wiring is simple and easy to understand, very suitable for DIY enthusiasts
3. Stable performance and long service life
4. This is a high-performance SPP converter, wide-voltage design to support up to 20V input
5. The input signal is automatically recognized, no need to manually switch, plug and play!

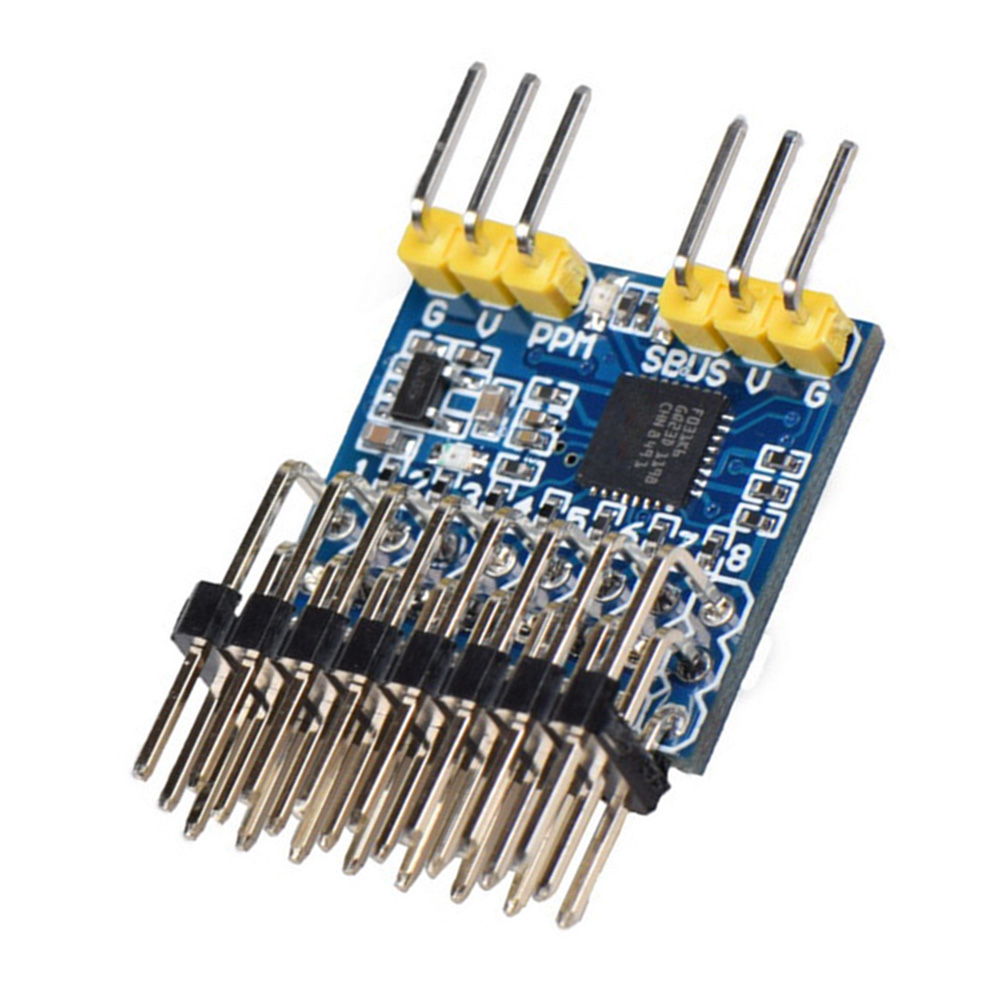

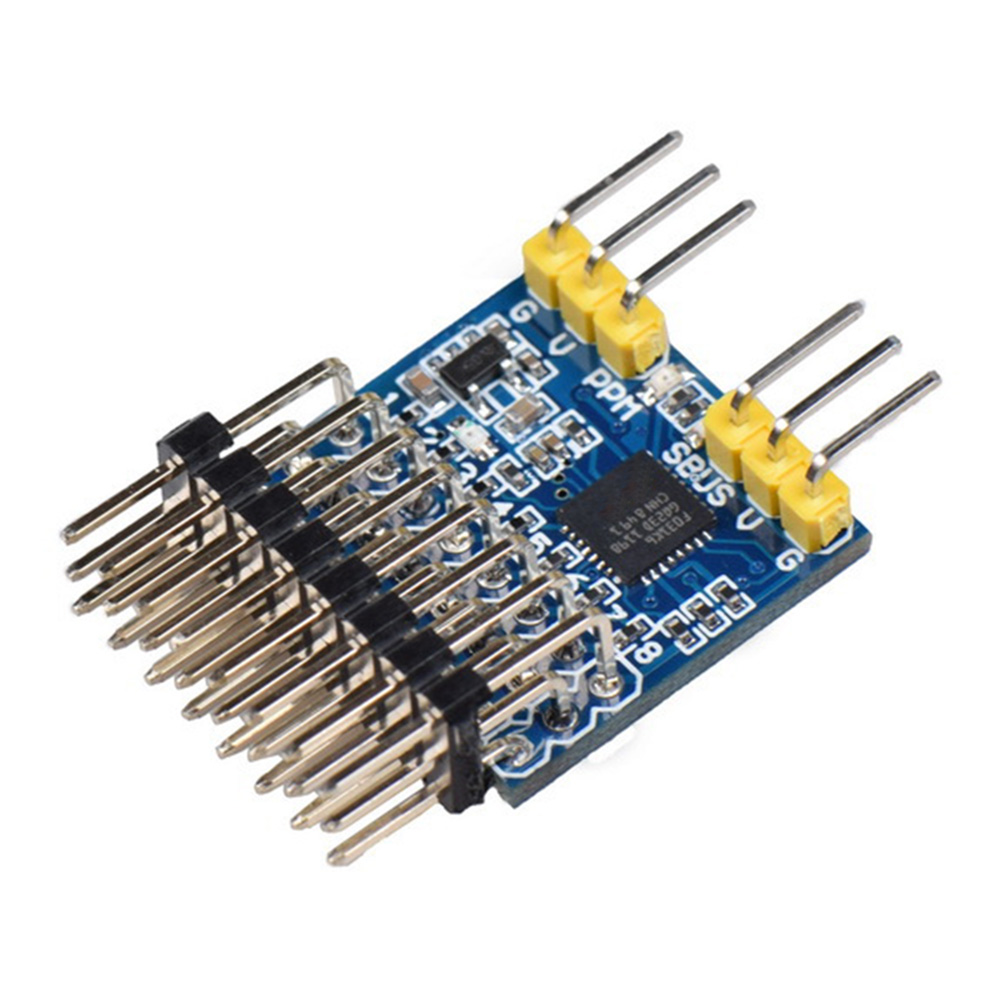

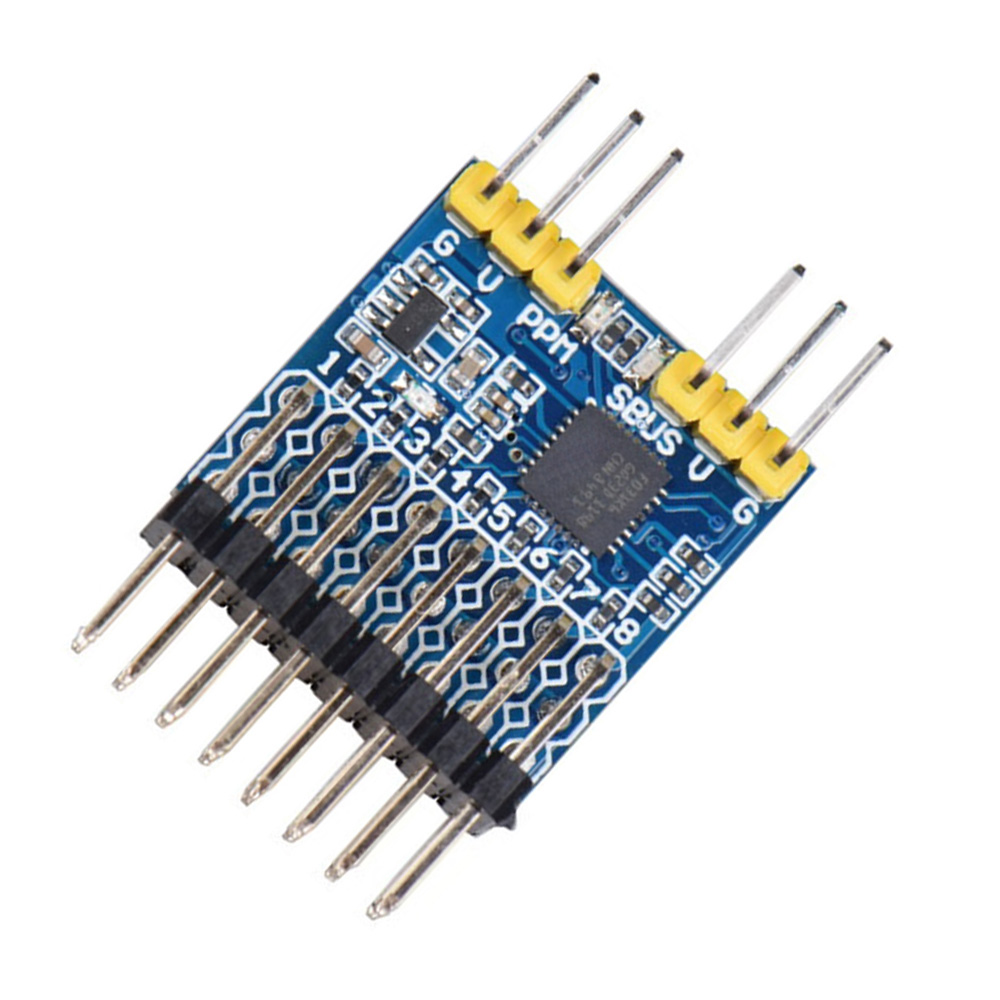

Product Description:
This is a high-performance SPP converter, module wide voltage design to support up to 20V input, the use of 32-bit microcontroller to complete the signal acquisition, processing, conversion, stability and speed far beyond the ordinary 8-bit microcontroller, the input signal is automatically recognized, no need to manually switch, plug-and-play, the state of the indicator is simple and clear to support the 8-channel input/output.

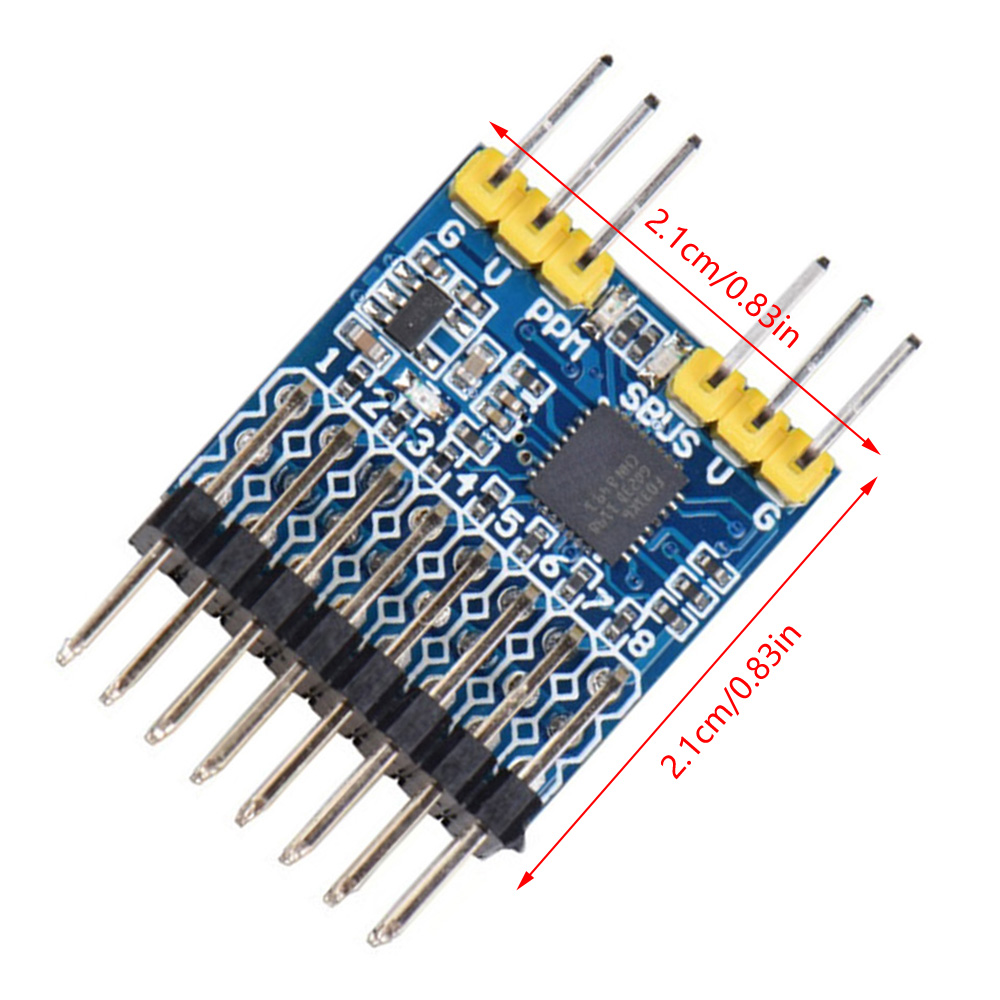

Parameters:
Input voltage: 3.3-20V
Current: 15MA
Input signal:
PPM (CPPM)
PWM (common receiver signal)
SBUS (including futaba-R7008SB series, FrSky, etc.)
Function Description:
Input SBUS signal, output PWM and PPM signal at the same time
Input PWM signal and output PPM and SBUS signal at the same time.
Input PPM signal, output PWM and SBUS signal at the same time.
Indicator lights:
When there is no signal input, all three indicator lights are on (PPM green, SBUS blue, PWM red)
Input signal indicator light is always on, output signal indicator light is flashing.
For example: when PPM signal is input, the corresponding indicator of PPM is always on in green, and the indicators of PWM red and SBUS blue signal are blinking.

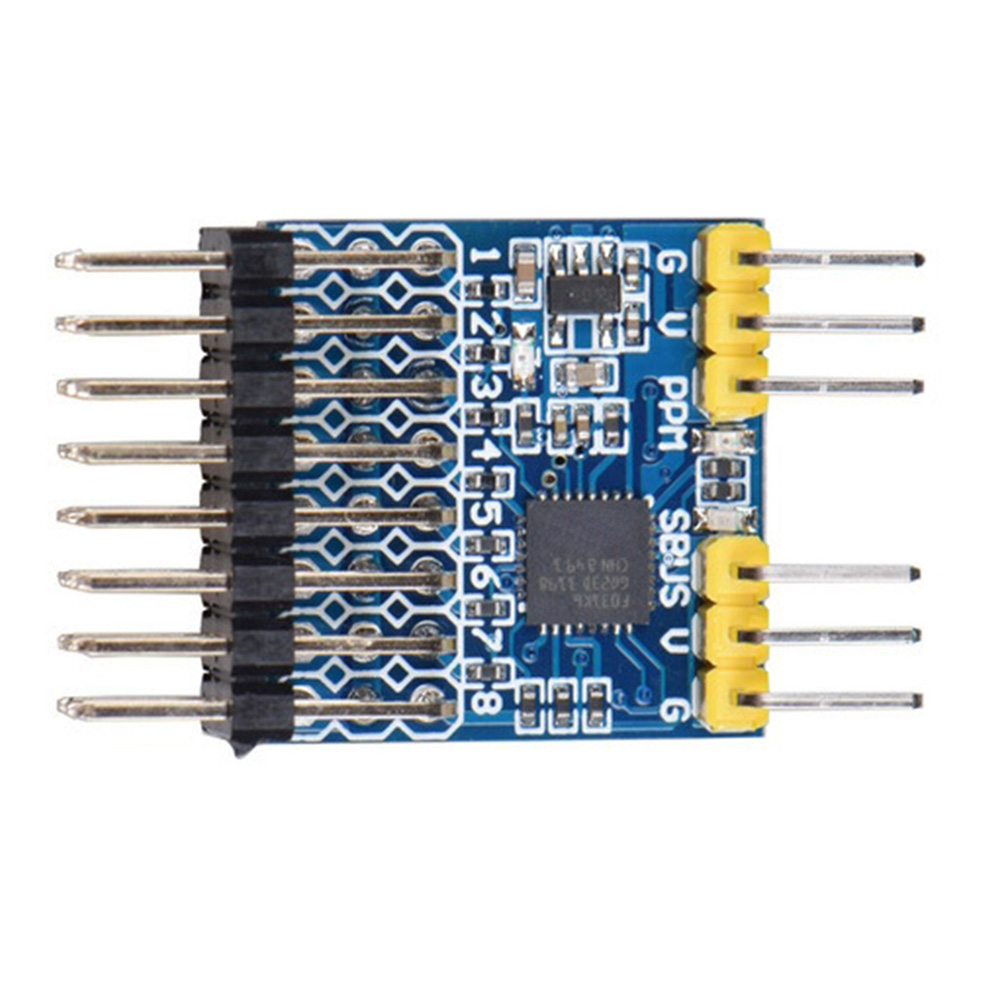

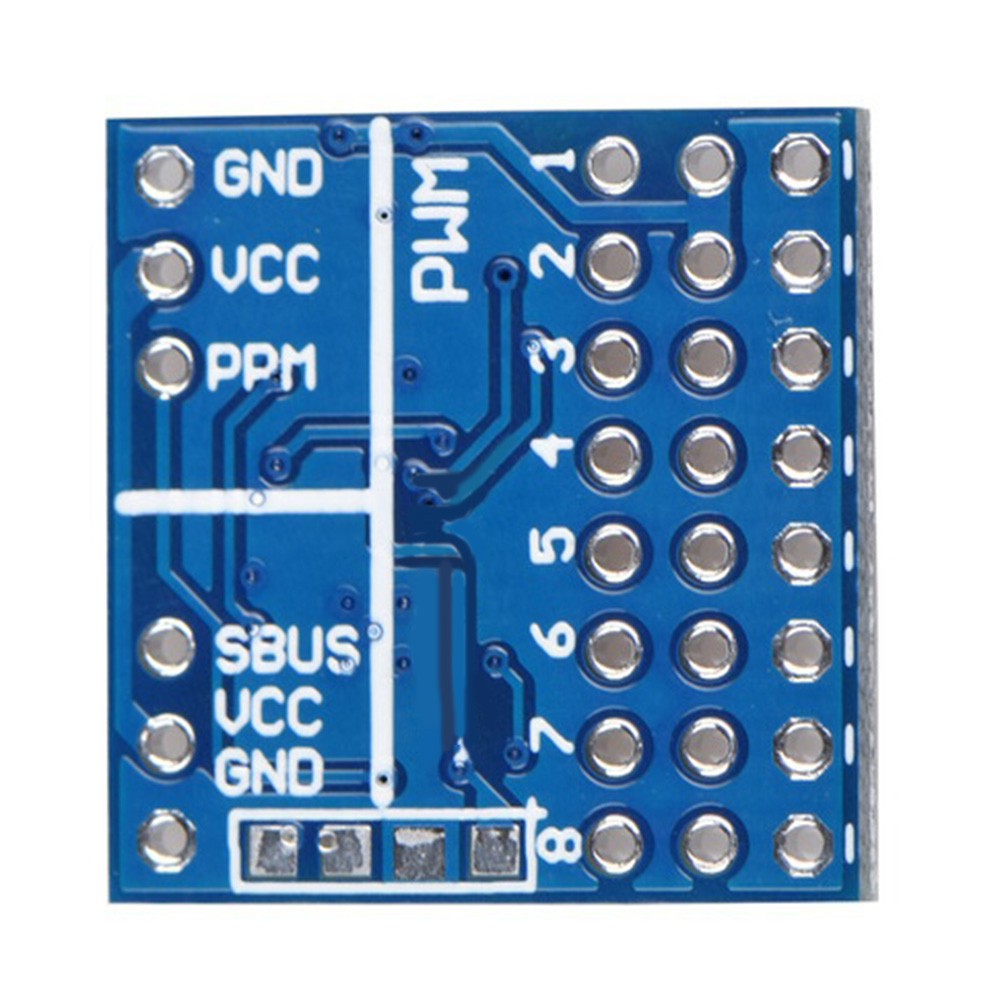

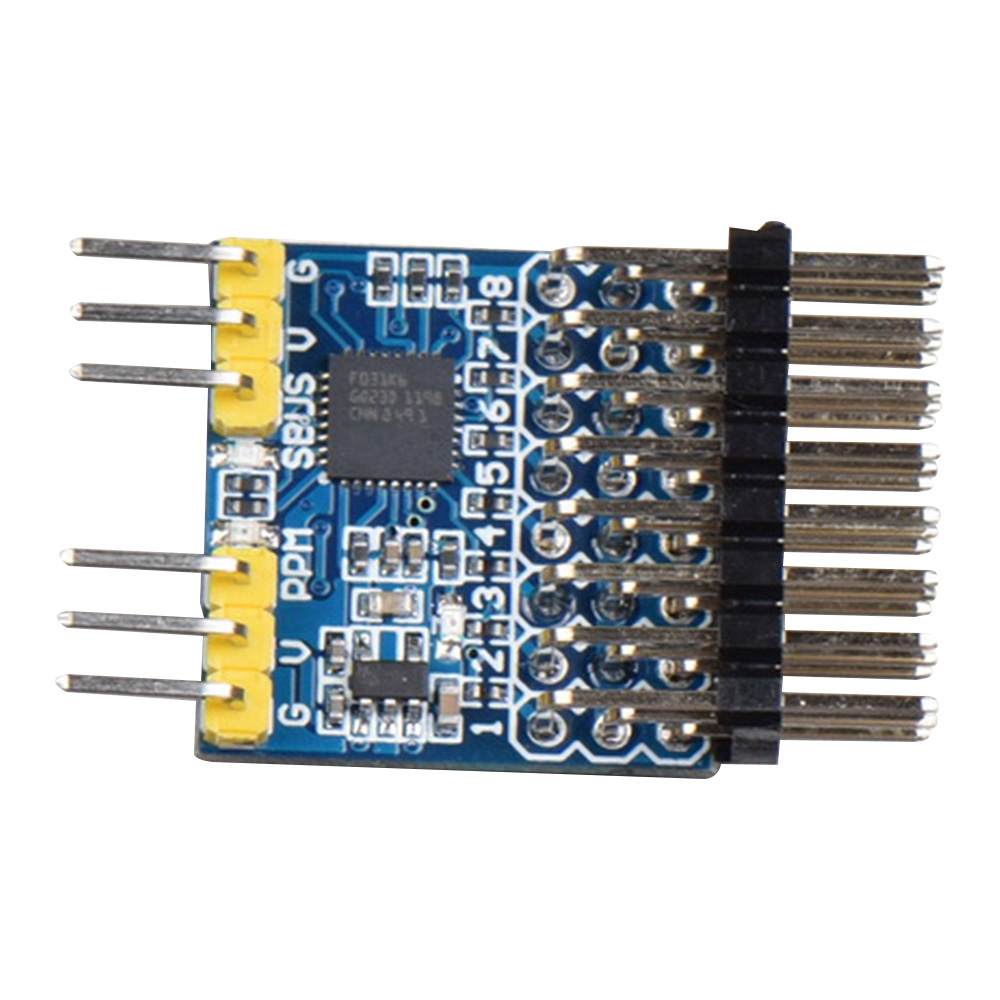

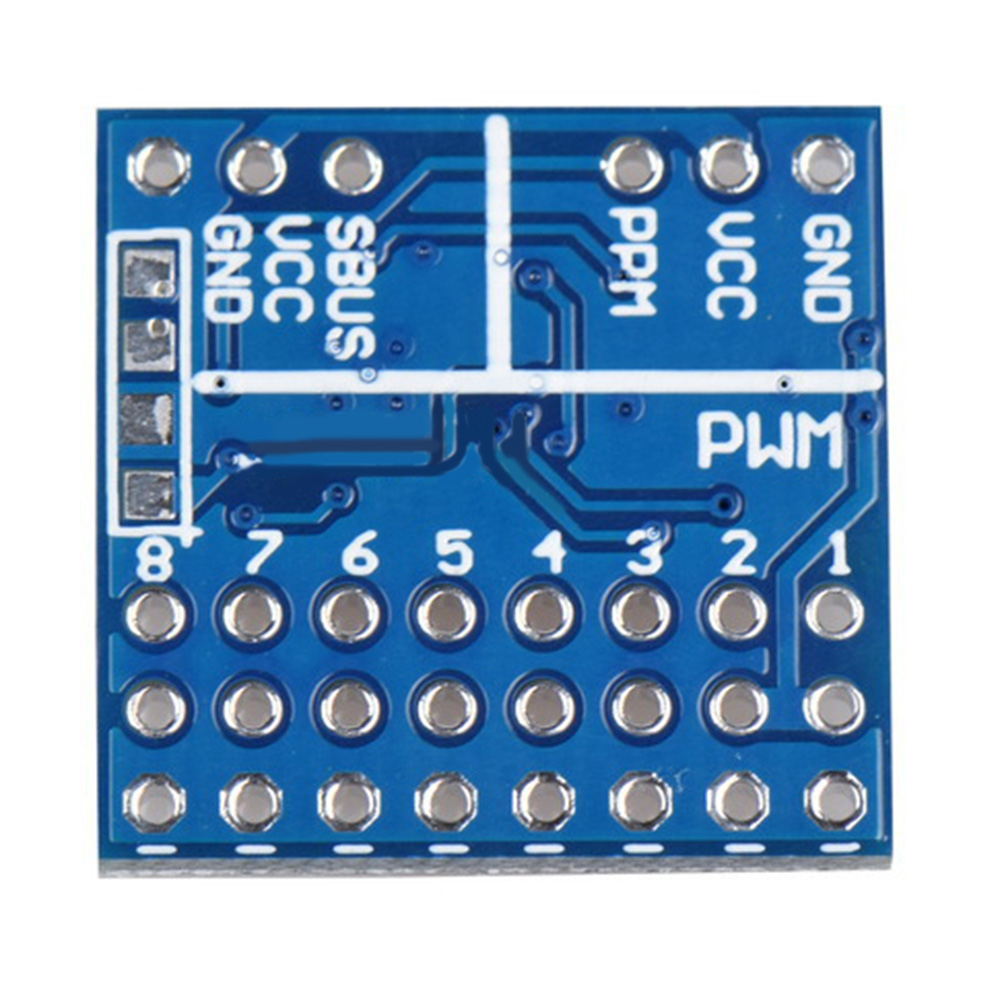

Channel Description:
1-8 channels are PWM signal input or output channels.
SBUS channel is SBUS signal input or output channel.
PPM channel is PPM signal input or output channel.

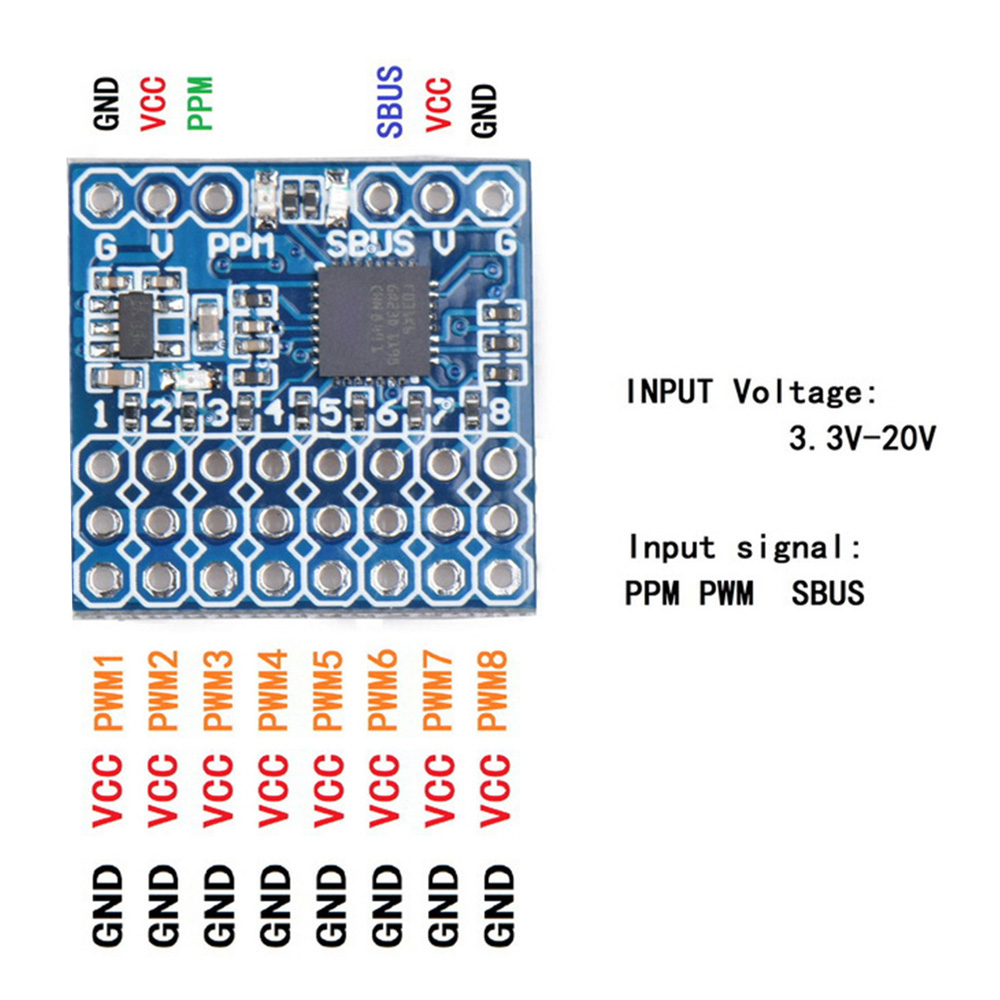

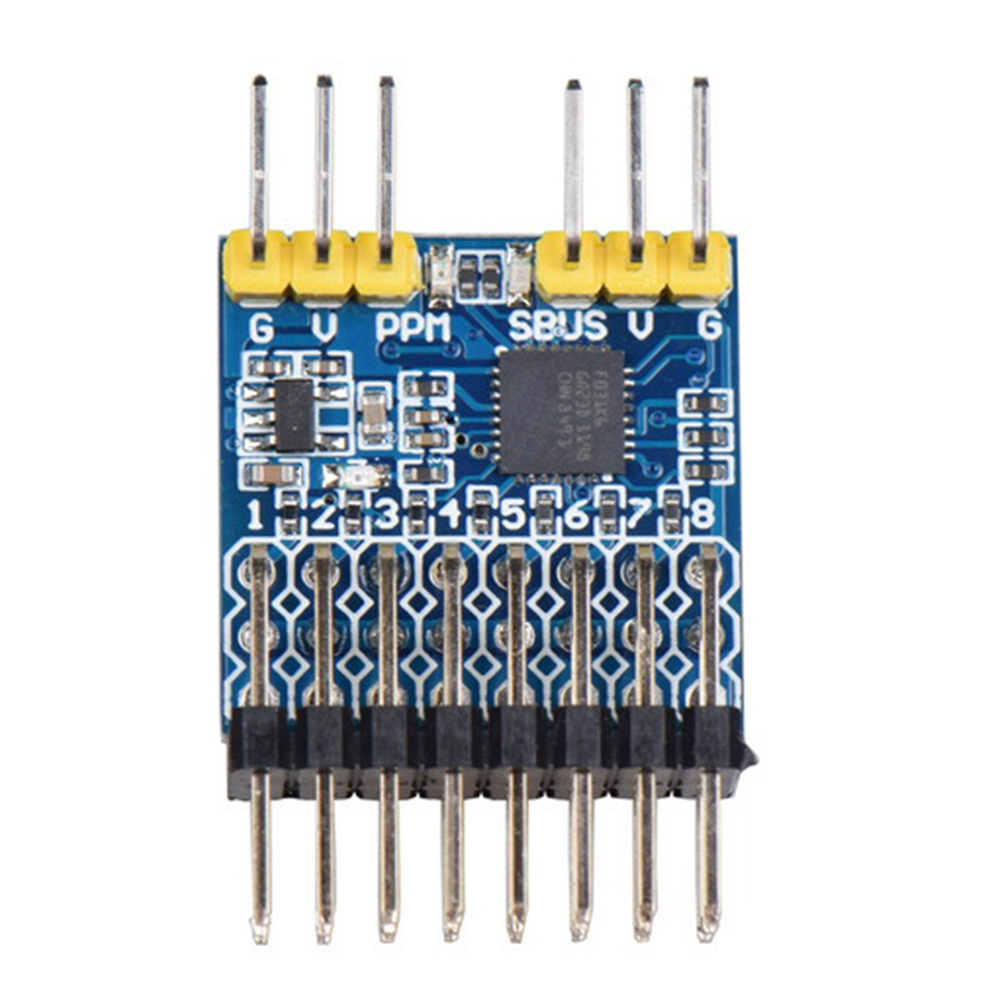

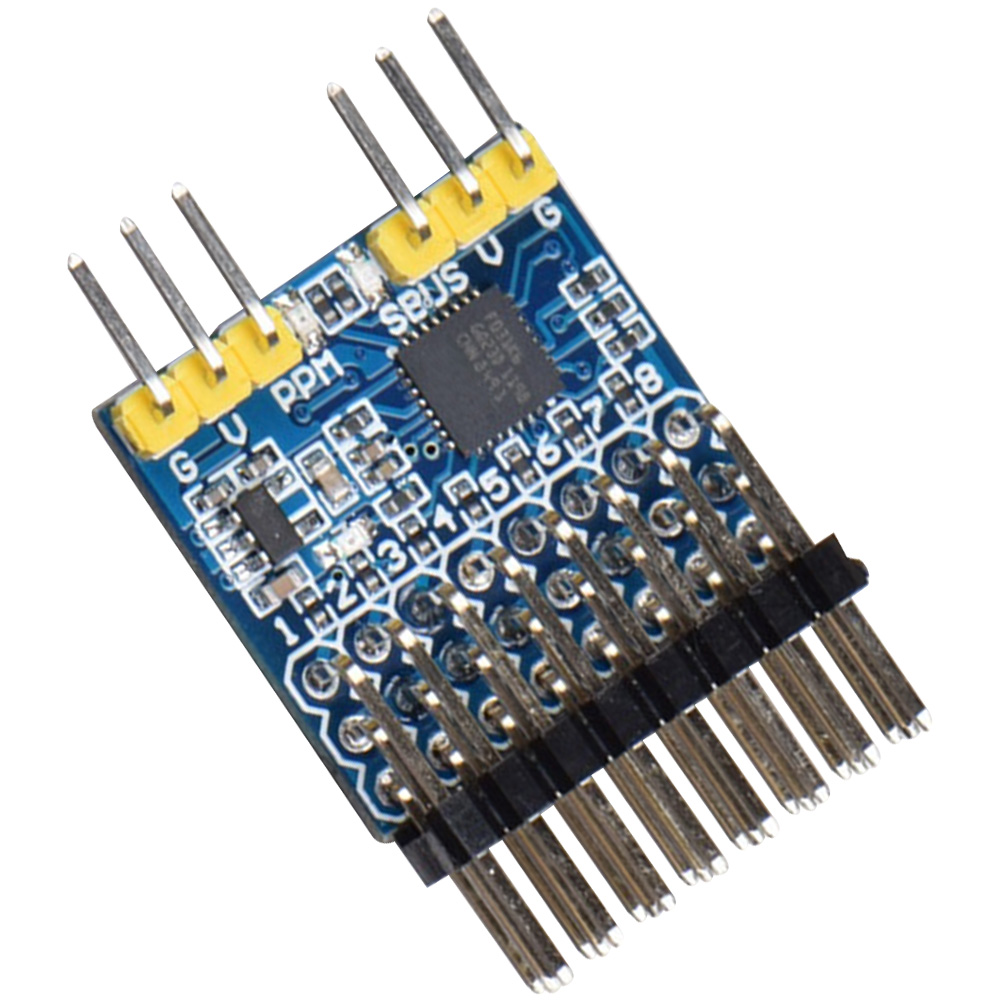

Wiring indication:
When any one or more of channels 1-8 input PWM signals, the corresponding PPM channel outputs PPM signals and the SBUS channel outputs SBUS signals.
When the PPM channel inputs PPM signal, the corresponding 1-8 channels output PWM signal and the SBUS channel outputs SBUS signal.
When SBUS channel inputs SBUS signal, corresponding 1-8 channels output PWM signal and PPM channel outputs PPM signal.
List:
Module X1
