Key Feature:

• 3.5X-90X zoom magnification power with crisp sharp images
• Super widefield high-eyepoint optics
• widefield of view
• 4" (100mm) working distance
• Sturdy all-metal pillar stand
• Powerful 56-LED ring light with dimmer

This stereo microscope has a 56-LED ring light that offers super widefield optics and 3.5X-90X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.

Feature:

• An excellent stereo inspection microscope with intensity-adjustable 56-LED ring light
• 3.5x-90x super wide zoom magnification power
• Bright cool light 56-LED illumination system
• High resolution with great flatness and contrast, giving sharp and clear images
• Binocular head with 45 degree inclined 360 degree swiveling eye tubes
• Sharp stereo erect images with a wide field of view
• Crystal clear original true color microscope images
• Dual eye tubes with adjustable diopters
• Large working distance
• Sturdy all-metal table stand
• Accurate alignment reduces eye strain for longer periods of viewing
• Full optical glass elements
• Precise ground glass lenses
• Full metal chrome-plated mechanical components
• Adjustable interpupillary distance
• Rubber eye-guards included

Specification:

• Head: 360 degree rotatable 45 degree inclined binocular
• Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
• Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
• Working Distance: 4" (100mm)
• Diopter Adjustment: +/- 5dp
• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
• Round Plate: 3-3/4" (95mm) in diameter
• Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
• Illumination: 58-LED Ring Light
• Power Input: 110-240V, 50-60HZ, Automatic Switching
• Accessories: Paired eye-caps

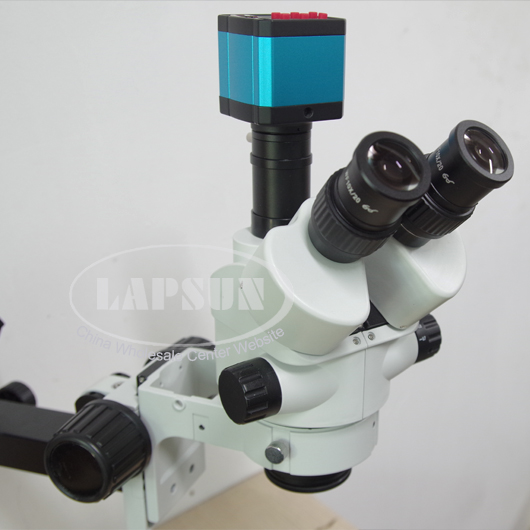

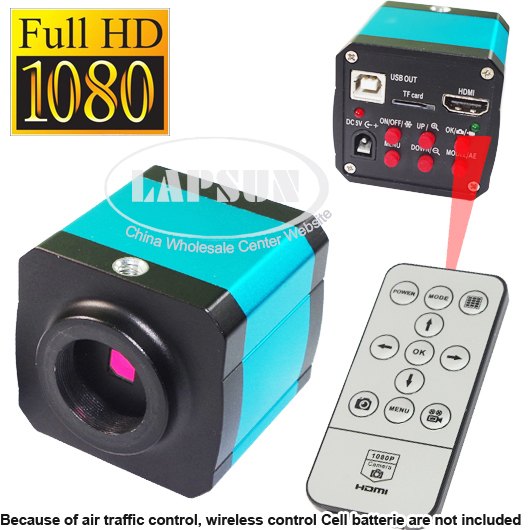

Microscope Camera:

• High Quality, High Resolution, Clear Images
• Japan CMOS
• Encode: H.264 (High Profile)
• TF Card Video Recorder
• Photo Model / Video Model
• Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
• It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative，Compare function
• Supply USB2.0, HDMI HD video, Two output ports

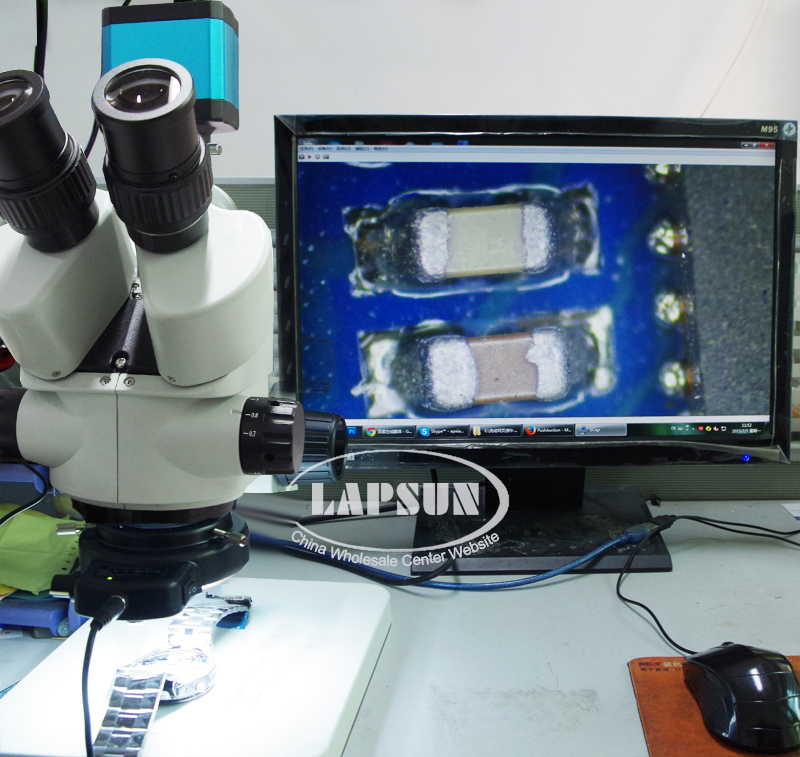

• We sell much to the industy factory, then the works can see the problems directly in the Monitor.
• Model: Camera with HDMI USB2.0 two output
• Sensor: 14.0MP,1/2.8 inch (1080P FULL HD for HDMI output, 14.0MP for TF Image resolution )
• Image format: jpg
• Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB)
• Video format: AVI
• 720P 1280*720@30FPS video recorder
• Encode: H.264 (High Profile)

• White Balance: Auto
• Light: Auto
• Color: Color
• Negative: Support
• Morror: Left/right,Up/Down
• Freeze: Support
• OSD: English/Chinese
• Line: different color,4 horizontal line , 4 vertical line,any positions

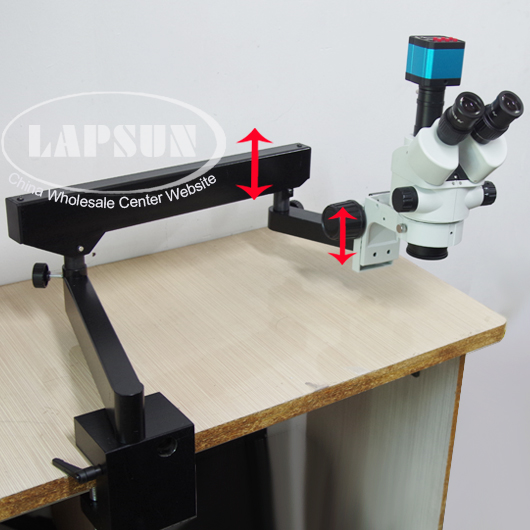

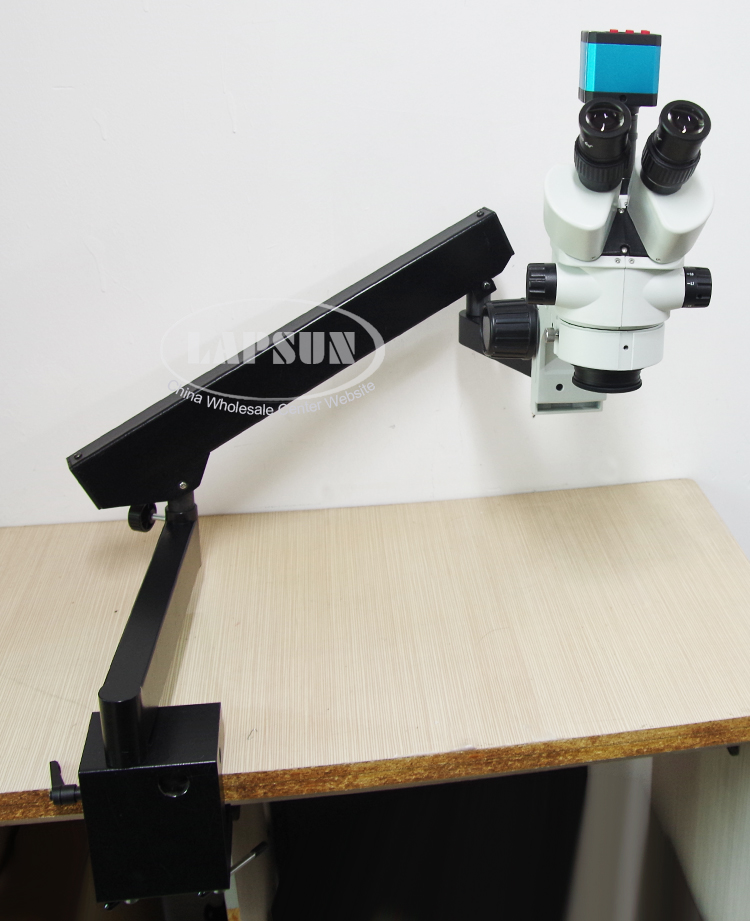

Three Arm System Stand:

• This stand has a Three Arms system with a counterweight on the opposite end of arm to counter the weight of your microscope head. This gives more stability compared with a common type of boom stand.
• The multi-axis rotation feature allows this boom stand to locate your microscope head to most any position or angle. This can be a greatly needed tool when you have a hard-to-see location such as inspecting and searching for cracks on the solder of a circuit board.
• We provide the boom stand only. This is not a complete system. A microscope head with optics is needed. You provide the head. We have several types of adapters to fit a variety of microscope heads. Contact us for details about your specific requirements so we can assist with a smooth fit.
• Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
• Steel Gears on Focusing Holder.
• Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm

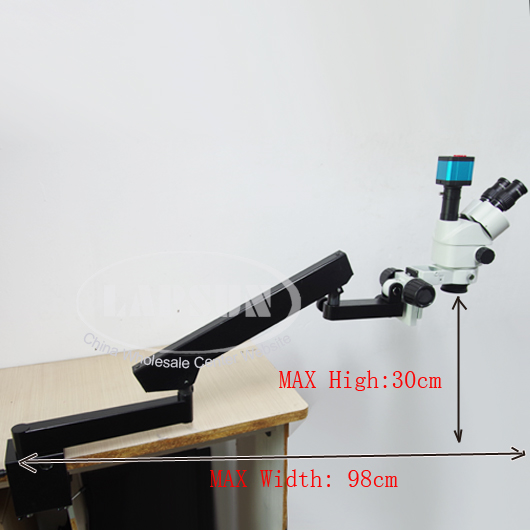

• Item size: see the 1th picture
• Weight: 8.5Kg

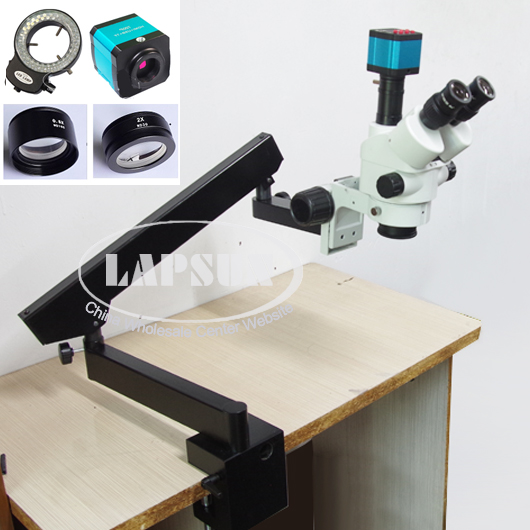

Package Content:

• 1 x Binocular Stereo Zoom Head
• 1 x Pair of Super Widefield 10X Eyepieces
• 1 x 14MP HDMI camera with adaptor
• 1 x Binocular Zoom Microscope Head
• 1 x 56-LED Ring Light with Adapter (12V)
• 1 x Articulating Arm with a Clamp
• 1 x Focusing Rack
• 1 x C-mount Adapter
• 1 x Pair of Eye-Guards
• 1 x Pair of Clips
• 1 x Dust Cover
• 1 x SZM2.0X WD 30mm Auxiliary objective
• 1 x SZM0.5X WD 177mm Auxiliary objective
