Product features

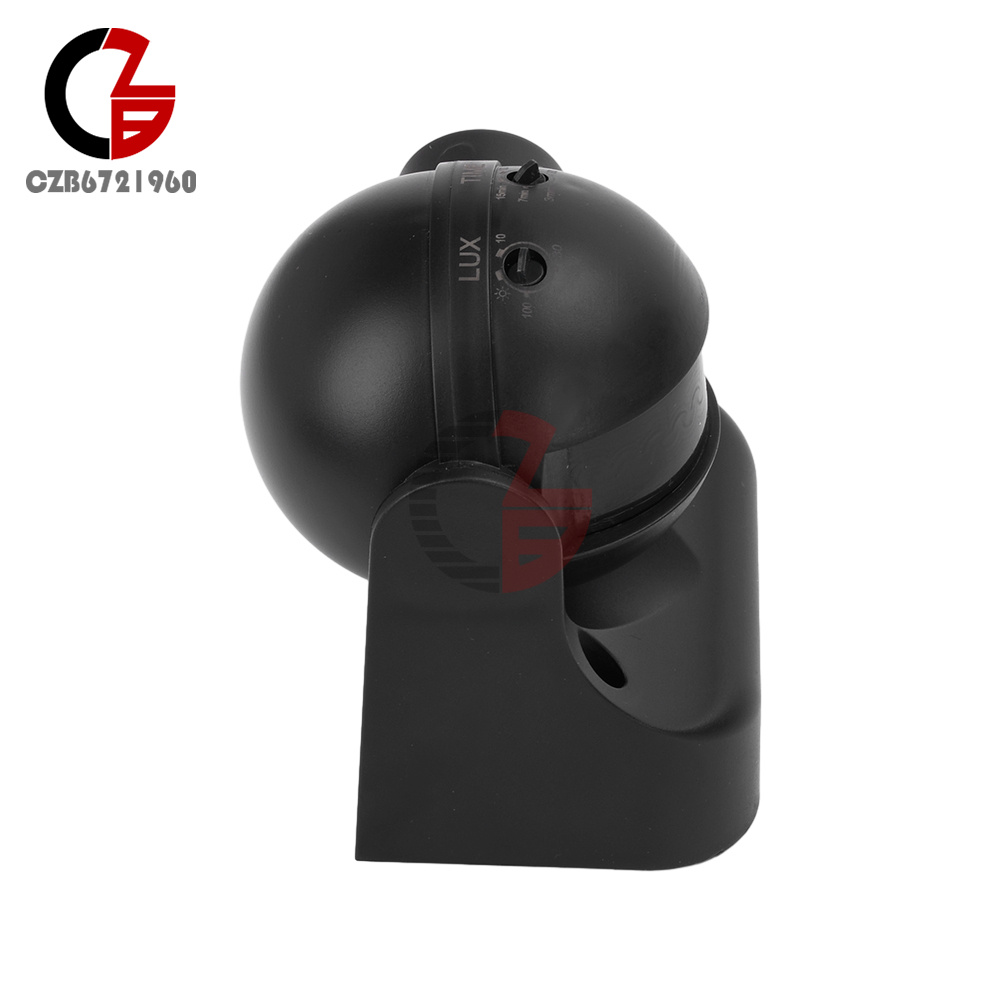

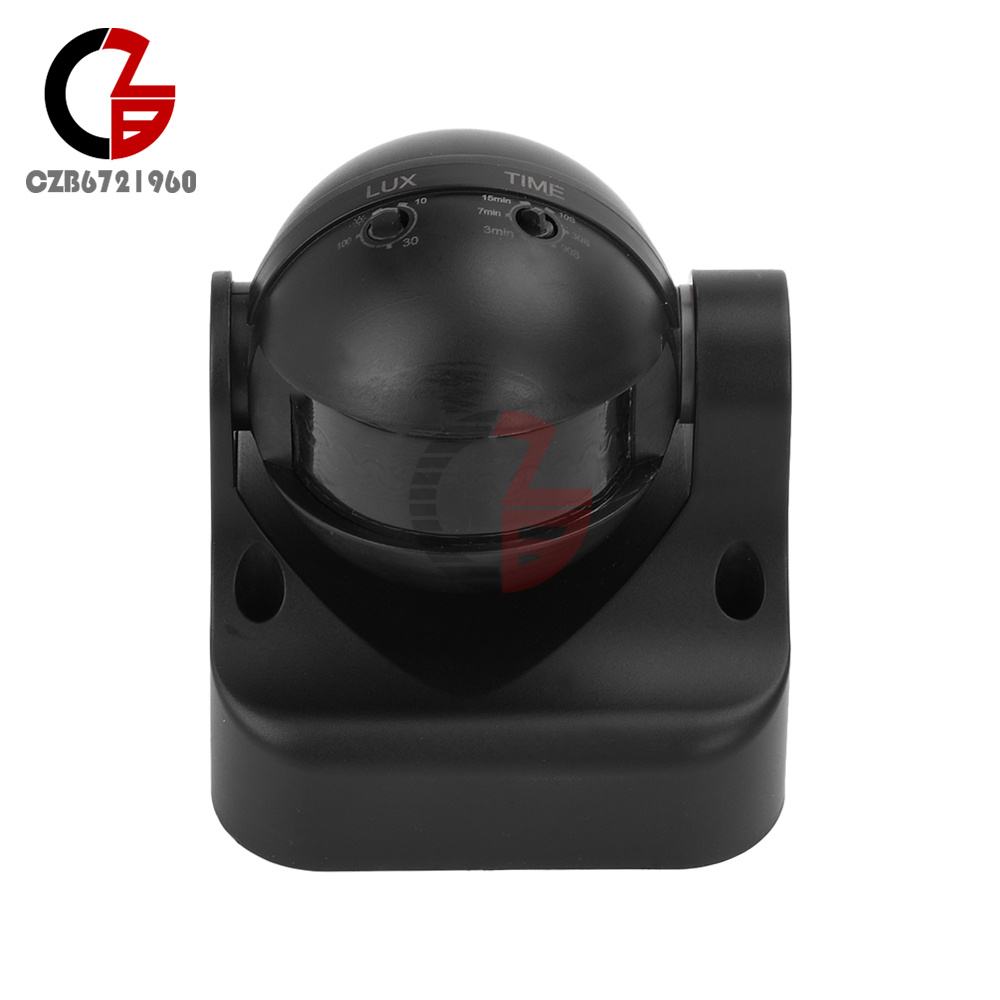

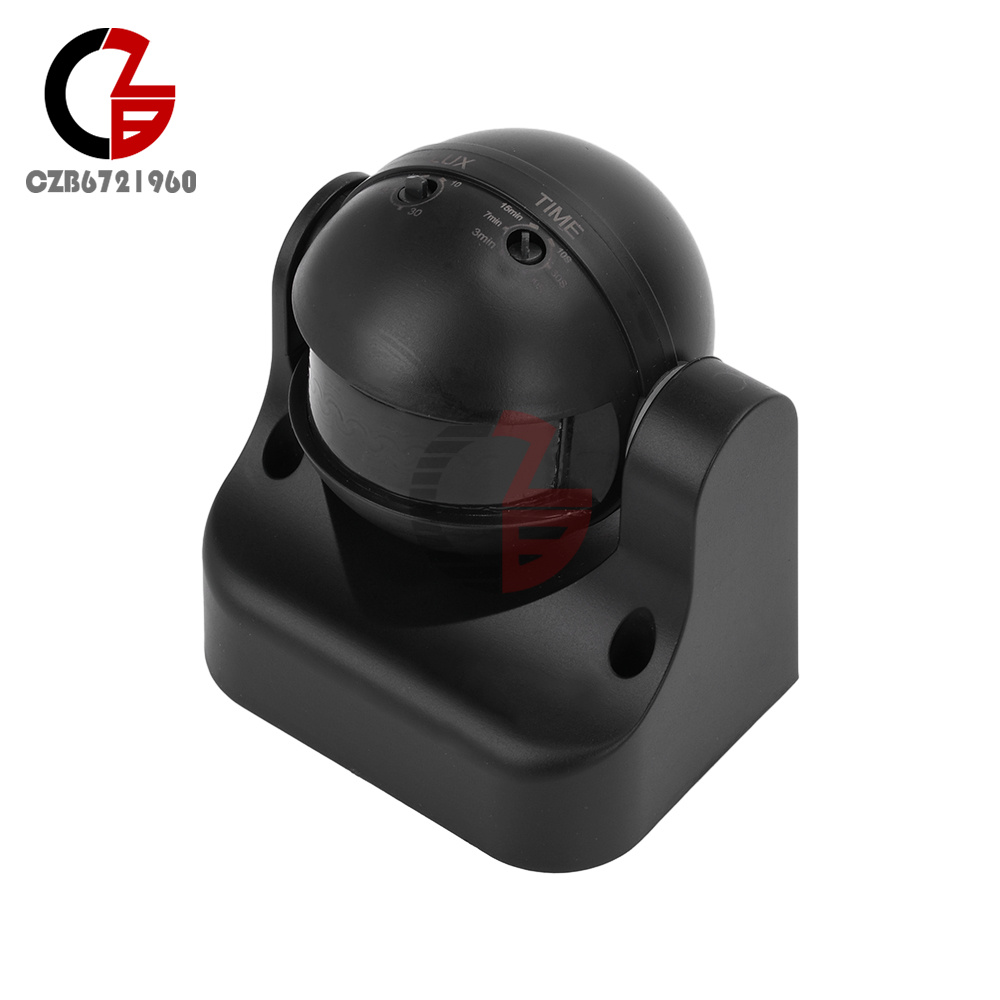

1. Spherical design, 180 degree adjustable sensing angle.
2. Adopting fireproof and flame retardant material, effectively preventing fire hazards, no deformation, not easy to oxidise.

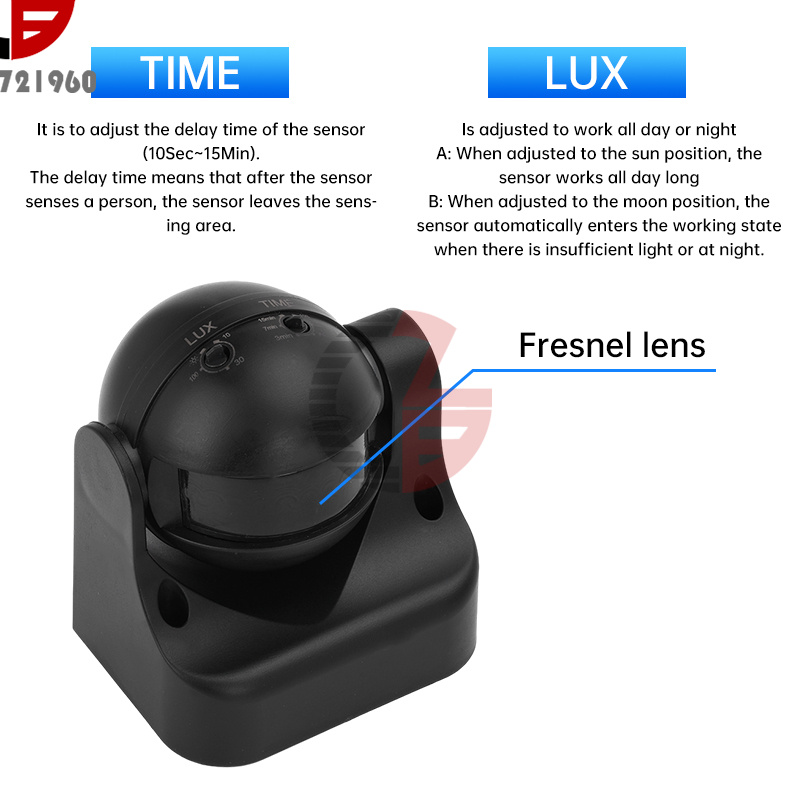

3. Delay time can be adjusted, after the human body leaves the induction area, the sensor closure time can be adjusted.
4. Suitable for various lamps: wall lamps, spotlights, ceiling lamps, energy-saving lamps, etc.
5. Wide range of use: can be used in stairs, aisles, washrooms, etc.
Product parameters
Power supply: AC110-240V

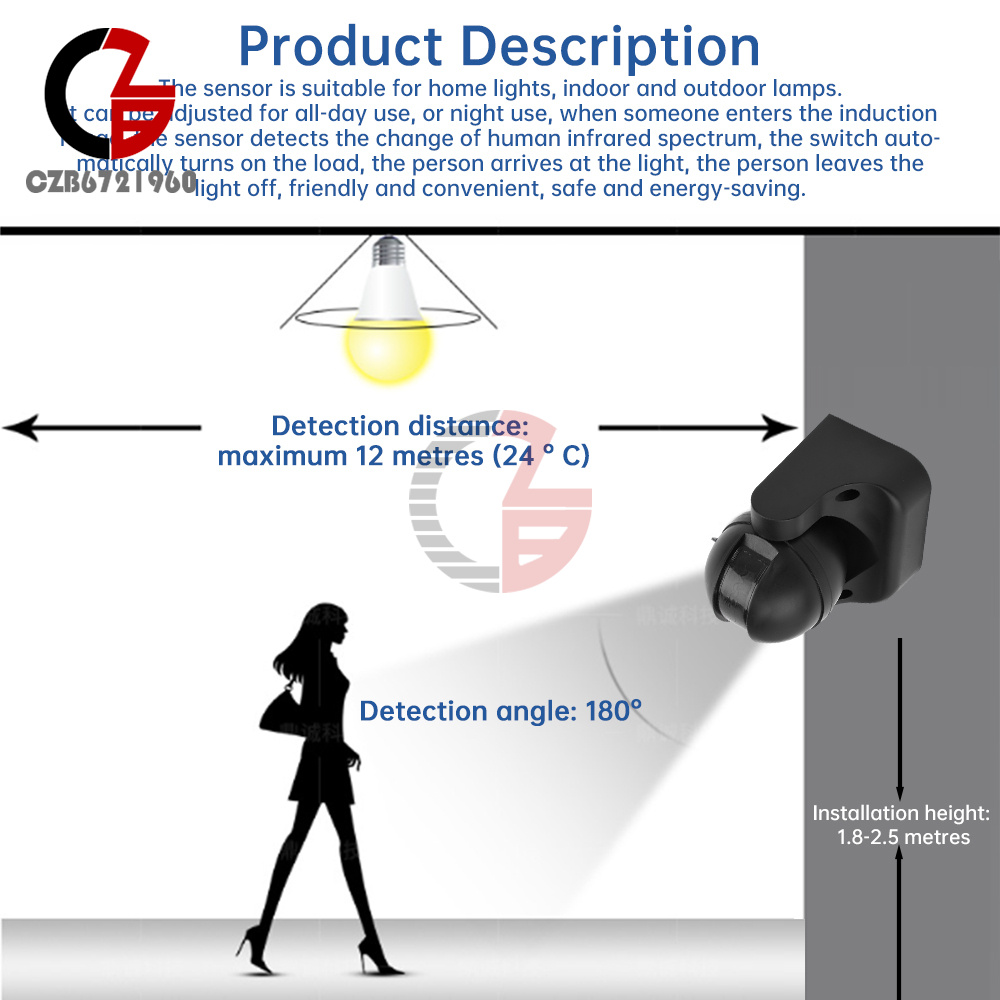

Detecting angle: 180
Detection distance: 12m
Power frequency: 50Hz
Ambient light source: 3-2000LUX (adjustable)
Power consumption: 0.45W (static 0.1W)
Operating Temperature: -20~+ 40°C
Operating humidity: <93%RH
Installation height: 1.8m-2.5m
Rated load: 1200W tungsten lamp / 300W energy saving lamp, LED lamps

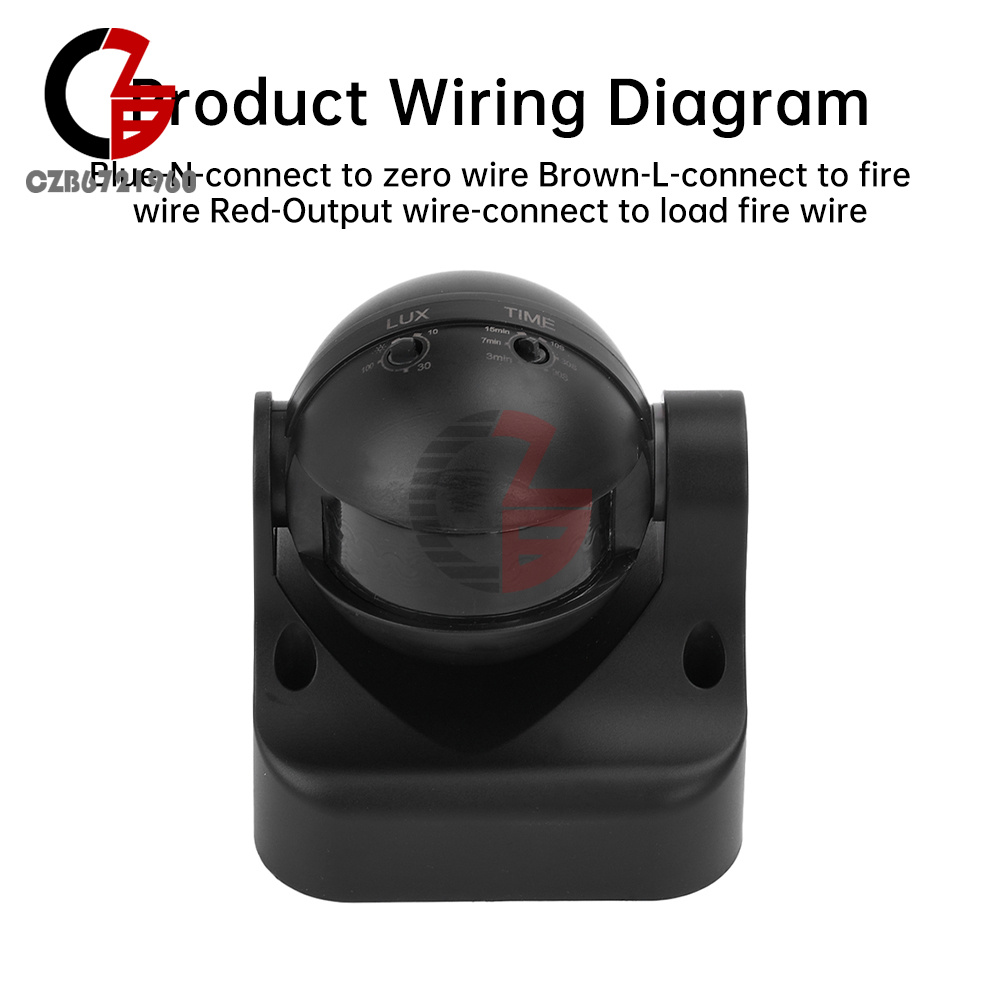

Wiring Instructions: N-Blue (connect to zero wire) L-Brown (connect to fire wire) Red- (sensor output wire) Blue+Brown (input power) Blue+Red (connect to load-lamp)
Shipping List
Motion Sensor*1
