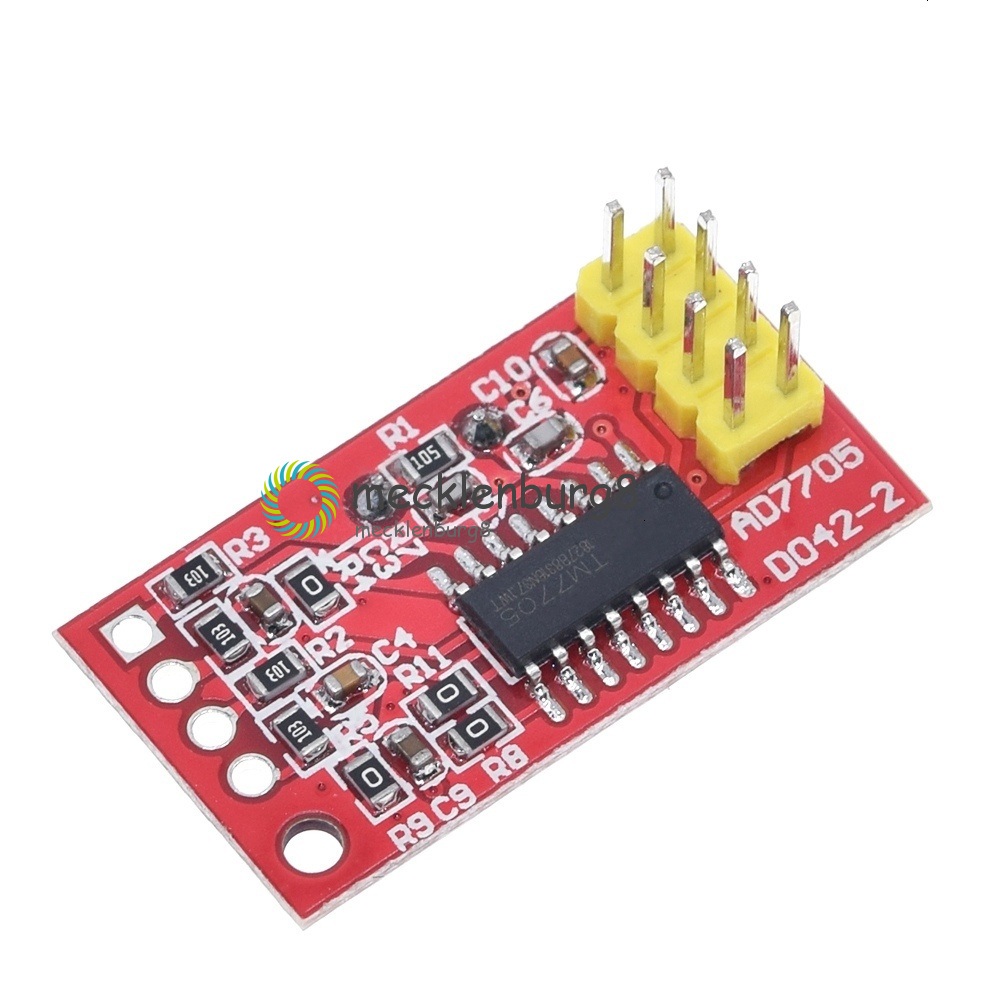

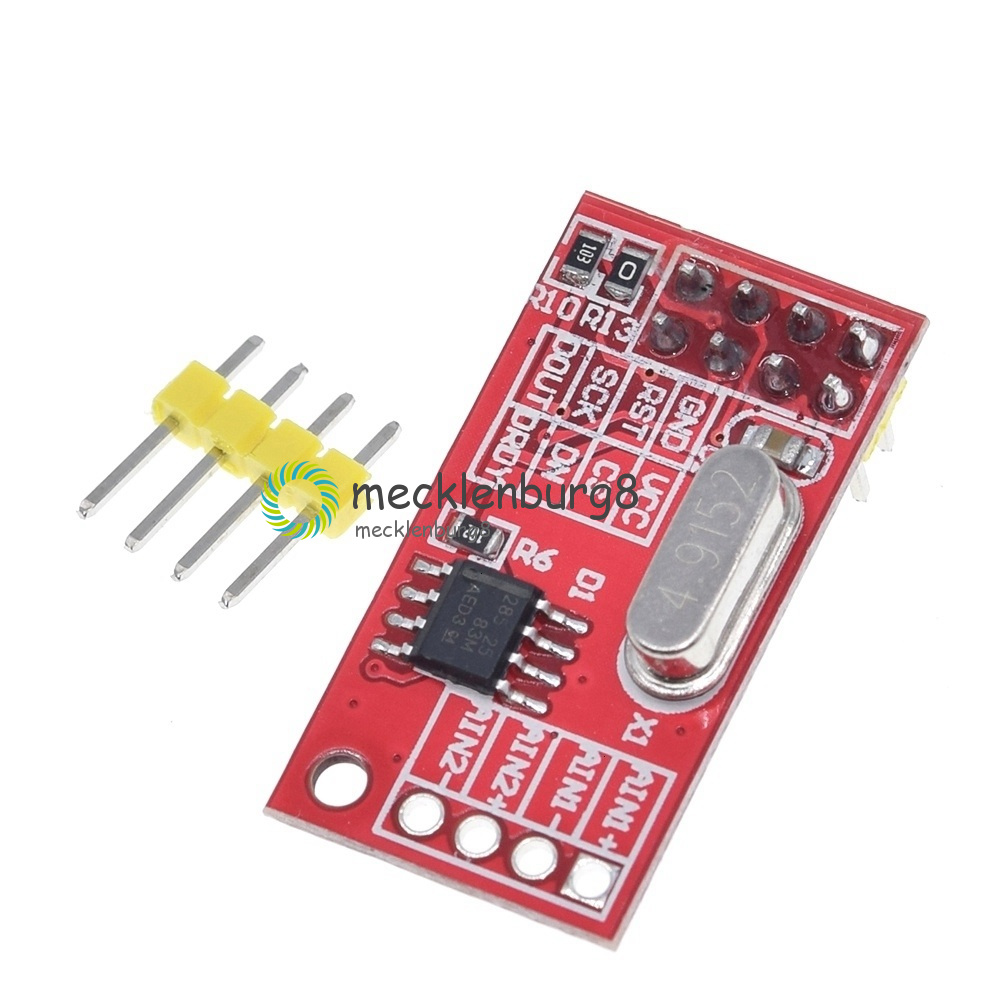

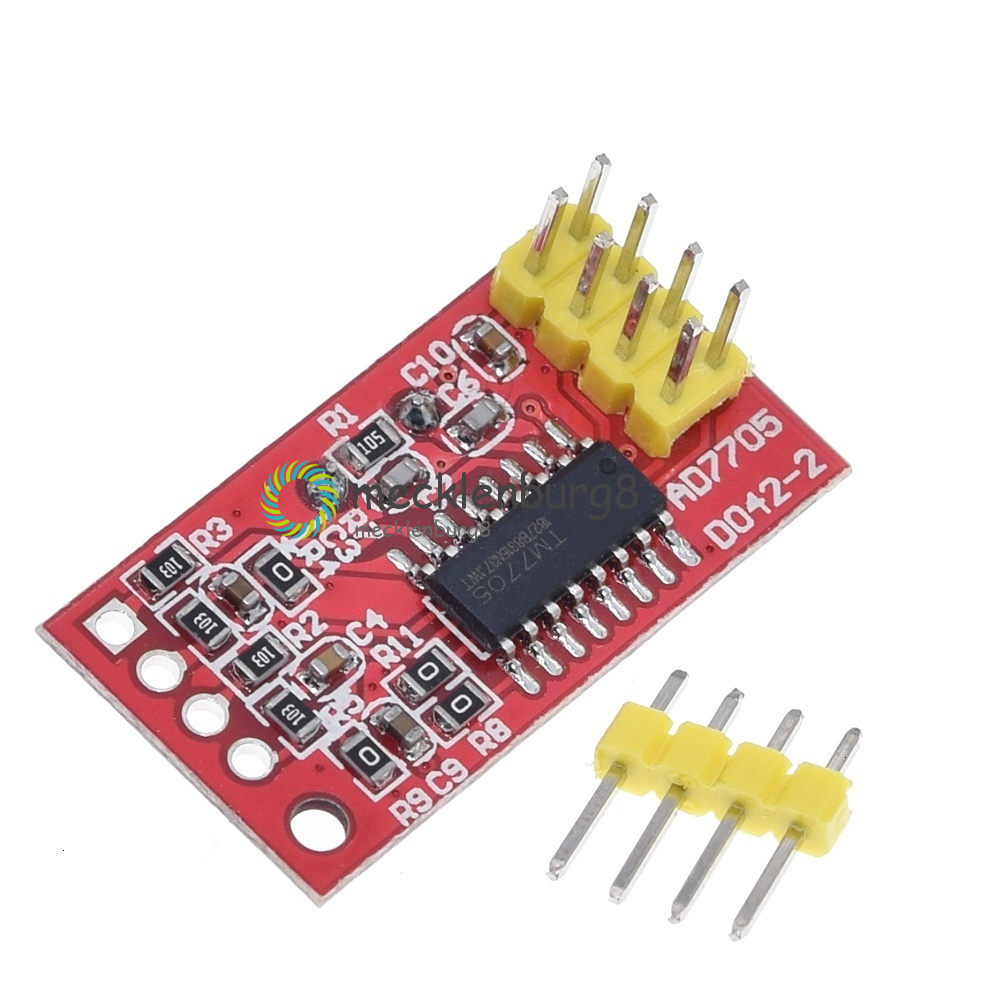

1. AD7705 Dual 16-bit ADC data acquisition module
2. Model: AD7705
3. Data collection is very stable, the real effective 16 words.
Features:
1. 3.3V or 5.0V DC power supply
2. MCU interface: SPI
3. the main ADC chip: AD7705
4, an external reference voltage LM285-2.5 (imported genuine original)
5. the input circuit with a resistor divider and the RC filter,
enabling customers to change their own gain range
6. the chip with programmable gain amplifier, the gain range: 1-128 times
7. the chip with internal input buffer amplifier can be
Package Included:
1 x New Dual 16-bit ADC Data Acquisition Module SPI Compatible Precise AD7705 Board
