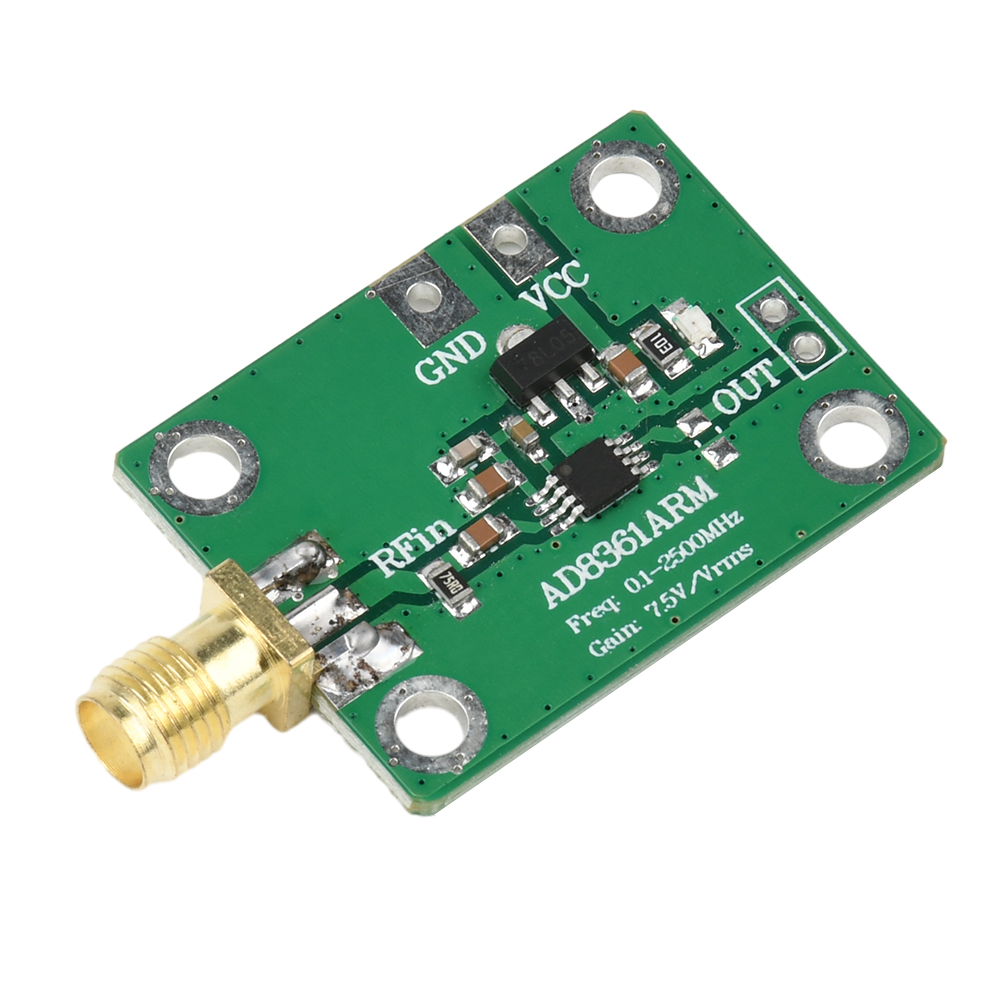

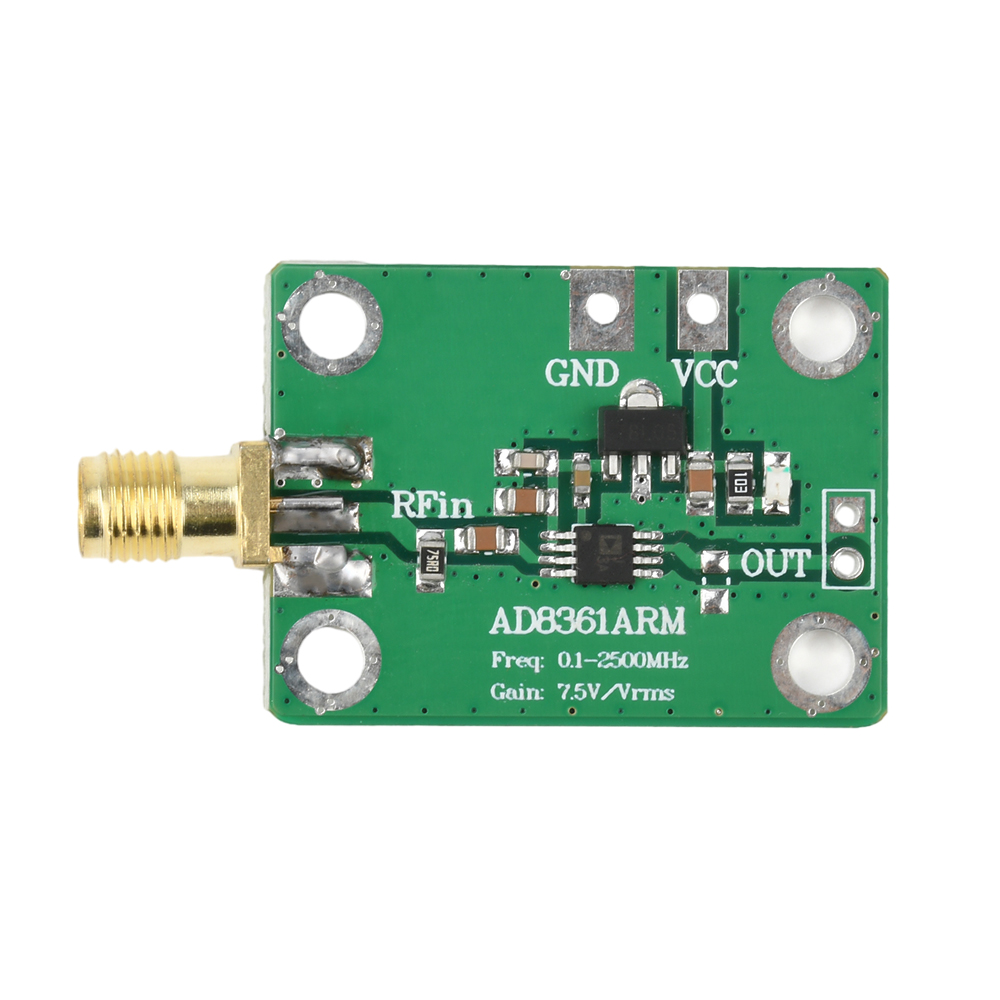

Features
1. Suitable for high frequency receiver and transmitter signal chains up to 2.5 GHz
2. An external filter capacitor can be added to improve the averaging time constant
3. Output is a linearly responsive DC voltage with a conversion gain of 7.5V/V rms.
4. Requires only a single 2.7-5.5 V power supply, power supply decoupling capacitor and input coupling capacitor to operate
5. For simple and complex waveforms of true power measurement, especially suitable for measuring high crest factor (high peak-root-mean-square ratio) signals
6. With three operating modes: reference voltage source ground mode, internal reference voltage source mode, provide a reference voltage source mode
Specification
Frequency range: 0.1-2.5 GHz
Maximum input: 700 mV rms, 10 dBm (50 Ω resistor)
±0.25 dB linear response (to 2.5 GHz)
Single power supply: DC 2.7-5.5 V
Low power consumption: 3.3 mW (3 V)
Fast shutdown mode: below 1 μA

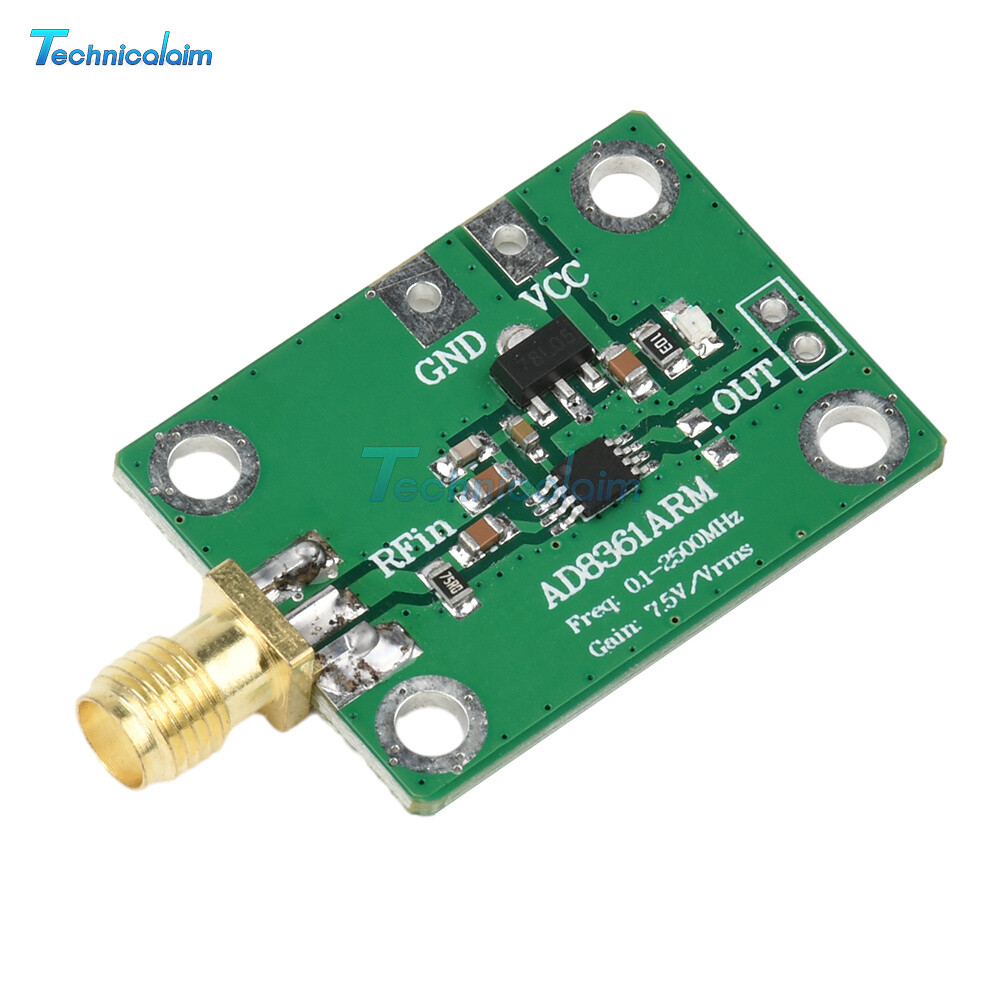

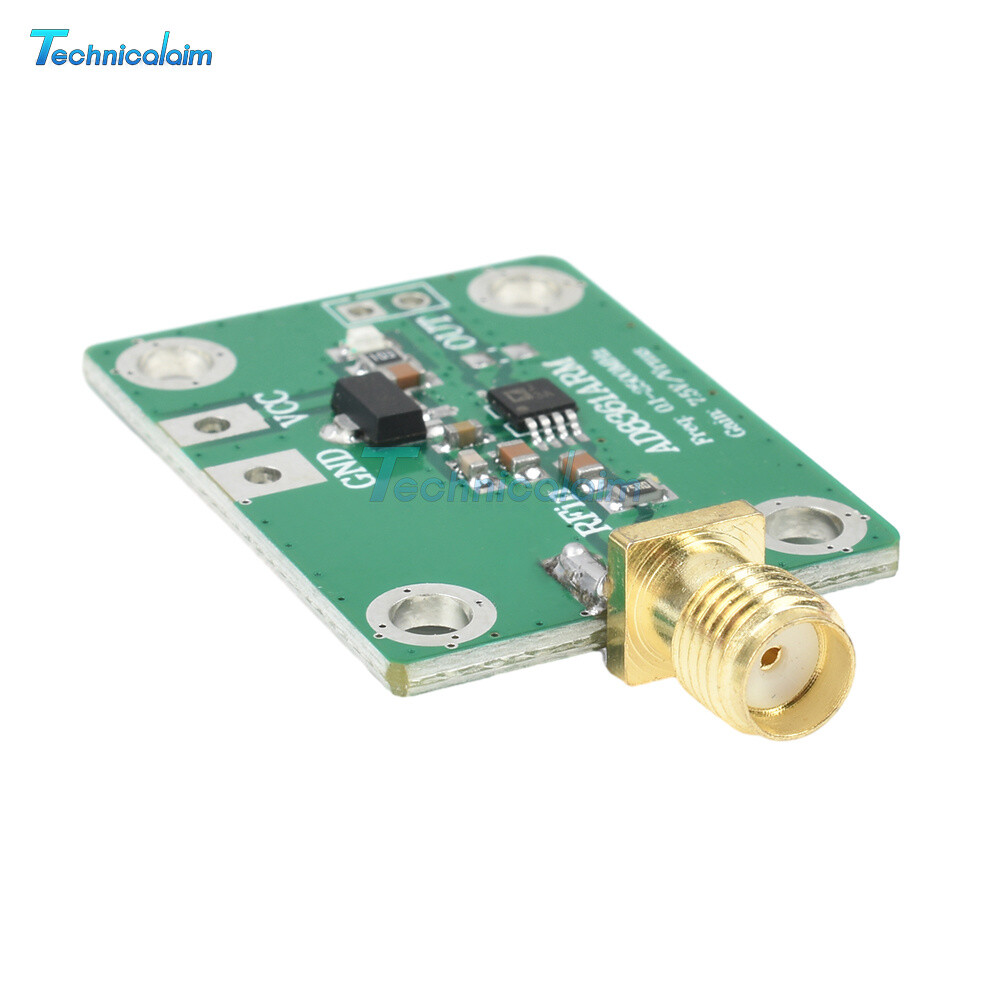

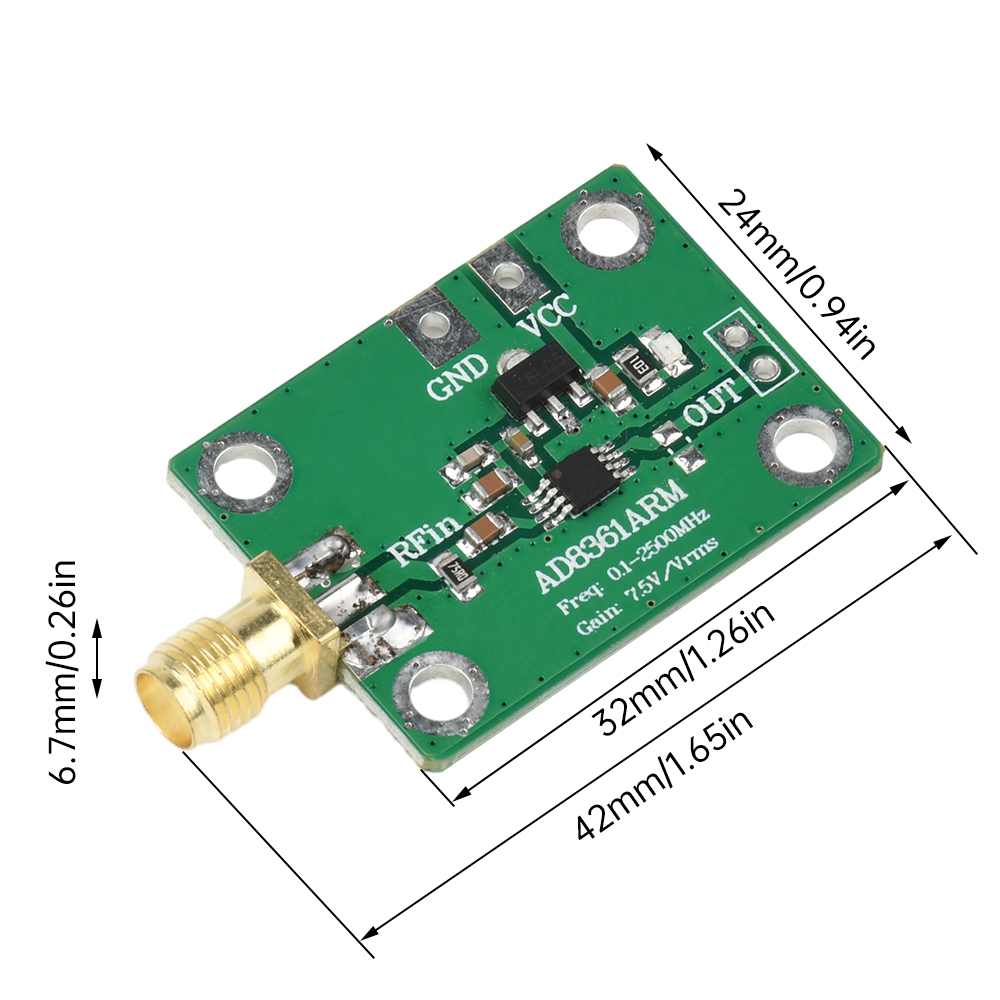

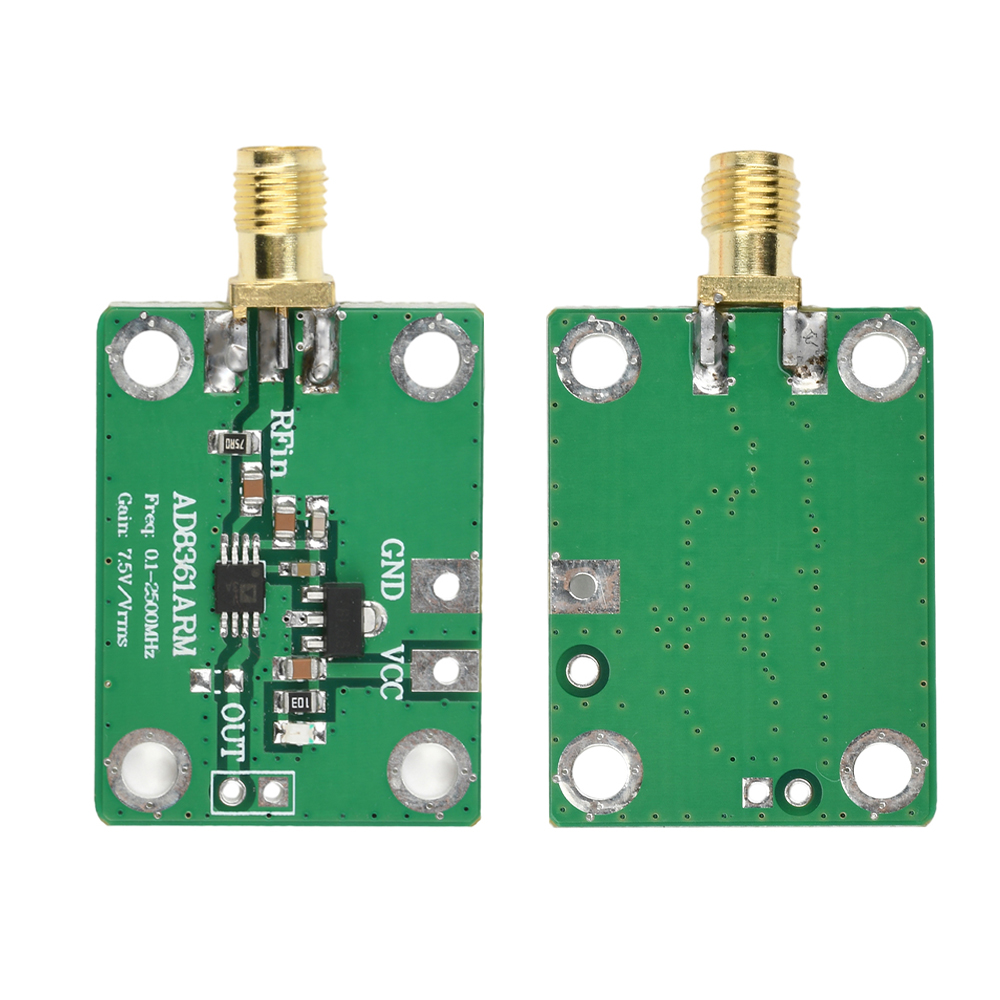

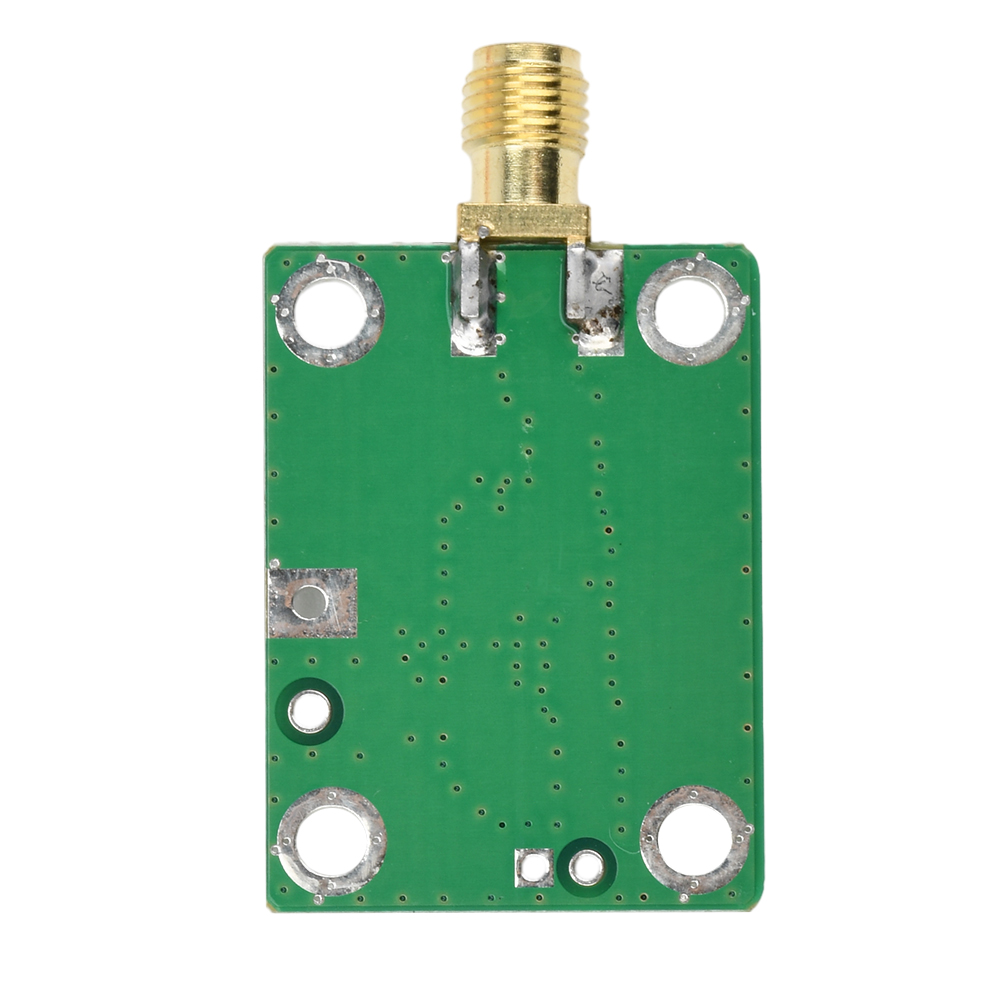

Product size: 42*24*6.7mm

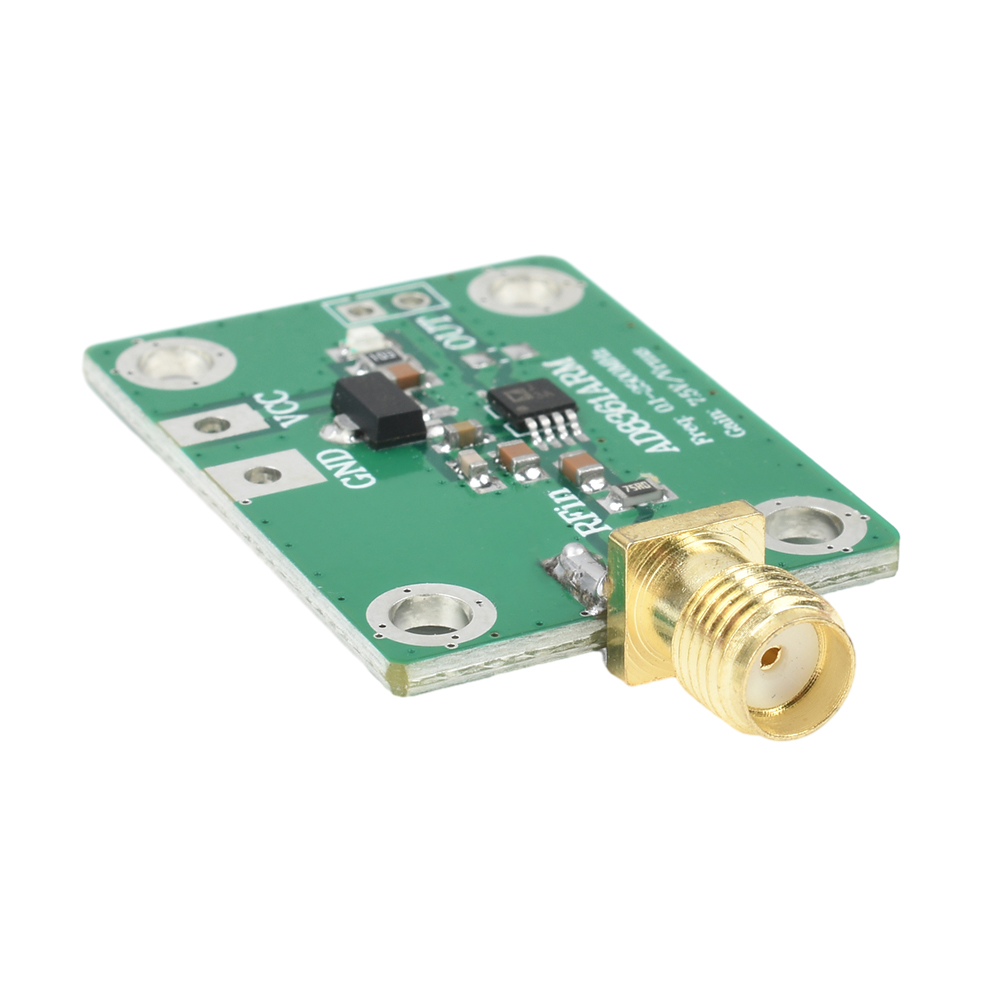

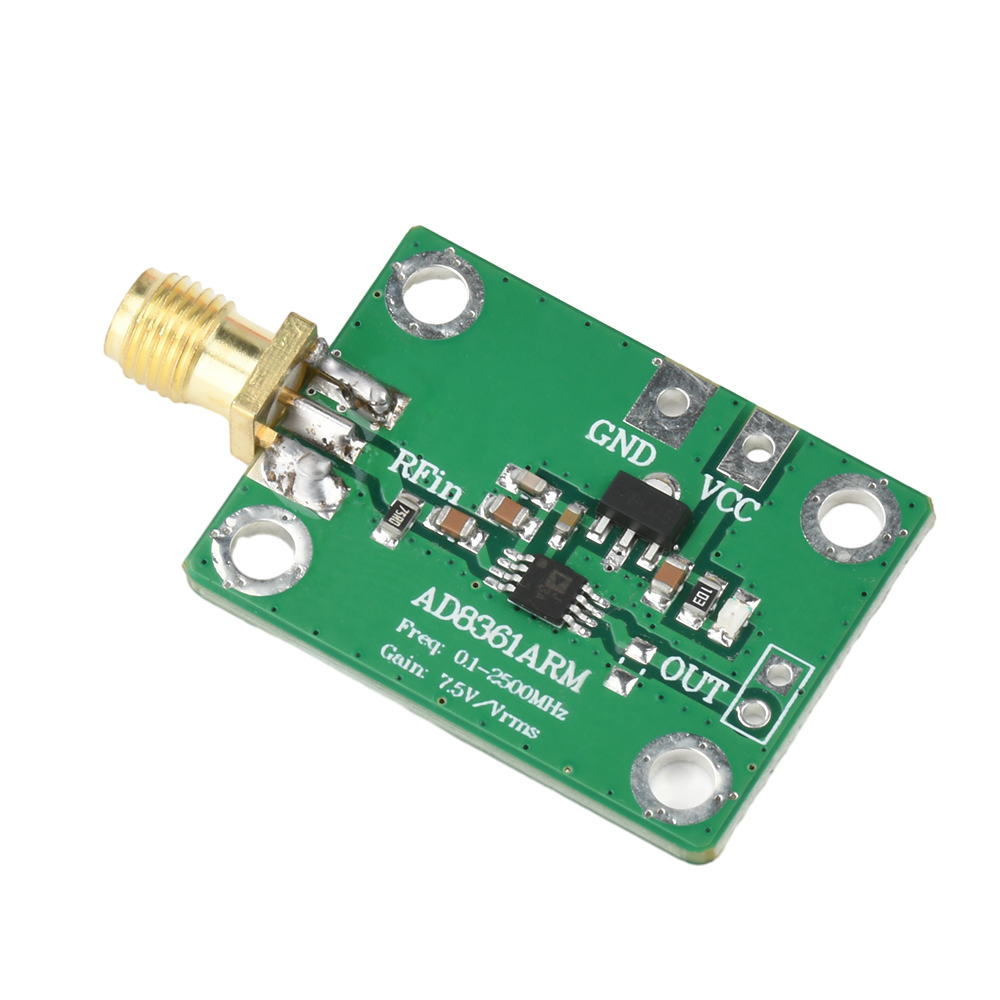

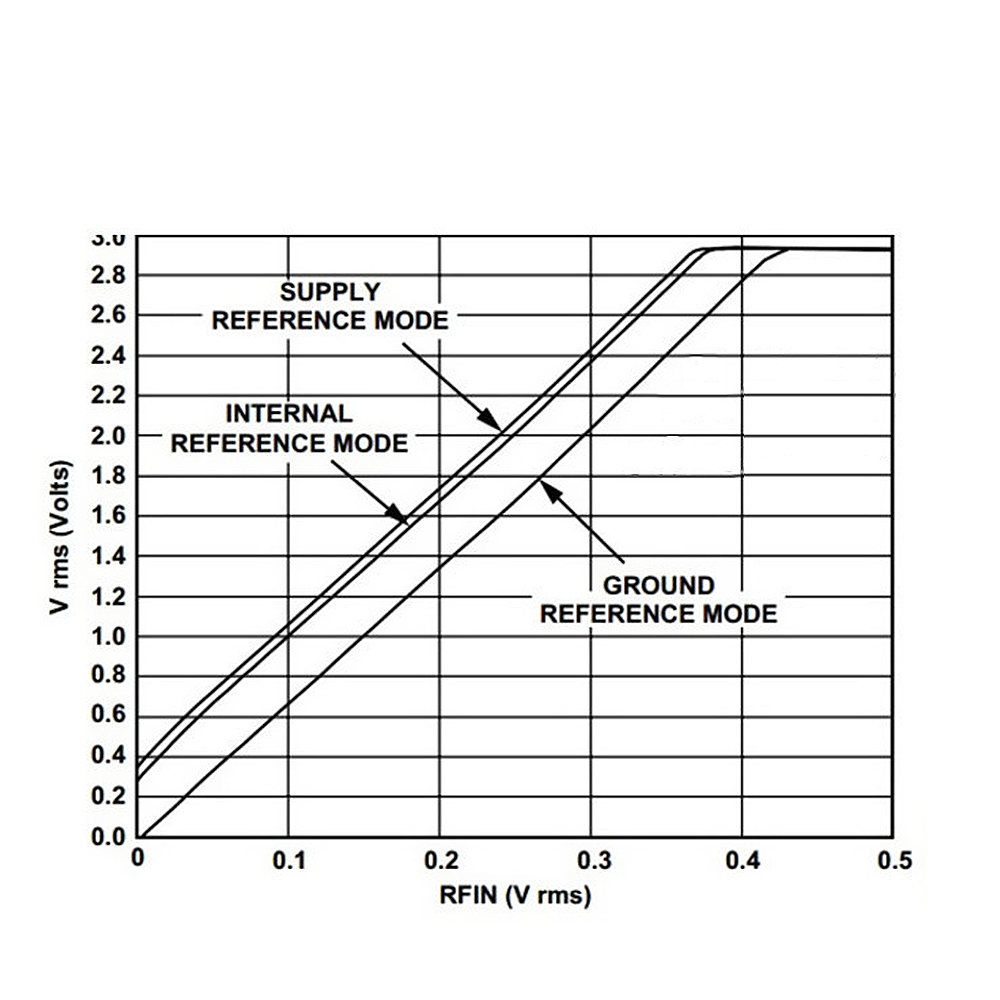

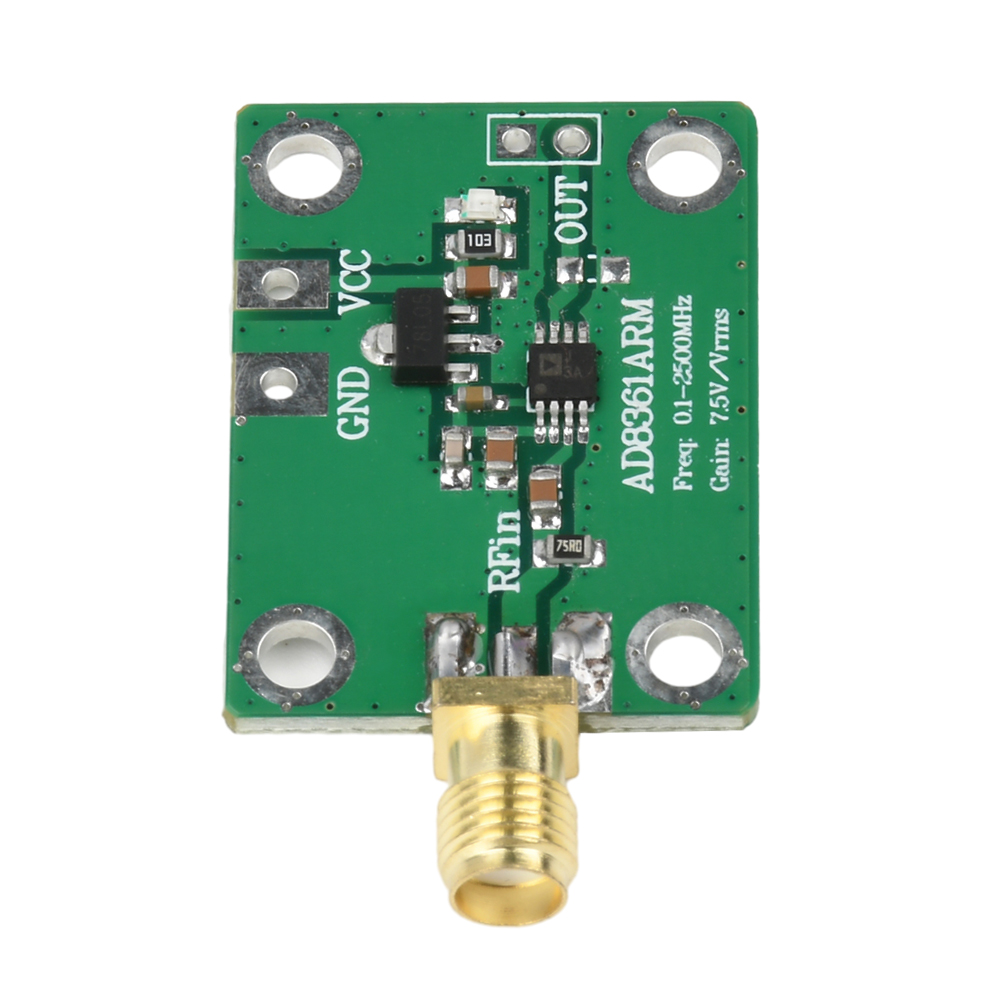

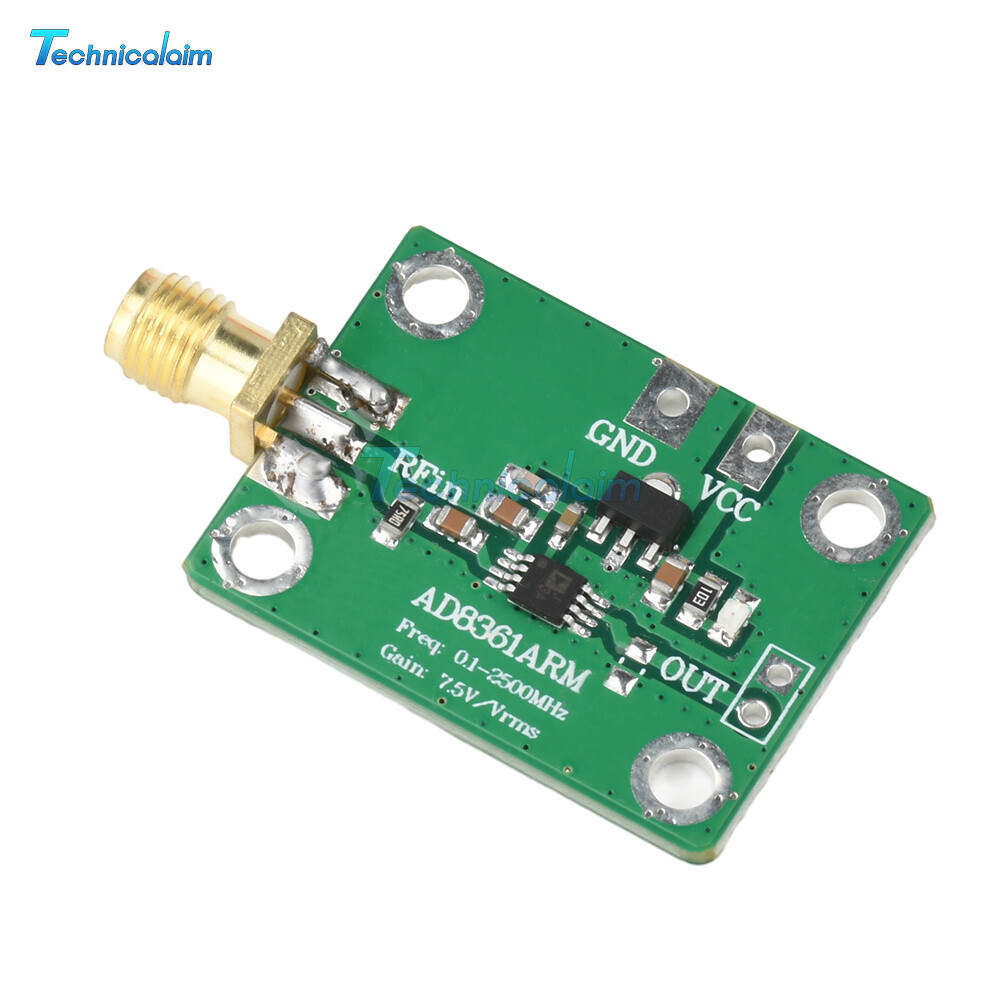

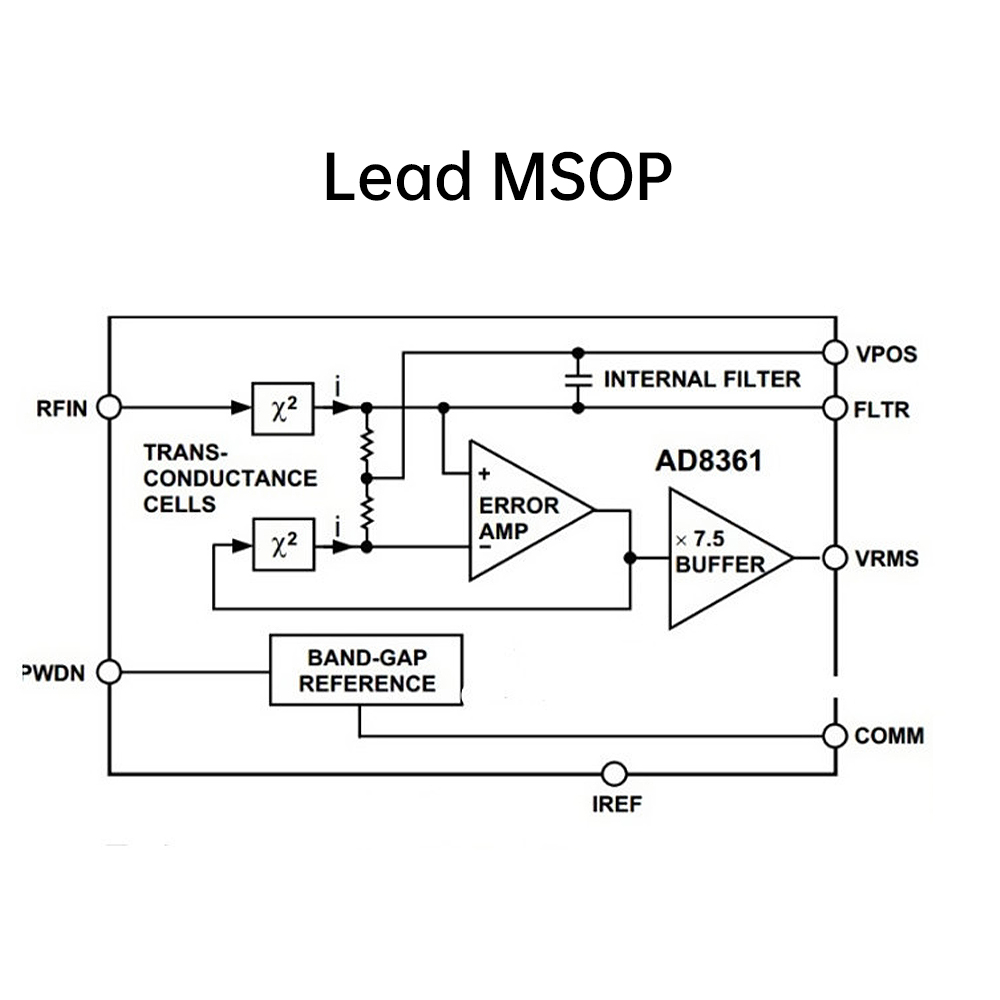

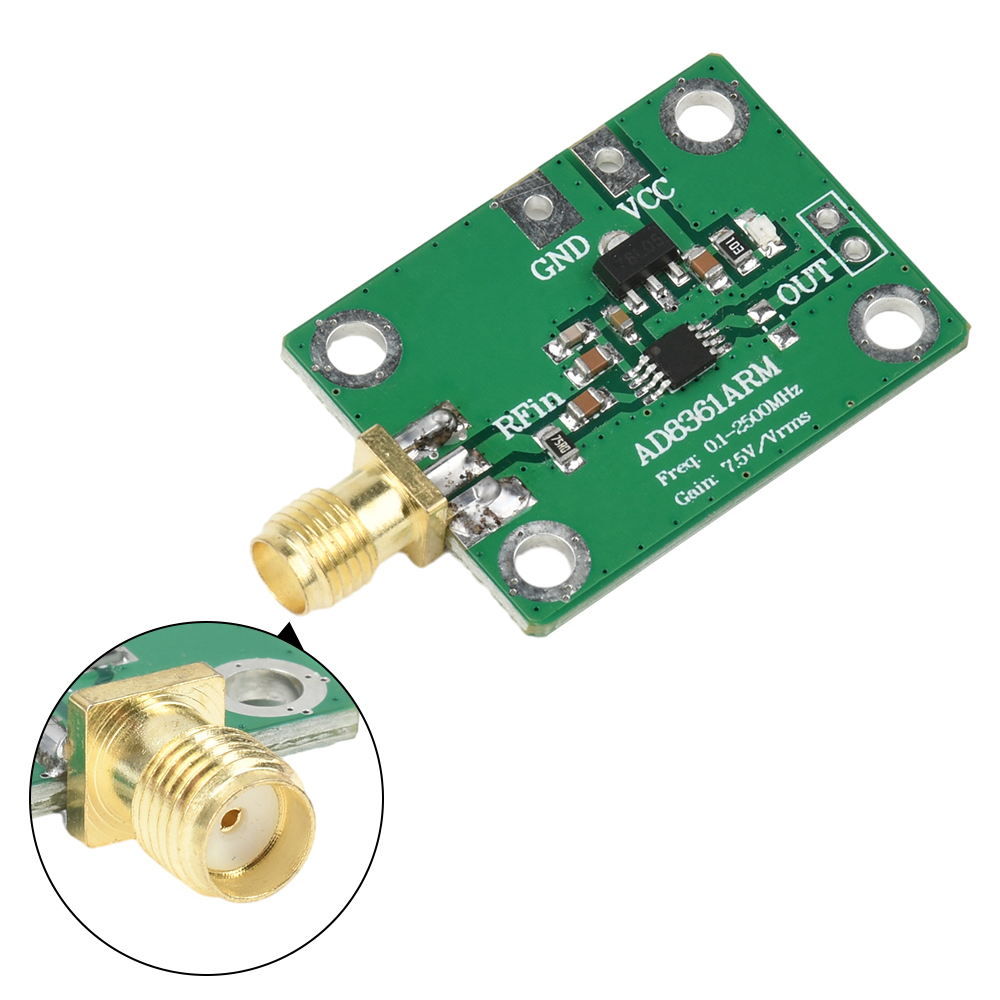

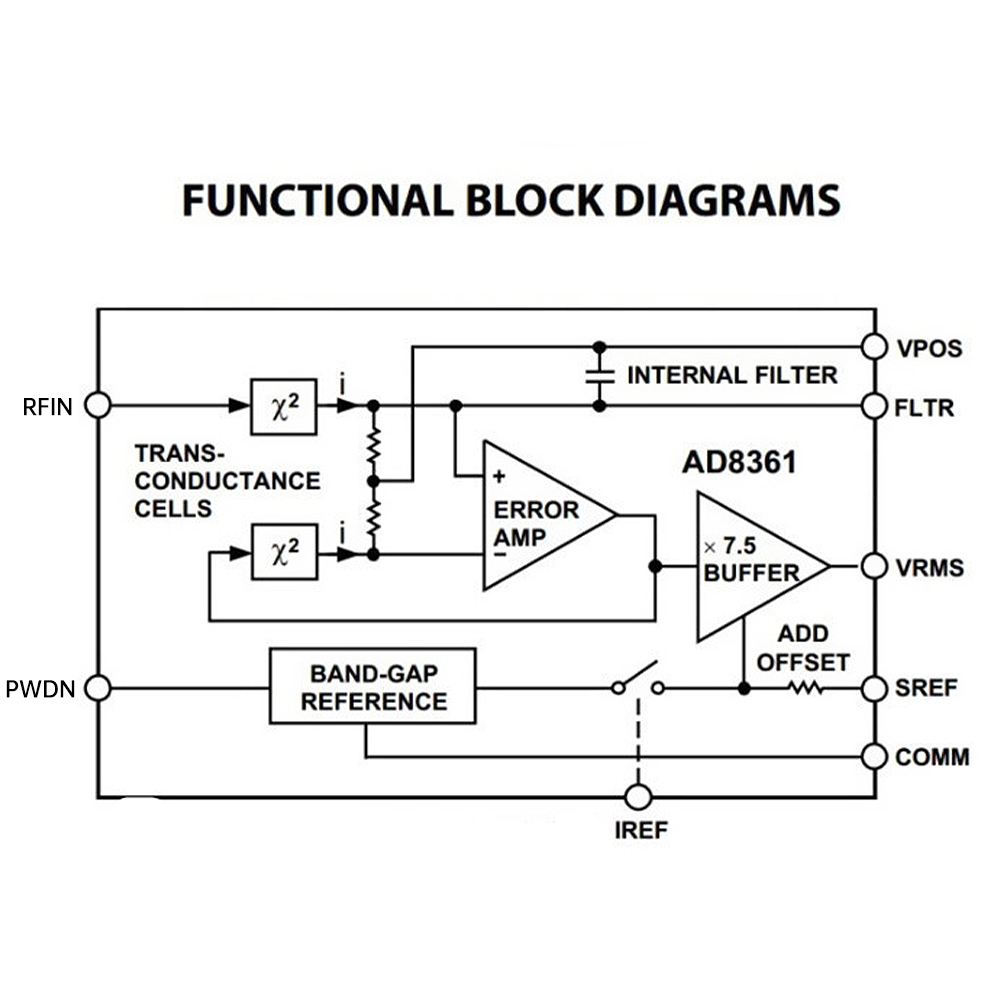

The AD8361 features three modes of operation to support a wide range of analog-to-digital converter requirements:
1. Reference voltage source ground mode with zero source.
2, Internal reference voltage source mode, which biases the output to 350 mV above ground level.
3, Supplied reference voltage source mode, which can bias the output to VS/7.5.
Package includes
1 x Module
