DESCRIPTION
ADAPTEC SCSI RAID 64 Bit PCI Ultra320 Adaptec 2120s Single Channel PCI-X 64 Mb Cache

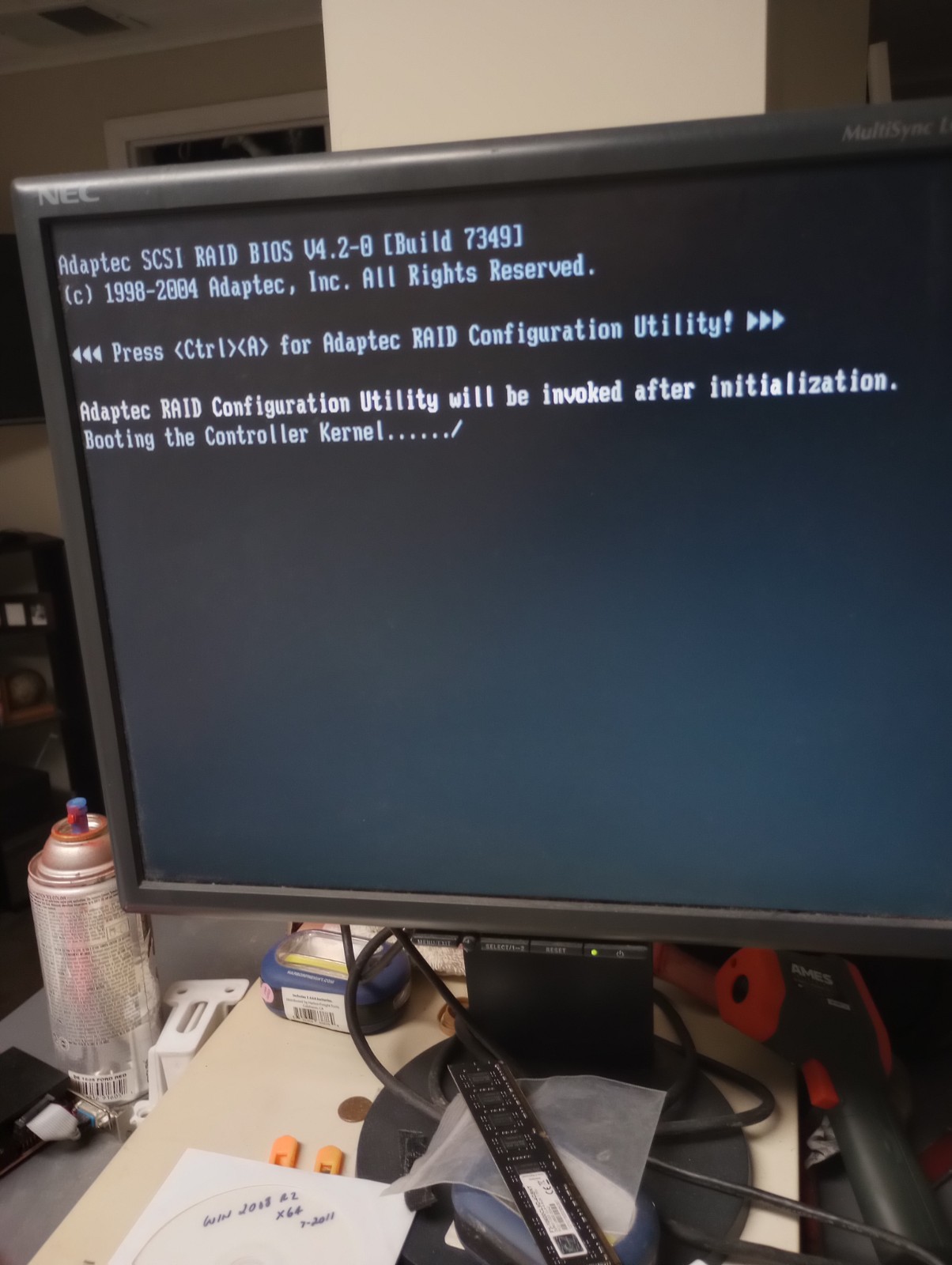

Tested and Guarantee to be in working order upon delivery
Includes a four port Ultra 320 cable (68 pins) with Termination

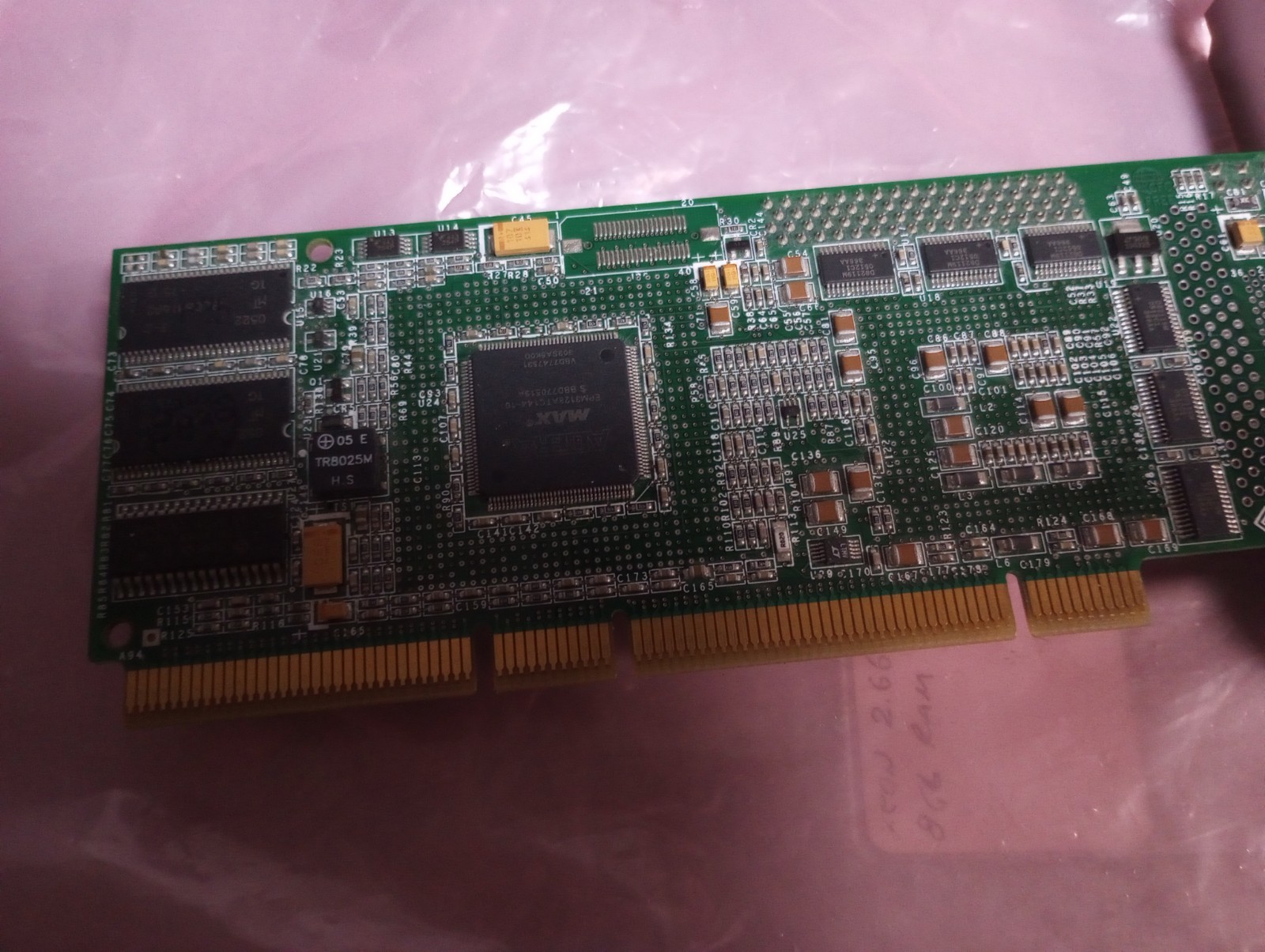

The Adaptec 2120S is a single-channel, 64-bit/66MHz PCI (2.2 compliant) Ultra320 SCSI RAID controller designed for high-density servers and workstations. It features 64MB of onboard cache, supports RAID levels 0, 1, 10, 5, 50, and JBOD, and includes one internal 68-pin HD connector and one external VHDCI connector.
Key Specifications for Adaptec 2120S (2215100-R/2001700):
- Bus Type: 64-bit/66MHz PCI 2.2 (compatible with 3.3V or 5V slots).
- Interface Type: Ultra320 SCSI LVD.
- Data Transfer Rate: Up to 320 MB/s per channel.
- Channels: 1 Channel (Single-Channel).
- Connectors: 1 x Internal 68-pin HD68, 1 x External 68-pin VHDCI.
- RAID Support: 0, 1, 10, 5, 50, JBOD.
- Cache: 64MB onboard (optionally upgradable with ABM-300 battery backup for 72-hour protection).
- Form Factor: Low Profile MD2 (includes full-height bracket in kits).
- Device Support: Up to 15 SCSI devices.
- OS Support: Windows XP/NT/2000/2003, Linux, NetWare, Caldera.
- Management: Adaptec Storage Manager - Browser Edition.
The card is ideal for applications needing high bandwidth, such as video editing, and supports advanced features like Online Capacity Expansion and RAID Level Migration.
