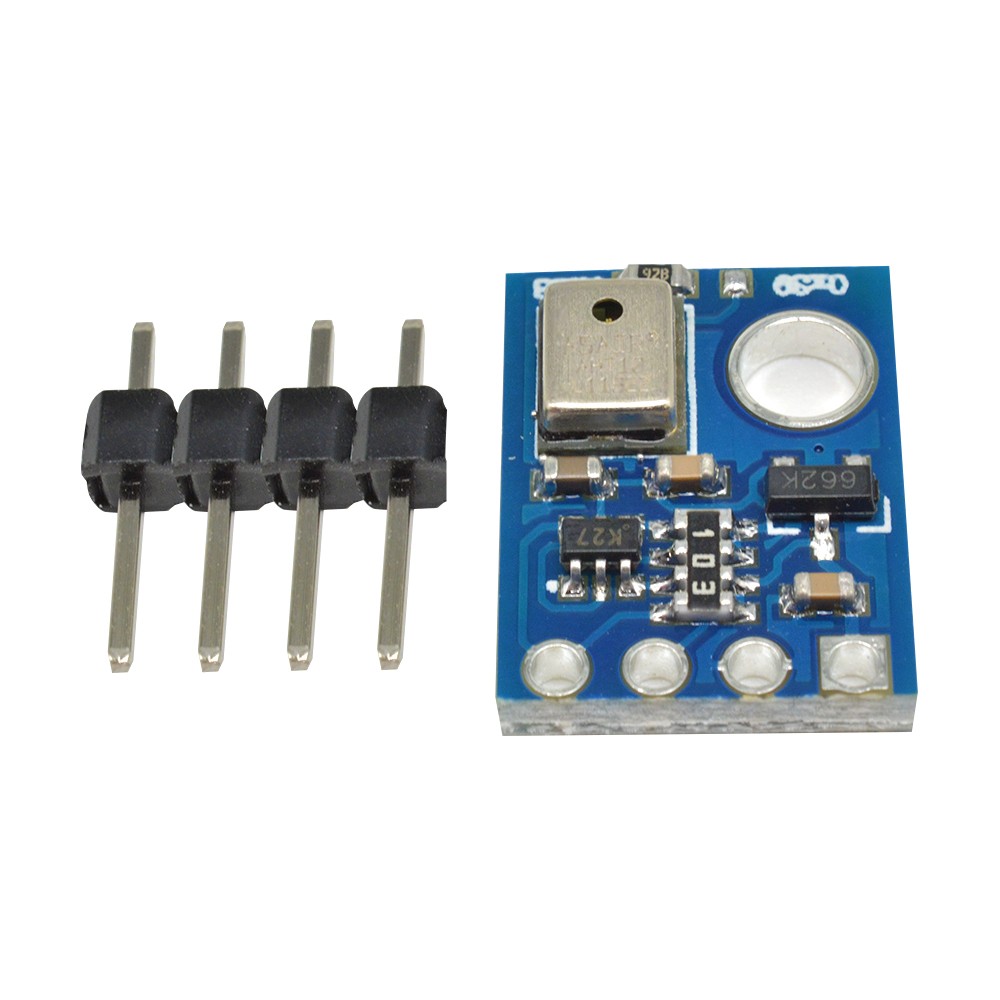

Product Description:
AHT10 is a new generation of temperature and humidity sensor, it sets a new standard in terms of size and intelligence: it is embedded in the double
Row flat lead-free SMD package, used for reflow soldering of 4x5mm bottom and 1.6mm height. The sensor is based on the standard I2C
The format outputs the calibrated digital signal. AHT10 is equipped with a newly designed ASIC chip, improved MEMS
Semiconductor capacitive humidity sensing element and standard on-chip temperature sensing element. Its performance has been greatly improved, surpassing the previous generations
The reliability level of the sensor. The first-generation temperature and humidity sensor has been improved to make it more stable in harsh environments set.
Characteristic:
1. Module size: 16*11mm
2. Interface type: I2C
3. Working voltage: 1.8-6.0V
4. Interface size: 4*2.54mm pitch
5. Humidity accuracy: typical value ± 2%
6. Humidity resolution: 0.024%
7. Temperature accuracy: typical value ±0.3°C
8. Temperature resolution: typical value is 0.01°C
9. Working temperature: -40°C--85°C
The package includes:
1x digital temperature and humidity sensor
