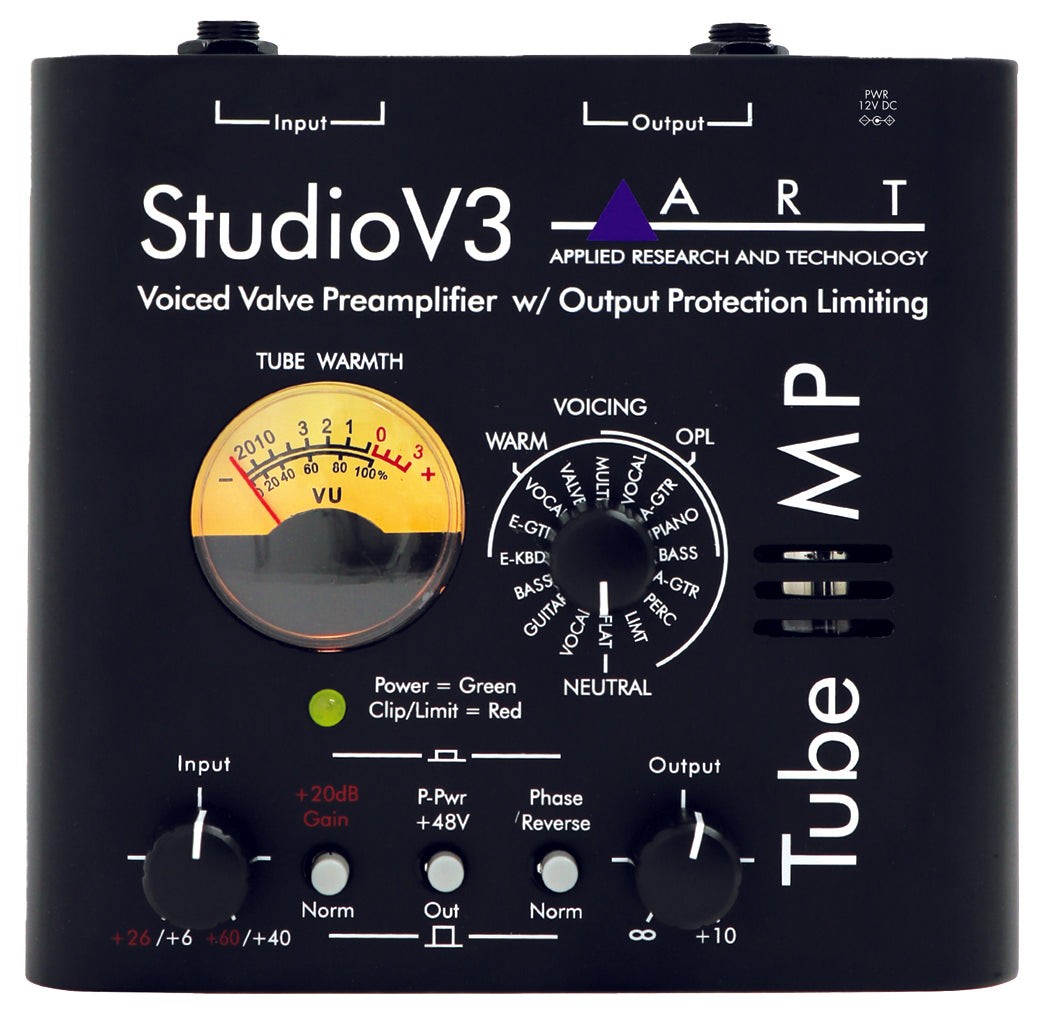

ART TUBEMPSTV3U Tube Preamp with V3 Presets
"I liked the confident sound of this little preamp, and the presets really do offer a useful choice of characters without getting silly. It's almost like having several different mics to choose from." - Sound on Sound
The Studio V3 offers all of the features of the original Tube MP with versatile onboard presets to easily dial in a great tone.
V3 stands for Variable Valve Voicing, and refers to the sixteen presets in three overlapping groups: Neutral, Warm, and OPL. Each has a precisely voiced EQ curve, Warm presets add tube saturation, and OPL presets engage Output Protection Limiting for dynamic control of loud signals and big transients.
Each preset has a suggested application, but they all have a unique character, so any could be an inspiring match for your performance. Theres also a Flat preset for the classic sound of the original Tube MP.
Like the original, the Tube MP Studio V3 has XLR and 1/4 connections with variable gain and switchable boost, phantom power, and phase reversal.
Fast and flexible, the Tube MP Studio V3 is a mic preamp and instrument DI designed for maximum tone with minimum tweaking.
General Features:
- 16 Preset Voicings
- 12AX7A Tube
- Up to 60 dB of Input Gain
- Switchable Boost, Phantom Power, and Phase Reverse
- Output Protection Limiting
- Analog VU Meter
- Clipping Indicator LED
- XLR and 1/4" Connections
Specifications:
| Inputs | XLR (Balanced), 1/4" TS |
| Outputs | XLR (Balanced), 1/4" TS |
| Input Impedance | 2 kΩ XLR, 840 kΩ 1/4" |
| Output Impedance | 600Ω XLR, 300Ω 1/4" |
| Maximum Input Level | +14 dBu XLR, +22 dBu 1/4" |
| Maximum Output Level | +14 dBu XLR, +22 dBu 1/4" |
| Maximum Gain | 50 dB - 60 dB |
| Frequency Response | 10 Hz - 30 kHz, +/- 0.5 dB |
| Total Harmonic Distortion | <0.1% (typical) |
| Equivalent Input Noise | -129 dBu to -105 dBu |
| CMRR | >75 dB (Typical @ 1 kHz) |
| Power Requirements | Input 100-240V AC~50/60Hz Output 12V DC @ ≥ 800mA |
| Dimensions | 5" x 5.5" x 2" (12.7 cm x 14 cm x 5.1 cm) |
| Weight | 1.5 lbs / 454 g |
**Specifications subject to change without notice
