New AC-1200 Series RGB Switch Panel now available!

We've made some big upgrades to the switch panel! AC-1200 series switch panel has 3 operating modes for you to choose from. Switch panel direct operation, as well as APP and remote control.The wireless remote control has a connection range of up to 165ft/50m.And one circuit control box can simultaneously pair with four wireless remote controllers.

★ Upgraded Functions:

✔ RGB Back light - Unlimited color options match dash lighting and vehicle

✔ 3 Mode Setting - Togglel/Momentary/Pulsed

✔ Bluetooth APP Control - Access to accessoriesno matter whether you are in the vehicle

✔ Wireless Remote Control - With a strong magnet, which can beadsorbed on the iron metal, which is very convenient to use (Wireless remote control includes batteries)

✔ Manual Backlit Off - Turn off the back light when it's daytime or when it's not necessary

✔ Group Setting - Set up a group via APP to control 2 or more lights at the same time

✔ DIY Switch Panel - 120pcs stickers/ 200 default icons/ phone album photos

Specification:

Voltage Input: DC 12-24V

Max Current: 100A

Rated Voltage: 12V 20A / 24V 10A

Max Power: 1200W/12V,2400W/24V

Waterproof Rating: IP65

Operating Temperature: -40°C ~105℃/-40℉~221℉

Features:

▶AC-1200 RGB Switch Panel

12-Gang one-sided outlet switch panel. It allows you to control up to 12 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.

3 control methods - Switch panel & Bluetooth APP&Remote Control, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.The wireless remote control has a connection range of up to 165ft/50m.

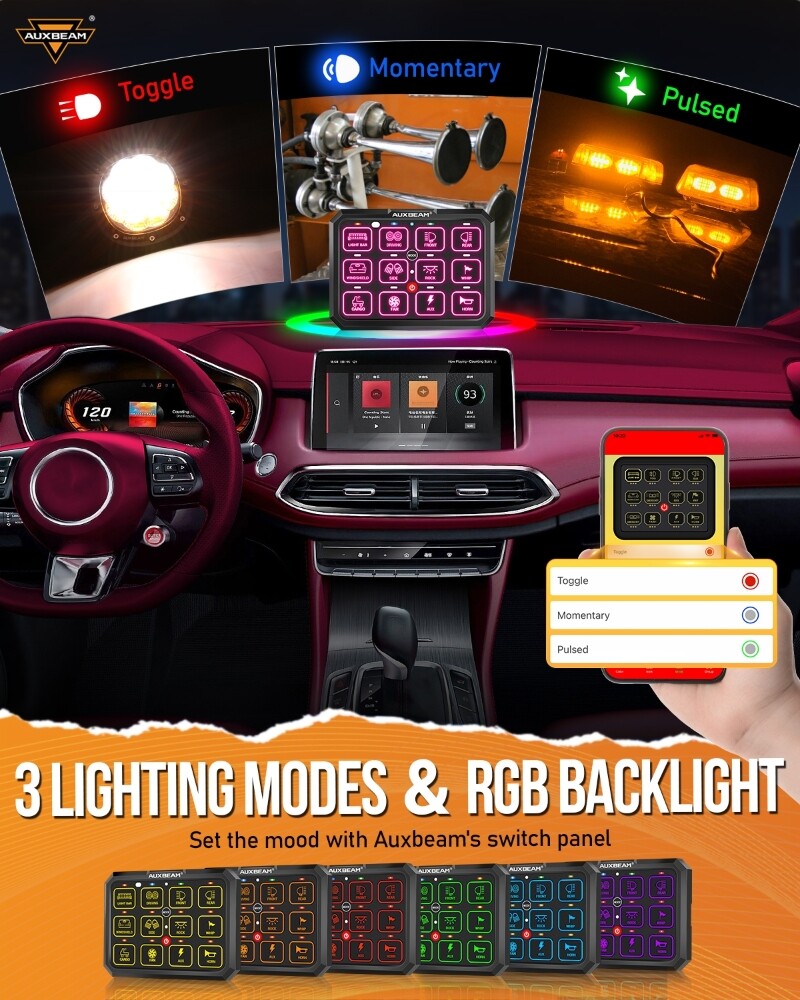

3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.

● RED-Toggle, Constant light mode (Great for things like fog lights or driving. )

● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.

● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.

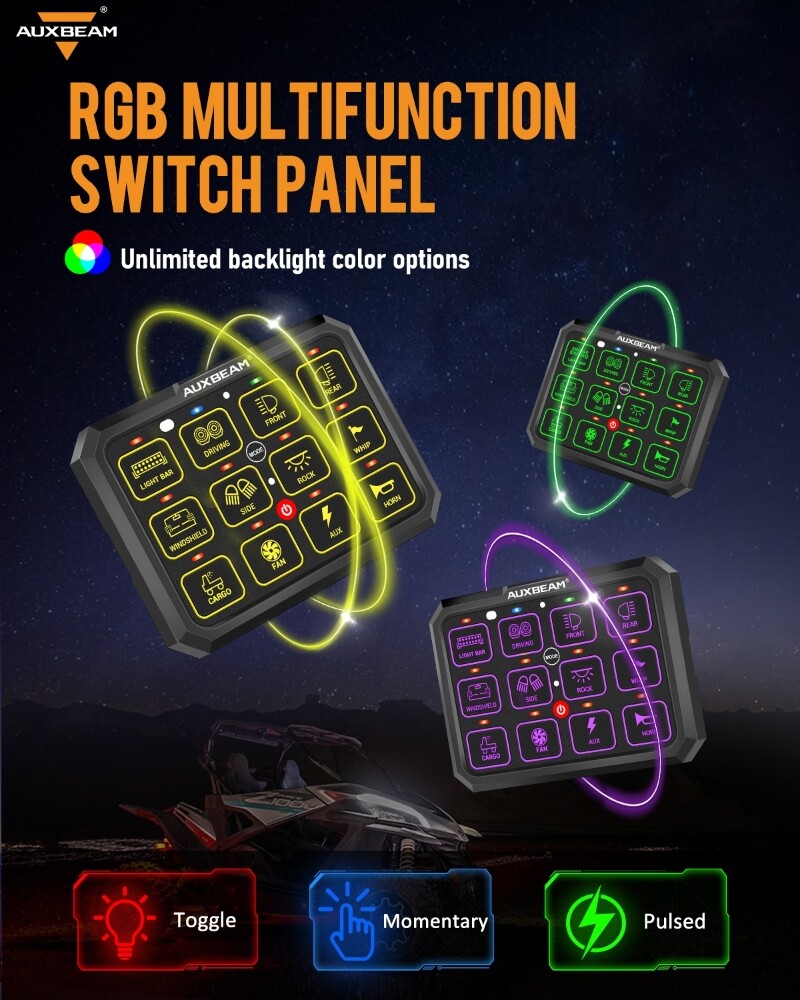

RGB back light color. Adjust back light color and brightness to match your vehicle.

Back light brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.

Assign each switch a logo (120 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.

DIY button icon on APP. 200 default icons or use your own photos from the phone album.

Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.

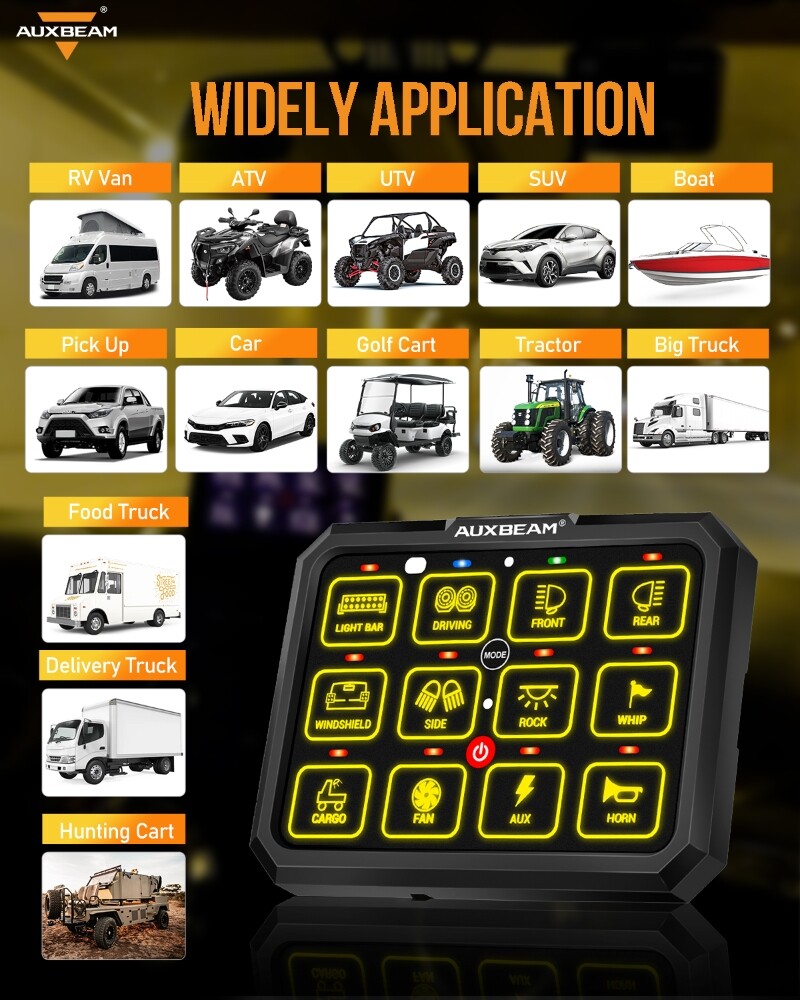

Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.

Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.

Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.

With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.

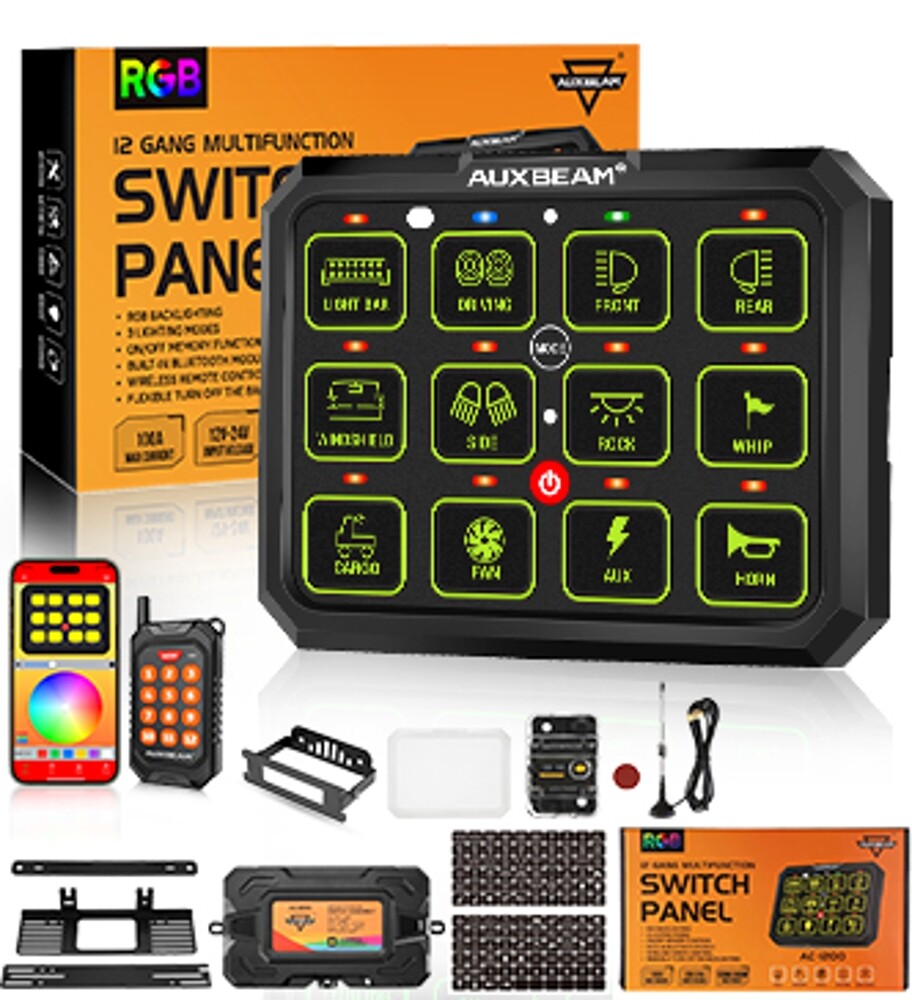

Package Included:

1 Set of 12 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)

Installation Instructions
