RB80 XL SERIES RGB switch panel is now available!
There are cases where a larger size might be an advantage and Auxbeam’s RA80 XL is the answer for those situations.
We provide a better operating experience for you to control the lights & device! With 5" larger panel & 1" buttons, the RA80 XL switch panel could be easier to use when moving in rough environments.
Flexibility to turn off the backlighting during the day or when it is not needed. It’s not limited to controlling the “ON/OFF” of the LED Lights or electrical devices. Enjoy RGB backlighting and change lighting modes to have fun programming!
★Upgraded Functions:

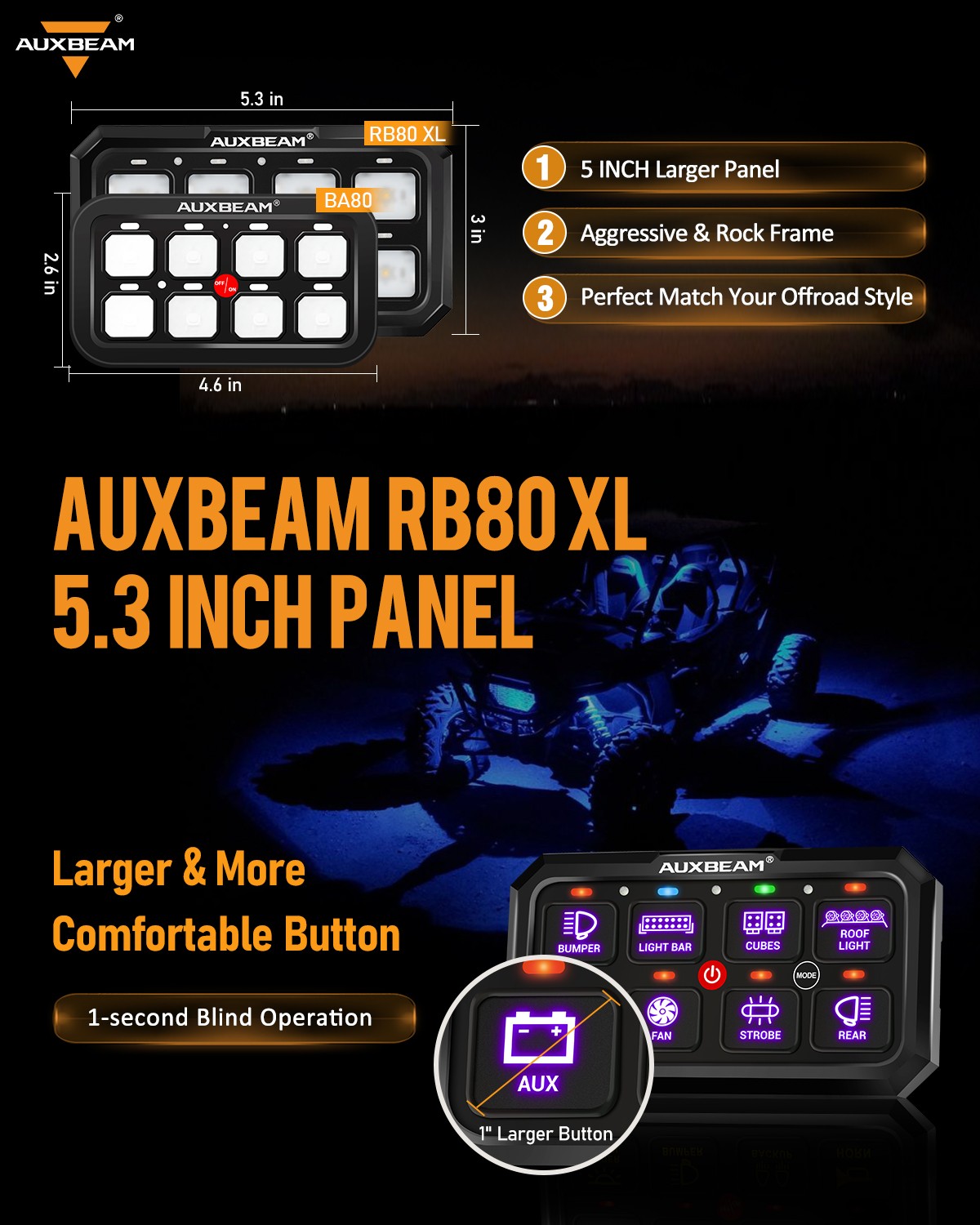

✔ XL size - 5 Inch panel & 1 Inch button, larger than the common model
✔ RGB backlighting - Unlimited color options match dash lighting and vehicle
✔ 3 mode setting - Toggle/ Momentary/ Pulsed
✔Manual backlit off - Turn off the backlighting when it's daytime or when it's not necessary
✔ 1'' Larger button - Upgraded 1 inch larger button, 1-second blind operation
✔ DIY switch panel - Use the provided 60pcs switch labels to indicate what’s connected to that switch.
✔ 10FT wiring harness - Extend from 9FT to 10FT
✔ Waterproof cover - Protect the switch panel from rain & snow weather or water
Specification:
Working voltage: DC 12-24V
Max current: 60A
Rated voltage: 12V 20A / 24V 10A
Operating at 12 Volts: max power rating of 720W
Operating at 24 Volts: max power rating of 1400W
Switch operation: On-Off
Operating temperature: -40°C - +105°C
Waterproof rating: IP65
Features:
▶RB80 XL RGB Switch Panel

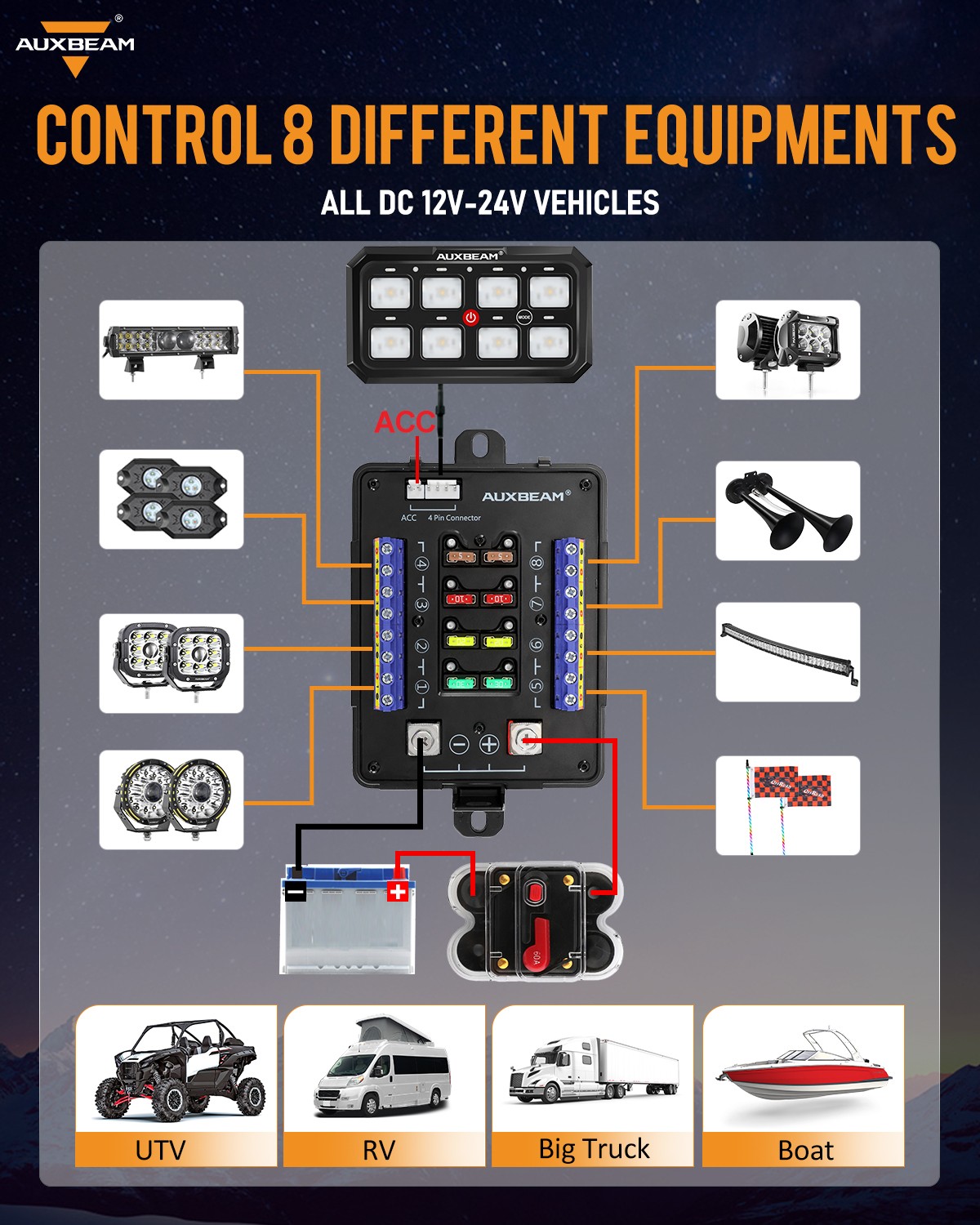

8-Gang two-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Meet all your electrical needs.
XL size. 5 Inch panel & 1 Inch button, larger than the common model. You can command all your vehicle accessories by the tap of your finger in a more easy and comfortable way.
3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes.
● RED-Toggle, Constant light mode (Great for things like fog lights or driving. )
● BLUE-Momentary, Press & hold the button to turn on, then release the button to turn off, just like pressing the horn button.
● GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
RGB background color. Adjust background color and brightness to match your vehicle.
Background color brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
Customize your own switch panel with 60 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
Waterproof IP65, high sensitivity, stability and strong anti-interference ability
Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
Package Included:

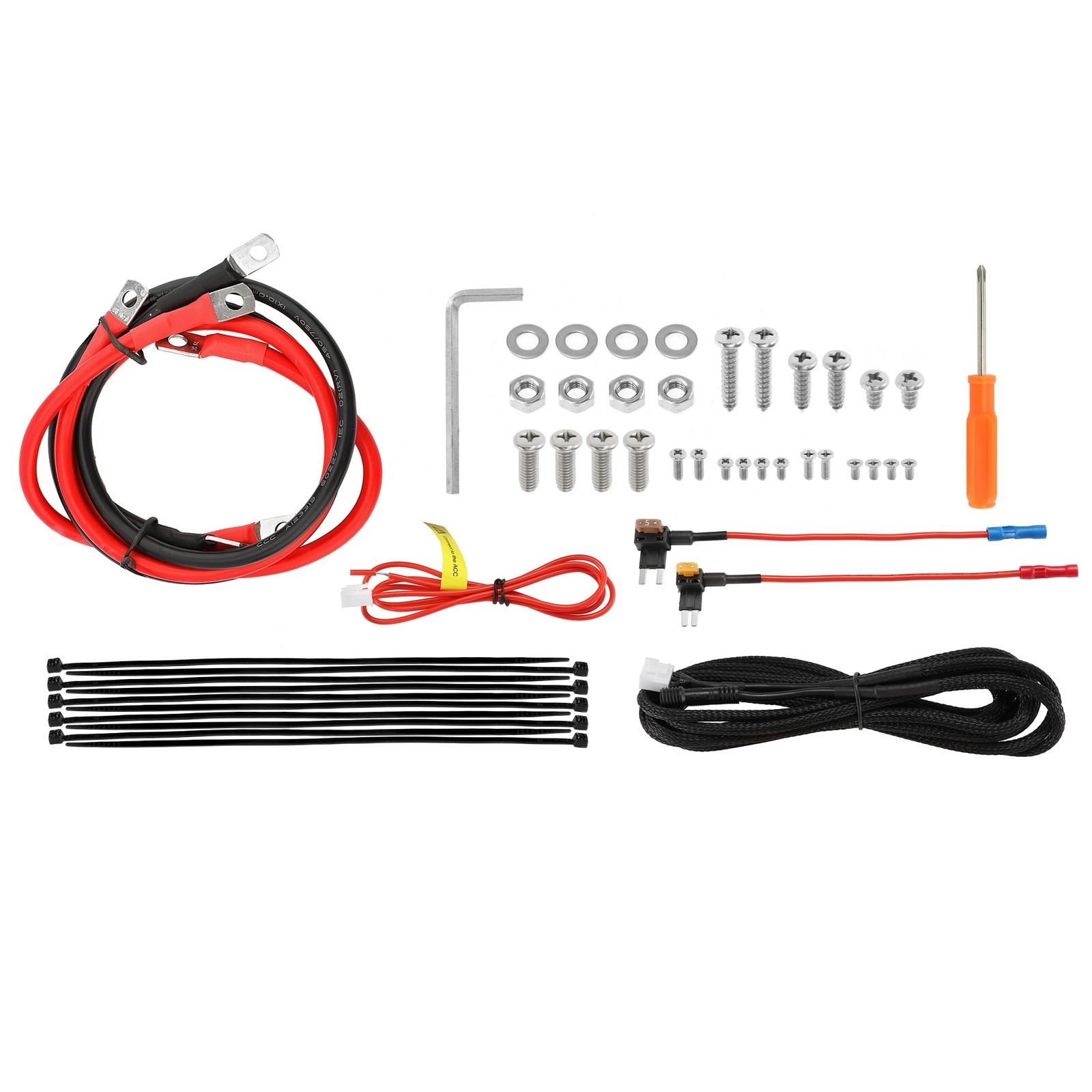

1 Set of RB80 XL Switch Panel (all necessary hardware and wiring harness is included)
Installation Instructions
